QianLi Super Cam Y 3D Infrared Thermal Imaging Camera for Motherboard Thermal Analysis & Detection
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.3% |
| 5 | NaN | -4.9% |
| 10 | NaN | -7.4% |
Product details
Description
QianLi Super Cam Y 3D Infrared Thermal Imaging Analyzing Camera for Motherboard Detected
Product Overview:
This professional motherboard testing device is designed to improve work efficiency and provide advanced maintenance. Say goodbye to dated and complicated motherboard testing methods with this cutting-edge tool.
Key Features:
- Professional Motherboard Inspection:** Adjusted lens for motherboard inspection and maintenance, 256 x192 resolution, 80~180mm range focal length.
- Electricity Leakage Quick Check: Quickly locate abnormal temperatures and troubleshoot defects in detail.
- Temperature Alarm: Receive alerts when temperatures exceed the set range, with a flashing red frame.
- Track Highest Temperature Point: Mark and track the highest temperature point on the screen.

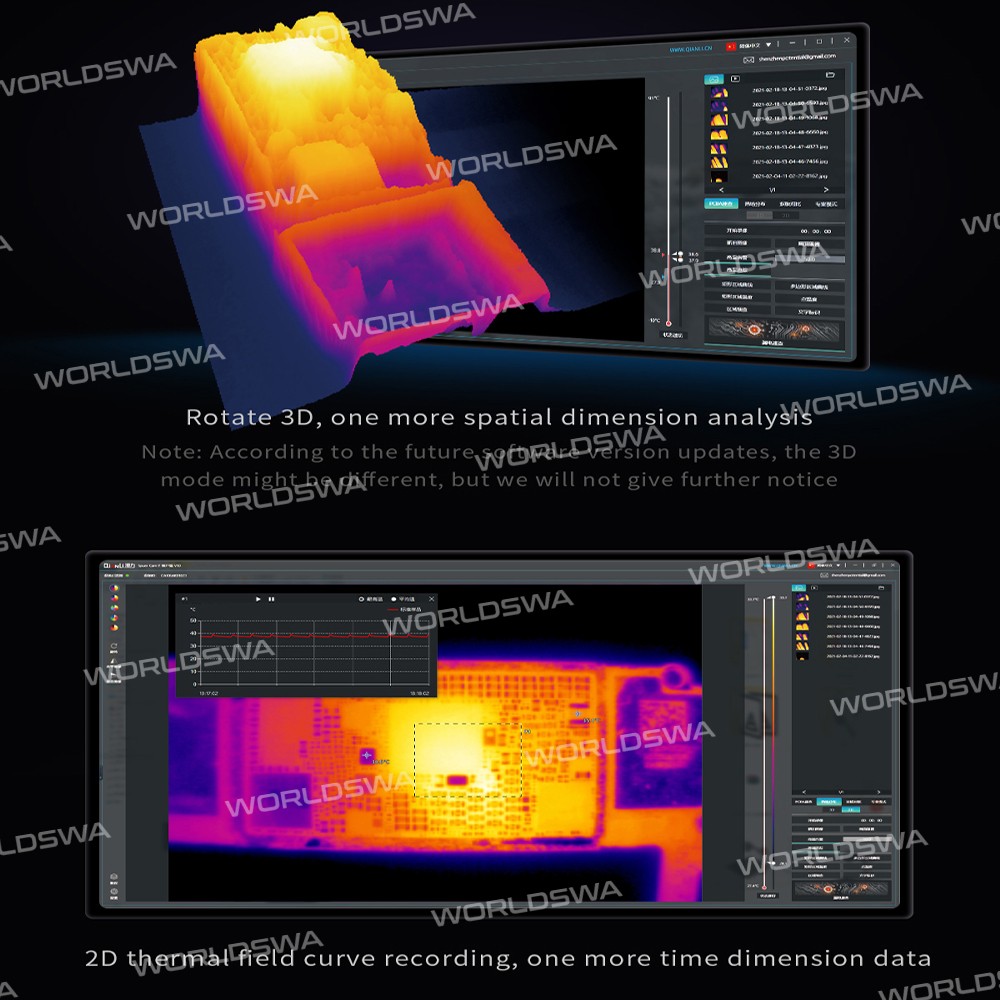

- 3D Thermal Analysis:** Rotate 3D for spatial dimension analysis, 2D thermal field curve recording, and time dimension data.
- Thermal Distribution Comparison: Compare and verify defects with regional temperature curve comparison records and overlay comparison.
- Color Palette Options: Switch between 5 different color palettes according to different applications.

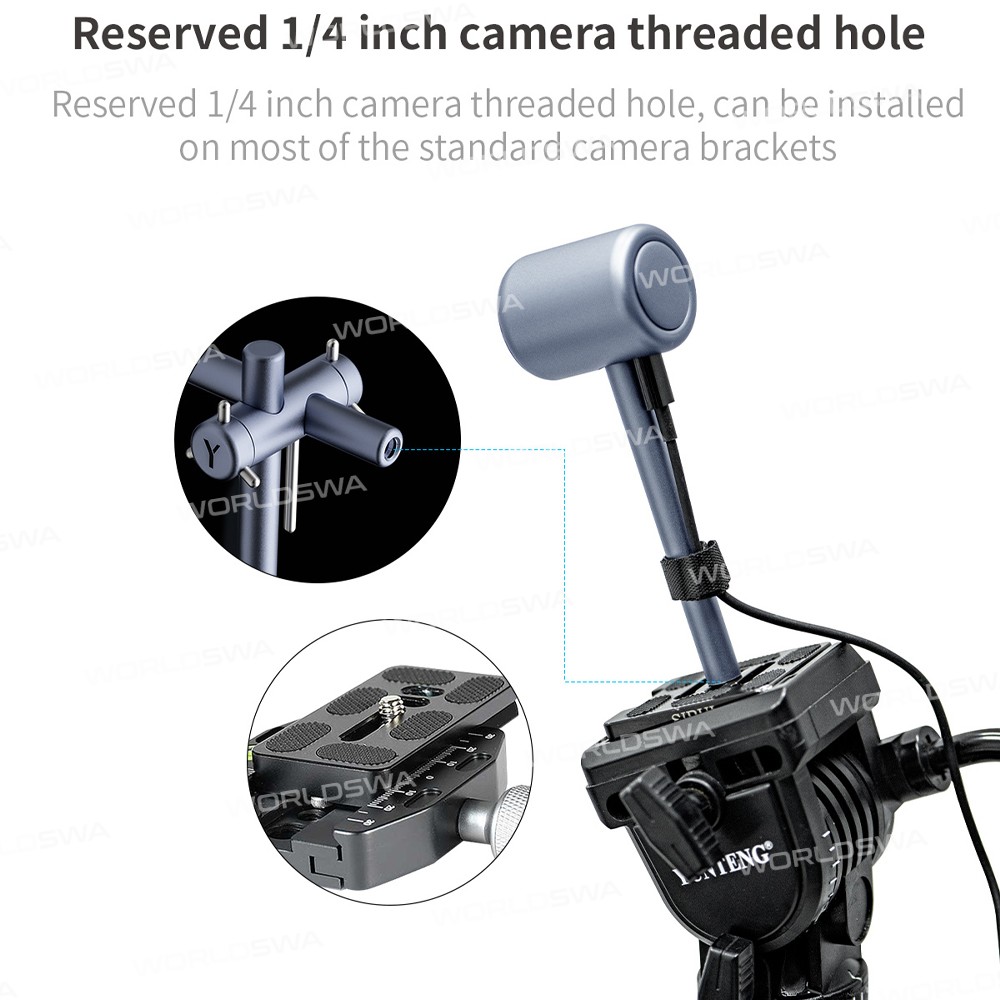

- Reserved Camera Threaded Hole: Install on most standard camera brackets with the 1/4 inch threaded hole.
Summary of Key Features:**
Professional motherboard testing device with advanced features for efficient inspection and maintenance.
Specification:
- Detector Type: Uncooled Vanadium Oxide Detector
- Resolution: 256×192
- Wavelength Range: 8~14um
- Camera Angle: 56°×42°
- Frame Frequency: 25Hz
- Bracket Size: 150mm×160mm×161.5mm
- Weight: 435g
- Installation: Removable Installation
- Input Voltage: 5V DC
- Power Consumption: <250mw
- Display Mode: Infrared Thermal Imaging
- Port Type: Type-C
- Image Storage Format: JPG(640×480)
- Video Storage Format: MP4
- Temperature Measurement Function: Full Frame Temperature Measurement
- Temperature Measurement Distance: 80~180mm
- Temperature Measurement Accuracy: ±5°C or ±5%
- Temperature Range: 0°C~120°C
- Storage Temperature Range: -15°C~60°C
- Humidity: Relative Temperature
Package Includes:
- 1 x Thermal Imaging Analyzing Camera
