Quick 3202 / 3205 90W / 150W Intelligent Digital Display Solder Station with Lead-free High-Frequency Soldering Iron Handle

Quick 3202/3205 90W/150W Intelligent High-Frequency Lead-free Digital Display Solder Station with Soldering iron Handle

Features:

• High-frequency eddy current heating, sensor front design.
• Adopts backlit LCD and dual temperature display design.
• Microcomputer control, rapid heating and returning speed, truly lead-free soldering.
• Built-in intelligent temperature compensation system, accurate and stable temperature.
• Digital temperature calibration, heating core plug-in design, more convenient maintenance.
• Plug-in soldering iron head makes grounding more reliable.
• Password lock temperature can be set and stored at three temperature points.
• The split design of heating element, sensor, and soldering iron head, low cost of consumables.
• Various choices of cleaning methods for soldering iron tips (any choice of cleaning sponges and metal filament balls)
• It takes 15S to heat up to 350 °, and it takes 2S to warm up
• Summary: Advanced features for precise temperature control and efficient soldering

Specifications:

• Power: 90W(Quick-3202)/150W(Quick-3205)
• Temperature range: 100 ° C ~ 500 ° C (max) (selected according to working mode)
• Temperature stability: + 2 ° C (no-load in still air)
• Ambient temperature: 40 ° C
• Tip resistance to the ground: <2Ω
• Tip to ground potential: <2 mV
• Dimension: 96 * 160 * 135mm
• Weight: about 1.4 kg
• Handle model: 901C(Quick-3202)/902C(Quick-3205)

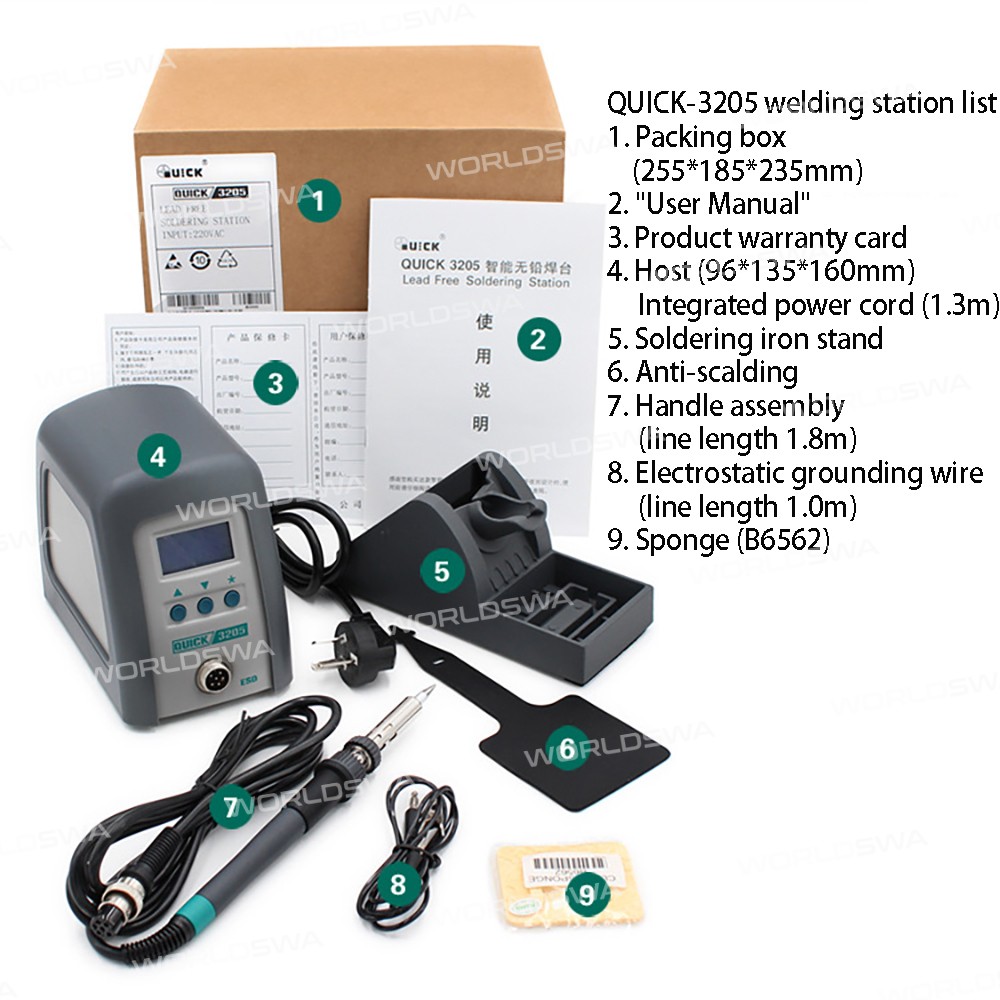

Package includes:

• 1 x Lead-free soldering station
• 1 x Soldering iron handle
• 1 x Handle bracket
• 1 x Product Manual
• 1 x Power cable
• 1 x Anti-scalding pad
• 1 x Ground wire
