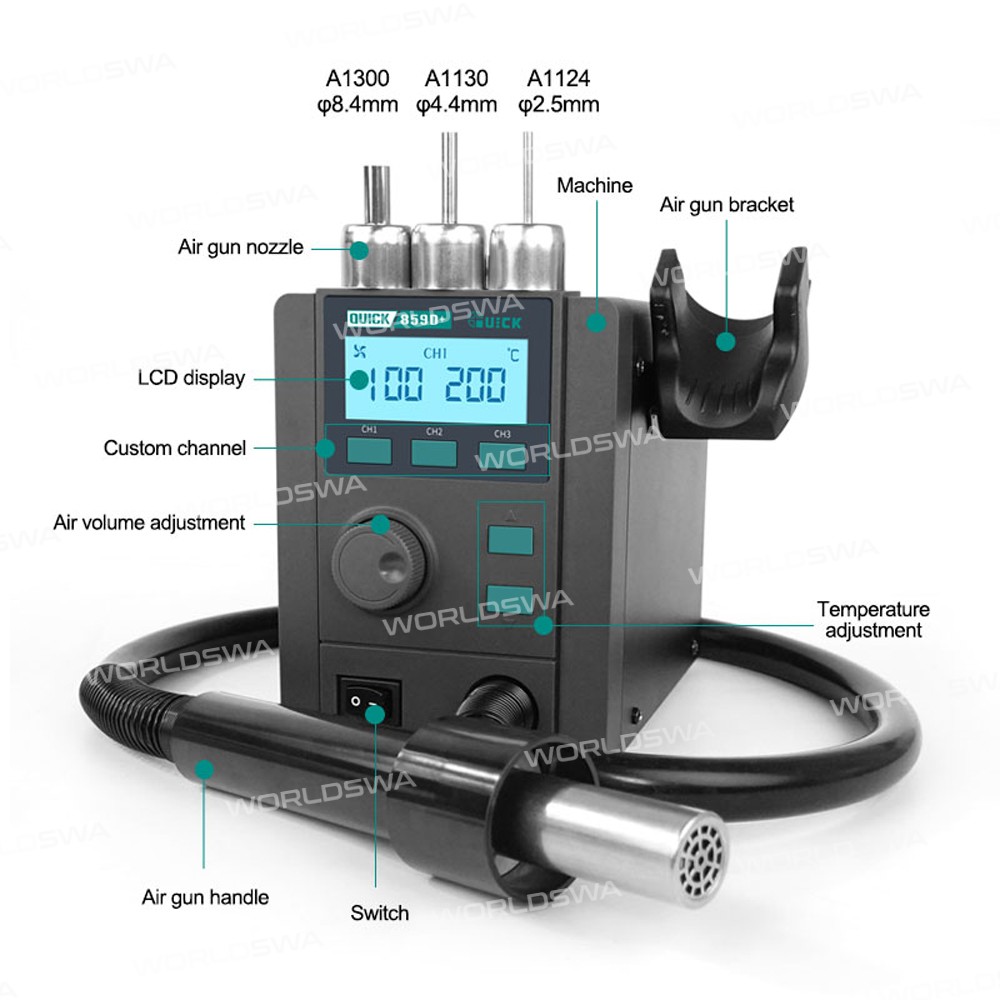

859D+ Quick Hot Air Gun Soldering Station for BGA SMD PCB IC Motherboard Maintenance

Quick 859D+ Hot Air Gun Soldering Station for Motherboard BGA SMD PCB IC Maintenance

Features:

• **Precise Temperature Control**: Auto sleep, intelligent working channel, intelligent digital display, and automatic cold air design.
• **Wide Application**: Can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboards, etc.
• **Three-Channel Selection**: Support CH1/CH2/CH3 three-channel selection, click CH1/CH2/CH3 to select channel 1/channel 2/channel 3 respectively, long-press the channel button, you can store the current channel air volume and temperature value.
• **Stable and Rapid Heating**: Ceramic skeleton, stable and rapid heating.
• **Advanced Air Gun Design**: Air gun dormancy, cold air protection, longer heating core life, built-in brushless vortex fan, soft rotating wind, uniform wind, adjustable airflow, large range, low noise, precise control.
• **Convenient Operation**: Magnetically controlled switch control, convenient real-time operation, the real handle is placed on the handle rack to sleep immediately, with automatic sleep function, the parameters can be set in the sleep state.
• **Automatic Sleep Function**: The temperature drops immediately when the handle is placed on the air gun holder. The air gun automatically stops working immediately and is in standby hibernation.

Specification:

• Brand: Quick
• Product Name: Hot Air Desoldering Station
• Model: Quick 859D+
• Display Type: LCD
• Power: 580W
• Operating Voltage: 110V/220V
• Temperature: 100°℃-500℃ Range
• Air Volume: 1-100 Level Range
• Air Volume: 40L/min(Max)
• Product Size: 110*180*151mm
• Package Size: 330*180*230mm
• Net Weight: About 1.6kg
• Gross Weight: About 2.0kg

Package includes:

• 1 x Main Unit
• 1 x Hot Air Gun Handle
• 1 x Air Gun Holder
• 3 x Air Nozzle
• 1 x Power Cord
