Quick 8686D+ 2-in-1 Lead-free Soldering Iron & Hot Air Gun Rework Station with Smart Digital Display

Quick 8686D+ 2-in-1 Soldering Iron Hot Air Gun Lead-free Smart Digital Display Rework Station

Features:

• **Precise Temperature Control**: Automatic sleep, encoder step-less speed regulation, intelligent digital display, password protection, and rotating soft wind.
• Suitable for the desoldering of a variety of packaged components, suitable for maintenance/R&D electronic engineers use.
• Using brushless vortex fan, super high power 1000W, adjustable rotating airflow, large range, can be adapted to various purposes.
• Can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboards, etc.

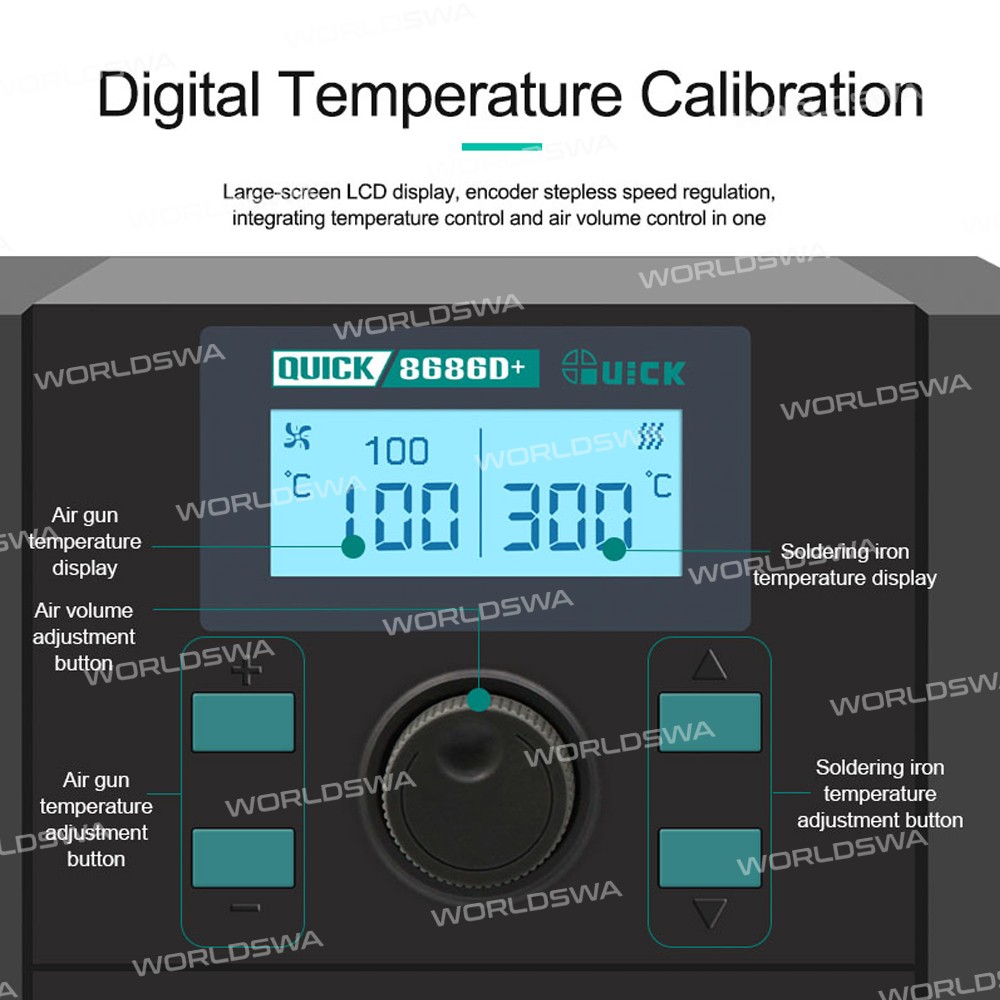

• Large-screen LCD, encoder step-less speed regulation, integrating temperature control and air volume control in one.
• Ceramic skeleton, stable and rapid heating.
• Support CH1/CH2/CH3 three-channel selection, and you can set the air volume/temperature of each channel, which is convenient for the next use of one key.
• Soldering iron tip:
  • The inner layer is made of pure copper, which heats up quickly, and the surface coating transfers heat quickly and has a long life.
  • Better heat dissipation performance, heating core, and iron tip have a longer service life.
  • Handle made of high-quality material, high-temperature resistant knob, adjustable threaded non-slip.
  • Magnetically controlled switch control, convenient real-time operation, the handle is placed on the handle rack to sleep immediately, with automatic sleep function, the parameters can be set in the sleep state.

Specification:

• Brand: Quick
• Product name: Maintenance system
• Model: Quick 8686D+
• Display Type: LCD
• Power: 1350W (70W soldering station)
• Operating voltage: 110V/220V
• Soldering station temperature: 100℃—480℃
• Air gun temperature: 100℃-500℃
• Air volume: 50L/min (Max)
• Temperature stability: ±5℃/(soldering station) ±2℃(still air, no load)
• Ambient temperature: 0-40℃
• Potential of welding tip to the ground: <2mV
• Resistance of welding tip to the ground: <2Ω
• Product size: 180*210*131mm
• Package size: 385*330*225mm
• Net weight: About 3.3kg
• Gross weight: About 3.8kg

Package includes:

• 1 x Main unit
• 1 x Hot air gun handle
• 1 x Soldering iron tip
• 1 x Soldering iron tip handle
• 1 x Soldering iron tip handle holder
• 1 x Power cord
• 1 x Air gun holder
• 3 x Air nozzle
