Raspberry Pi RP2040 Pico Dual-Core Development Board - Micro Python Supported

Raspberry Pi RP2040 Dual-Core Pico Development Board Supports Micro Python

Overview

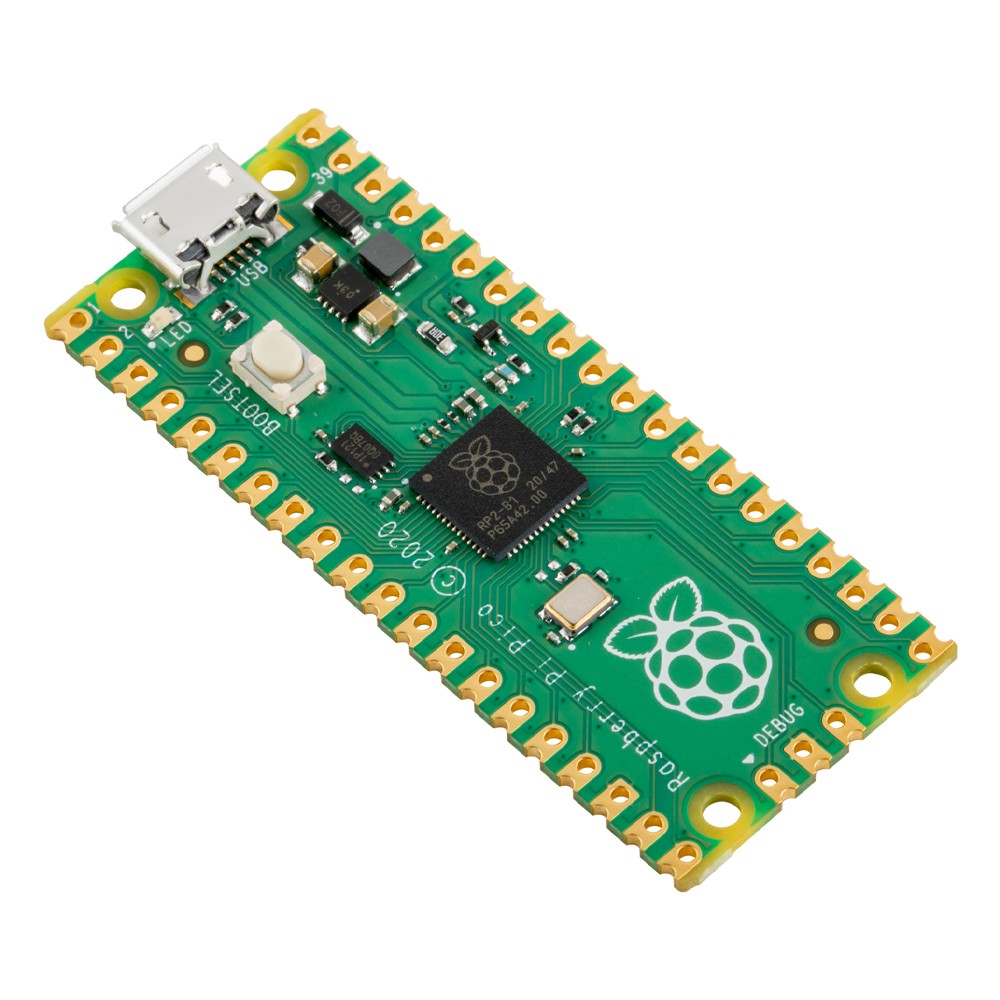

The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip, designed to be a low-cost, high-performance microcontroller board with flexible digital interfaces.

Features:

• **Dual-Core Performance**: Two ARM Cortex-M0+ cores running up to 133MHz; 256KB RAM; 30 GPIO pins, and a broad range of interfacing options.
• Rich and complete software support and community resources, including a complete Raspberry Pi official C/C++ SDK, Micropython SDK.
• Flexible design: can be used with either soldered 0.1'' pin-headers or as a surface-mountable 'module'.
• SMT pads underneath the USB connector and BOOTSEL button allow these signals to be accessed if used as a reflow soldered SMT module.

Specification:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of onboard Flash memory
• The castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

What's in the Box:

• 1 x Development Board
