Raspberry Pi PICO RP2040-Zero Microcontroller Development Board

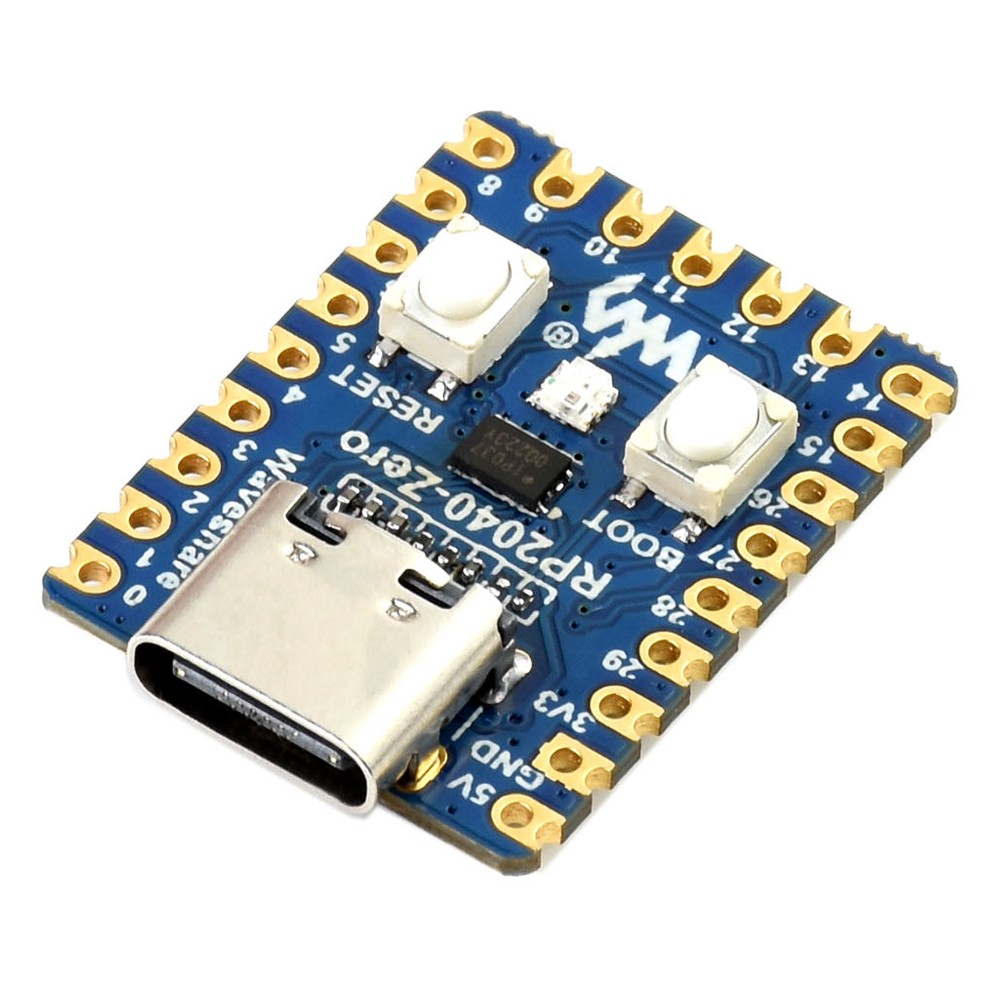

Raspberry Pi RP2040-Zero Microcontroller PICO Development Board

Overview

The Raspberry Pi RP2040-Zero is a microcontroller development board designed by Raspberry Pi in the United Kingdom. It features a powerful dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz, and 264KB of SRAM, and 2MB of onboard Flash memory.

Key Features:

• **Dual-Core Performance**: Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of onboard Flash memory
• **Easy Connectivity**: USB-C connector, keeps it up to date, easier to use
• The castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

What's Included:

• 1 x Board
• 1 x Pin
