Relife TB-07 Mobile Phone Tail Plug Test Board for iPhone / Android Non-Remove

Relife TB-07 Non-Remove Mobile Phone Tail Plug Test Board for iPhone / Android

Product Overview

This test board is designed for repairing mobile phones with Type-C and Lightning interfaces that are not charging. It's a 2-in-1 design that allows for quick and easy testing and detection of fault points without the need to disassemble the phone.

Features:

• Suitable for repairing Type-C and Lightning interface mobile phones with not charging fault detection function and quickly finding the test position of DP DM CC of the motherboard.

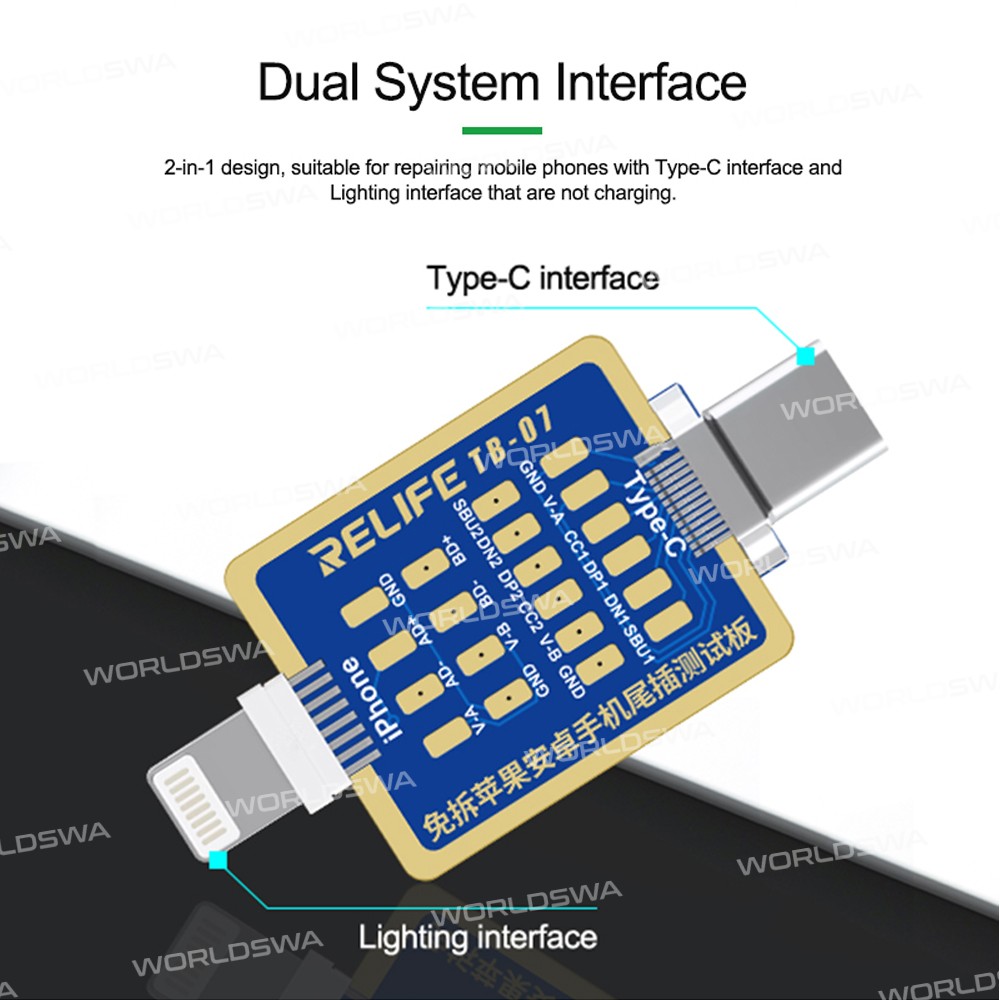

• Dual system interface, quickly locate fault points, no need to disassemble the machine for testing, and fast charge detection.
• **Summary: 2-in-1 design for Type-C and Lightning interfaces, suitable for repairing mobile phones with not charging faults.**
• Repair mobile phones that do not charge faults, detect single-side charging problems, quick repair with reference point bitmap.
• Suitable for repair of all type-c and lightning interfaces, the phone does not charge fault detection function as well as quickly finds the motherboard DP DM CC test point, very convenient for repairing the fault.
• Plug in the corresponding tail jack and set the multimeter to the diode Gear, red pen contact corresponding to the tail plug detection GND and black pen, you can measure the corresponding test point of the tail plug detection.
• The operation method is the same as the lightning interface test, which is simple and convenient for testing, convenient, double work efficiency.

Package Includes:

• 1 x Test Board
