Relife TB-09 Type-C & Lightning Charging Port Tester for iPhone and Android Phones

Relife TB-09 Type-C & Lightning Charging Port Tester for iPhone and Android Phones

Features:

• TB-09 Type-C & Lightning charging port tester, internal battery, ultra-long standby, intelligent automatic detection, with HD display

• Support iPhone and Android models, Type-C / Lightning device detection for various brands of mobile phones and computers

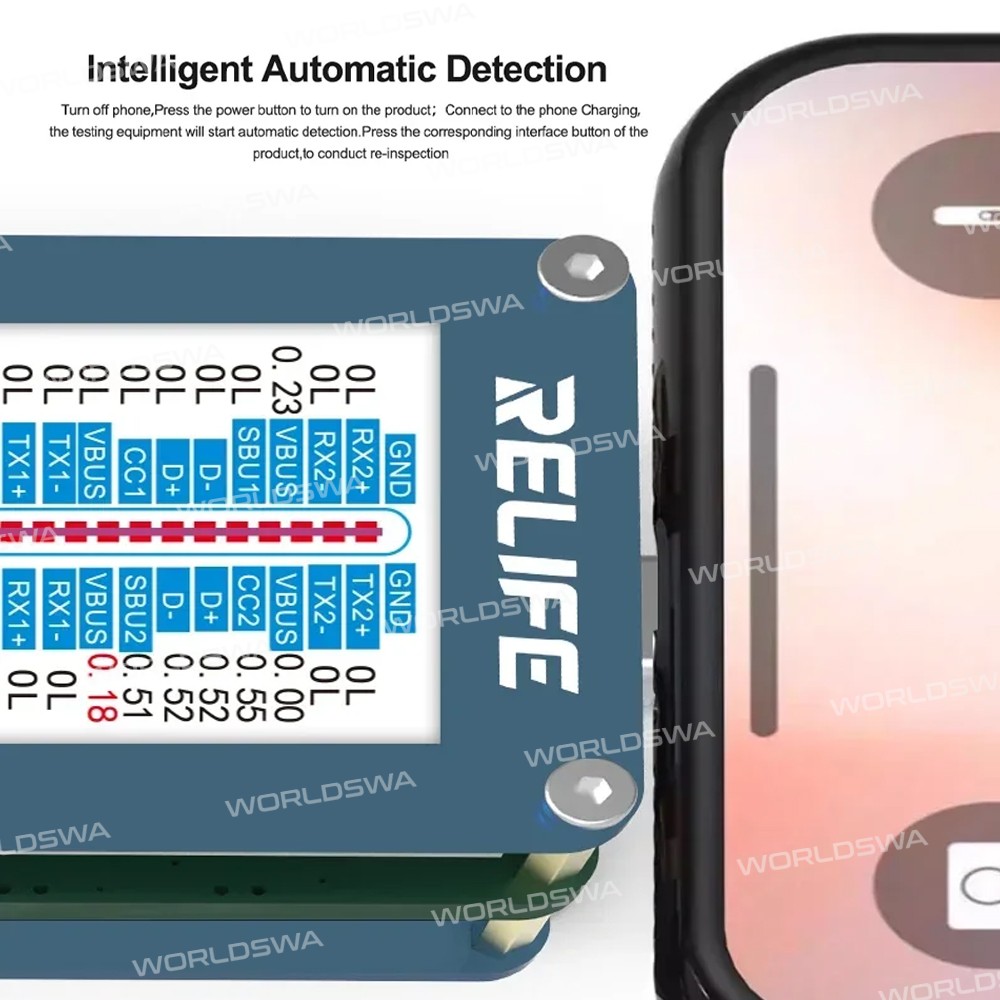

• Intelligent automatic detection: Turn off the phone, and press the power button to turn on the product; Connect to the phone charging, and the testing equipment will start automatic detection. Press the corresponding interface button of the product, to conduct reinspection

• Automatically Lock Charging Fault Point: The tester can automatically read the diode characteristic value corresponding to the USB connection, and then diagnose and locate the fault problem of the USB interface based on the value

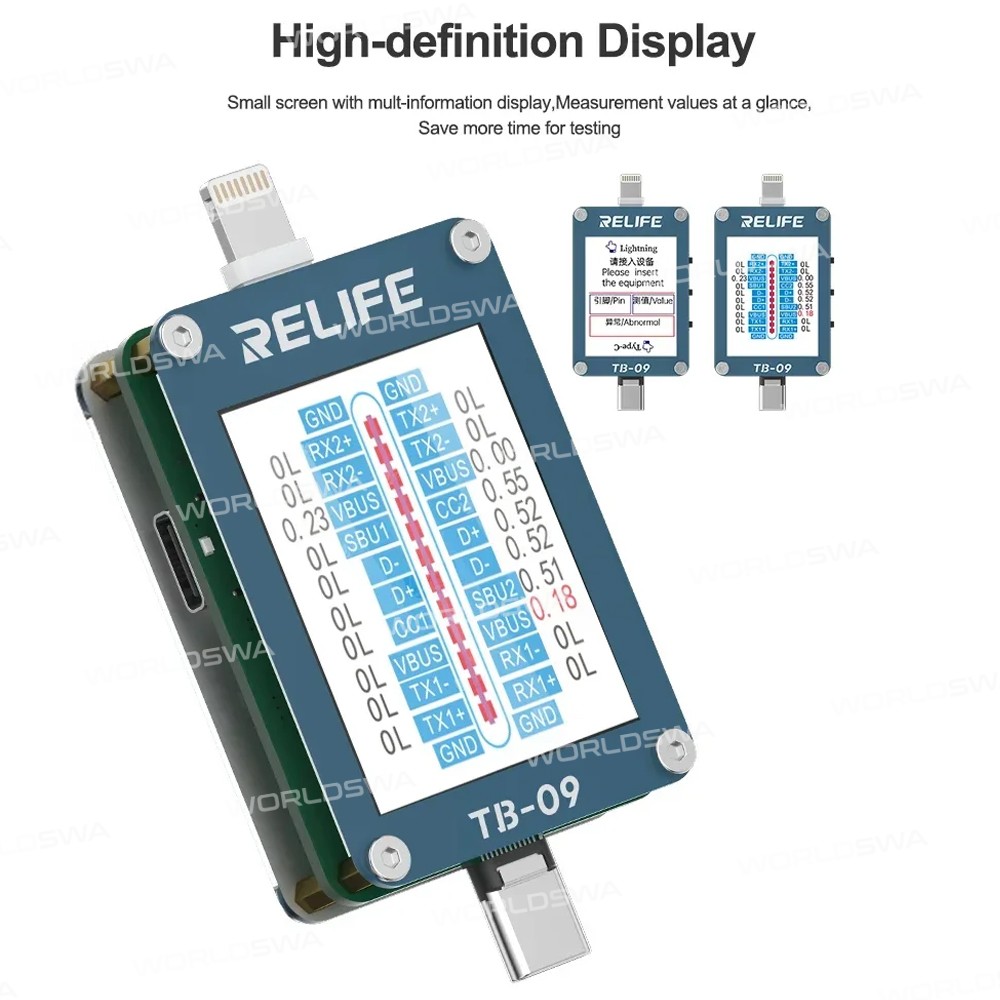

• High-definition Display: Small screen with multi-information display, measurement values at a glance, save more time for testing

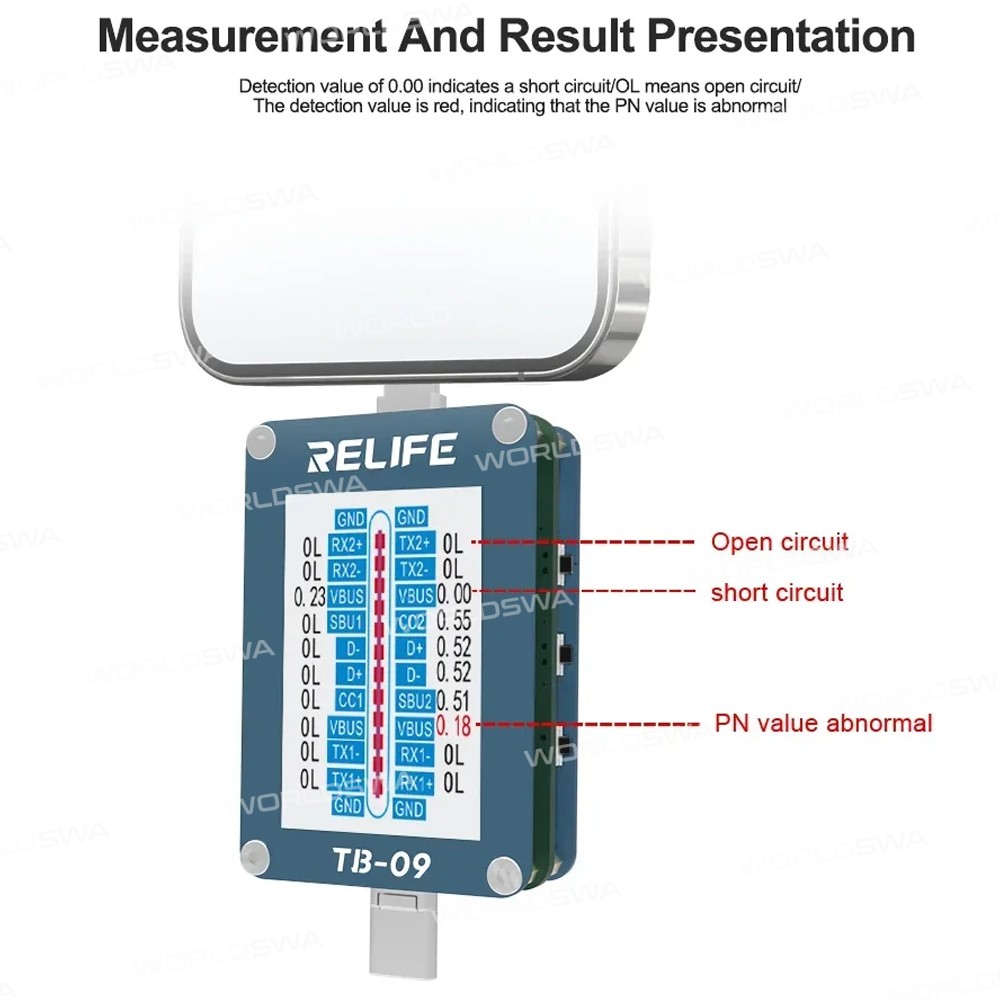

• Measurement And Result Presentation: A detection value of 0.00 indicates a short circuit/OL means an open circuit/The detection value is red, indicating that the PN value is abnormal

Specification:

• Brand: RELIFE
• Product name: Inteligence Charging Port Tester
• Model: TB-09
• Net weight: ≈25g

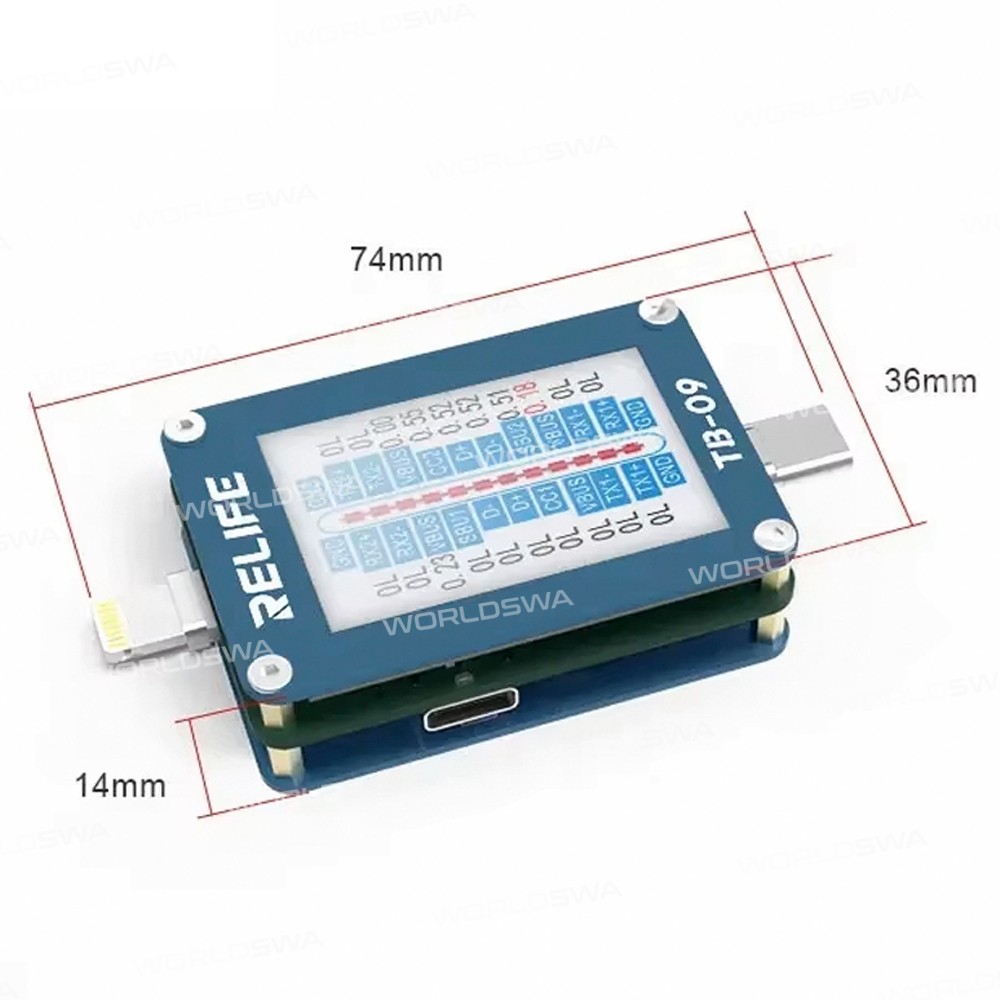

• Product Size: 74*36*14mm
• Package Size: 96*56*19mm
• Resolution: 2.99 characters(3.5 digits)
• PN junction measurement range: 0.00-2.99
• Charging voltage: 5V
• Current: 300mA
• Battery capacity: 250mA
• Screen size: 1.77 inches

Package includes:

• 1 x Charging Port Tester
