Relife XA3 Pro: Multi-function Type-C & USB Intelligent Detector, Professional Grade USB

Relife XA3 Pro Multi-function Type-C & USB Professional Grade USB Intelligent Detector

Overview

This XA3 Pro USB intelligent detector is a professional-grade tool that automatically identifies and analyzes various fast charging protocols, providing real-time monitoring and detection of voltage, current, and power during charging.

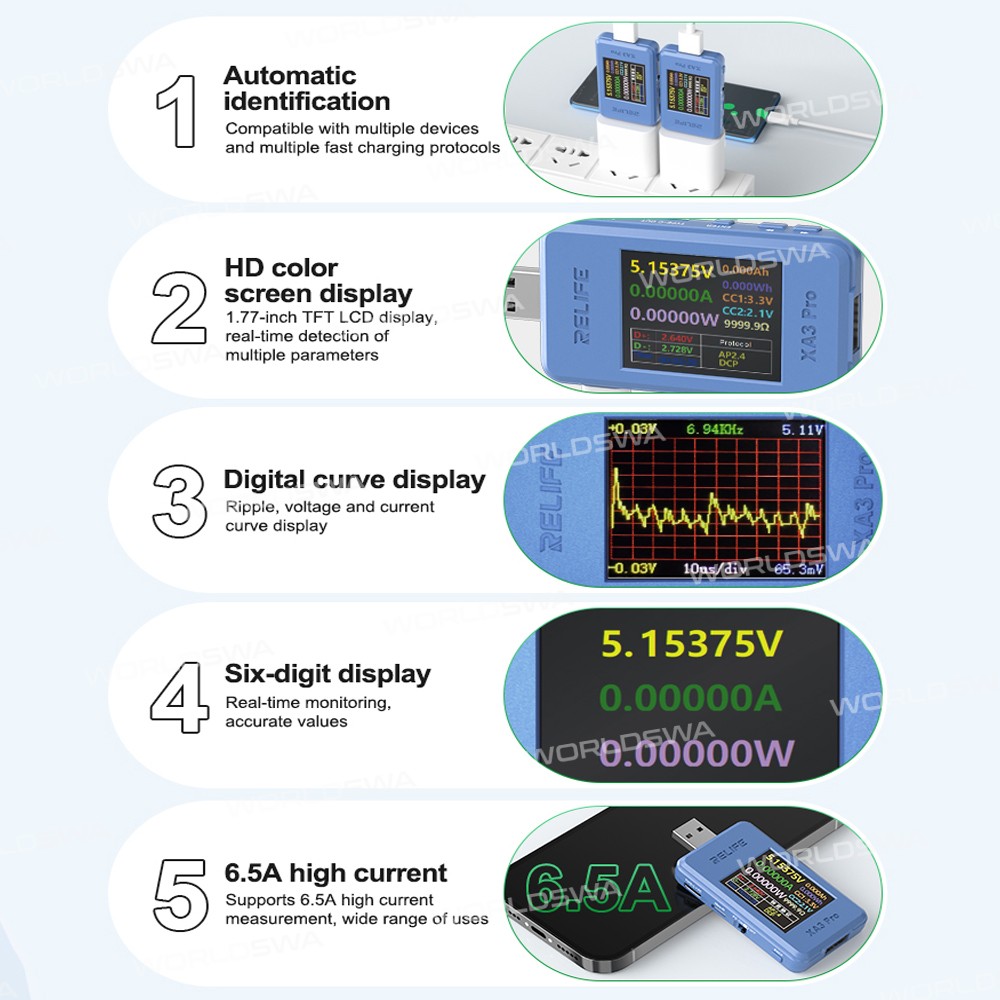

Key Features:

• **Automatic Identification**: Supports multiple fast charging protocols, including PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP.
• **Real-time Monitoring**: 6-digit display with high-precision maximum resolution of 0.00001, monitoring subtle changes in voltage, current, and power during charging.
• **High-Current Measurement**: Supports 6.5A high current measurement, easily testing various high current detection data.
• **Curve Display**: Ripple voltage and current curve display, equipped with a 1.77-inch high-definition display.
• **Multi-Device Support**: Tests all kinds of USB/Type-C digital devices, including chargers, laptops, mobile phones, and more.

Summary:

This professional-grade USB intelligent detector provides real-time monitoring and detection of voltage, current, and power during charging, supporting multiple fast charging protocols and high-current measurement.

Specification:

• Brand: Relife
• Product name: USB smart tester
• Model: XA3 Pro
• Net weight: 27.5g
• Product size: 82*42.8*12.3mm
• Packing size: 66.5*112.5*19mm
• Voltage range: 4~24V
• Current range: 0~6.5A
• Power range: 0~156W
• D+/D-voltage range: 0~3.3V
• Capacity range: 0~9999.99Ah
• Power consumption range: 0~ 9999.99Wh
• Cable internal resistance range: 0-9999.99Ω
• Resolution: 0.00001(V/A/W)
• Sampling rate: 3.2Msps
• Display: 1.77-inch TFT LCD

Package includes:

• 1 x USB Intelligent Detector
