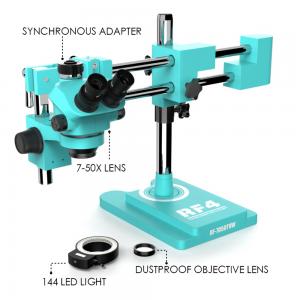

RF4 High-definition Binocular Stereo Continuous Zoom Microscope for Industrial PCB Repair

RF4 High-definition Binocular Stereo Continuous Zoom Industrial Microscope for PCB Repair

Product Features:

• Magnification Options:
  • RF7050TV: 7X to 50X
  • RF6565TV: 6.5X to 65X
  • RF7050TVW: 7X to 50X
  • RF6565TVW: 6.5X to 65X
• Head: 45-degree inclined 360-degree swiveling trinocular
• Eyepiece: WF10X/22MM
• Barlow Lens: 0.5X, 0.7X, and 2.0X (optional)
• Objective: 0.7-5.0X (RF7050TV and RF7050TVW), 0.65-6.5X (RF6565TV and RF6565TVW)
• Camera Connector: 1/2CTV
• Monitor and Eyepiece: Synchronous zoom
• Camera: Different models optional
• Boom Stand:
  • RF7050TV and RF6565TV: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate
  • RF7050TVW and RF6565TVW: 51cm double-arm (overall length: 76cm), 41cm high pillar, 200mm*245mm solid cast steel base
• Accessories:
  • 144 adjustable LED light
  • Dustproof Lens

0.5X CTV Features:

• Material: All metal, with aluminum alloy (black part) and copper chrome-plated bayonet (silver part)
• Adapter Ring: Can use LCD to focus, with manual focus method
• Transparent Mirror: Helps achieve synchronous zooming with microscope display and other display
• Weight: 0.1kg

Package Includes:

• 1 x Trinocular microscope (Magnification optional)
• 1 x Dust mirror
• 1 x Focus bracket
• 1 x Support bar
• 1 x 144LED Ring Light
• 1 x 0.5X CTV connector
• 1 x Double arm bar (optional)
• 1 x Base (optional)

Summary:

The RF4 High-definition Binocular Stereo Continuous Zoom Industrial Microscope is a versatile tool for PCB repair, offering a range of magnification options, a 45-degree inclined 360-degree swiveling trinocular head, and a variety of accessories. With its high-quality construction and adjustable features, this microscope is ideal for a wide range of applications.
