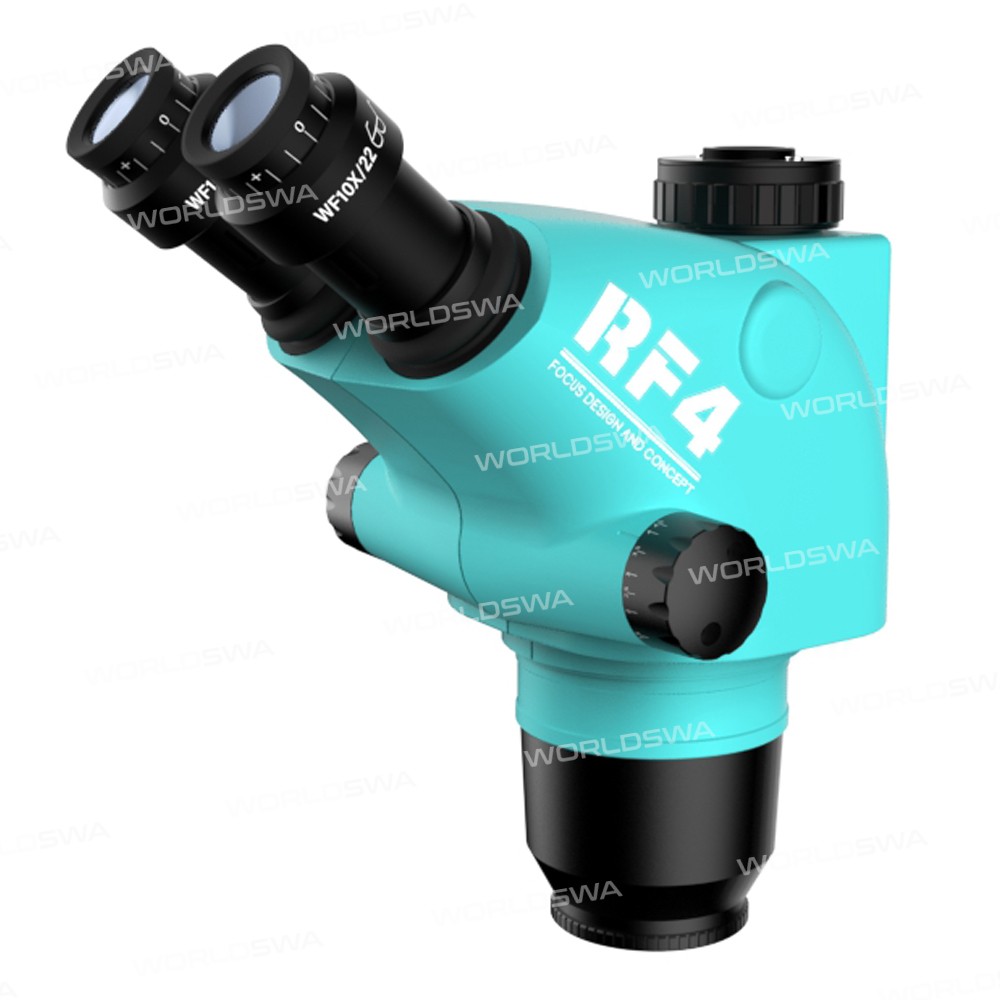

RF4 RF-6565TVP Trinocular Stereo Zoom Microscope, 6.5X-65X, with Big Aluminum Alloy Base

RF4 RF-6565TVP 6.5X-65X Trinocular Stereo Zoom Microscope with Big Aluminum Alloy Base

Overview

This trinocular stereo zoom microscope offers continuous zoom magnification from 6.5X to 65X, making it ideal for a wide range of applications. The 45-degree inclined 360-degree swiveling trinocular head provides comfortable observation and easy sharing of the microscope with others.

Specifications

• Magnification: Continuous zoom 6.5X to 65X
• Head: 45-degree inclined 360-degree swiveling trinocular
• Eyepiece: WF10X/22MM
• Objective: 0.65-6.5X
• Camera connector: 1/2 CTV
• Base size: 380*260mm
• Accessories: 144 adjustable LED lights & dust proof Lens

LED Ring Light

• Input: AC 100~240V
• Output: DC 12V
• Max output: 4.5W-6W
• LED: 144 LEDs
• Illumination: Over 30000-35000Lux
• Color Temperature: 6000-7000K
• Light color: Black
• Inside diameter: 60mm
• Package: 144-LED Lamp Ring

Support Parameters

• Column aperture: Φ32mm
• Lens aperture: Φ76mm
• Center distance: 155mm
• Lifting range: 50mm

The Base Parameters

• Column height: 240mm
• Diameter: φ32mm
• Base: 380*260mm

10X/22 Wide-angle Eyepieces

• Magnification: 10X
• Wide Field Of View: 22mm
• Matching size: 30mm

0.5X CTV

• Material: All metal, with black aluminum alloy and silver copper chrome-plated bayonet
• Adapter ring: Can use LCD to focus, manual focus
• Adapter features: Transparent mirror inside, enables synchronous zooming with microscope display and other displays

Package Includes

• 1 x Microscope
• 1 x Column
• 1 x Base
• 1 x Synchronous Adapter
• 1 x Ring Light
• 1 x Dustproof Lens

**Key Features:**

**Continuous zoom magnification from 6.5X to 65X**

**45-degree inclined 360-degree swiveling trinocular head**

**144 adjustable LED lights for optimal illumination**

**Dust proof Lens for clear observation**

**Big aluminum alloy base for stability**
