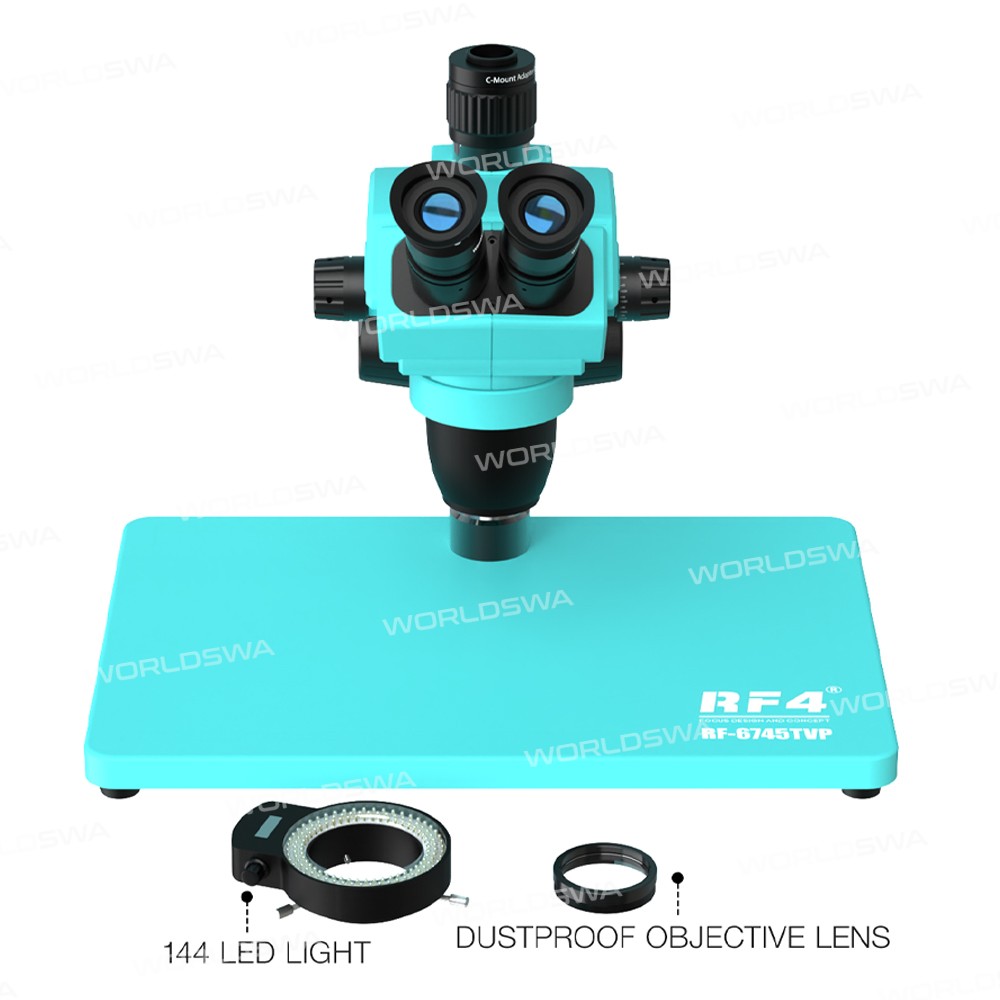

RF4 RF6745TVP 6.7-45X Synchronous Zoom Trinocular Stereo Microscope, Aluminum Alloy Big Base

RF4 RF6745TVP 6.7-45X Synchronous Zoom Trinocular Stereo Microscope with Aluminum Alloy Big Base

Product Overview

This RF4 RF6745TVP microscope offers continuous zoom magnification from 6.7X to 45X, making it ideal for a wide range of applications. The 45-degree inclined trinocular head provides comfortable viewing and the 0.67-4.5X objective lens ensures high-quality images.

Key Features:

• Magnification:** **Continuous zoom 6.7X to 45X
• Head: 45-degree inclined 360-degree swiveling trinocular
• Eyepiece: WF10X/22MM adjustable
• Objective: 0.67-4.5X
• Zoom Knob: Metal knob
• Camera connector: 0.5X CTV (Monitor and eyepiece Synchronous zoom)
• **Summary:** **High-quality images with adjustable magnification and wide field of view**

Support Parameters:

• Column aperture: Φ32mm
• Lens aperture: Φ76mm
• Center distance: 155mm
• Lifting range: 50mm

Wide-angle Eyepieces 10X/22:

• Magnification: 10X
• Wide field of view 22mm
• Matching size: 30mm
• Applicable models: Stereoscopic, fixed, and continuous magnification microscopes
• **Summary:** **Wide-angle eyepieces for enhanced viewing experience**

0.5X CTV Len:

• The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
• The adapter ring can use LCD to focus, this kind of focus method is manual focus
• The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming
• **Summary:** **High-quality CTV lens for synchronous zooming**

144 LED Ring Light:

• Input: AC 100~240V 50/60Hz
• Output: DC 12V, Max 700mA
• Light color: White
• Number of lights: 144 LEDs
• Inside diameter: 60mm
• **Summary:** **Bright and energy-efficient LED ring light for optimal illumination**

Package includes:

• 1 x Microscope
• 1 x Aluminum Alloy Plate
• 1 x 144 LED Light
• 1 x Dustproof Len
• 1 x 0.5X CTV Lens
