RF4 RF7050TV-YS010W 7-50X Trinocular Stereo Microscope with Synchronous Zoom and 10-inch Camera Monitor

RF4 RF7050TV-YS010W 7-50X Synchronous Zoom Trinocular Stereo Microscope with 10-inch Camera Monitor

Features:

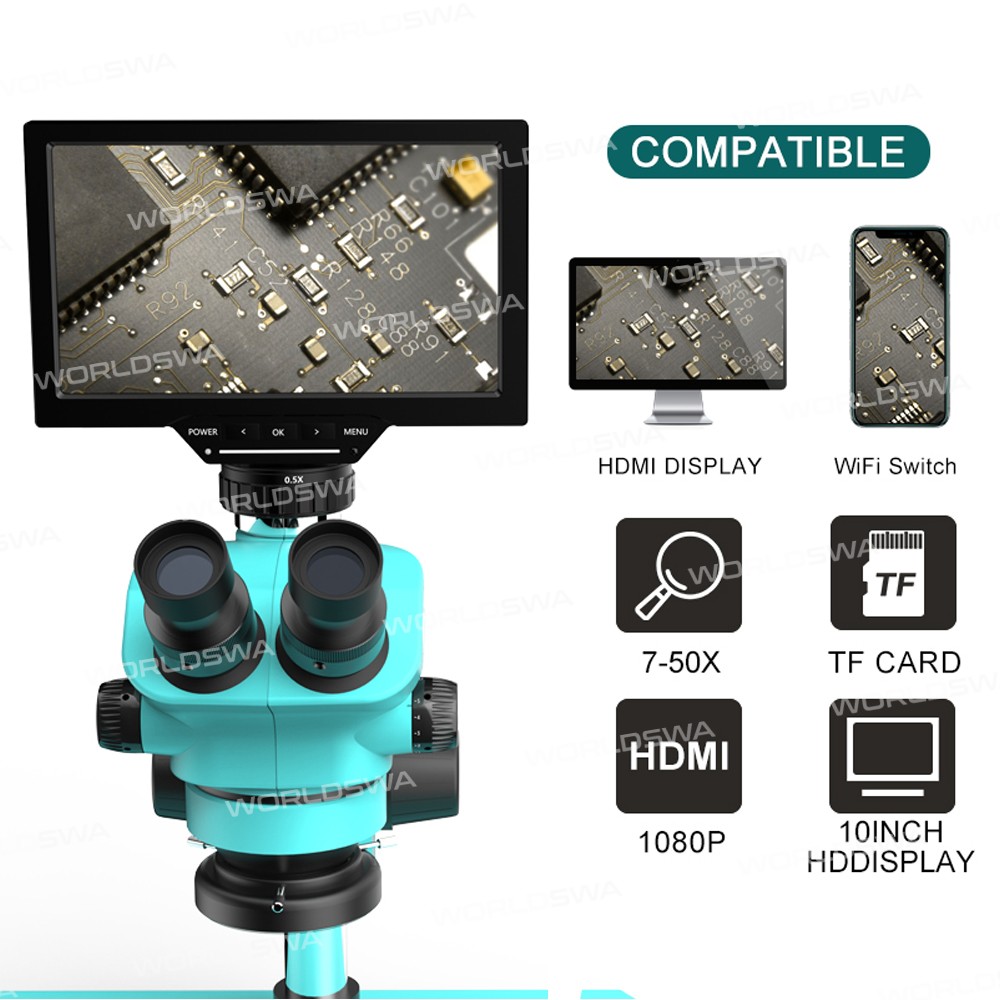

• **Large Display & Synchronous Observation**: New generation 10-inch large display with a built-in camera, built-in wifi transmitter, and mobile phone connectivity for synchronous observation.

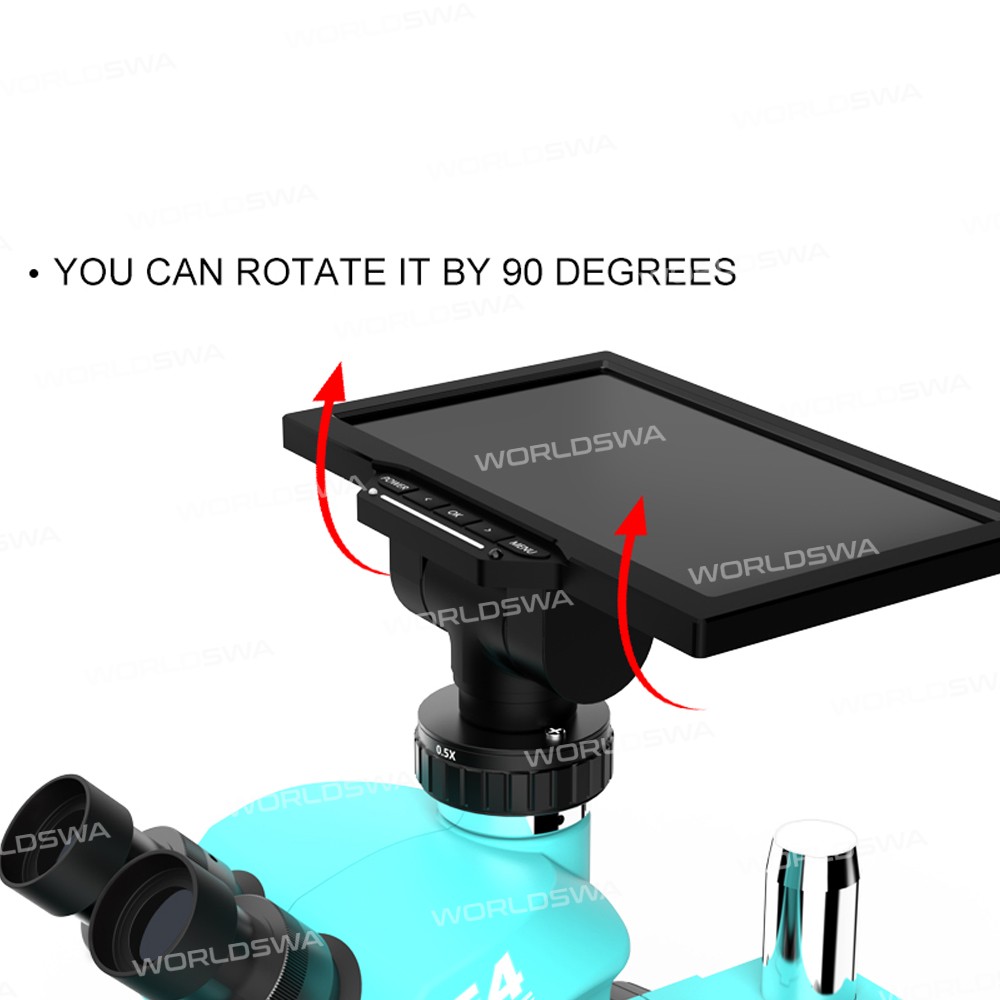

• 10-inch high-definition large screen, the image is clearer, and can be rotated by 90 degrees.
• The ultra-long working distance is conducive to spot welding by mobile phone maintenance, circuit board inspection, etc.
• Remote button remote control/External fill light/Free reflector.
• Continuous zoom trinocular simultaneous observation, clear image/easy operation.
• Large wide-angle lens/continuous zoom/adjustable LED/diopter adjustment.
• 10x high-definition wide-angle eyepiece, large diameter, wide field of view, long-term use is not easy to fatigue.
• The total magnification is 7X-50X, the standard working distance is up to 100mm, and the optical components are coated with a special film for clearer observation.
• Adjustable ring LED light, adjustable brightness, and strong focusing type, do not affect the operating space.
• Comes with dust-proof, oil-proof, and high-temperature lens to prevent eyepiece pollution, safe and durable.
• Both eyes support diopter adjustment, adapt to people with different eye distances, and can observe clearly even if you take off your glasses, which is in line with ergonomic design.

Specification:

Microscope:

• Model Number: RF7050TV-YS010W
• Theory: Stereo Microscope
• Drawtube: Trinocular
• Product name: RF4 7-50X trinocular microscope with camera monitor 10-INCH
• Magnification: 7-50X
• Light source: 144 LED ring light
• Color: Green
• Eyepiece: 10X/22
• Working distance: 100mm

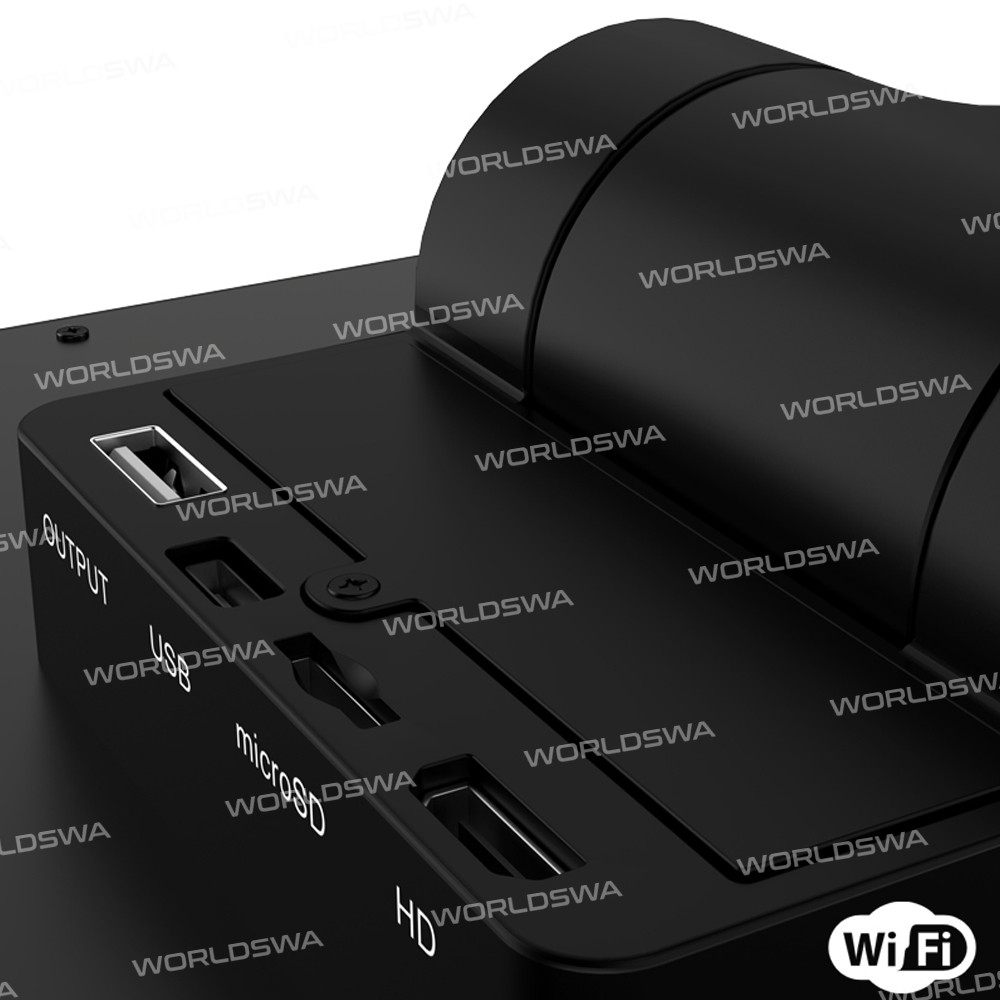

• Monitor output: HD/USB
• Monitor Pixel: 16MP

Monitor:

• Model Number: YS101W
• Resolution:1080P
• Monitor size: 10-inch
• Aspect ratio: 16:10
• IPS display resolution: 1280*800
• Output port: HDMI
• Panel brightness: 400cd/m²
• Contrast: 1300:1 (Min.)(transmission)
• Viewing angle: IPS full view
• Display area: 215*121mm
• WIFI distance: Ten meters
• Display mode: IPS, always black display, transmissive

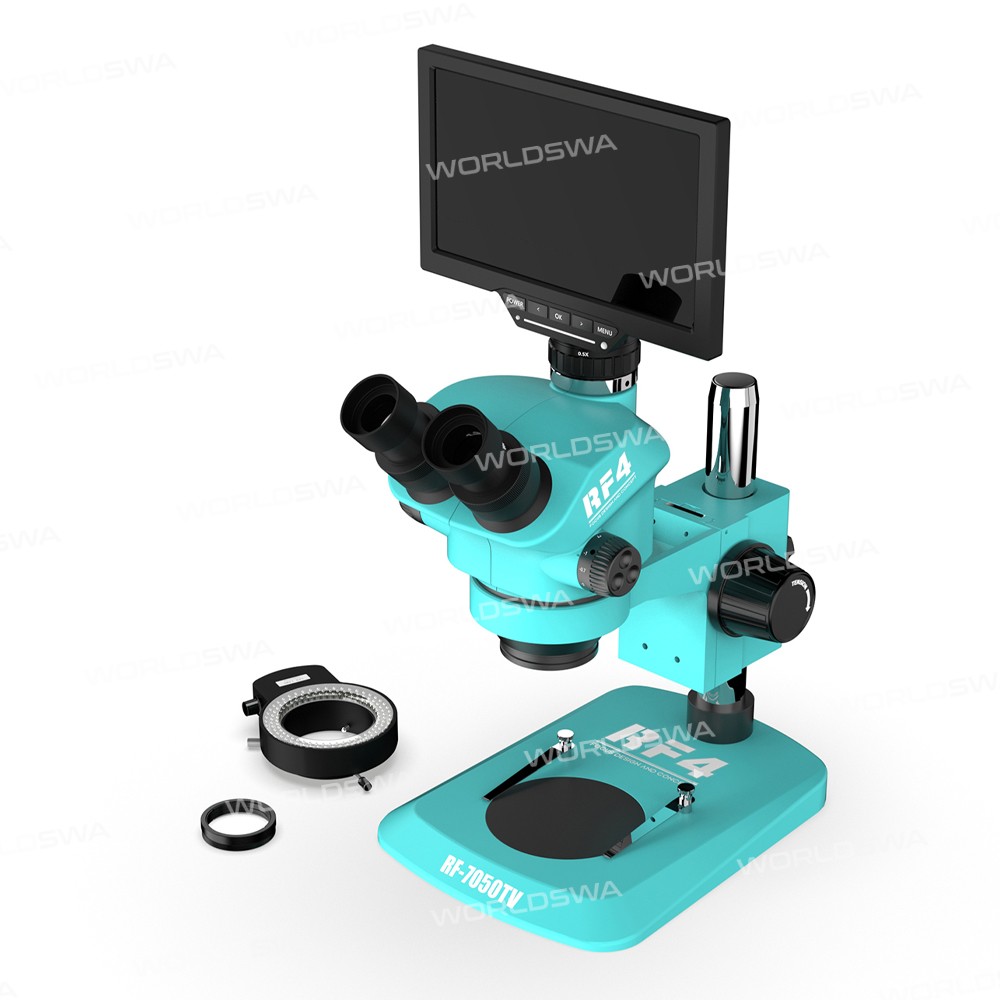

Package includes:

• 1 x Microscope
• 1 x LED Ring Lamp
• 1 x Microscope Base

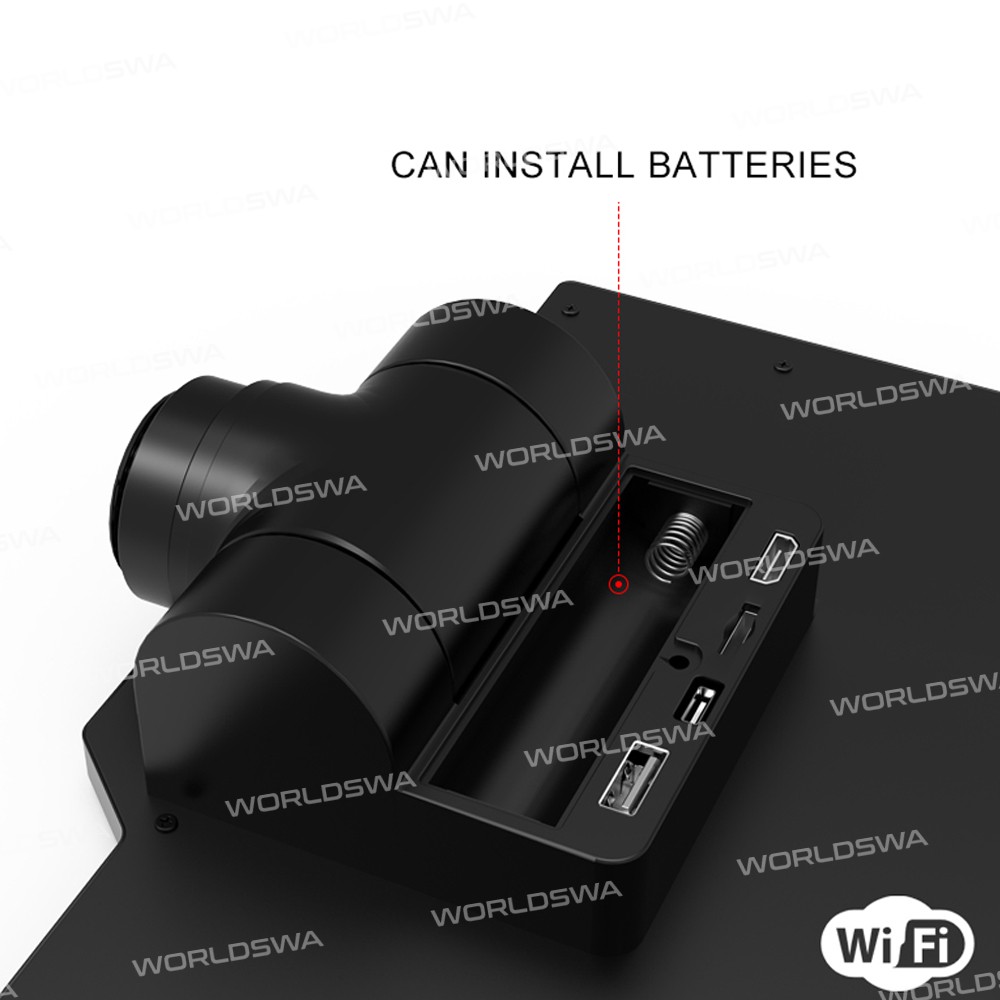

• 1 x Display monitor(without battery)
