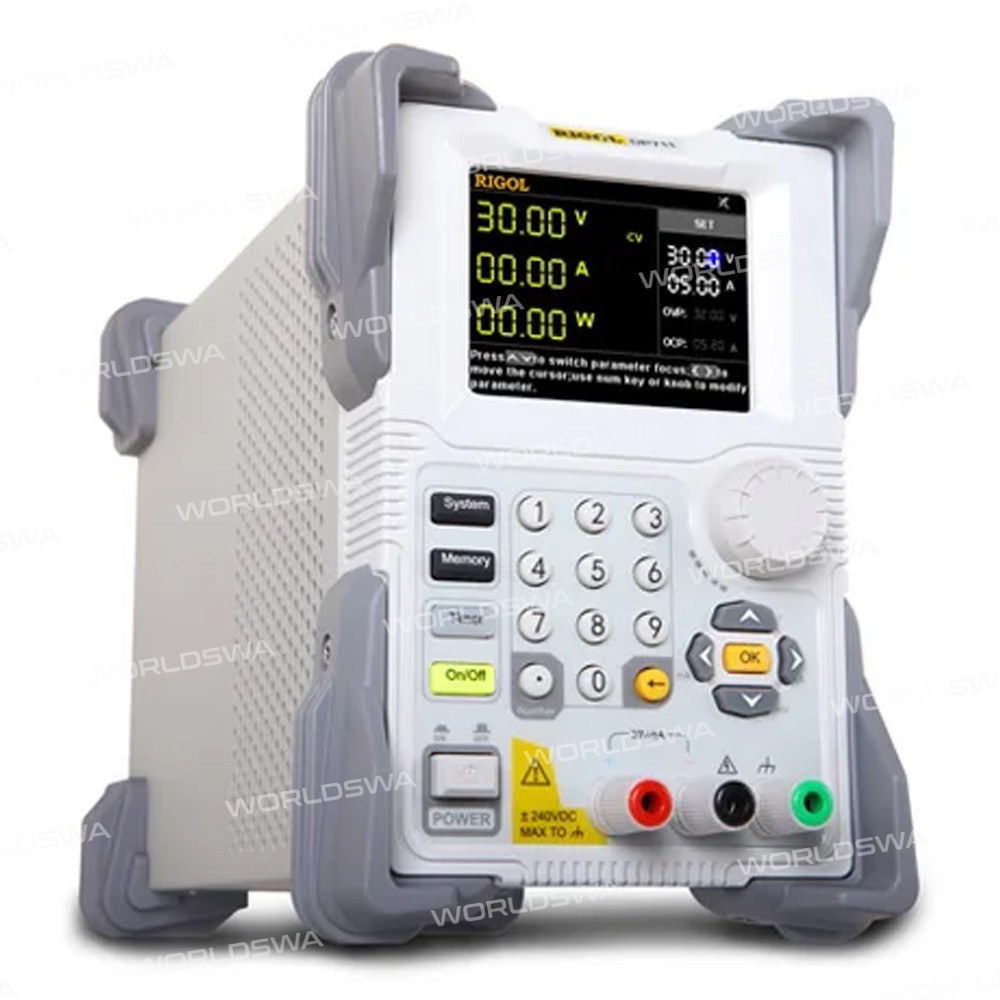

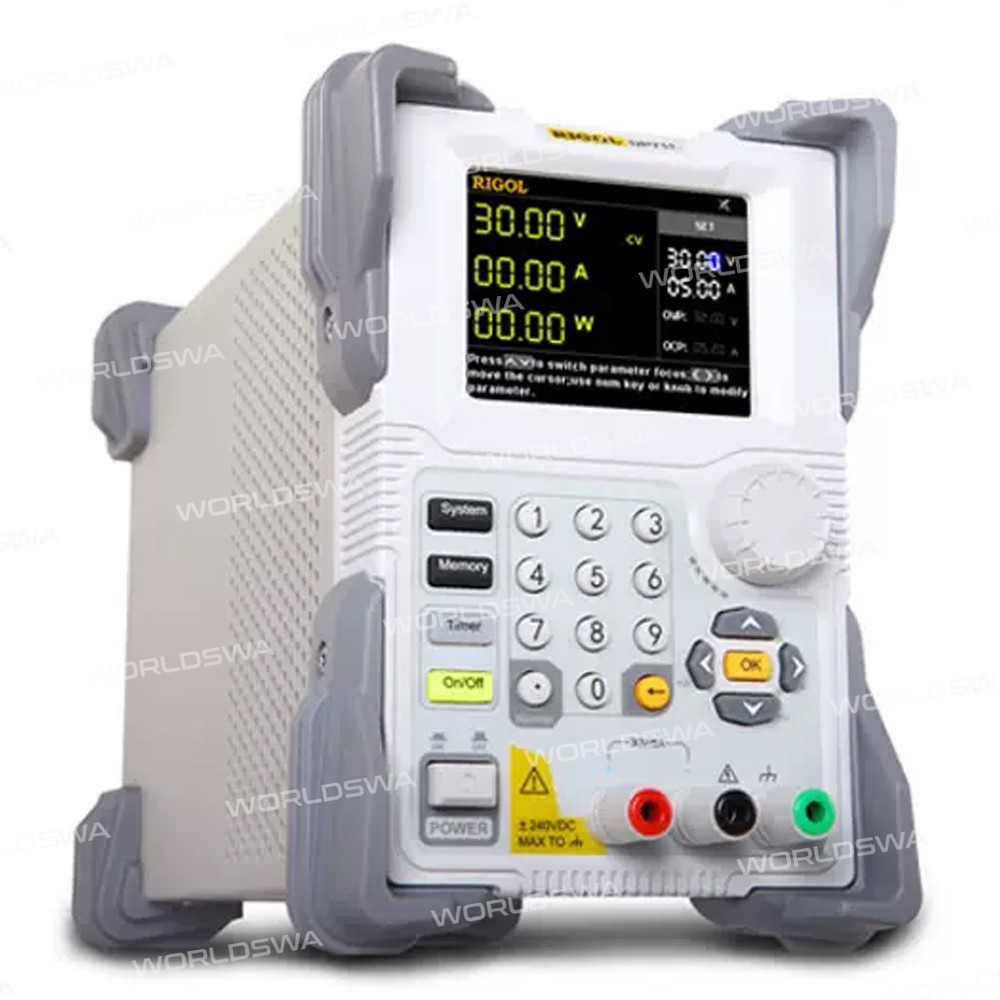

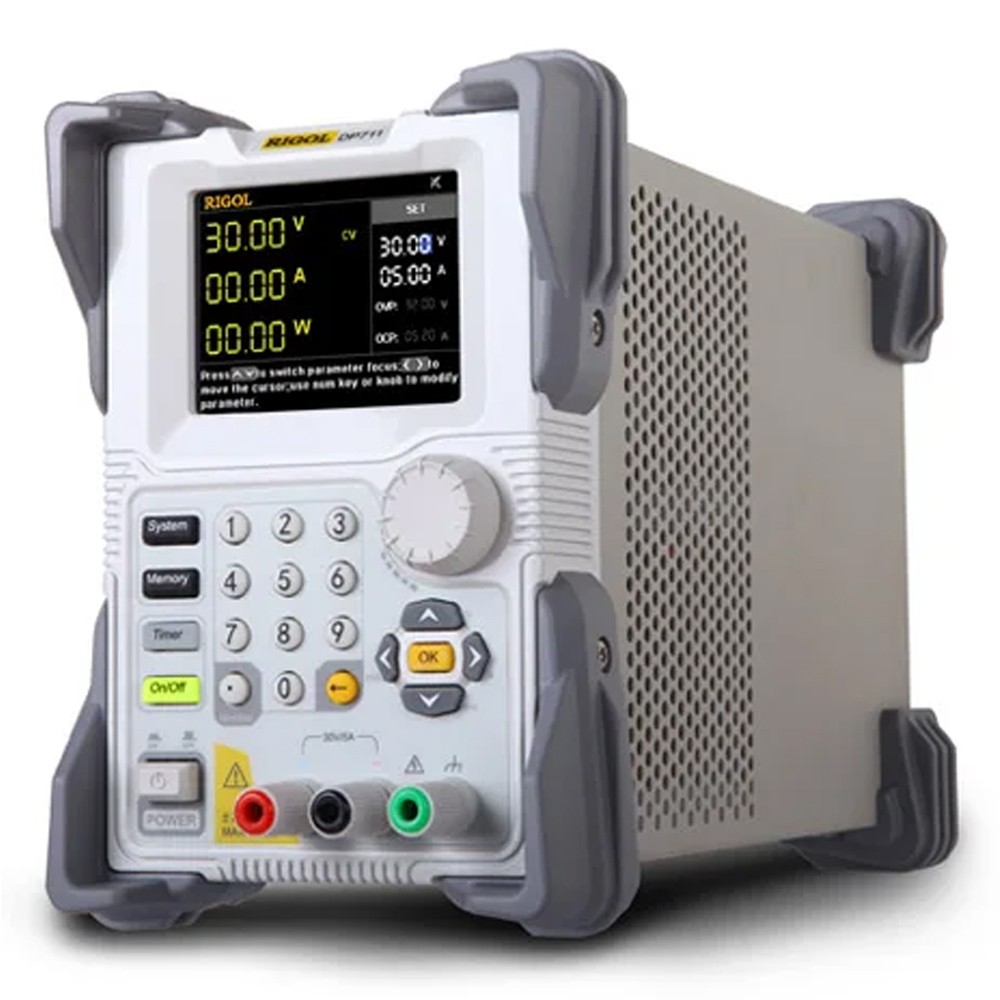

Rigol DP711 30V/5A 150W Single Channel Programmable Linear DC Power Supply
Features:
- Single output, 30V/5A, maximum total power up to 150W
- Low ripple noise: <500 HVrms/3 mVpp <2mArms
- Excellent load and supply regulation: <0.01%+2mV:<0.01%+2mA
- Transient response time: <50μs
- 1mV/1mA resolution (optional)
- Perfect over-voltage/over-current/over-temperature protection, over-voltage protection response time less than 10s
- External trigger function to realize multi-machine synchronous output
- 10ms to 99999s timer output function, support up to 2048 groups

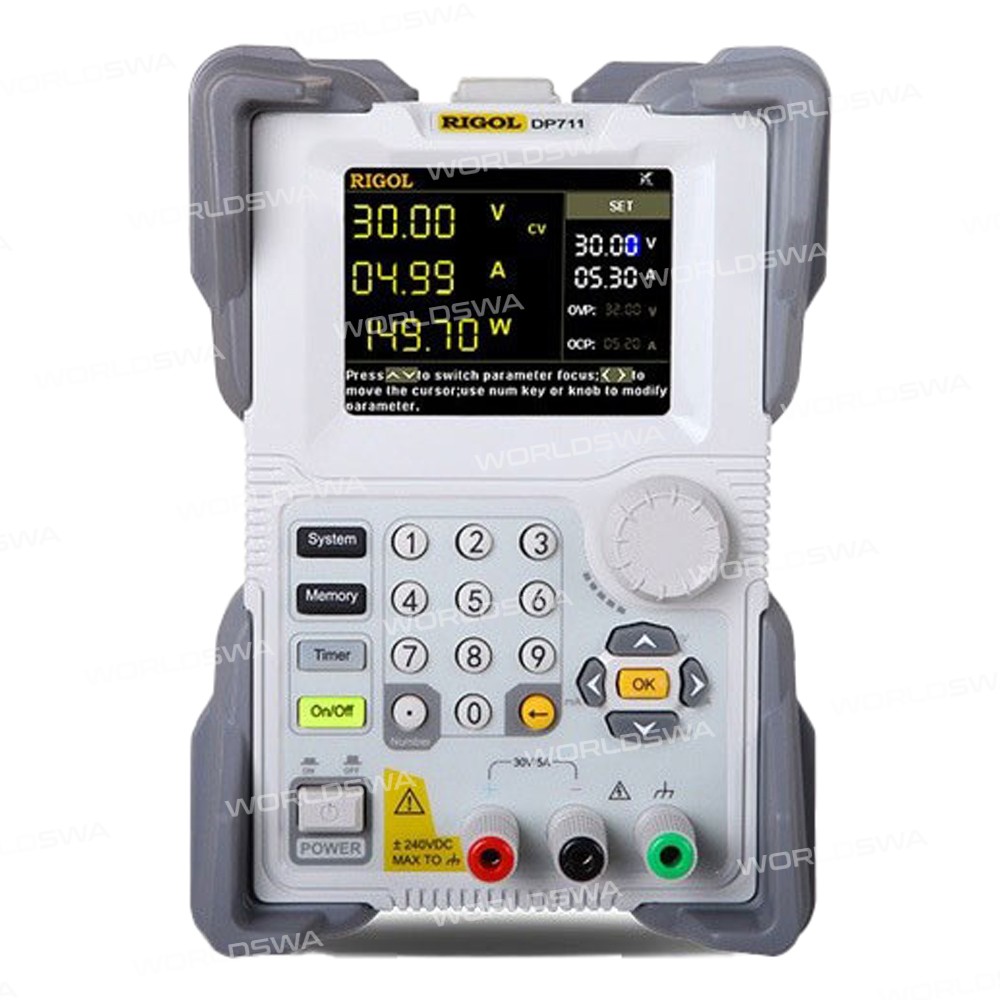

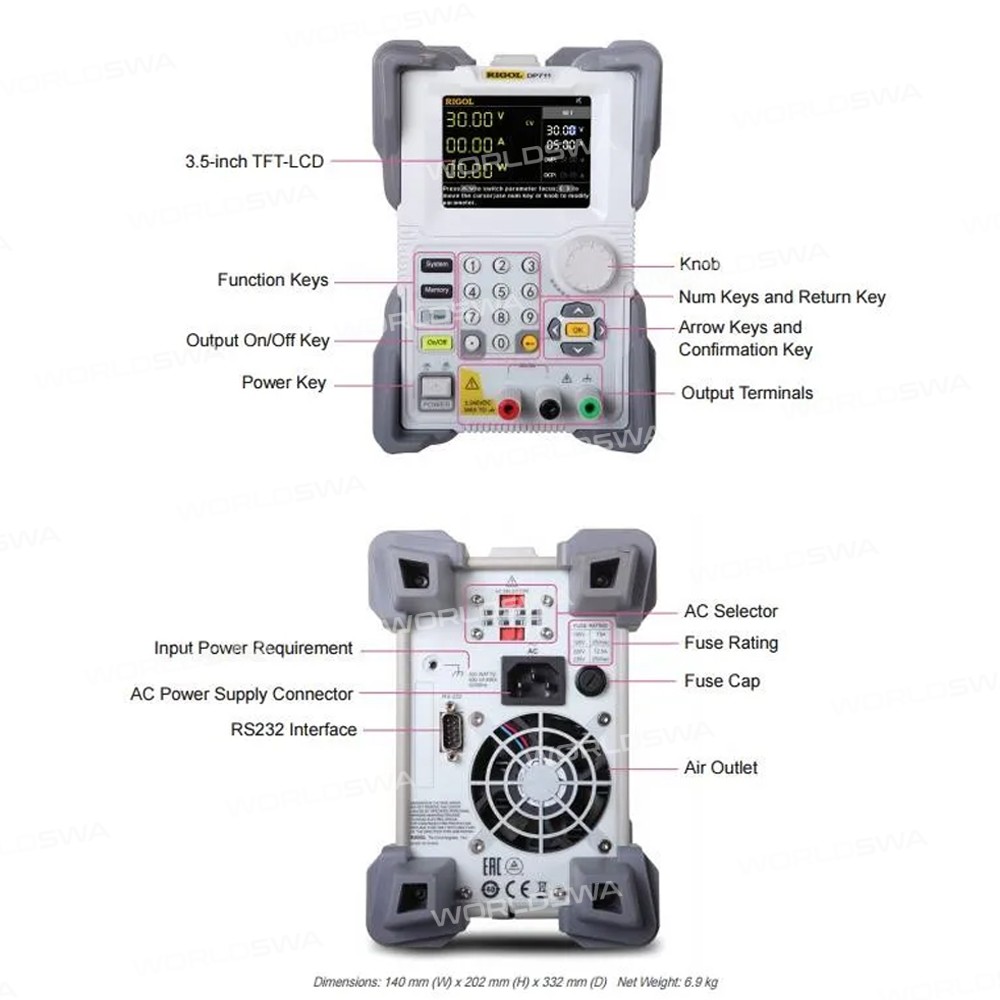

- 3.5-inch TFT LCD display, compact and exquisite, convenient operation.
- Support front panel lock and any technical key lock
Specifications:
Model | DP711 |
Channels | 1 |
Voltage/current | 0 V to 30 V/0 A to 5 A |
Load Regulation, ±(% of Output + Offset) | <0.01% + 2 mV |
Line Regulation, ±(% of Output + Offset) | <0.01% + 2 mV |
Normal Mode Voltage | <500 μVrms/3 mVpp |
Normal Mode Current | <2 mArms |
Annual Accuracy[1] (25°C ± 5°C), ±(% of Output + Offset) | |
Programming - Voltage | 0.05% + 20 mV |
Programming - Current | 0.2% + 10 mA |
Readback - Voltage | 0.05% + 20 mV |
Readback - Current | 0.2% + 20 mA |
Resolution | |
Programming - Voltage | Standard: 10 mV High resolution option installed: 1 mV |
Programming - Current | Standard: 10 mA High resolution option installed: 1 mA |
Readback - Voltage | Standard: 10 mV High resolution option installed: 1 mV |
Readback - Current | Standard: 10 mA High resolution option installed: 1 mA |
Display - Voltage | Standard: 10 mV High resolution option installed: 1 mV |
Display - Current | Standard: 10 mA High resolution option installed: 1 mA |
Transient Response Time | Less than 50 μs for output voltage to recover to within 15 mV following a change in output current from full load to half load (or from half load to full load) |
Command Processing Time | <100ms |

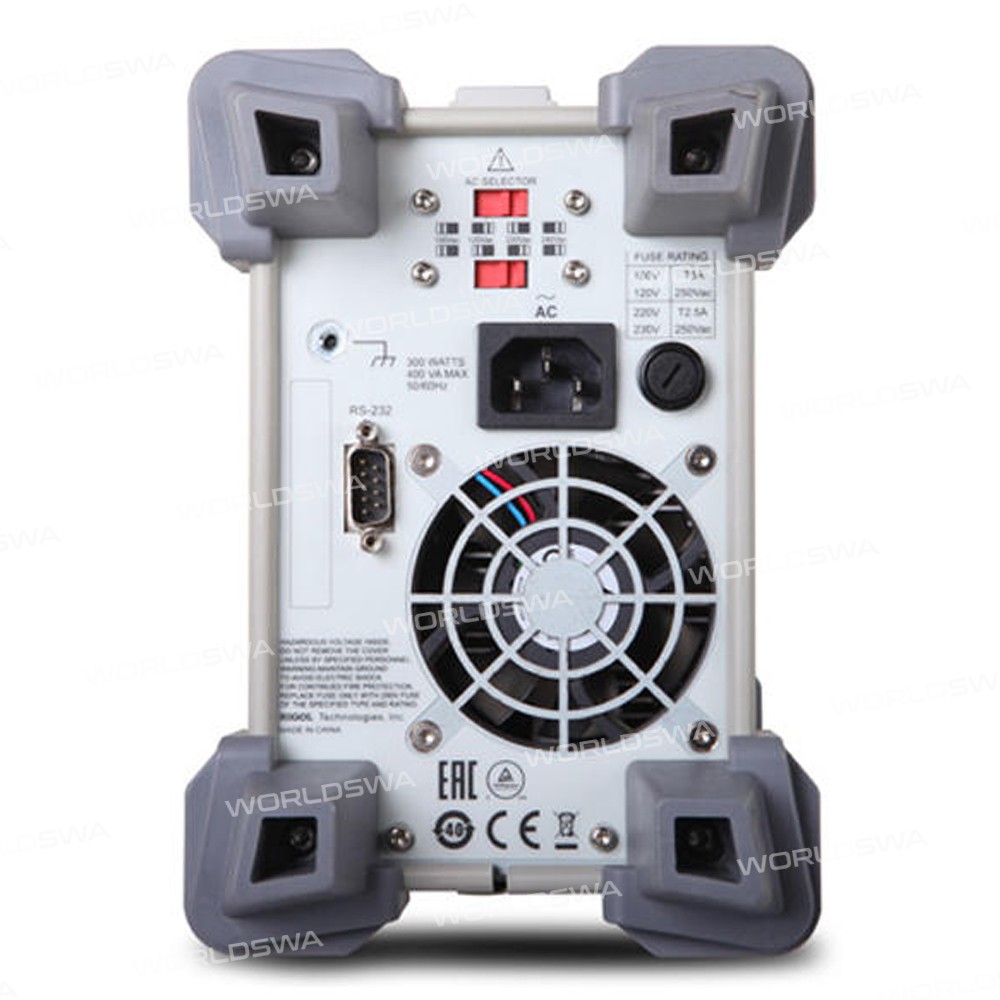

Interface | RS-232 |
Package includes:
- 1 x Power Supply
- 1 x Power Cable
