RK628D HDMI to MIPI CSI Driver Board Supports 4K Video

RK628D HDMI to MIPI CSI Driver Board Supports 4K Video
If you need instructions, please Click Here

Features:

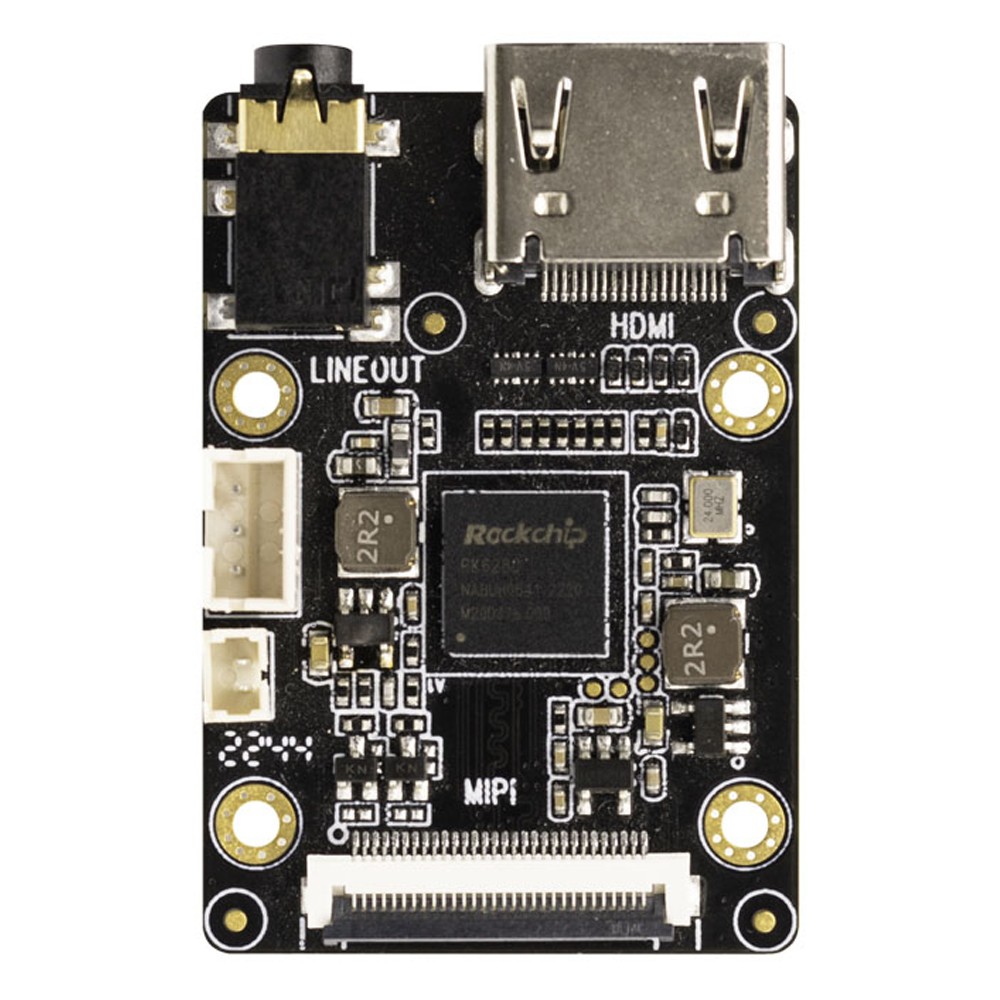

• HDMI to MIPI CSI driver board, using video bridge chip RK628D, can realize the conversion of HDMI video signal to MIPI CSI signal conversion needs

• Greatly simplify the hardware design, improve the efficiency of hardware design, and save the cost of the whole machine

• Can be applied to intelligent mini projectors, intelligent displays, video capture,e and conversion products

• Support: RK3399 series (A10-3399, A10-3399D4), RK3566 series, RK3568 series, RK3588S series, RK3588 series

• HDMI input, compatible with HDMI 1.4/HDMI 2.0, support 8/10bit video format, support RGB888/YUV420, support up to 4K@60FPS(YUV420)

• MIPI output, compatible with MIPI DPHY V1.2, support YUV422, support 3840*2160@30FPS(YUV422), 1920*1080@60FPS(YUV422), 1280*720@60FPS(YUV422), 720*480@60FPS(YUV422)

Note: Only Firefly motherboards can be adapted. Supported series: RK3399 series (AIO-3399, AIO-3399D4), RK3566 series, RK3568 series, RK3588S series, and RK3588 series, please be sure to check before purchase!

Package includes:

• 1 x Driver Board
