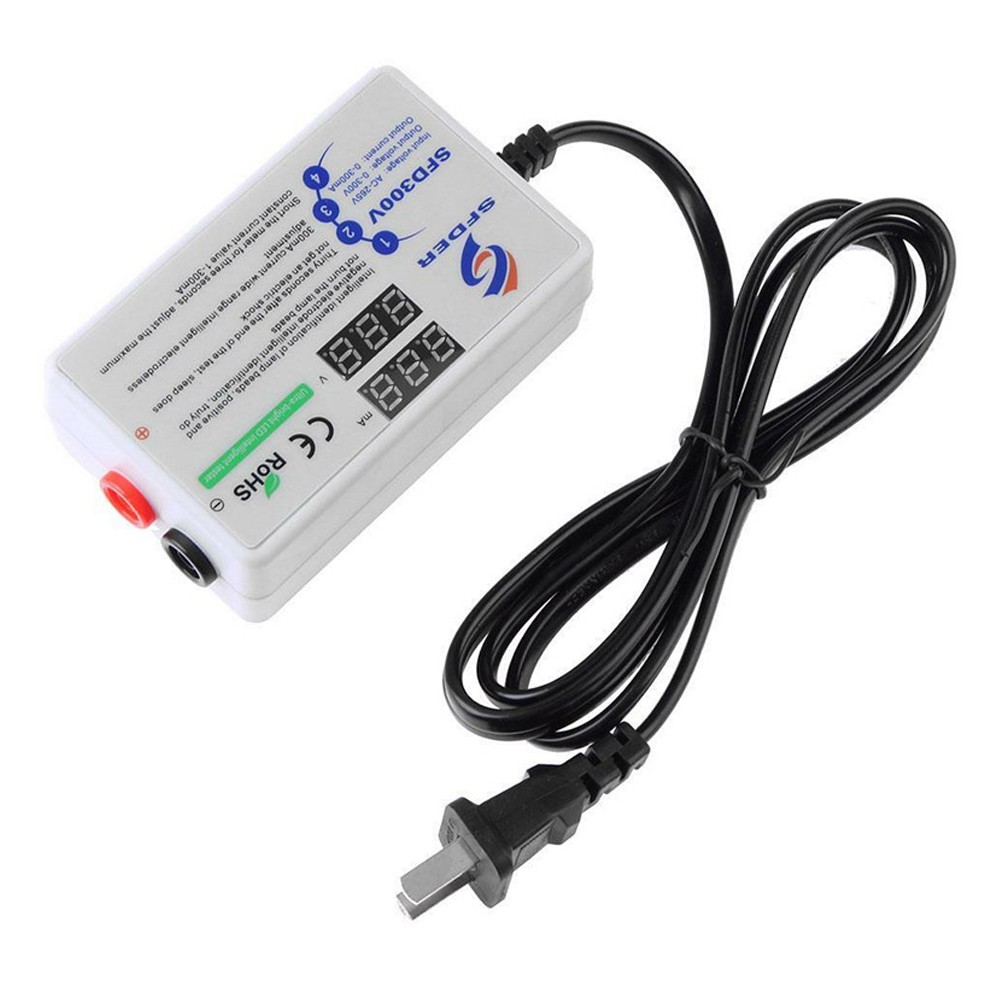

SFD300V Intelligent Tester - 0-300V Voltage LCD Backlight Ultra-bright LED

SFD300V 0-300V Voltage LCD Backlight Ultra-bright LED Intelligent Tester

Features:

• Model: SFD300V
• Type: US Plus/EU Plus
• Input Voltage: AC-265V
• Output Voltage: DC 0-300V
• Output Current: 0-300mA

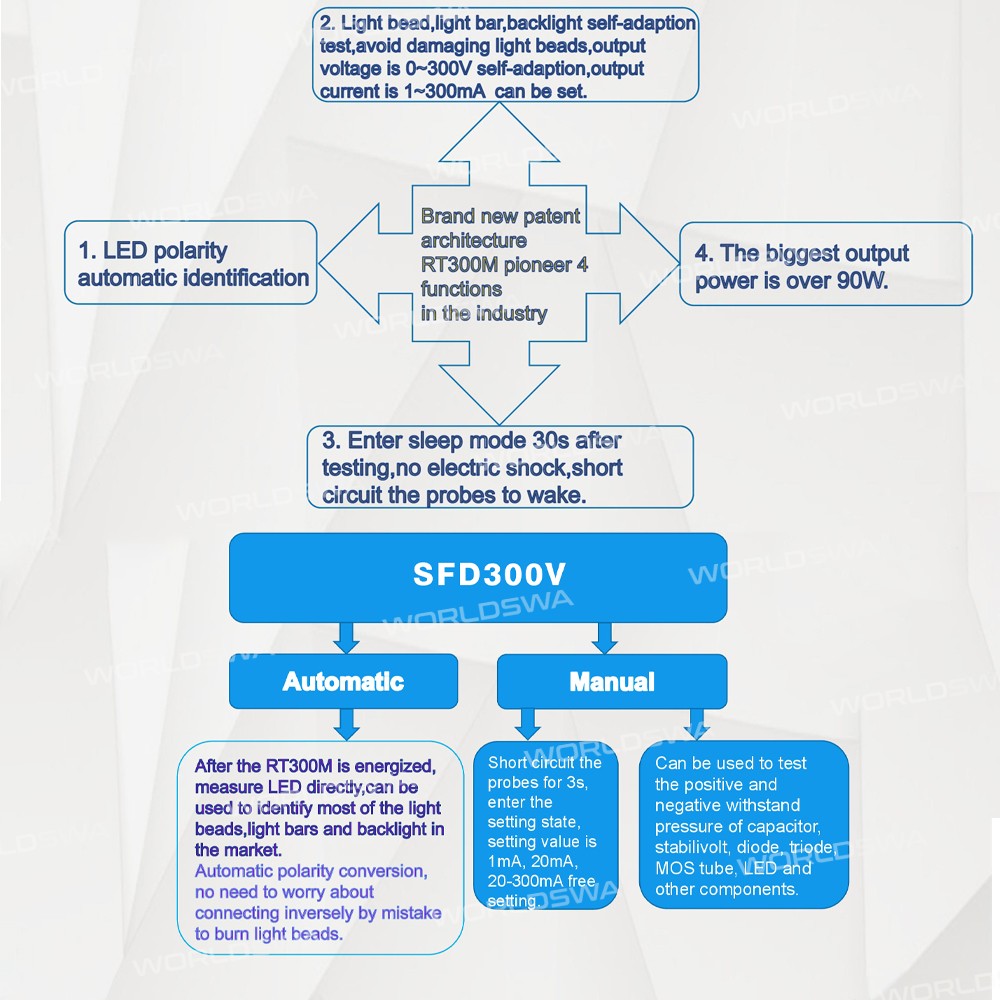

• Summary:** Intelligent tester with self-adaption test, high and low voltage gear switch, and large current intelligent stepless regulation
• Light bead, light bar, backlight self-adaption test, avoid damaging light beads, the output voltage is 0~300V self-adaption, the output current is 1~300mA can be set.
• Enter sleep mode in the 30s after testing, no electric shock, short circuit the probes to wake
• The biggest output power is over 90W
• Intelligent identification of positive and negative poles of lamp bars, fast discrimination of polarity
• High and low voltage gear switch, all lamp beads can be safely tested;
• 300mA large current intelligent stepless regulation, current can be continuously set
• Under the measuring state, it can be manually increased the current, which is convenient for maintenance detection
• Manual setting of 1mA mode can be used to test the forward and reverse withstand voltage of capacitors, Zener tubes, diodes, triodes, MOS tubes, LEDs, and other components

Package includes:

• 1 x SFD300V Tester
• 1 x Test pen

Notes:

• SFD300V can identify most of the light beads, light bars, entire backlight, but there are too many heterogeneous light beads on the market, iFix team tries their best to collect different types of light beads as far as possible, but cannot guarantee that all the LED can be identified
• When it cannot be identified automatically, please switch to manual mode for measurement
• When it switches from manual mode back to auto mode, please enter the setting state to AUO or pull out the AC plug of the tester for the outage, and then plug in after the internal capacitor discharge.
• Due to the large power output, RT300M is equipped with a 256-level dimmer inside. As the current increases, the LED brightness gradually increases. Please protect your eyes when measuring, and do not look directly into the LED
• When SFD300V is baking machine at 300mA, it would drop to 150mA in 90 seconds, supporting the long time baking machine.iFix test roasting machine with 200V backlight, last for 10 hours without pressure, but after all it is still a testing tool, please don't bake for too long
• Non-professional, do not use!!
