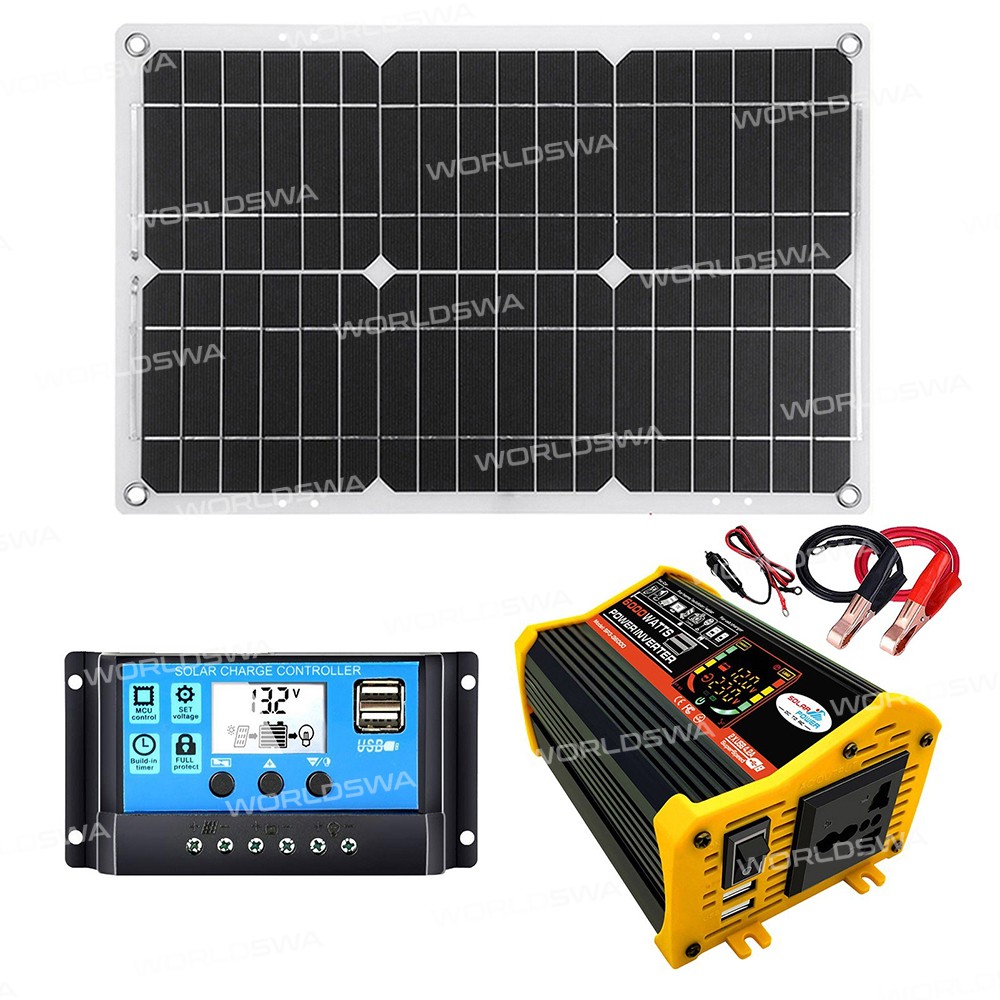

Solar Power Generation System 25W Dual USB Solar Panel 6000W 12V to 220V Power Inverter Smart LCD Dual USB Charger 30A Solar Charge Controller

Solar Power Generation System 25W Dual USB Solar Panel 6000W 12V to 220V Power Inverter Smart LCD Dual USB Charger 30A Solar Charge Controller

Features:

• 6000W Power inverter: Car power inverter with 2 USB ports and AC outlet. The power inverter comes with free cigarette lighter and 2pcs battery clips, providing 500Watt continuous power, 6000watt peak power (Please make sure that the total rated power of the connected devices is ≤ 500W).
• Fast Charging Dual USB ports: One AC Outlets and two usb ports can offer 100% fast charging for Mobile phones, computers, laptop,breast pump, Nebulizer ,Razors,medical rescue device,emergency equipment etc,can be as a Emergency Power Supply.Dual USB ports can charge most phones and tablets simultaneously (Max 4.2A ), while AC outlets great for laptop, drone, fan, camera, CPAP machine, game console, kindle, TV, DVD players, lights, iPad, RV,and other electronic devices.
• MCU LCD Display: Car inverter has the micro-control unit LCD realizes the exchange of human-machine information, and can know the working status of the inverter in real time, including show real time of input voltage, output voltage, output frequency, battery power, load, Power on/off indicator and other information.
• High Temperature Warning Indicator in LCD display: It is a powerful display reminder function. When high temperature over 60 Celsius, the symbol of temperature will light up and show red color, plus audible alarm then shutdown.
• Show Battery Power in LCD display: There is a battery Level Bar in the LCD Screen, it can show you the real time power of battery. Green means full power, yellow means half level, and red means low power of your battery, you have to recharge  the battery at once.
• High/Voltage warning in LCD display: (1)  When high voltage warning, the symbol of v lights up(Red), battery level bar flickers, input voltage display shows 15V or more, plus audible alarm then shutdown.  (2) When low voltage warning, the symbol of v lights up(Red), battery level bar flickers, input voltage display shows 10.5V or less, plus audible alarm then shutdown.
• Power on/off indicator in LCD display] The symbol show green and mean working normal, show red and faulty, without output.
• Over load & Short circuit in LCD display: When overload, the symbol ( like a balance scale) will light up(Red), load level bar flickers, no outputs audible alarm. When Short circuit warning, the symbol ( like a balance scale) will light up(Red), load level bar flickers, no outputs audible alarm.
• Multi Protection: Built-in fuses, safe charging design  and cooling fan prevents the car power converter from over-heat,saving power and energy.over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection. When it is on protection status, the LCD display will show you via different remind.
• Lightweight design &Top Quality: Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.
• Multi-purpose: It can be used as a car power converter, car adapter, mobile phone charger, outdoor power supply, power failure emergency power supply, etc.
• Wide application: Widely used in camping, road trips, outdoor work, power failure, etc. Universal standard 110V/220V AC power outlets can better connect multiple appliances.

Specifications:

• Power Inverter:
• Output voltage: AC 110V / AC 220V (Optional)
• Output frequency: 60Hz for 110V model / 50Hz for 220V model (Optional)
• Input voltage: DC 10.5V~15V.
• (When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)
• Peaks Power: 6000W
• Rated power: 500W
• Output waveform: Modified sine wave.
• Name: Car power inverter
• 30A 12V 24V Automatic Solar Charge Controller PWM with LCD Controller and Dual USB:
• Charge Current: 30A
• Voltage: DC 12V / 24V Auto intelligent conversion
• Display: LCD digital display
• USB Charger Ports: Dual USB 5V 2.1A
• Operating Temperature: -35~+60 ℃
• Max Solar Input: 12V battery, the highest 23V
• Float Charge: 13.7V (defaul, adjustable)
• Discharge Stop: 10.7V (defaul, adjustable)
• Discharge Reconnect: 12.6V (defaul, adjustable)
• Charge Reconnect: 13V
• Voltage of Open Light: Solar Panel 8V (Light lights delay)
• Voltage of Close Light: Solar Panel 8V (Light off delay)
• USB Output: 2 way USB output, 5V/2.5A (MAX)

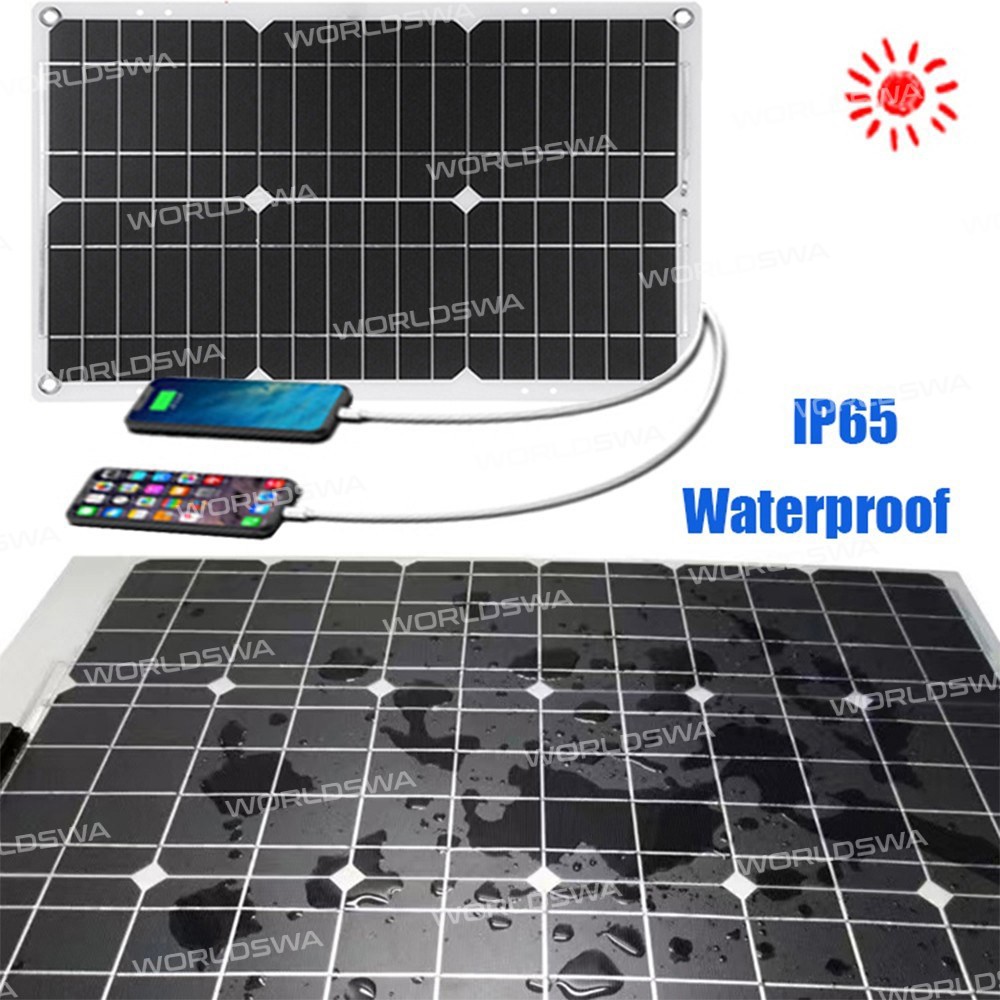

• Solar Panel 25W:
• Power: 25W
• DC outout: 12V/2.4A
• USB output: 5V/2.4A
• Material: Aluminum substrate + effcient chip + PET
• Output accessories: DC cable + DC alligator clip
• Material: ABS+ aluminum alloy
• Inverter Size: 19.5 * 10 * 7.5 cm / 7.68 * 3.94 * 2.95 inch
• Solar Panel Size: 420 * 276 * 3 mm / 16.53 * 10.87 * 0.12 inch
• Solar Charge Controller Size: 132 * 68 * 33 mm / 5.2 * 2.68 * 1.3 inch
• Inverter Weight: 579g / 20.42oz
• Solar Panel Weight: 324g / 11.43oz
• Solar Charge Controller Weight: 119g / 4.2oz
• Package Size: 45 * 29.7 * 14.7 cm / 17.72 * 11.7 * 5.79 inch
• Package Weight: 1680g / 59.26oz

Package List:

• 1 * Power Inverter
• 2 * Battery Clip
• 1 * Cigarette Lighter Plug(gift)
• 1 * English Manual (Inverter)
• 1 * Solar Charge Controller 30A 12V/24V
• 1 * English Manual(Controller)
• 1 * Solar Panel 25W
• 1 * DC Cable
• 1 * DC Alligator Clip
