Soptop 6# 7-45X 50mm 360° Adjustable Trinocular Microscope, Aluminum Alloy Big Base

Soptop 6# 7-45X 50mm 360° Adjustable Trinocular Microscope with Aluminum Alloy Big Base

Overview

This 6# trinocular microscope is designed with a new framework that provides stability, reliability, and user-friendliness. It's suitable for various fields, including maintenance, assembly, scientific research, and more. The large base serves as a work platform, allowing you to place larger items under the lens.

Key Features

• Stable and Practical Design: Breaking the traditional architecture, this microscope provides a more stable and reliable experience.
• Versatile Applications: Suitable for maintenance, assembly, scientific research, and more.
• Larger Work Platform: The large base allows for larger items to be placed under the lens.
• Quick Adjustment: Manual quick adjustment of the bracket adjustment wheel for quick up and down displacement of the observation head.
• Adjustable Binocular Pupil Distance: 54-75mm adjustable design to solve the problem of different pupil distances, easy to operate.
• Reserved Camera Interface: Can take photos and record videos, connectable to a camera for various DIY operations.
• Extra Large Working Spacing: 100mm extra large working spacing, supporting a wider range of objects, and a maximum lifting range of 120mm.
• 360° Adjustable Observation Head: Rotate the observation head to immediately switch angles, solving the problem of shifting rotating objects.

Specifications

• Model: 6#
• Optical Power: 7-45X

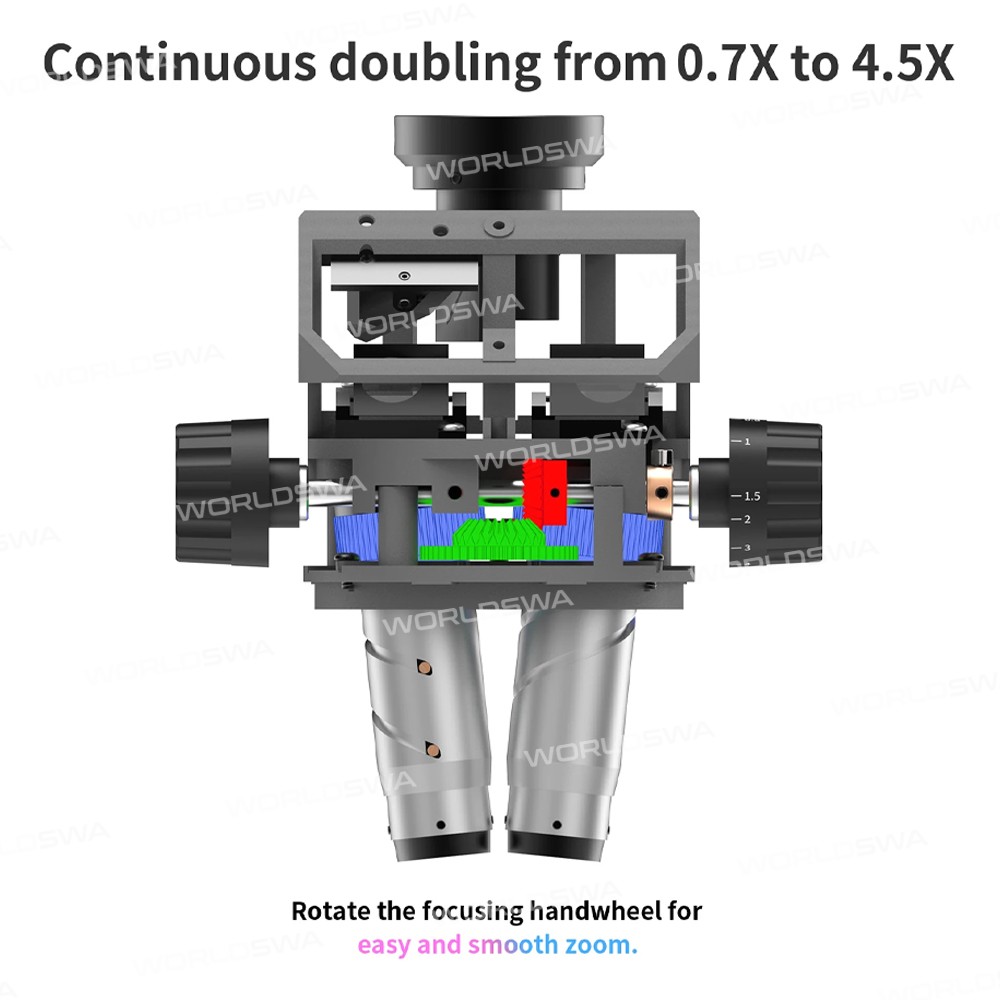

• Viewing Head: Three-eye observation head, tilted at 45°, can rotate 360°, and can be equipped with a photography and camera interface; Continuous zoom objective of 0.7X~4.5X.
• Eyepiece: High eye point, large field of view, flat field eyepiece PL10X/20mm.
• Work Distance: Ultra-long working distance of 100mm
• Focusing Bracket: The focusing handwheel has adjustable elasticity and a lifting range of 50mm.
• Working Platform: Black and white tabletop
• Base: Column type large flat base, L: 260mm; W: 320mm
• C-type Interface: 0.5X, camera receiver, C-type interface, adjustable focus
• Optional Objective Lens: 0.3X, 0.4X, 0.5X, 0.75X, 1.5X, 2X
• Optional Eyepiece: 15X/15mm, 20X/10mm

Package Includes

• 1 x Microscope
• 1 x Focus Bracket
• 1 x Pillar
• 1 x Base
• 2 x Eyepiece
• 1 x 0.5X CTV Lens
• 1 x Ring Light
