Sunshine P1 Pro Max: Intelligent Regulated Power Supply with Waveform Display and Battery Spot Welding

Sunshine P1 Pro Max Intelligent Regulated Power Supply with Waveform Display & Battery Spot Welding

Overview

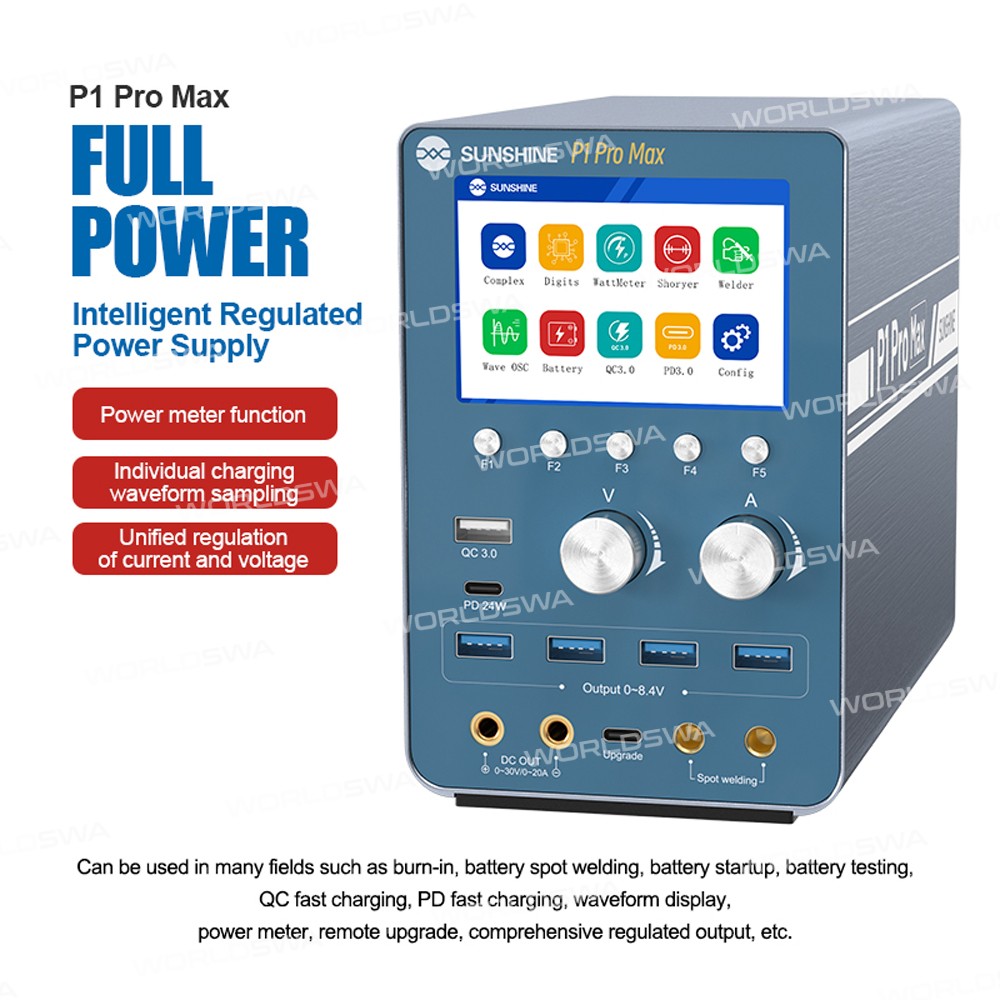

This intelligent regulated power supply is designed for professionals, offering a wide range of features and functions to meet the needs of various applications, including burn-in, battery spot welding, battery startup, battery testing, QC fast charging, PD fast charging, waveform display, power meter, and more.

Key Features:

• Powerful and Comprehensive: Full power intelligent regulated power supply with power meter function, individual charging waveform sampling, and unified regulation of current and voltage.
• Infinitely Expandable: Intelligent comprehensive monitoring, short circuit detection, powerful spot welding, fast charging protocol, and intelligent voltage stabilization.

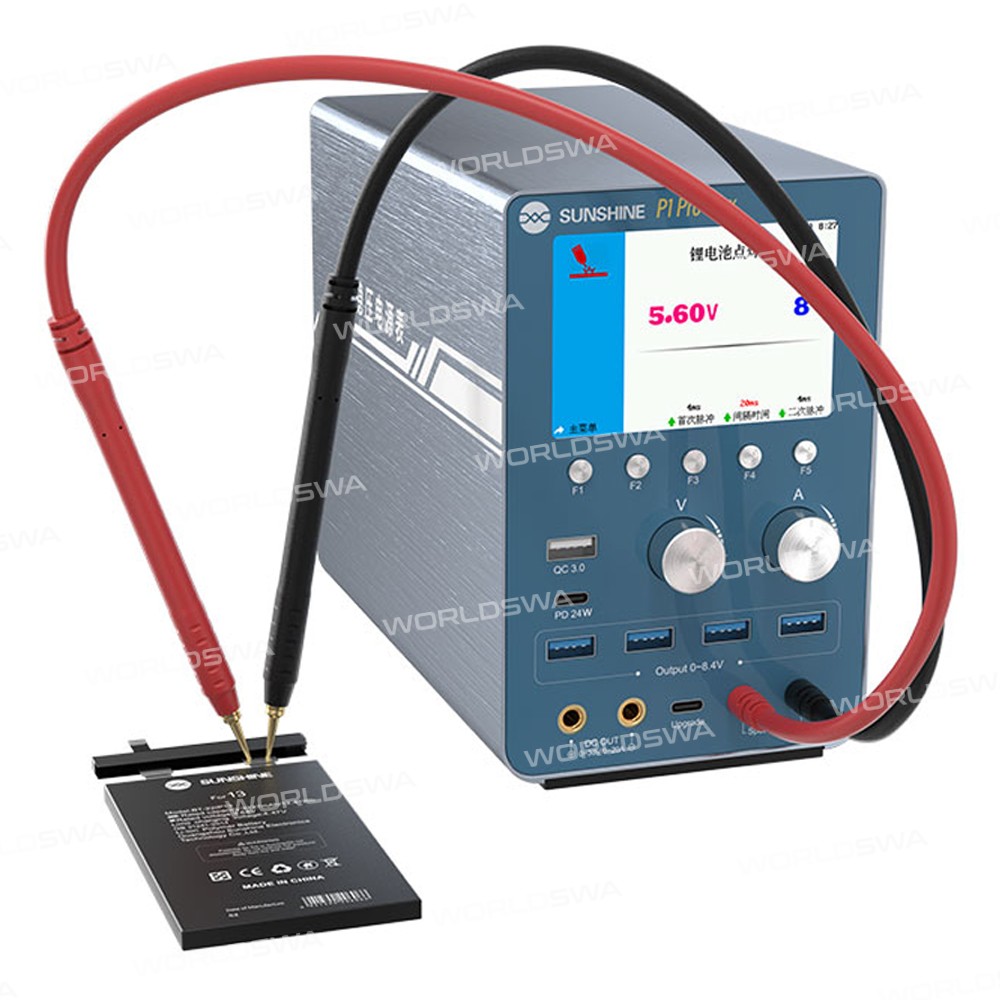

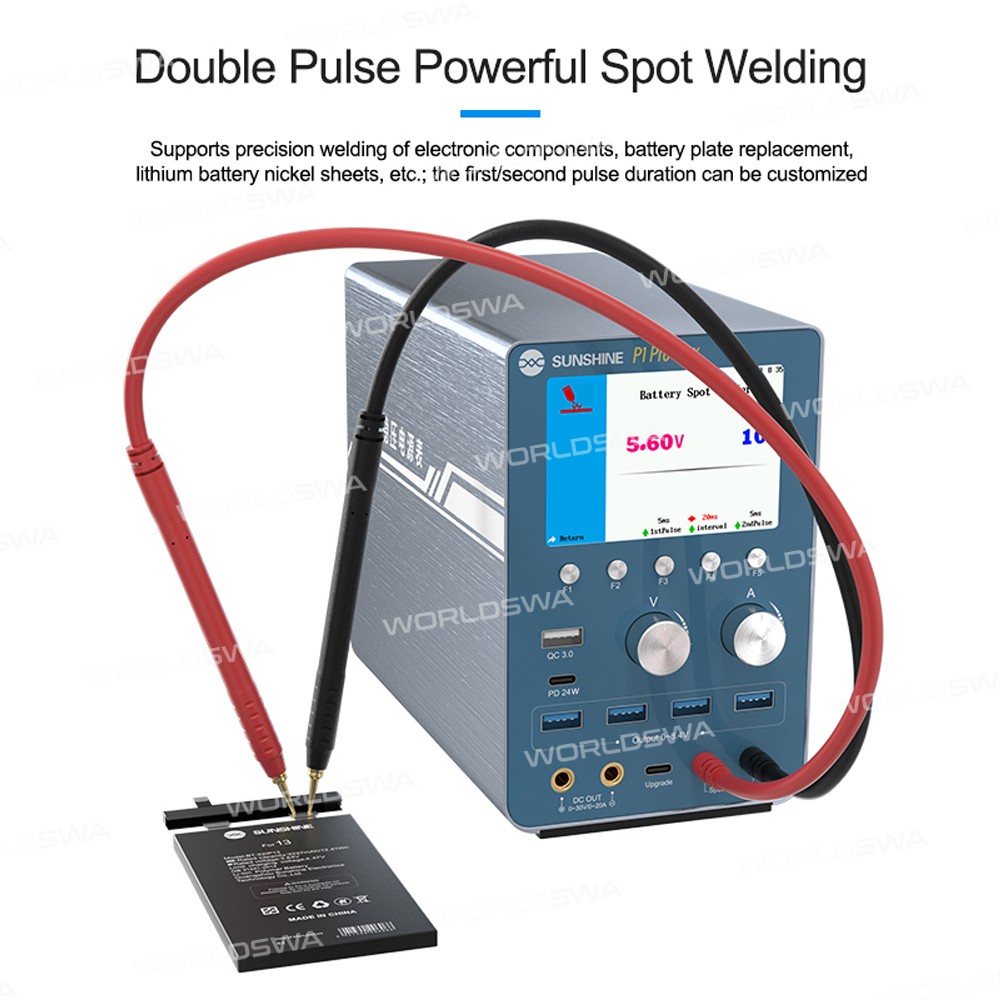

• Double Pulse Spot Welding: Supports precision welding of electronic components, battery plate replacement, lithium battery nickel sheets, etc., with customizable pulse duration.

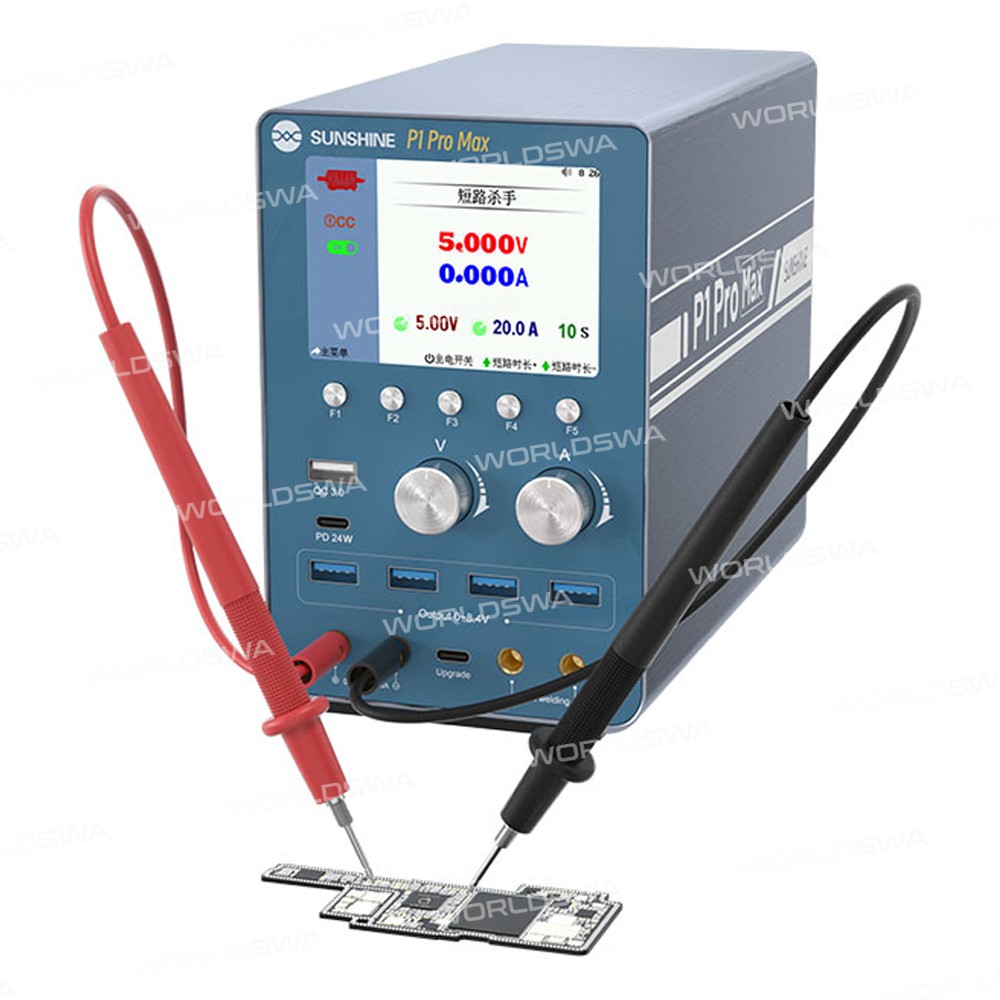

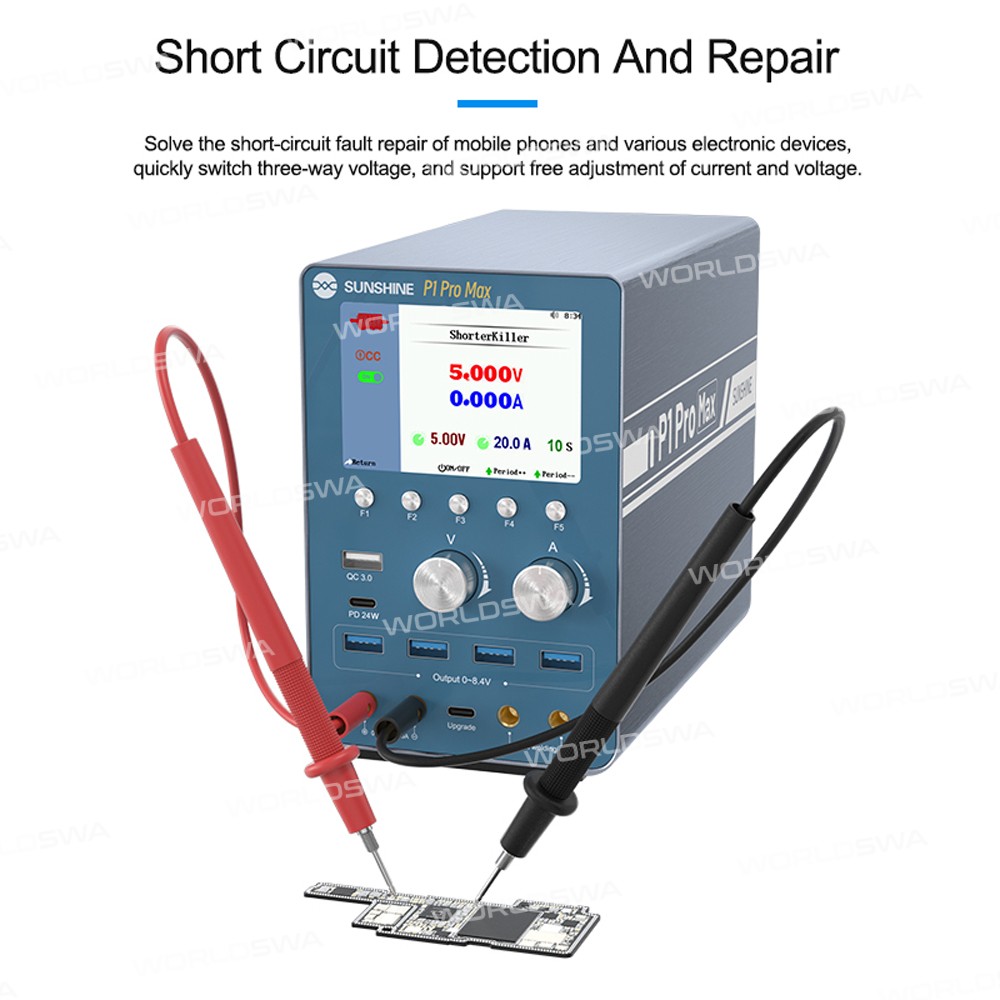

• Short Circuit Detection and Repair: Quickly switch three-way voltage and support free adjustment of current and voltage.

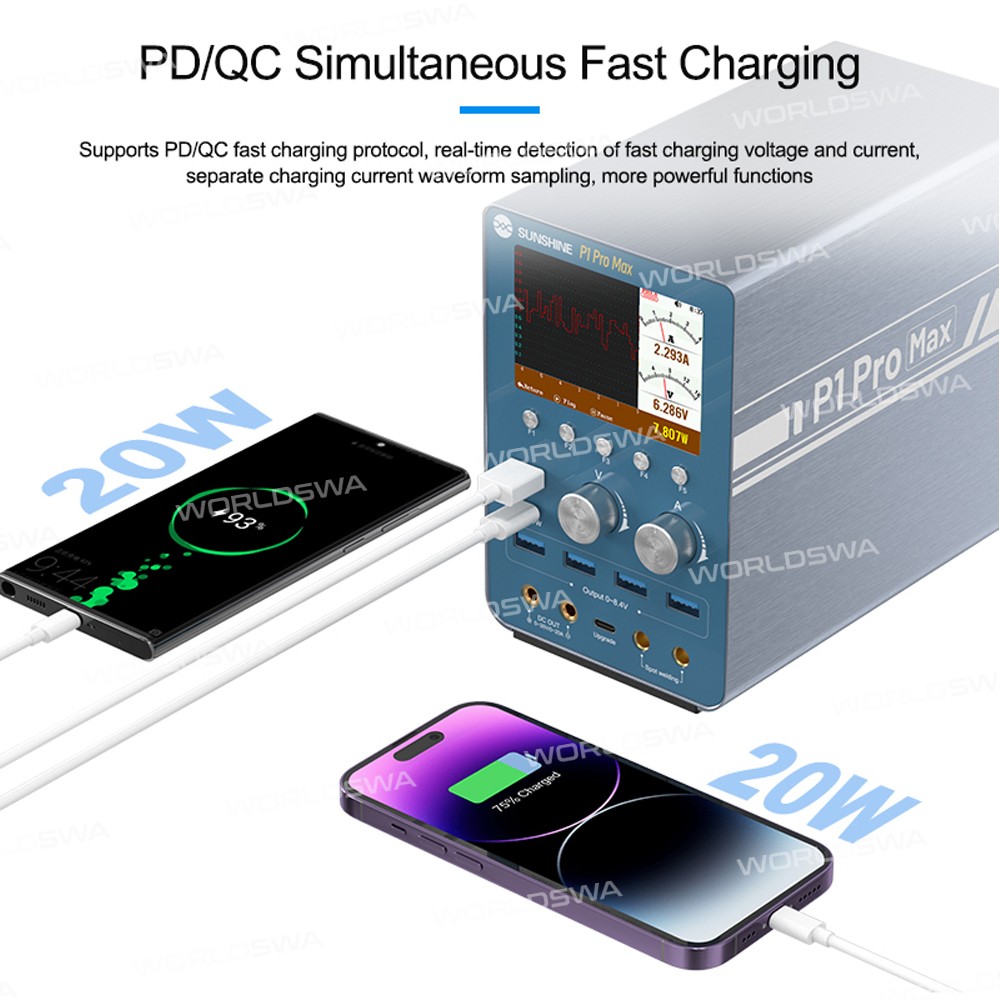

• PD/QC Fast Charging Protocol: Real-time detection of fast charging voltage and current, separate charging current waveform sampling.

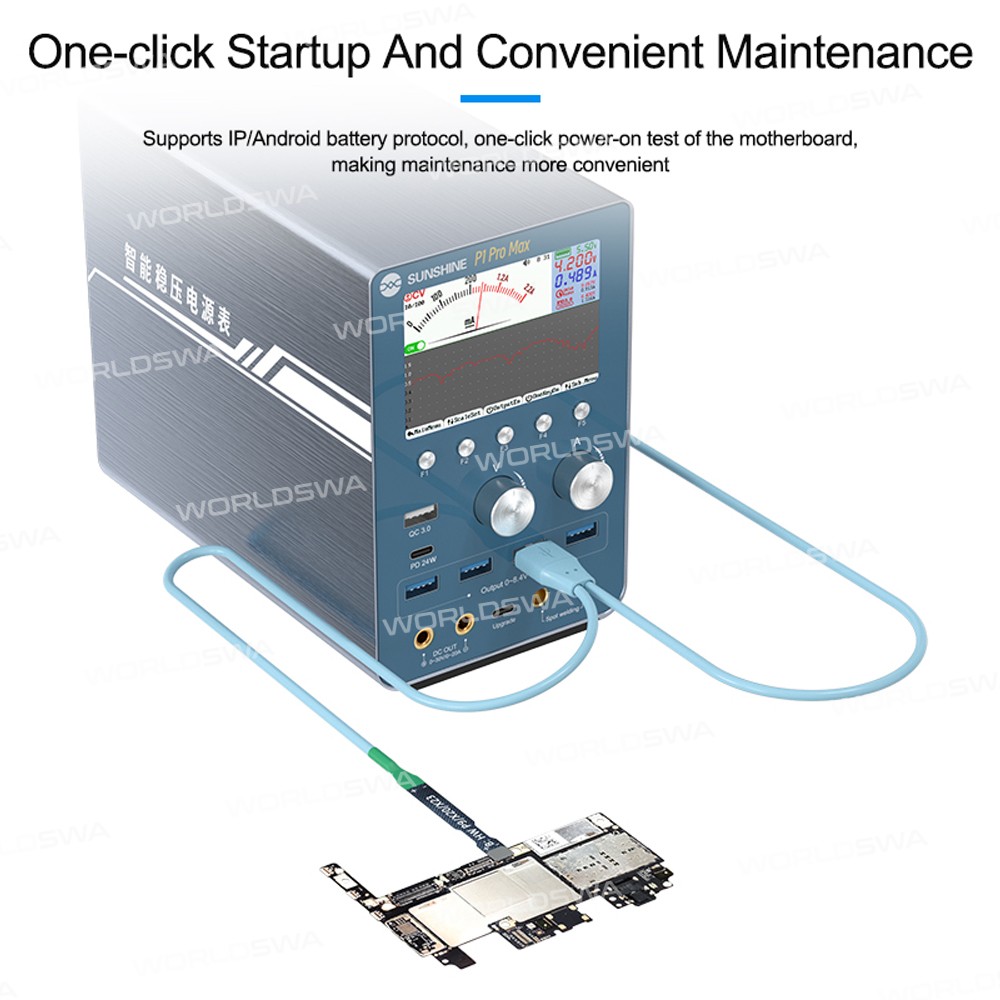

• iPhone/Android Battery Protocol: One-click power-on test of the motherboard, making maintenance more convenient.

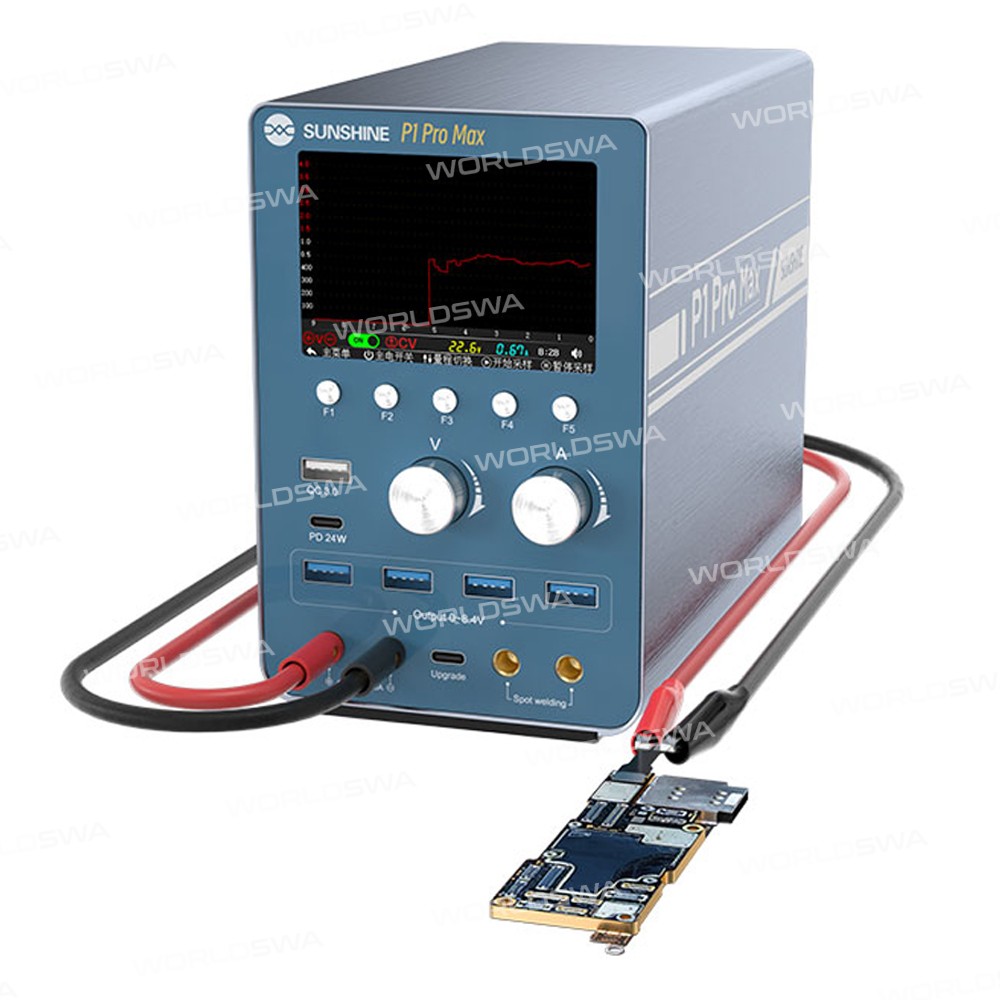

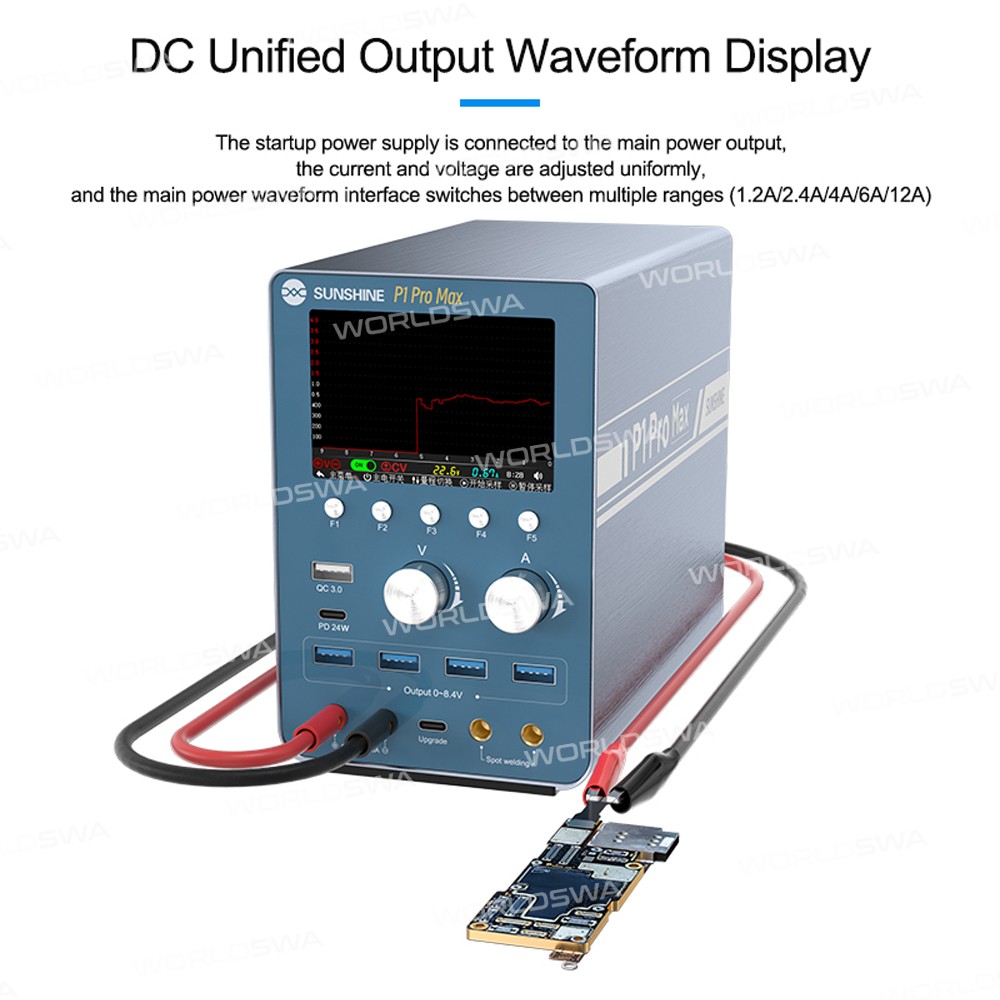

• DC Unified Output Waveform Display: Startup power supply is connected to the main power output, with uniform adjustment of current and voltage.

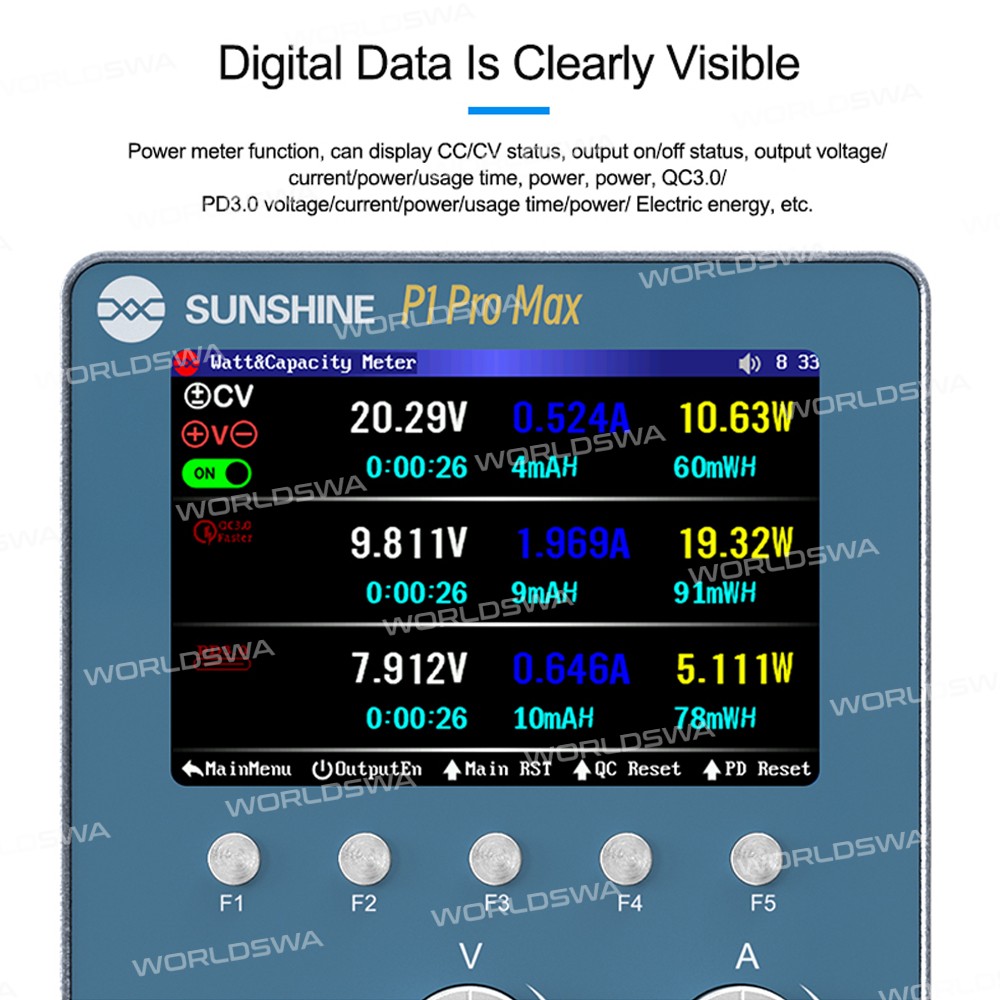

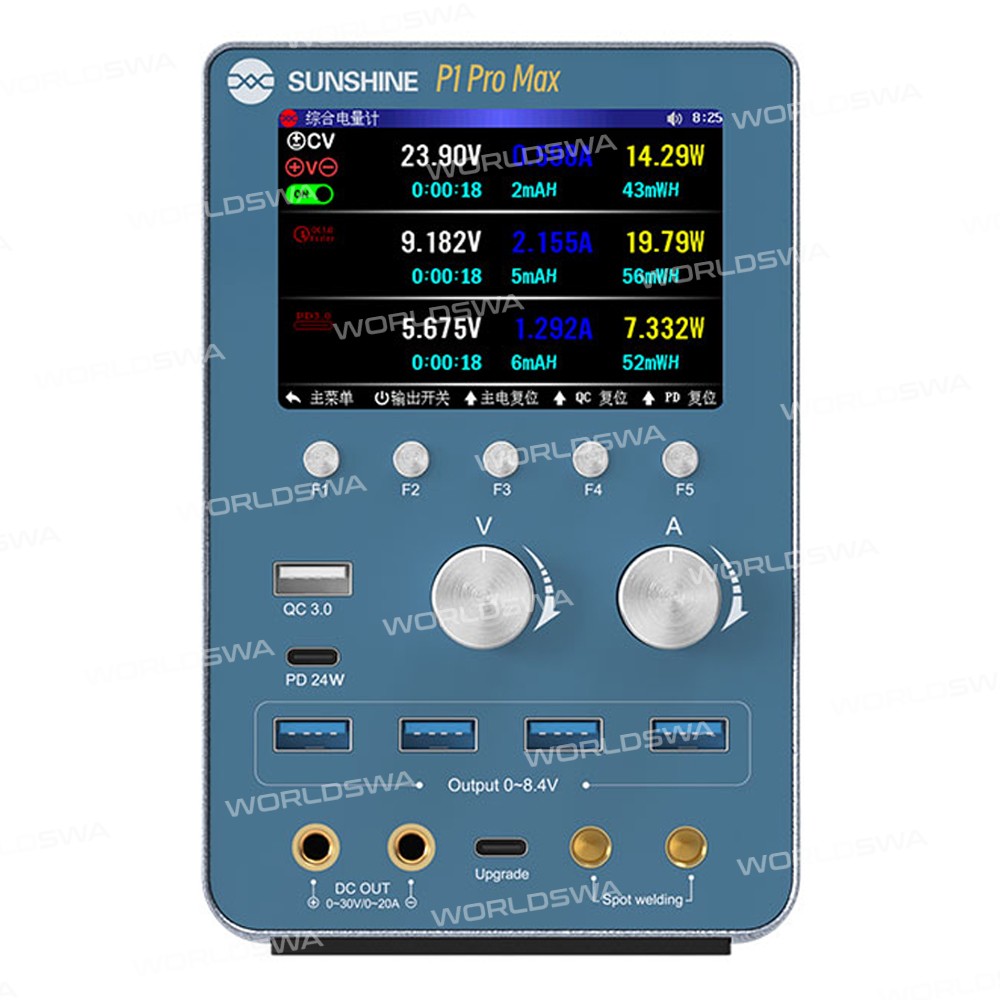

• Power Meter Function: Displays CC/CV status, output on/off status, output voltage/current/power/usage time, power, and more.

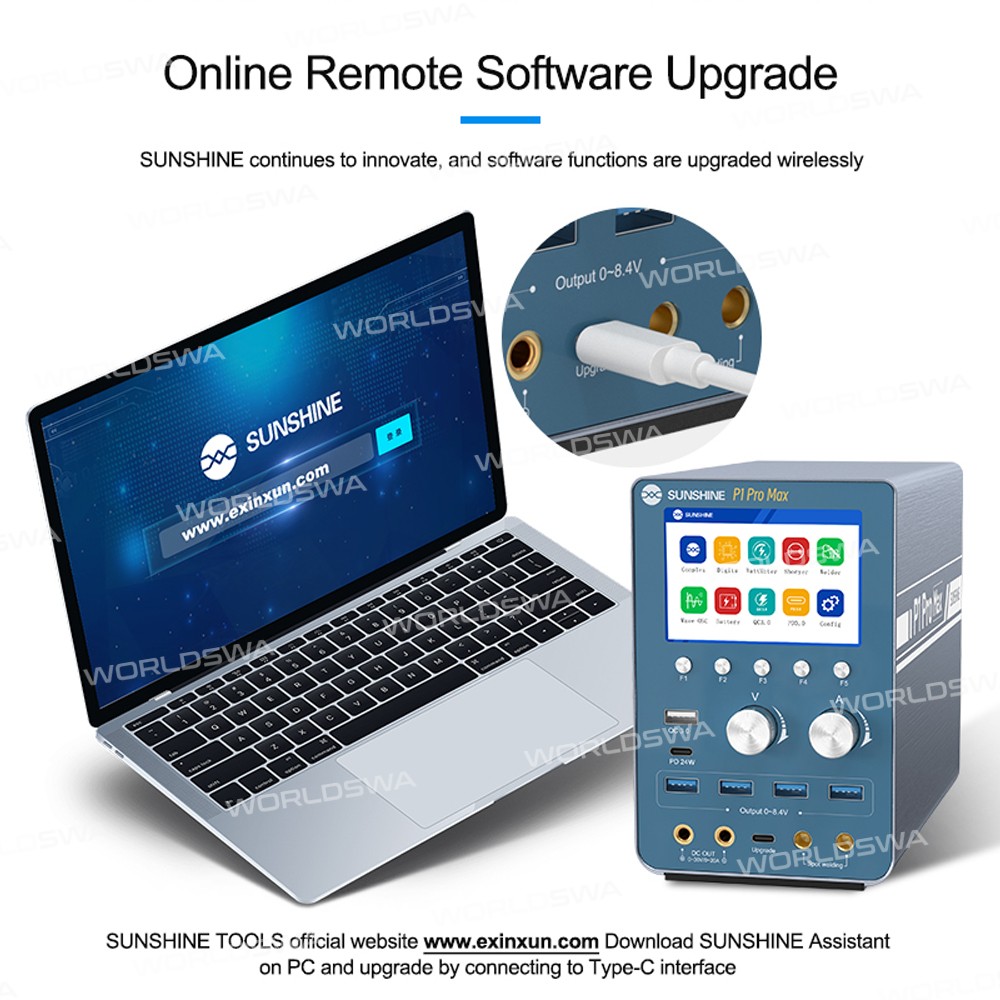

• Online Remote Software Upgrade: Continuously innovate and upgrade software functions wirelessly.

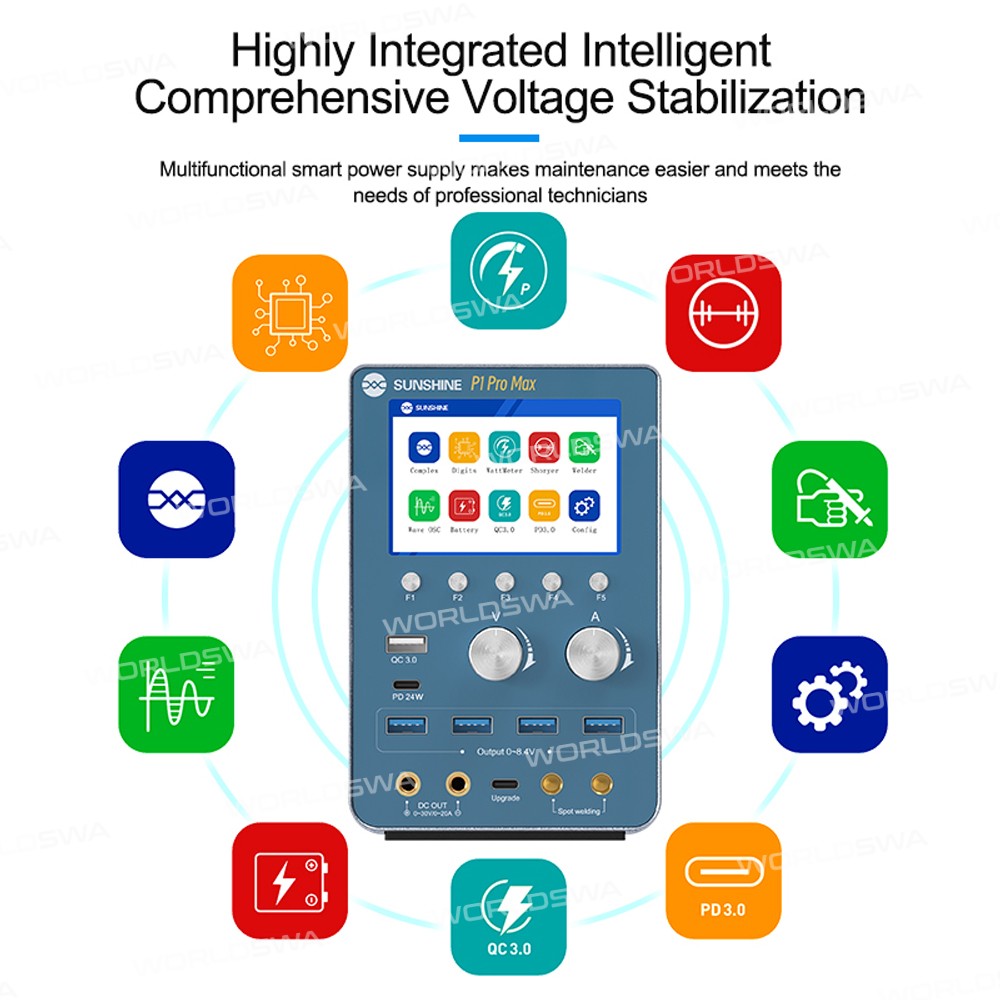

• Highly Integrated Intelligent Comprehensive Voltage Stabilization: Multifunctional smart power supply makes maintenance easier and meets the needs of professional technicians.

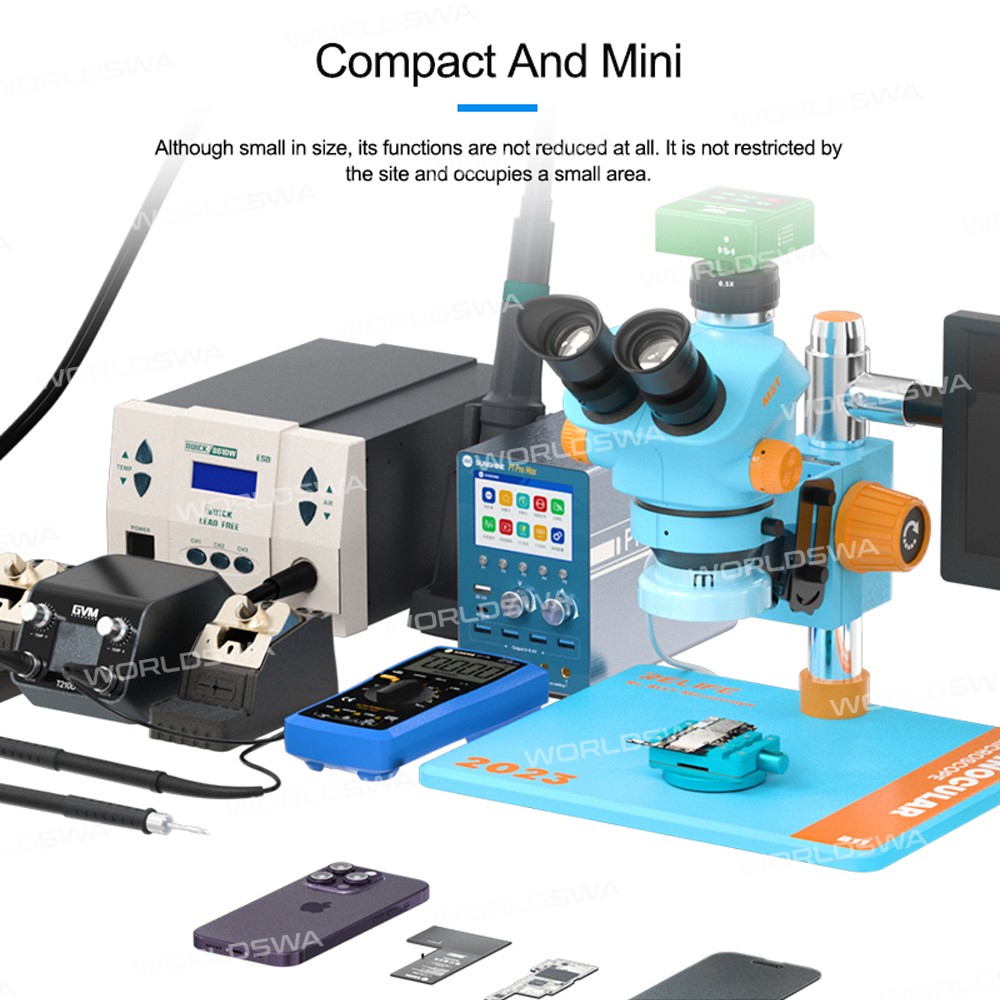

• Compact and Portable: Small in size, but with full functions, and not restricted by the site, occupying a small area.

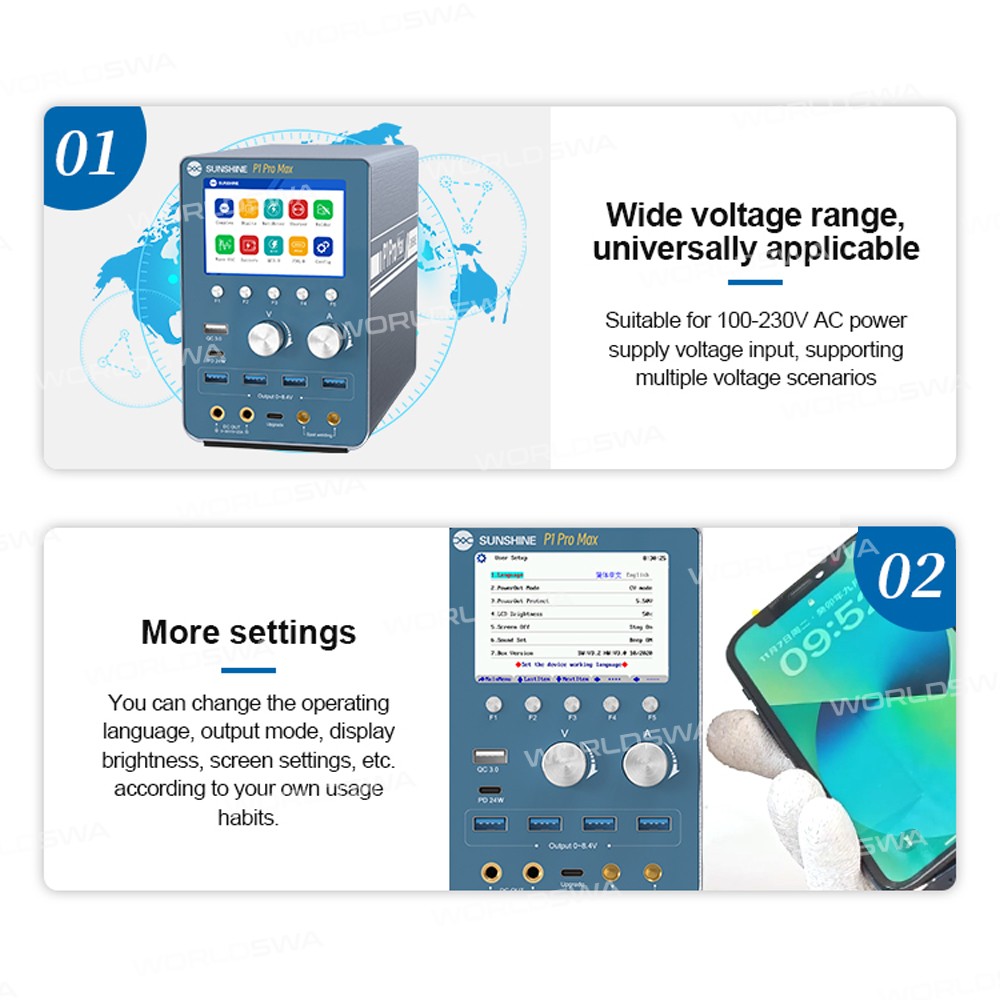

• Wide Voltage Range: Universally applicable, suitable for 100-230V AC power supply voltage input, supporting multiple voltage scenarios.
• Customizable Settings: Change operating language, output mode, display brightness, screen settings, and more according to your usage habits.

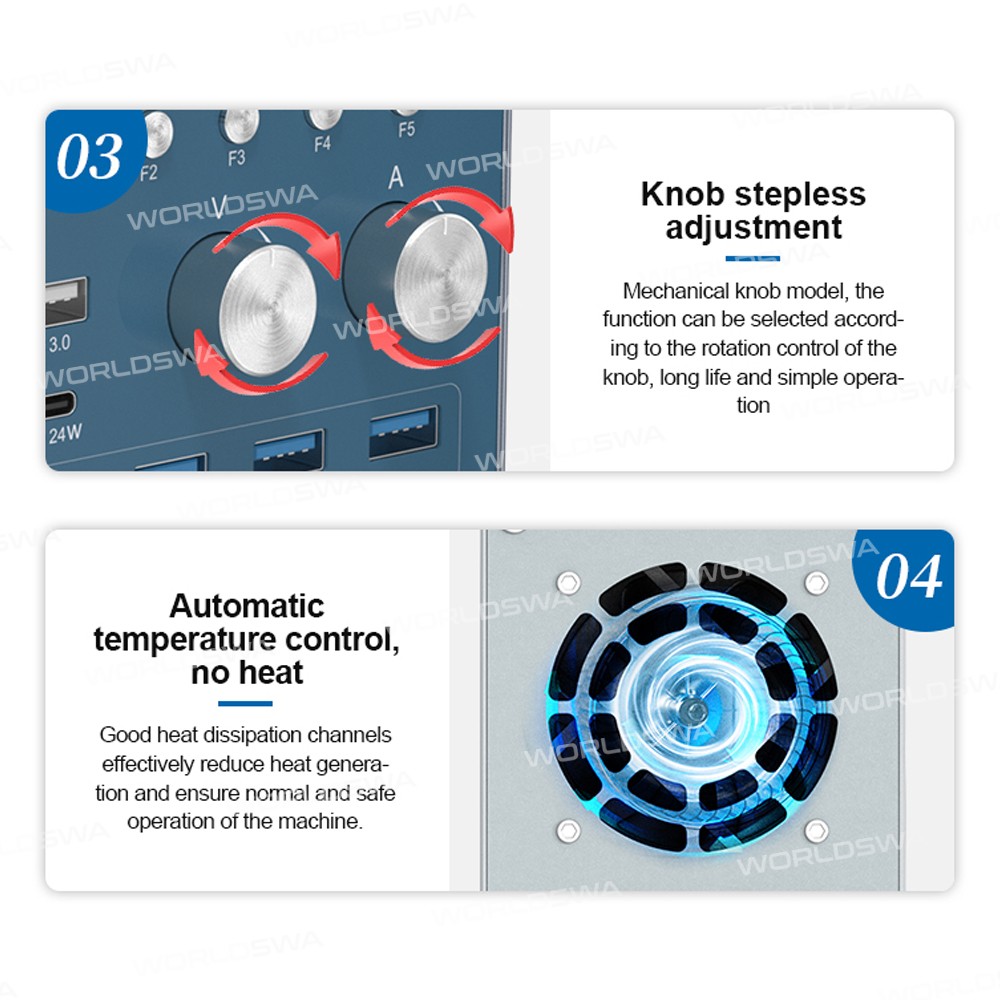

• Mechanical Knob Model: Select functions according to the rotation control of the knob, with a long lifespan and simple operation.
• Automatic Temperature Control: No heat, good heat dissipation channels, effectively reducing heat generation and ensuring normal and safe operation of the machine.
• Thin Steel Needle Tip: Flame retardant, high temperature resistant, anti-freezing, and not hardening.
• Replaceable Tip Spot Welding Pen: Made of copper, supports large current, and has good conductivity.

Specification:

• Brand: Sunshine
• Product Name: Intelligent regulated power supply
• Model: P1 Pro Max
• Net Weight: About 1618g

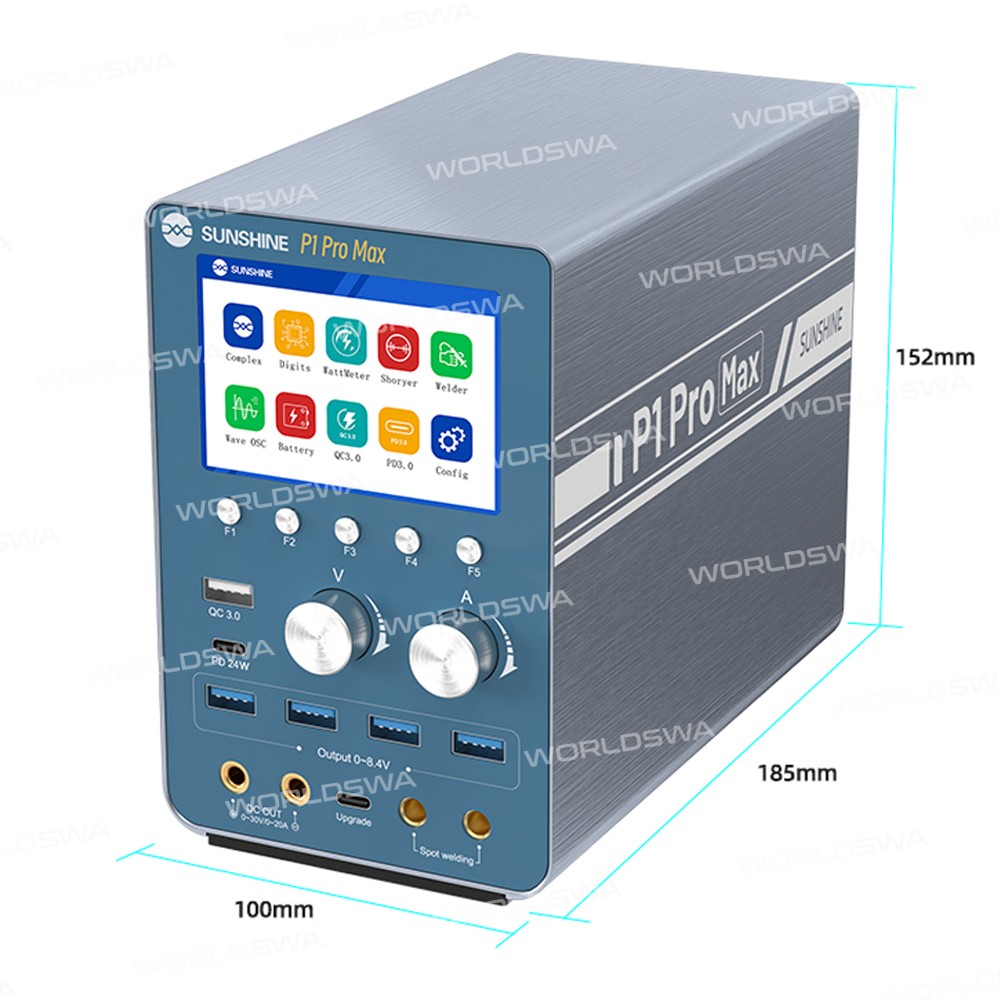

• Host Size: 100*185*152mm
• Package Size: 210*235*135mm
• Burning Cord Length: About 630mm
• Spot Welding Line Length: About 415mm
• Power Cord Length: About 1490mm
• Input Voltage: 100V~240V 50/60Hz
• Total Output Power: 250W
• Main Voltage: 0~30A
• Main Current: 0~20A
• Fast Charge: PD/QC3.0
• Power Supply Output Voltage at Startup: 0~8.4V
• Power on Power Output Current: 0~6A
• Display Resolution: Voltage 0.01V; Current 0.001A
• Working Conditions (Temperature): 0~40℃
• Working Conditions (Relative Humidity): 80%
• Storage Conditions (Temperature): -10~70℃
• Storage Conditions (Relative Humidity): 35%~45%

Package includes:

• 1 x Host
• 1 x Power Cord
• 1 x Spot Welding Wire
• 1 x Burning Wire
