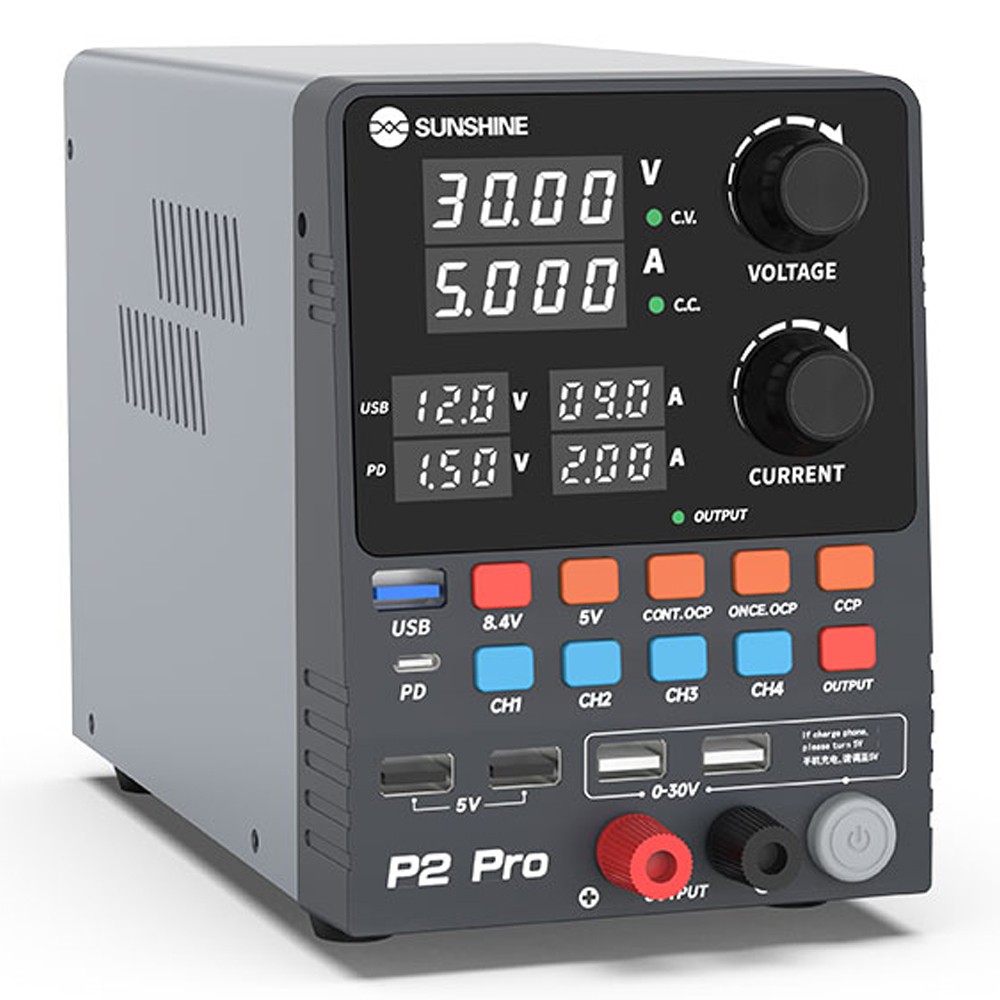

Sunshine P2 Pro 330W 4-Segment High Precision Adjustable DC Stabilized Power Supply Storage Channel

Sunshine P2 Pro 330W 4-Segment Storage Channel High Precision Adjustable DC Stabilized Power Supply

Features:

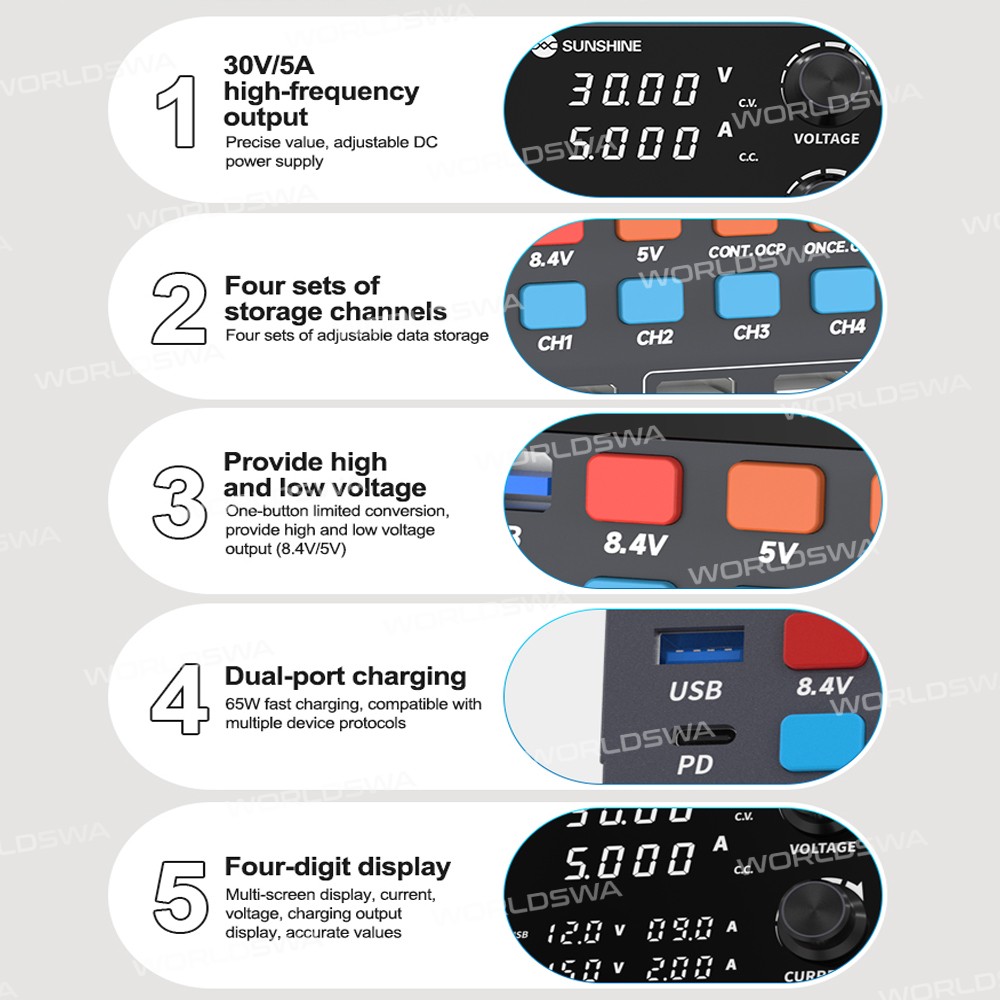

• High-Precision Power Supply: P2 Pro Toroidal Transformer adjustable DC power supply, 30V/5A high-frequency output, precise value, Four sets of storage channels

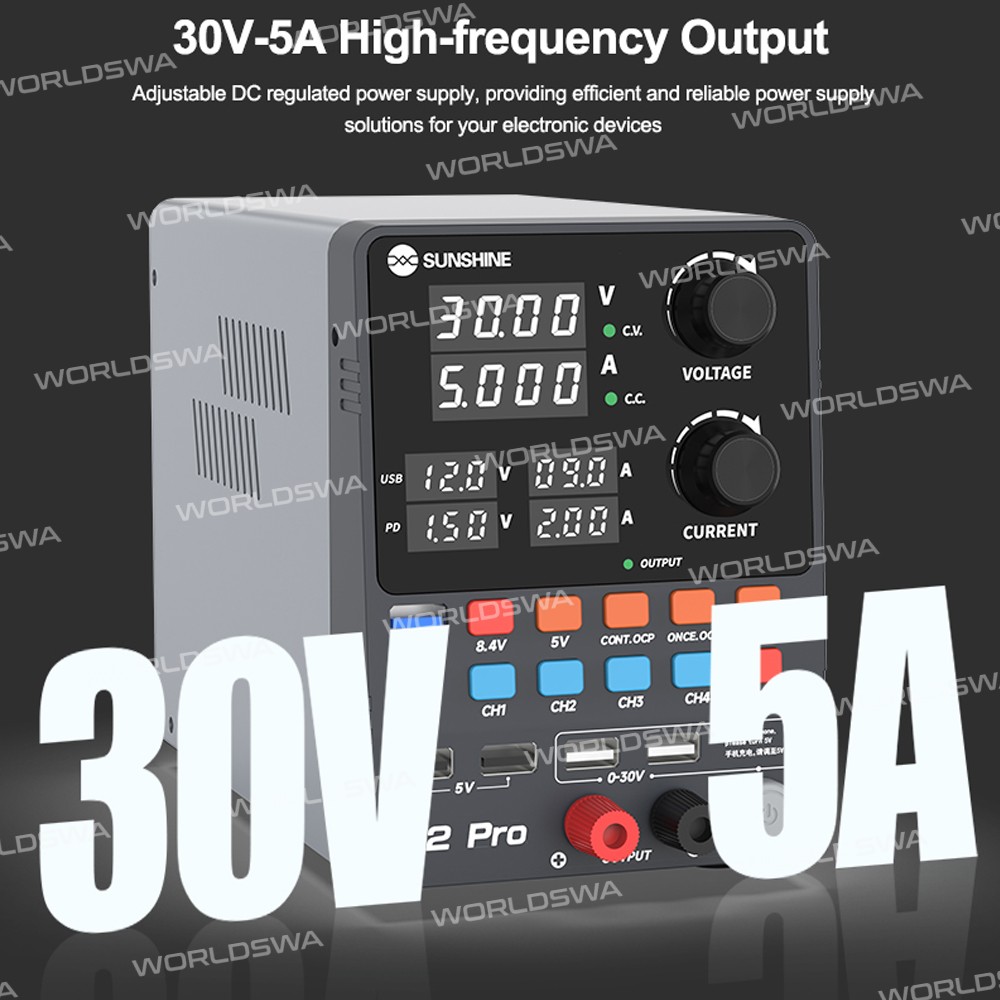

• Efficient Power Solution: 30V-5A high-frequency output, adjustable DC-regulated power supply, providing efficient and reliable power supply solutions for your electronic devices

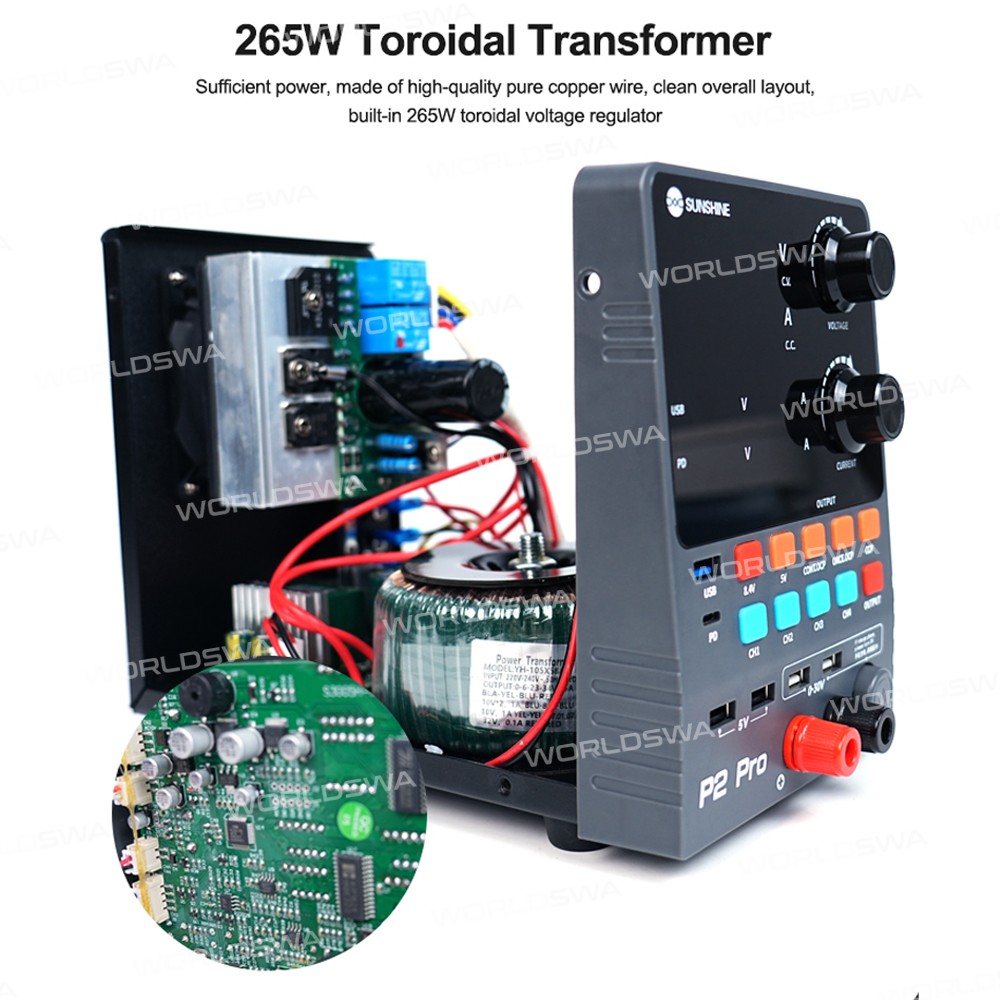

• Quality Construction: Sufficient power, made of high-quality pure copper wire, clean overall layout, built-in 265W toroidal voltage regulator

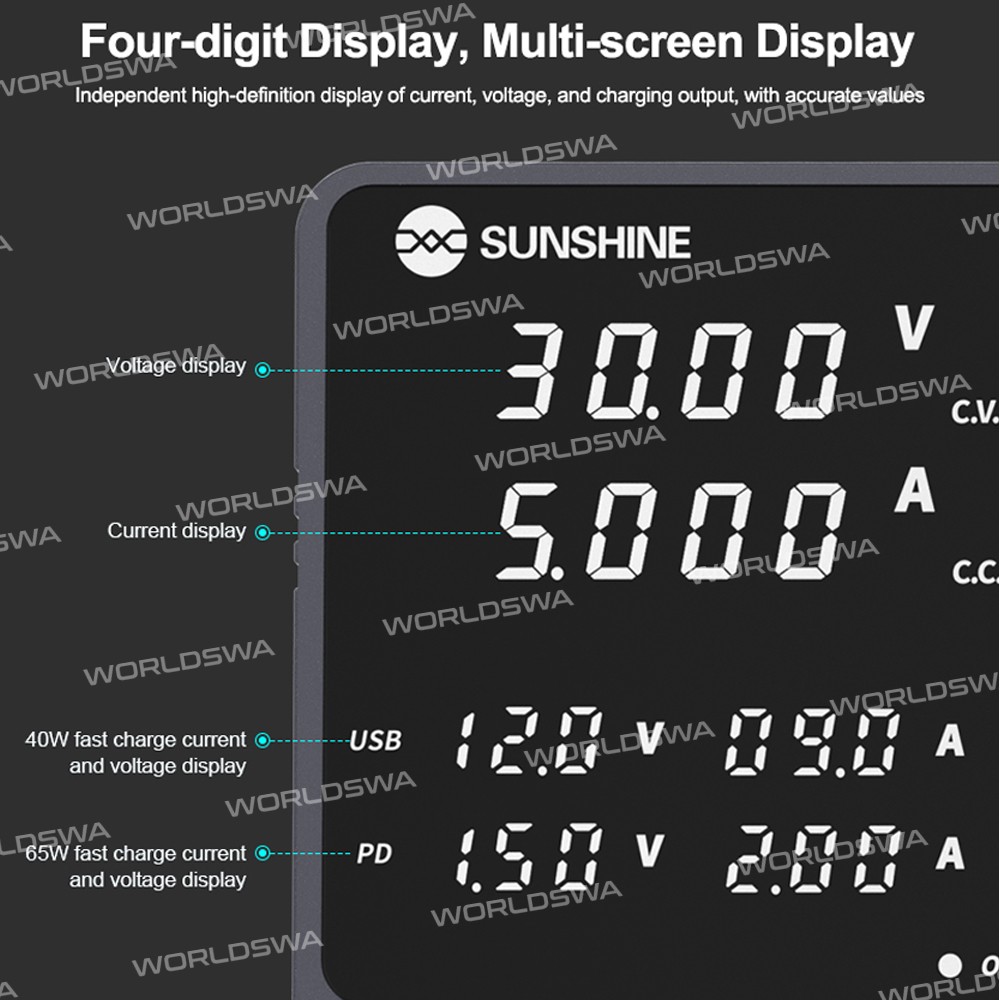

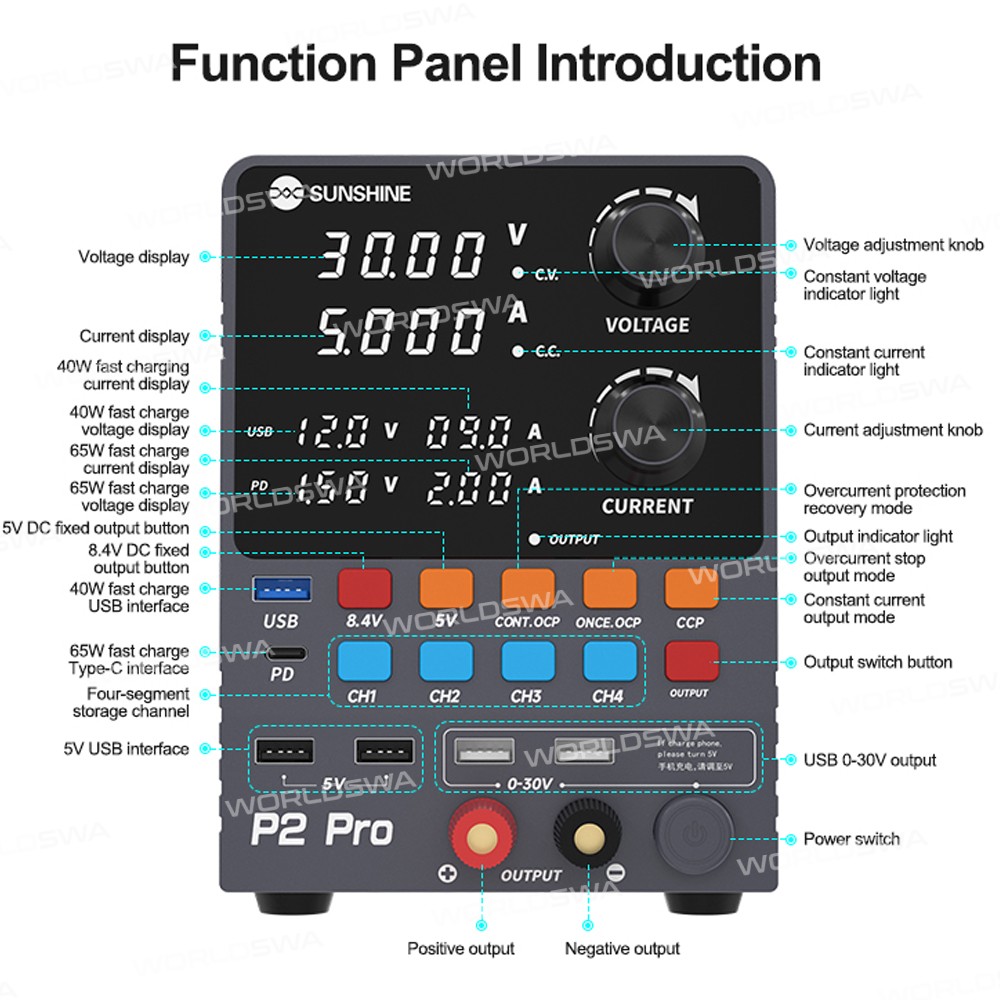

• Clear Display: Four-digit display, multi-screen display, independent high-definition display of current, voltage, and charging output, with accurate values

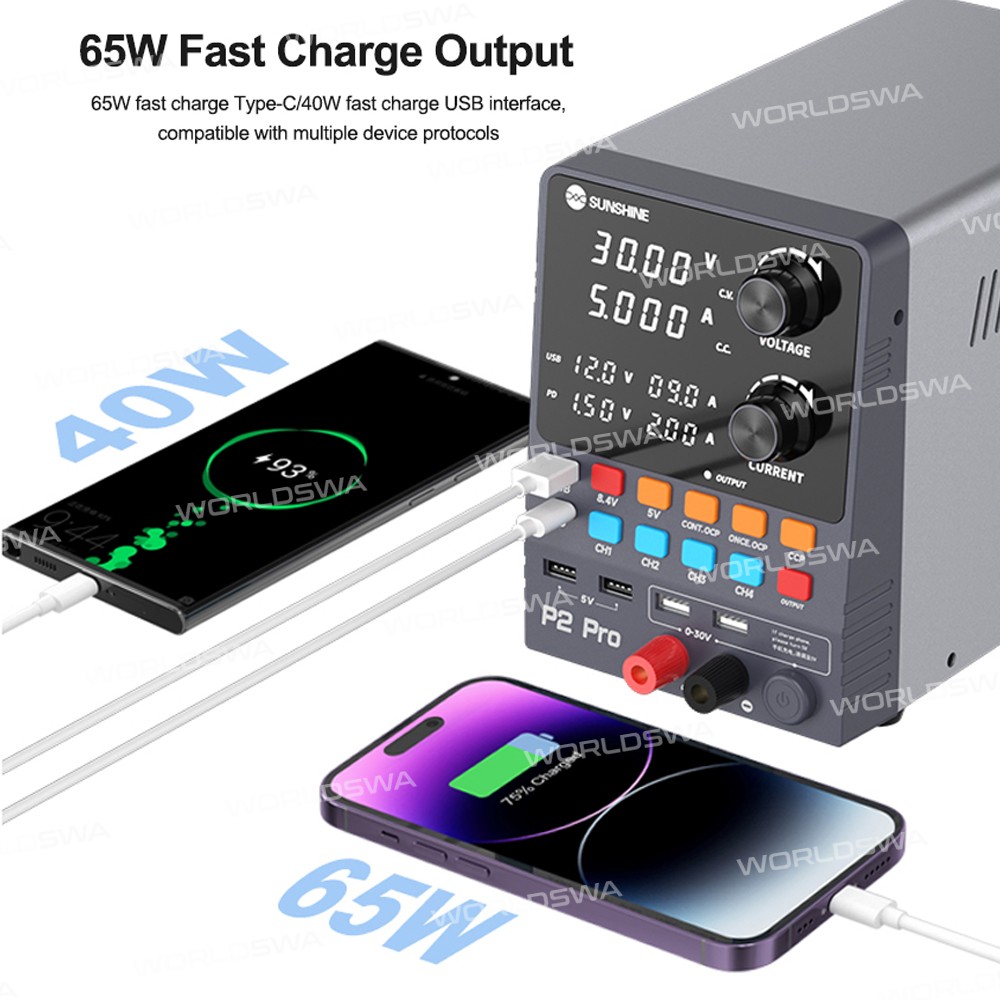

• Fast Charging: 65W fast charge Type-C/40W fast charge USB interface, compatible with multiple device protocols

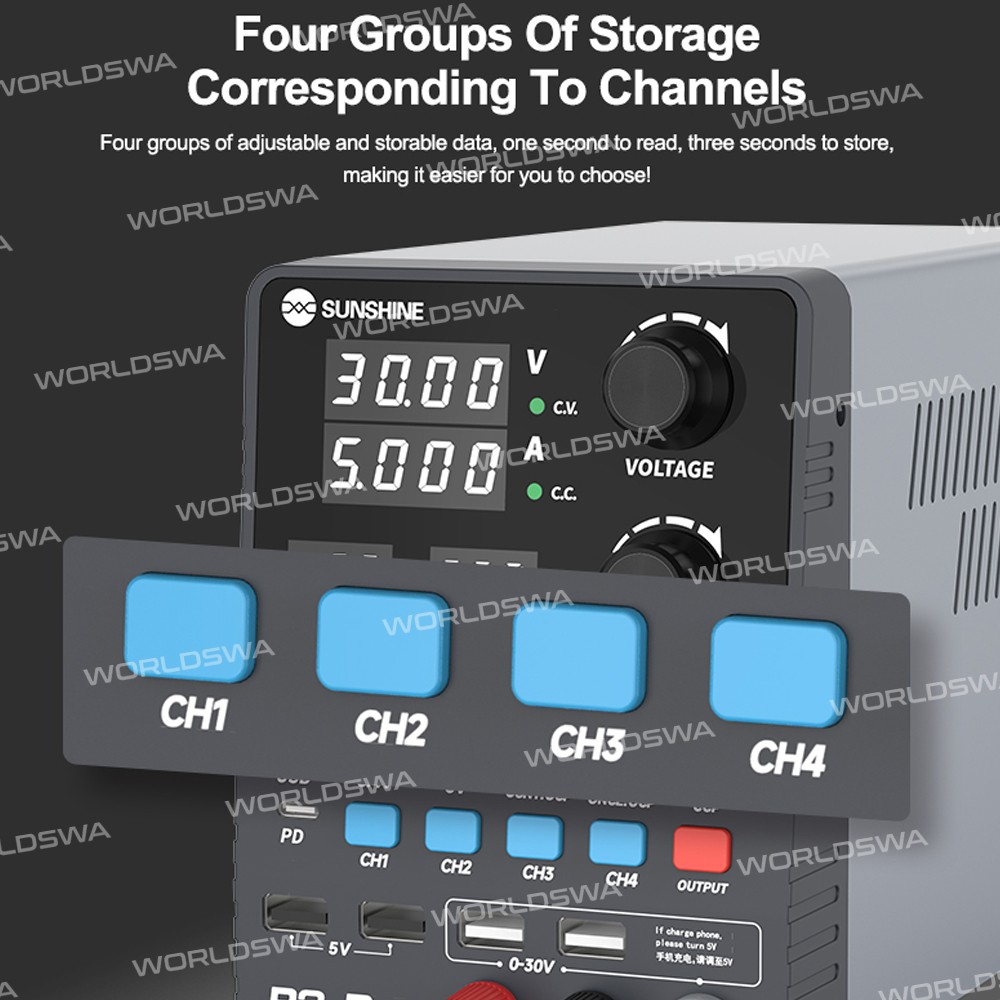

• Convenient Storage: Four groups of storage corresponding to channels, four groups of adjustable and storable data, one second to read, and three seconds to store, making it easier for you to choose

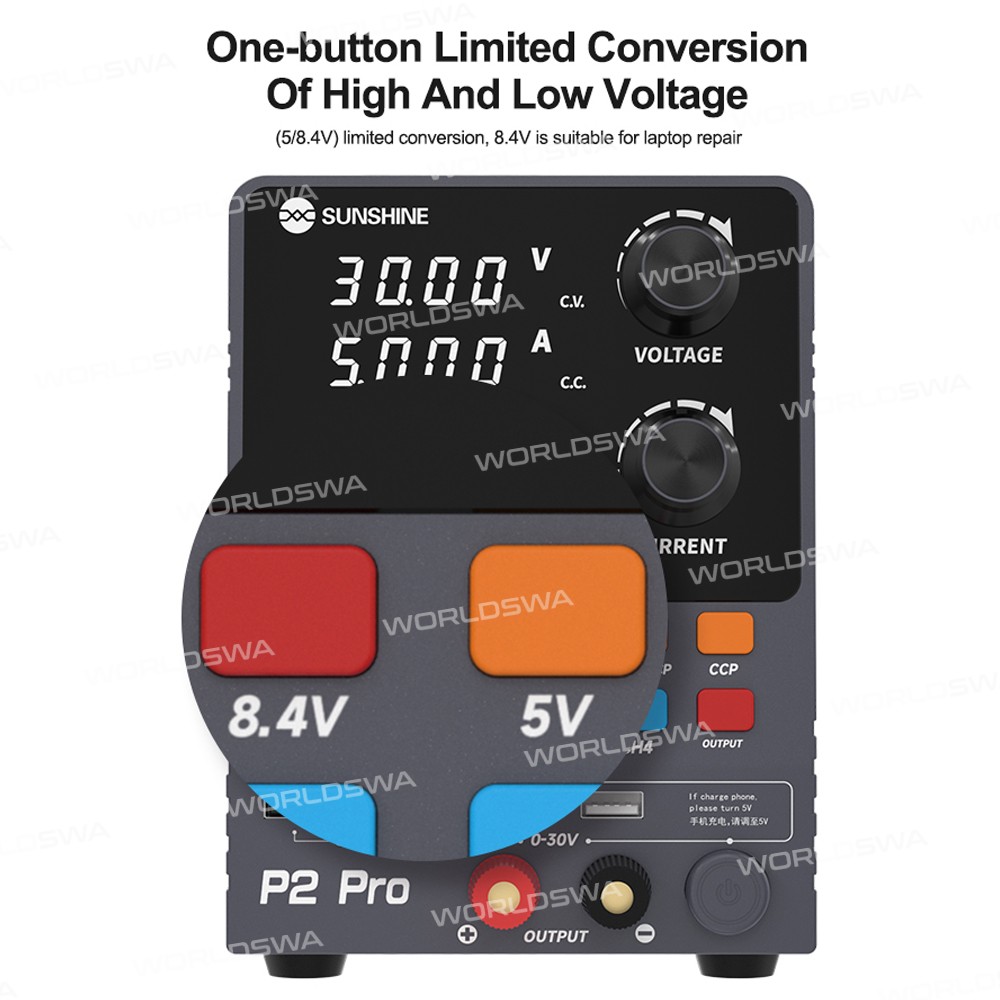

• One-Button Conversion: One-button limited conversion of high and low voltage, (5/8.4V) limited conversion, 8.4V is suitable for laptop repair

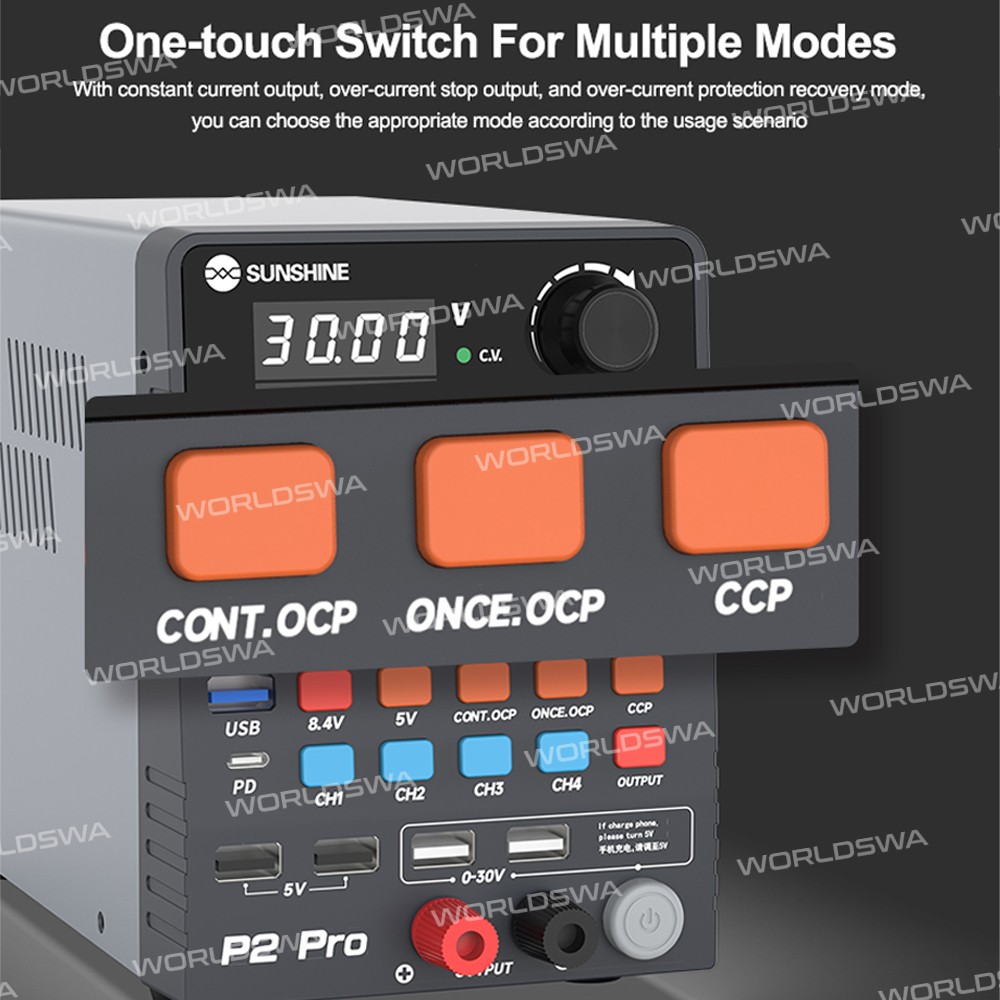

• Multiple Modes: One-touch switch for multiple modes, with constant current output, over-current stop output, and over-current protection recovery mode, you can choose the appropriate mode according to the usage scenario

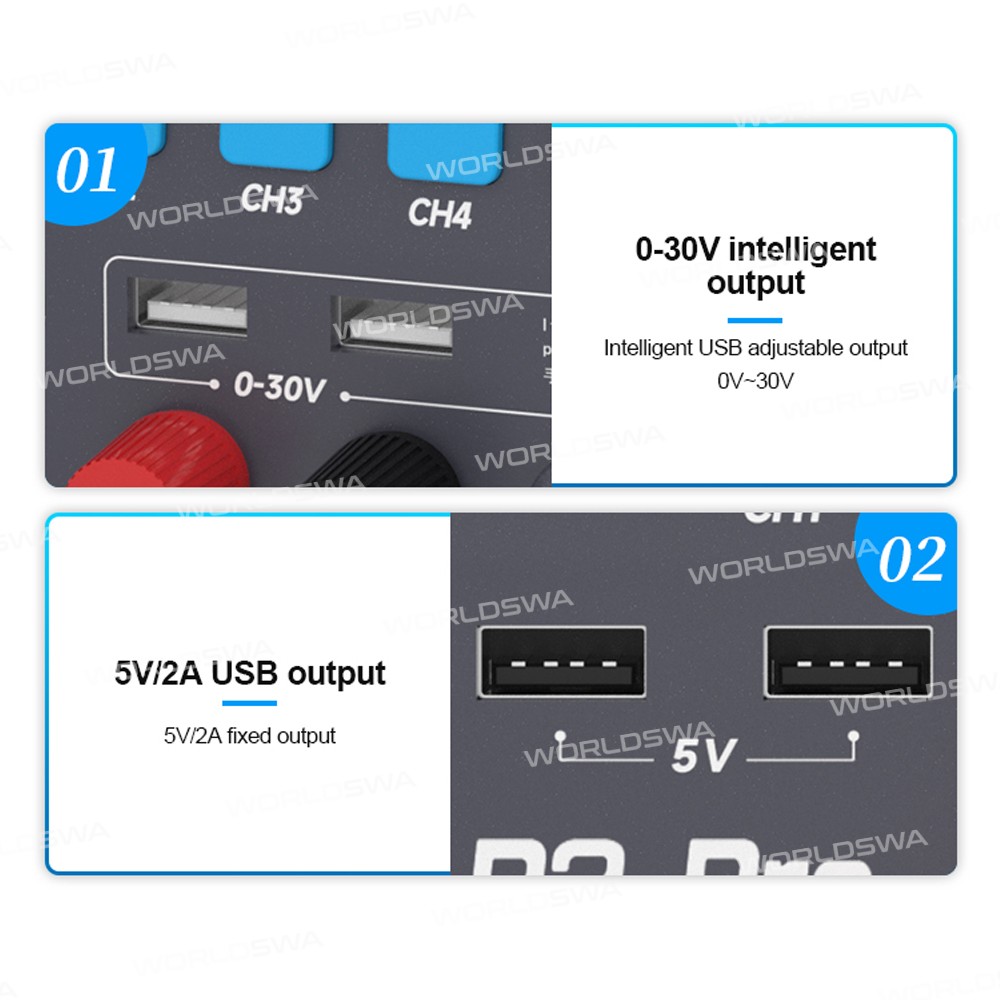

• Intelligent Output: 0-30V intelligent output, 5V/2A fixed output

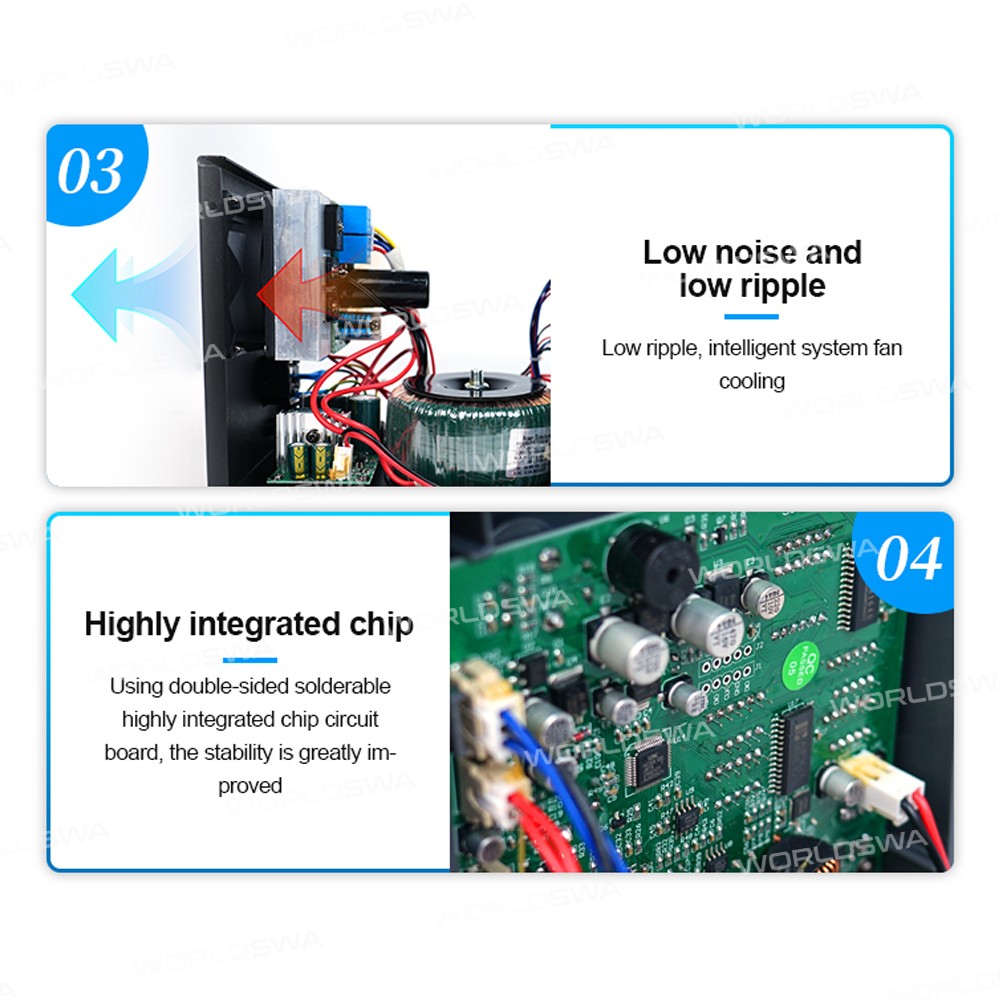

• Low Noise and Ripple: Low noise and low ripple, low ripple, intelligent system fan cooling
• Highly Integrated Chip: Highly integrated chip, using a double-sided solderable highly integrated chip circuit board, the stability is greatly improved

Specification:

• Brand: Sunshine
• Product name: Intelligent regulated DC power supply
• Model: P2 Pro
• Net weight: 3.45kg

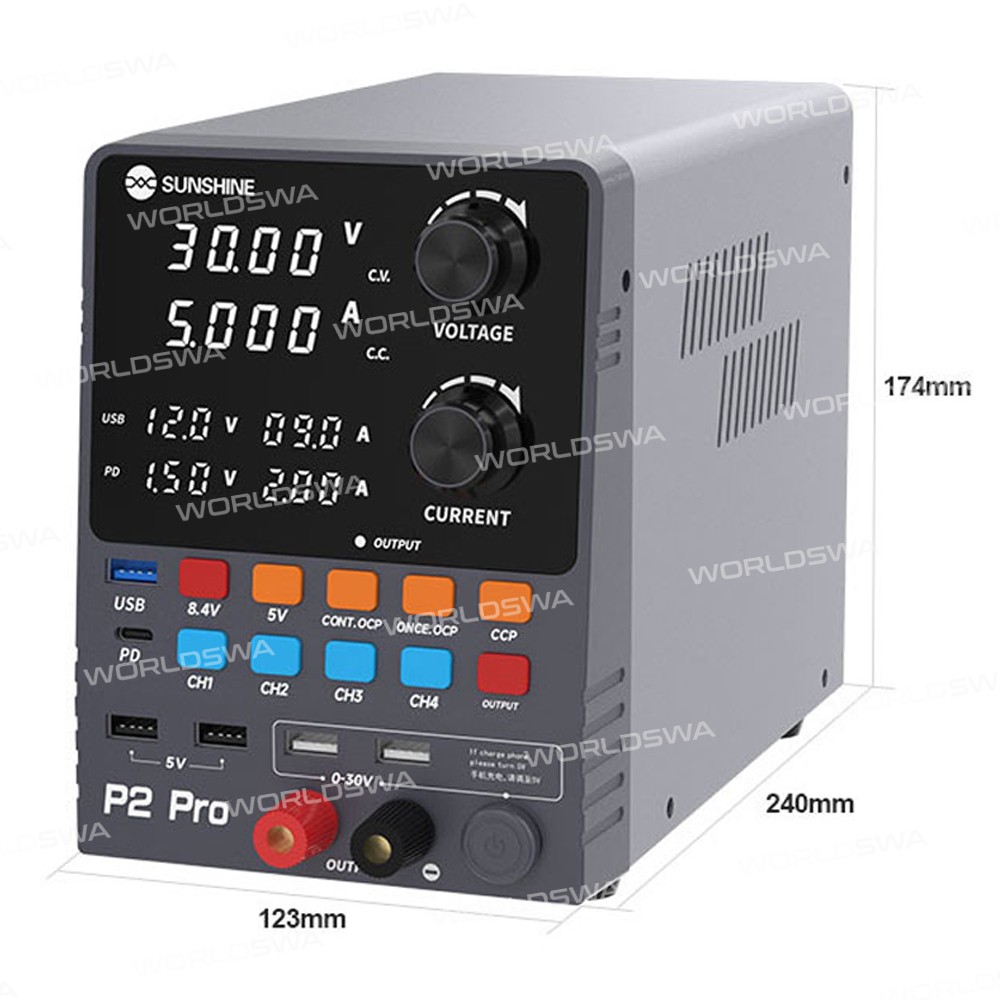

• Product size: 240*123*174mm
• Packing size: 315*225*265mm
• Rated voltage range: 110V-127V, 60Hz/220V-240V~, 50Hz
• Rated power: 330W
• Operating temperature: -10℃~40℃/14℉-104℉
• Operating relative humidity: <90%
• Output voltage: DC 0~30V
• Output power: 150W
• Voltage accuracy: <0.1%+0.03V
• Current accuracy: <0.3%+3mA
• Load stability: <0.6%+10mA
• Ripple: Vrms<0.5%(10Hz-1MHz)
• Output current: 0~5A

Package includes:

• 1 x Power Supply
• 1 x Test Cable
• 1 x Power Cable
