Sunshine P3 5V / 8.4V / 15V DC Regulated Power Supply with Switching & Dual LED Dual Pointer Display

Sunshine P3 5V / 8.4V / 15V Switching & Dual LED Dual Pointer Display DC Regulated Power Supply

Product Overview

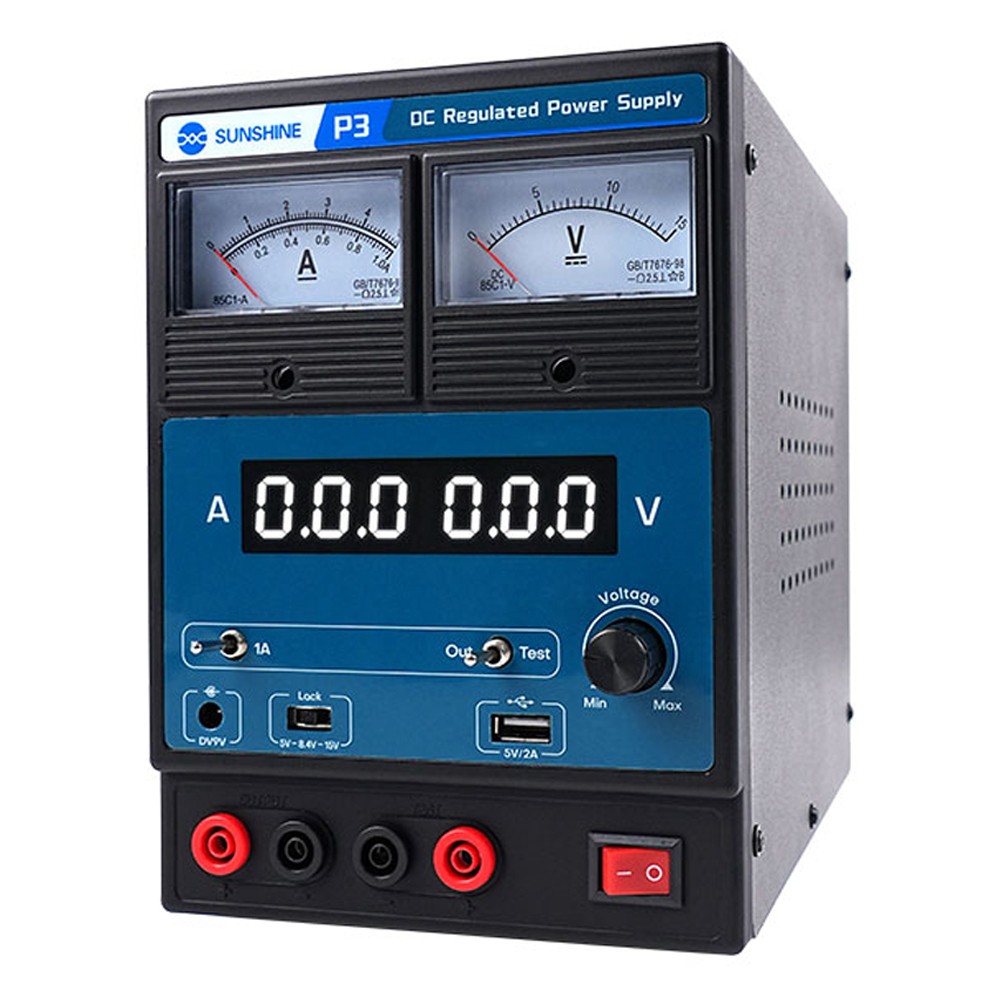

This Sunshine P3 DC regulated power supply features 5V/8.4V/15V switching, A/V dual digital display, dual pointers, and automatic short circuit protection. It is designed for excellent electronic repair services, stabilizing voltage and current, strengthening multiple protections, and improving operating efficiency.

Key Features:

• Dual Digital Display and Dual Pointer Meter: LED and pointer are displayed simultaneously; large-screen LED digital display of current and voltage values is more accurate and clearer. **Summary: Accurate and clear display of current and voltage values**.

• 5V/8.4V/15V Switching: Choose different voltage ranges according to usage. **Summary: Convenience and flexibility**.

• 5V/2A USB Charging and 9V Independent Charging: Independent USB charging port and 9V independent charging for multimeters and other digital devices. **Summary: Multi-functional and convenient charging**.

• Stable Performance and Protection: Stabilize voltage and current, strengthen multiple protections, and improve operating efficiency. **Summary: Safe and reliable operation**.

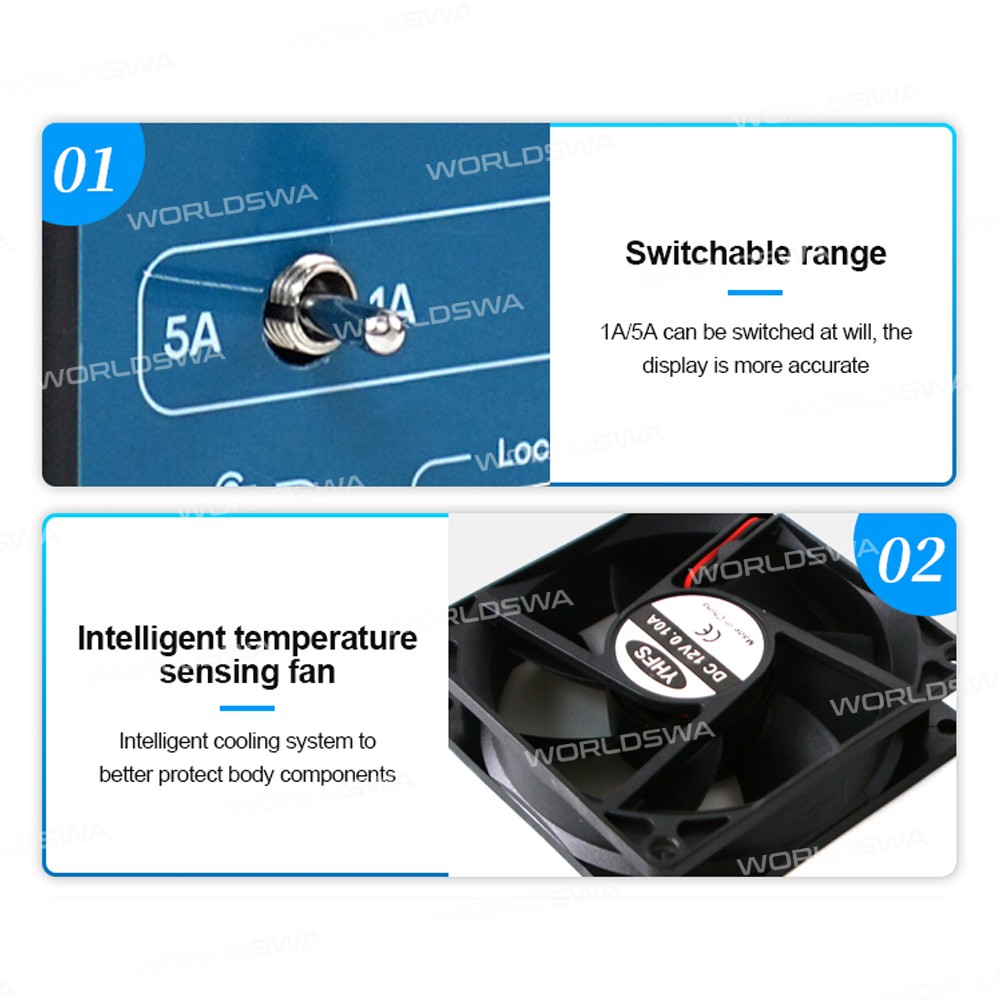

• Intelligent Temperature Sensing Fan and Heat Dissipation Hole Design: Intelligent cooling system and ventilation design to better protect body components and lower the temperature of the machine. **Summary: Effective heat management**.

Specification:

• Brand: Sunshine

• Product name: DC-regulated voltage power supply

• Model: P3

• Net weight: ≈2.74kg

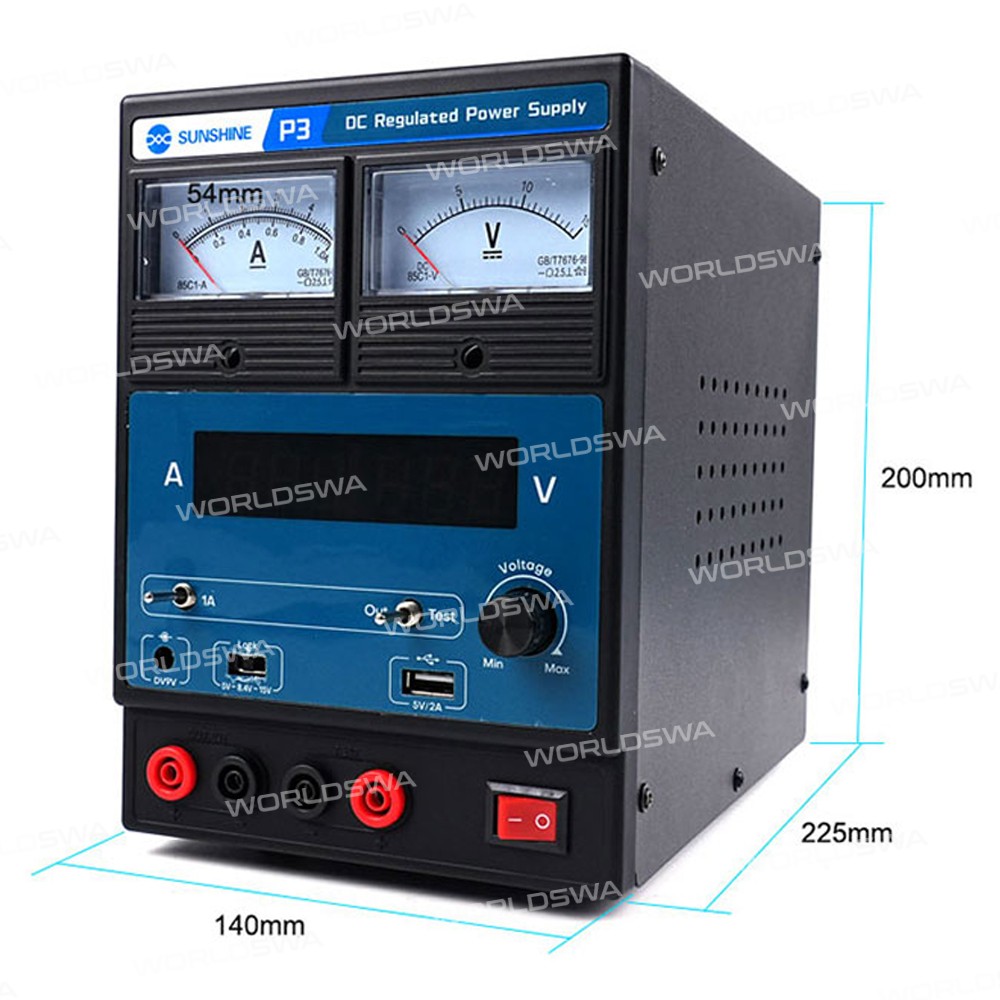

• Product Size: 140*225*200mm

• Package Size: 290*197*255mm

• Voltage: AC 220V±10%, 50Hz/AC 110V±10%, 60Hz

• Working conditions (Temperature): 0~40℃

• Working conditions (Relative Humidity): 80%

• Storage conditions (Temperature): -10~70℃

• Storage conditions (Relative Humidity): 35~45%

• Display method: LED display (resolution ±1%)

• The output voltage: Continuously adjustable between 5V~8.4~15V (resolution 0.1V)

• Voltage output accuracy: ±0.1V

• Voltage stability: <0.01%+3mV

• Load stability: <0.01%+3mV

• Recovery time: 100uS

• Ripple noise voltage: <0.1%Vrms

• Temperature coefficient: <300PPM/C

• Current stability: <0.01%+3mV

• Load stability: <0.01%+3mV

• Ripple noise current: <0.1%Vrms

Package includes:

• 1 x Power Supply

• 1 x Power Cord

• 1 x Fish Clip Wire
