Sunshine SS-890B 20W Fiber Laser Machine: Frame Removal, Marking & Engraving with Intelligent Ranging Function

Sunshine SS-890B 20W Fiber Laser Frame Removal Marking Engraving Machine with Intelligent Ranging Function

Features:

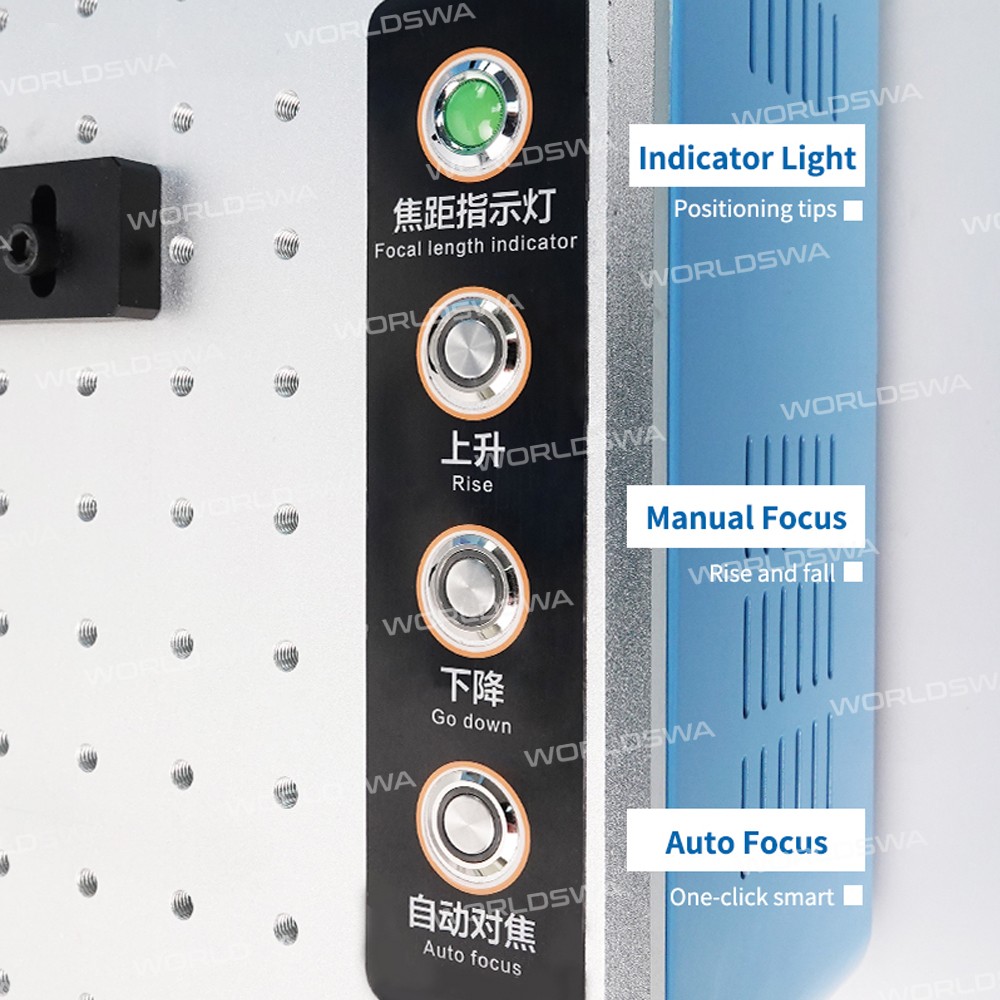

• **Intelligent Positioning**: Intelligent positioning and ranging, fast and accurate positioning
• **Advanced Technology**: Modern numerical control technology, strict control of every detail
• **Wide Compatibility**: Disassemble the screen and remove the back cover to support more than 120 mobile phone models
• **High-Speed Marking**: With a high-speed scanning galvanometer, the marking speed is fast, which is more than 4 times that of the YAG and DP semiconductor marking machines

Specification：

• Brand: SUNSHINE
• Product Name: Laser Frame Removal
• Marking Machine Model: SS-890B
• Product size: 522 * 400 * 655mm
• Packing dimensions: 750*520*655mm
• Net weight: 30kg
• Gross weight: 42KG
• Electricity demand: 220V/50HZ/2.5A
• Power grid fluctuation: <±5%
• Power: < 250W (whole machine)
• Work temperature: 15 to 35℃
• Work humidity: 45 to 75%
• Focal length of field mirror: F= 254MM (effective focusing range: 180X180mm)
• Marking depth: 0.015-0.5mm (adjustable depending on material)
• Linewidth: 0.05-0.01mm
• Marking speed: less than 10000mm/s
• Repetitive accuracy: Fiber Laser
• Output mode: A curved surface with a small curvature; a fillable marker
• Marking function: English, Numbers, Punctuation, Chinese, Arbitrary Graphics, Barcode, etc.
• Laser power: 20W

Package includes:

• 1 x Heating Table
