Sunshine SS-915 V9.0 Battery Activation Board for iPhone 6-15Pro Max, Samsung, Huawei, Xiaomi Phones

Sunshine SS-915 V9.0 Battery Activation Board for iPhone 6G to 15Pro Max / Samsung / Huawei / Xiaomi

Features:

• Wide Compatibility:** Supports iPhone 6G to 15Pro Max, Samsung, Huawei, OPPO, VIVO, Xiaomi, and other popular Android models.

• **23 Commonly Used Seats**: Similar battery seats can be buckled and used, suitable for all series of batteries of Android system/full series of iPhone 6G to 15Pro Max, with stronger applicability.

• Upgraded Large IC:** Supports fast charging protocol, low voltage activation, and real-time display of voltage and current.

• **Voltage and Current Display**: When the battery is inserted, the voltage of the battery is displayed. When the power supply is plugged in, the voltage of the power terminal is displayed, and the current is the load.

• Multi-Functional:** One-key battery activation, voltage detection, short circuit protection, and upgrade high-current smart fast-charging IC.

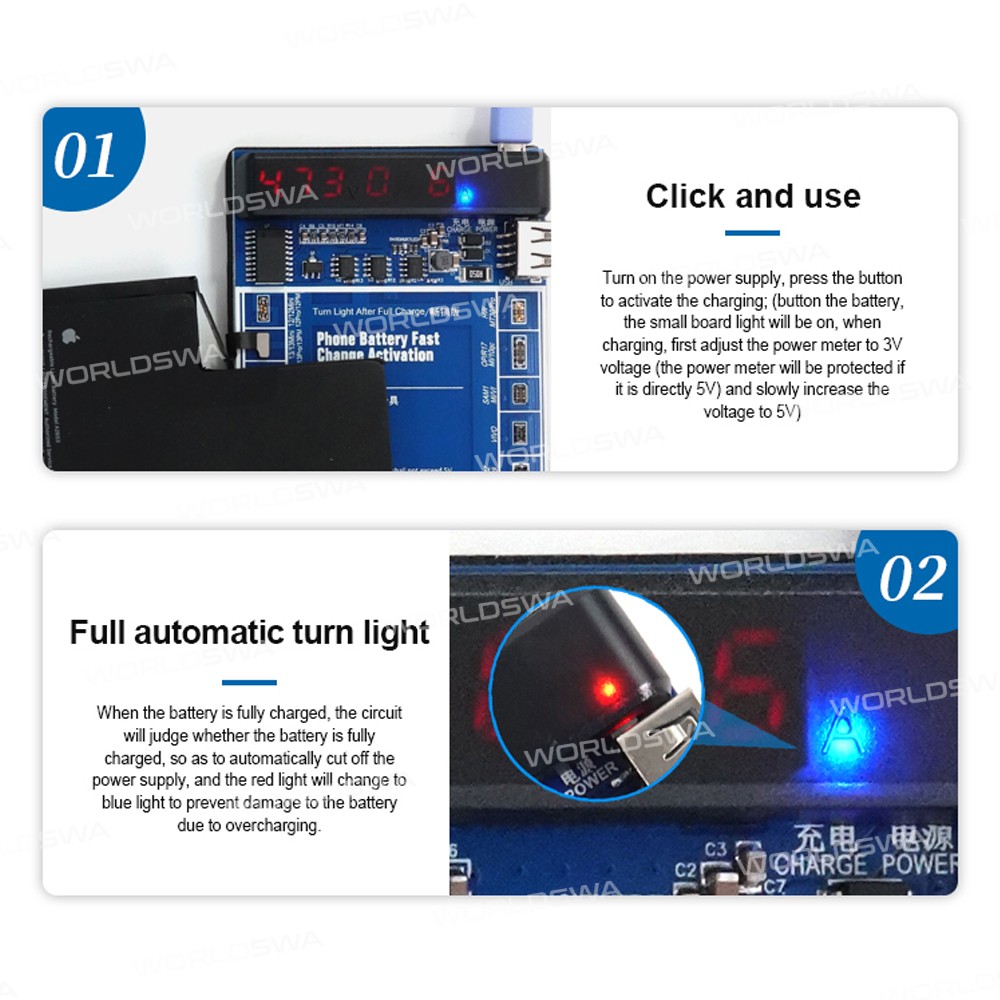

• **Easy to Use**: Turn on the power supply, press the button to activate charging, and adjust the power meter to 3V voltage (power meter will be protected if it's directly 5V) and slowly increase the voltage to 5V.

• **Auto Cut-Off**: When the battery is fully charged, the circuit will judge whether the battery is fully charged, automatically cutting off the power supply, and the red light will change to blue light to prevent damage to the battery due to overcharging.

• **Automatic Pole Detection**: Automatically identifies the positive and negative poles of the battery, suitable for different manufacturers of domestic smartphones.

• **Protection Current**: Not more than 2A. When high voltage is connected, the protection board will automatically cut off the power supply to avoid losses, and it can resume normal work after 1 minute.

• **Power Supply Function**: Can supply power through the USB connection, accurately detecting the voltage value and current value of the charger, measuring the voltage of the USB power supply device when it's empty/loaded, and the load current of the USB terminal device when it's working.

• **Durable Design**: The bottom surface of the PC board is made of a layer of thick sponge, and the battery is buttoned on it, which can effectively relieve the force and prevent the PC board from being seriously damaged by force.

Package Includes:

• 1 x Battery Activation Board
• 2 x Power Cable
