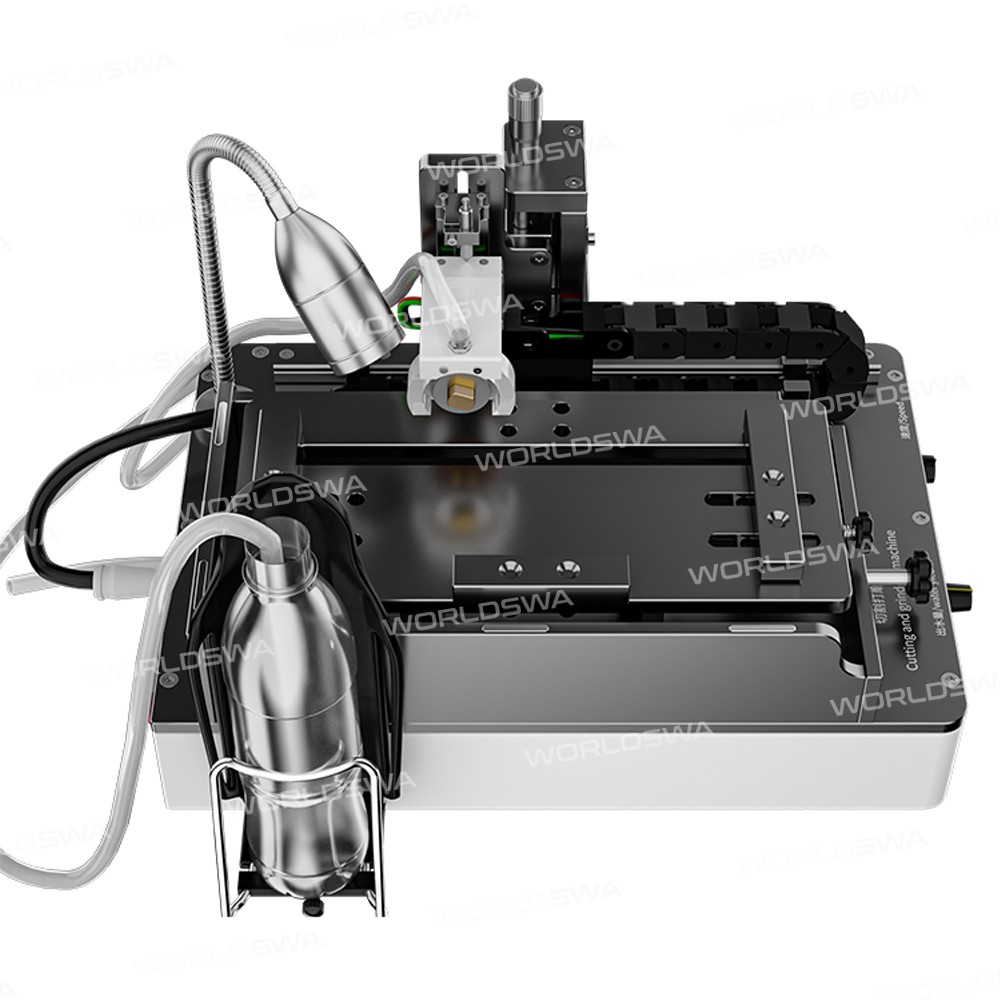

TBK 918 Intelligent Cutting & Grinding Machine for Mobile Phone Parts (Motherboard IC, Camera Frame, Back Cover)

TBK 918 Intelligent Cutting & Grinding Machine for Mobile Phone Motherboard IC/Camera Frame/Back Cover

Features:

• **All-in-One Machine**: Mobile phone maintenance intelligent cutting curved screen grinding chip all-in-one machine
• High precision multi-directional limit free adjustment high-speed aero motor
• Free switching between cutting and grinding, one machine for two purposes
• Cutting curved screen and polishing IC chip flexible switching

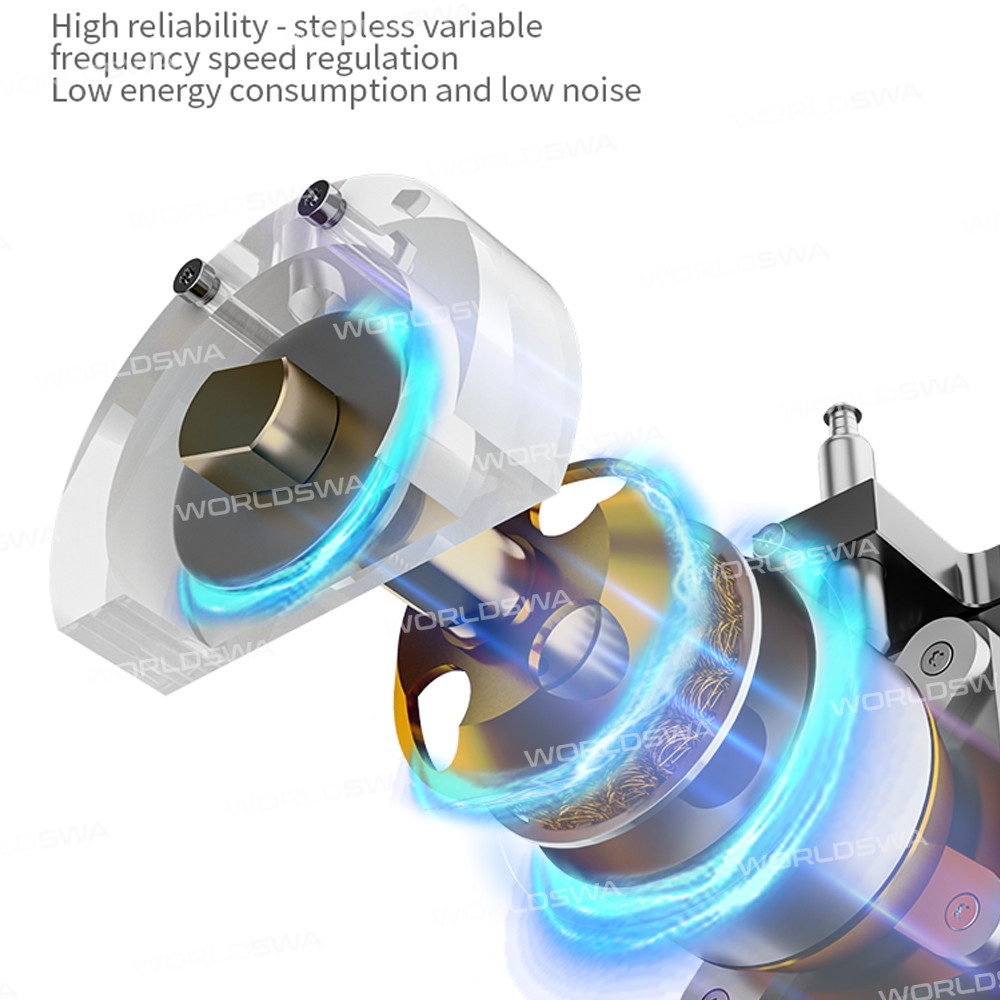

• Aviation brushless motor, high reliability, step-less variable, frequency speed regulation
• Low energy consumption and low noise
• Limit suspension cutting screen, flexible cutting of straight screen-curved screen multiple screens
• Multiple protection/Limit cutting piece/Safe and reliable
• Cutting multiple adjustments, adaptive to different heights, suspension limit cutting retine on
• Water bottle rack design, place water bottle, easy to catch water, not easy to fall
• Equipped with emery grinding head, precise grinding depth
• The proper amount of water can be adjusted, to reduce dust flying, increase cutting heat dissipation
• Stepless regulating motor speed
• The platform can tilt left and right, convenient for work
• Adjust fixed mobile phone Convenient for work
• Adopt a linear guide rail and add a bilateral stop block
• The water inlet can be connected outlet
• The motor can be adjusted left and right, and precise positioning

Specification:

• Brand: TBK
• Product model: TBK-918
• Product voltage: 110-220V
• Product power: 100W
• Net weight: 5kg
• Product size: 20*30*22cm
• Gross weight: 7.5kg
• Product packaging: 26*36*25cm

How to Use:

Cutting:

• Connection (power line, motor line, water interface)
• Install the cutting motor
• Put the mobile phone into the working platform (adjust the tilt and fix the mobile phone)
• Adjust the position of the mobile motor (adjust the motor down and the x-axis to make the mobile motor reaches the corresponding cutting position)
• Adjust the bilateral limit block(limit the working range of the mobile motor according to the length of the mobile phone)
• Put the mineral water bottle on the water bottle rack(connect three water volume corresponding interfaces)
• Turn the water volume switch and motor switch
• Move the motor to work (if you can't see clearly, you can turn on the light switch)

Polishing:

• Connection (power line, motor line)
• Install the grinding motor
• Put the mobile phone into the working platform (adjust and fix the mobile phone)
• Measure the depth to be polished
• Adjust the position of the mobile motor (adjust the motor down and the x-axis to make the mobile motor reaches the corresponding grinding position)
• Adjust the bilateral stop block(limit the working range of the mobile motor according to the grinding length)
• Adjust the grinding depth limit(for the depth measured in front, take the corresponding feeler gauge size limit)
• Turn the motor switch
• The mobile motor starts to work (if you can't see clearly, you can turn on the light switch)

Package includes:

• 1 x Cutting & Grinding Machine
• 1 x Power cable
