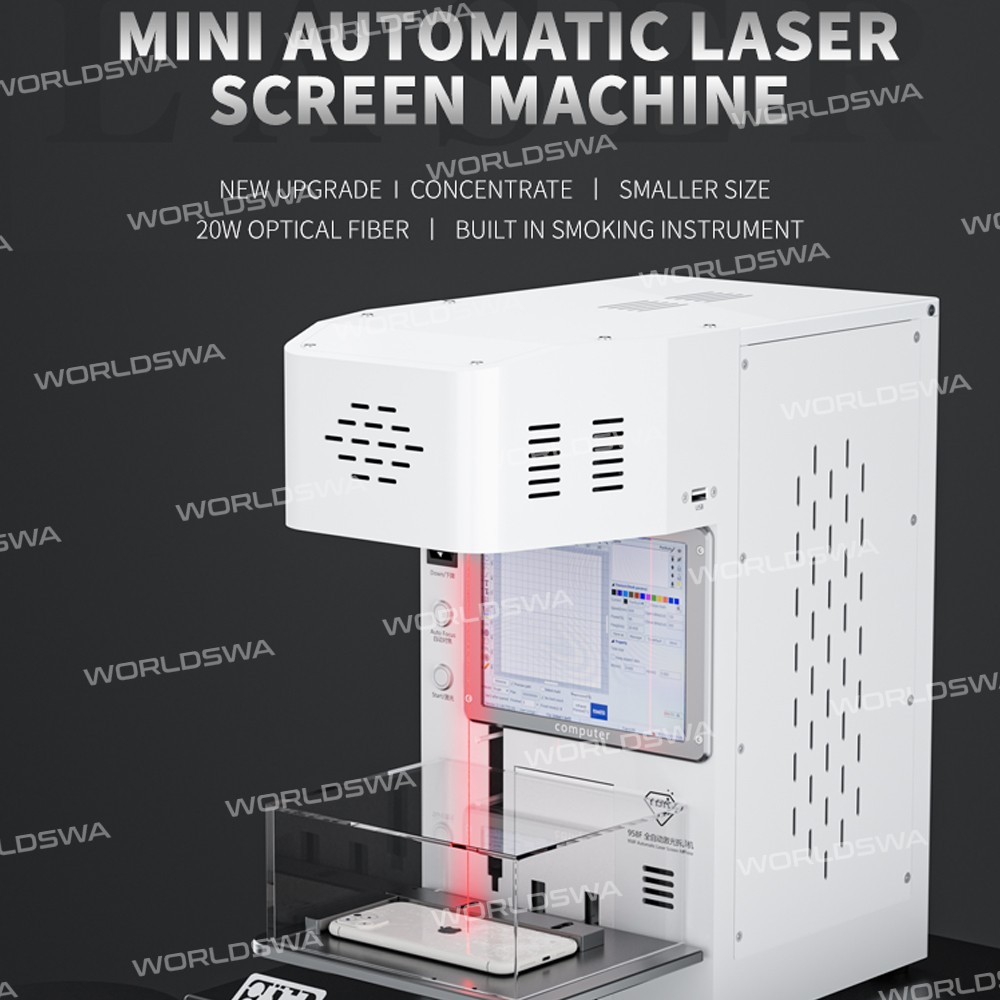

TBK-958F Mini 20W Laser Marking and Screen Removal Machine - Automatic High Precision

TBK-958F Mini Automatic High Precision 20W Laser Marking and Screen Removal Machine

Features:

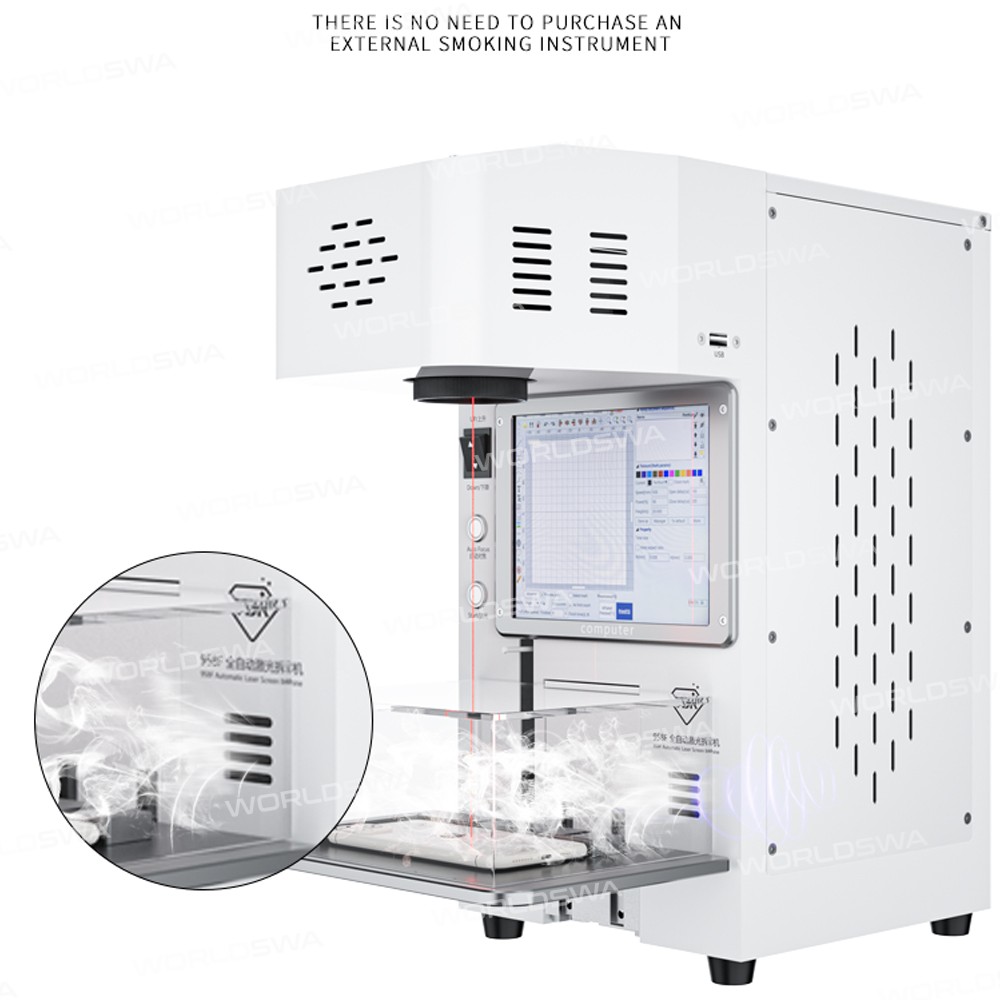

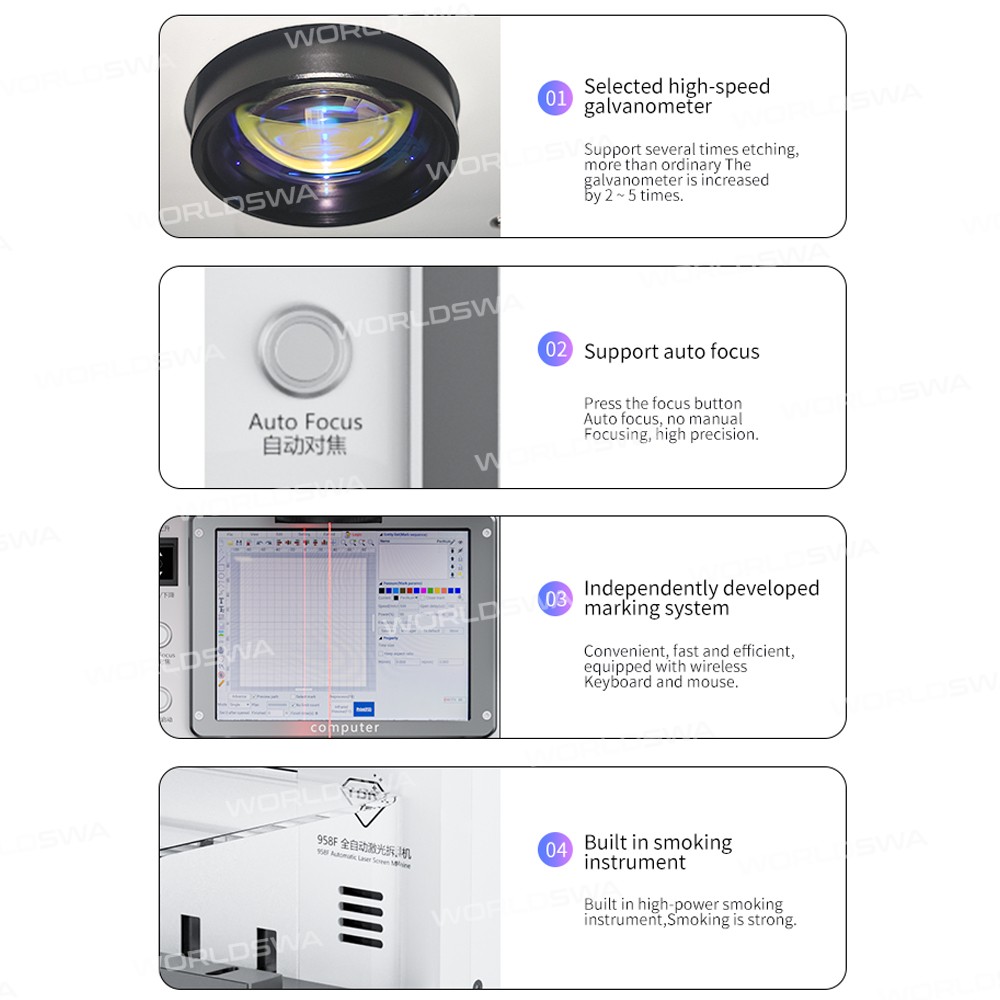

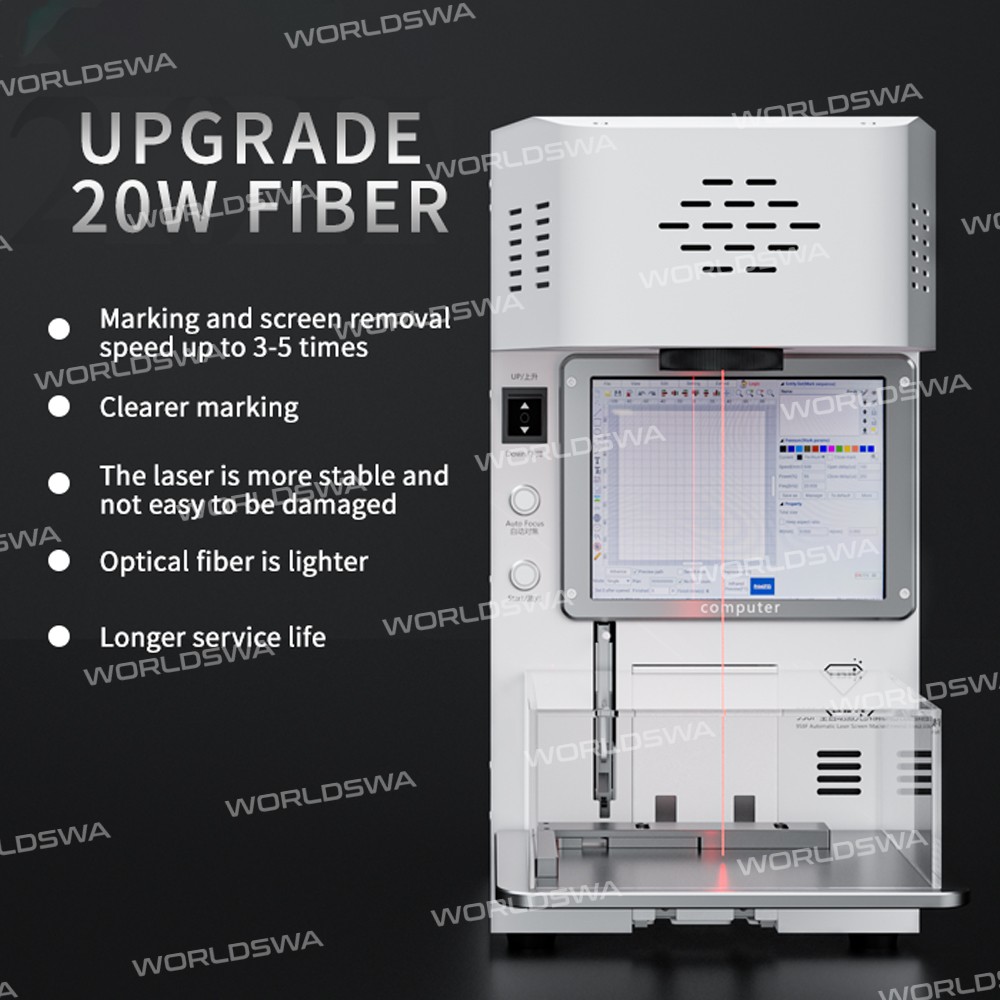

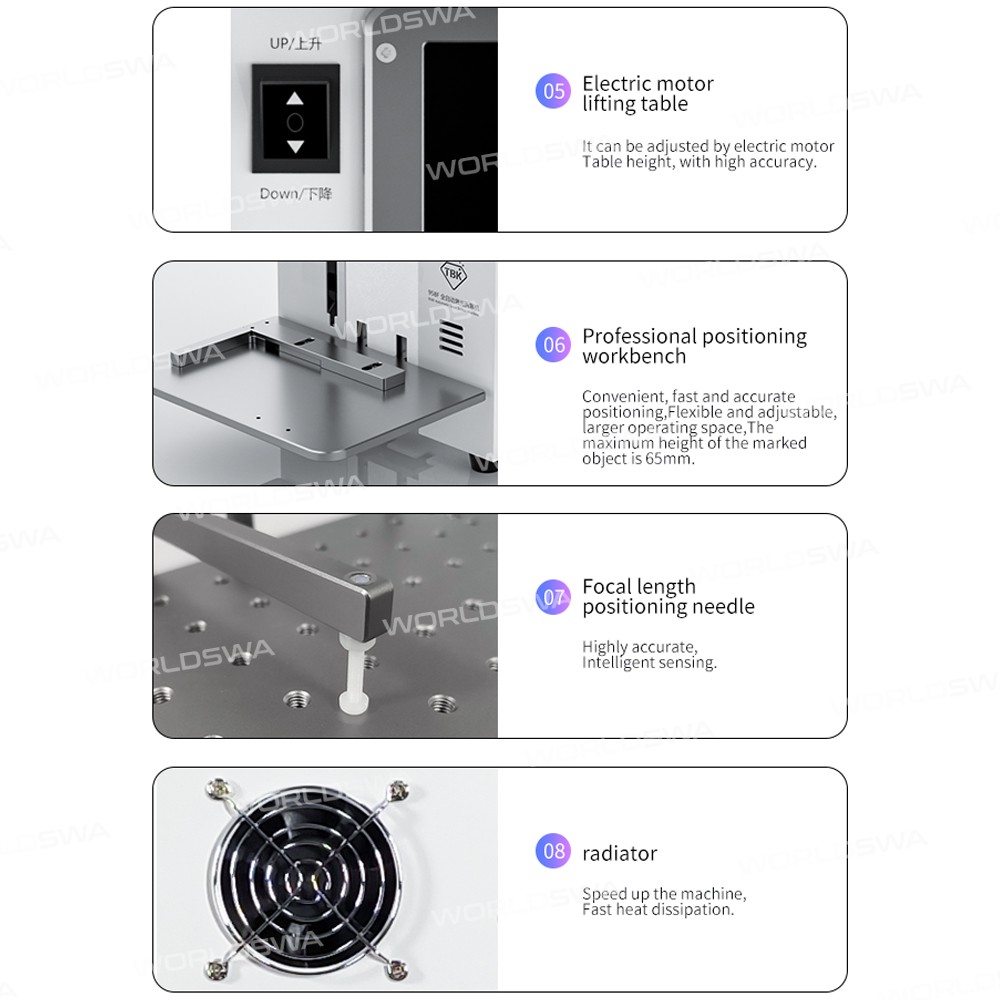

• 20W optical fiber laser, built-in powerful smoking instrument, imported sensor, automatic focusing

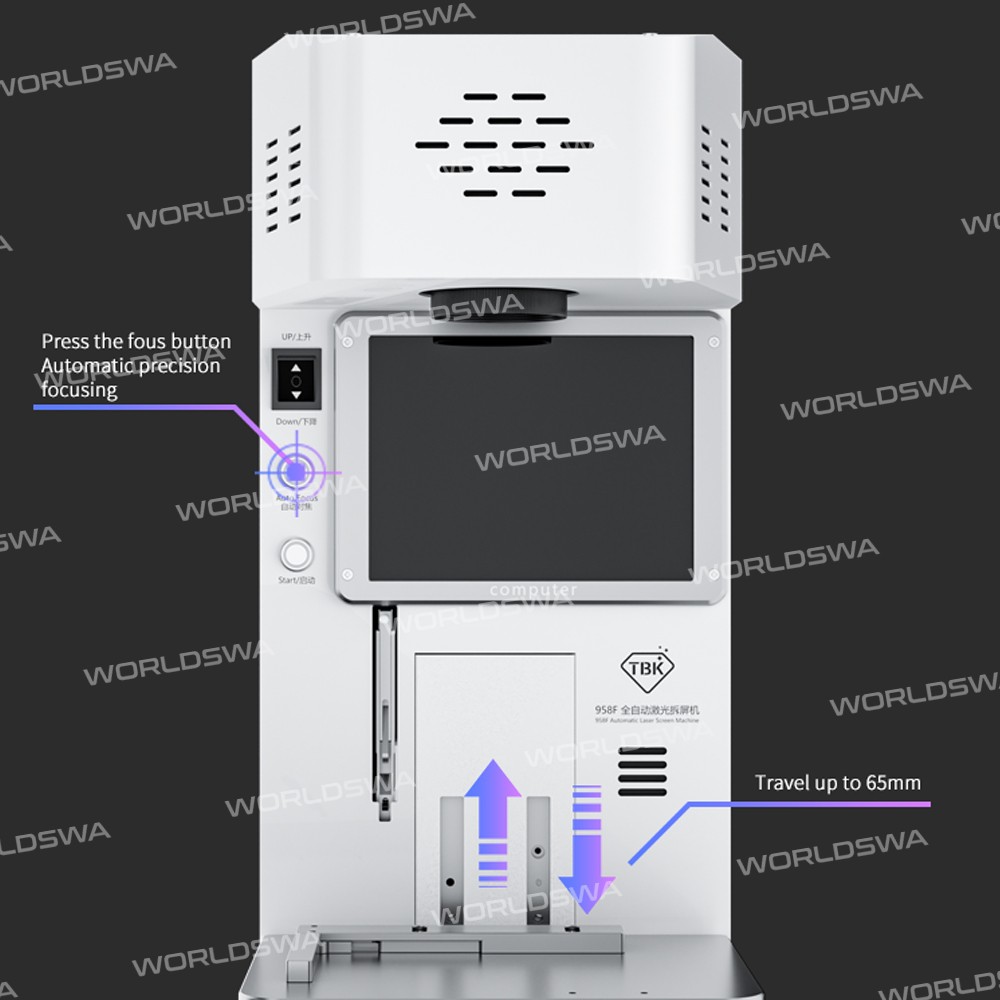

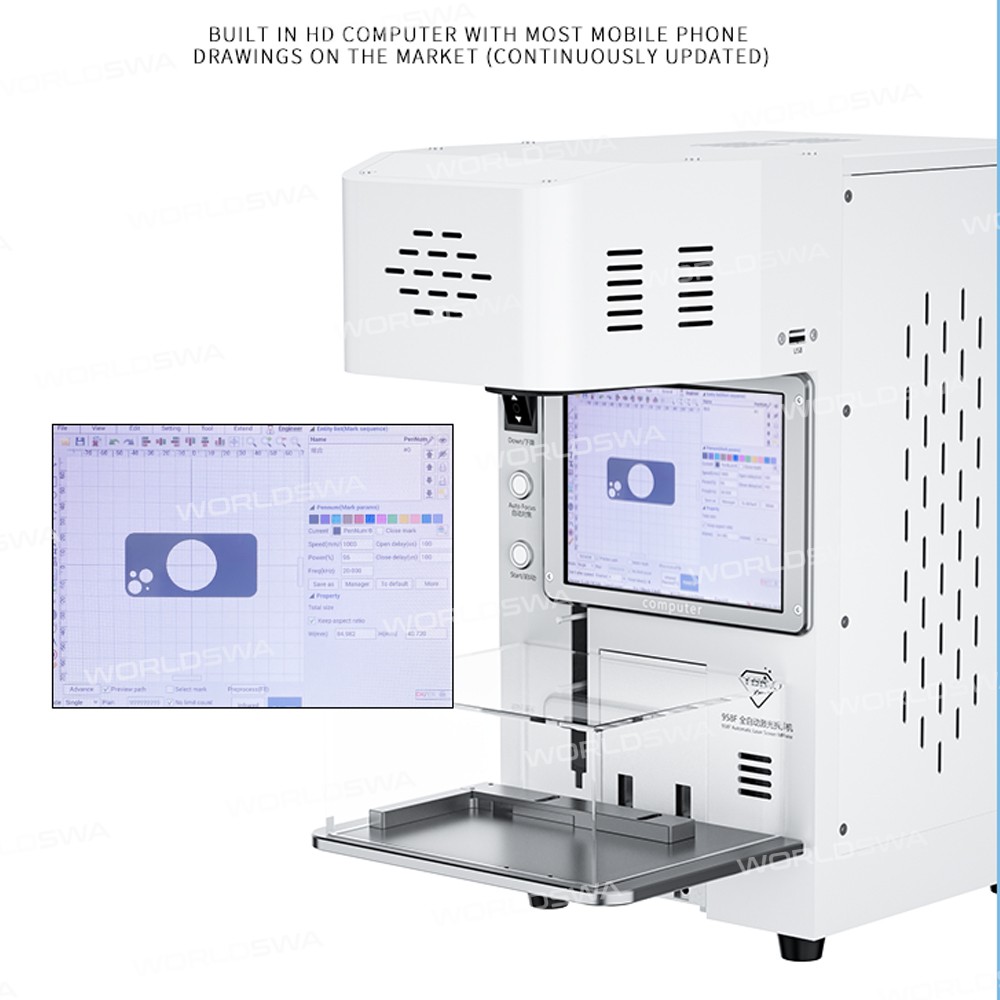

• Built-in computer, the maximum height of the marking object is 45-65mm
• The imported high-precision calibrator is accurately calibrated, the laser head is fixed and reliable, and the focusing is controlled by the work

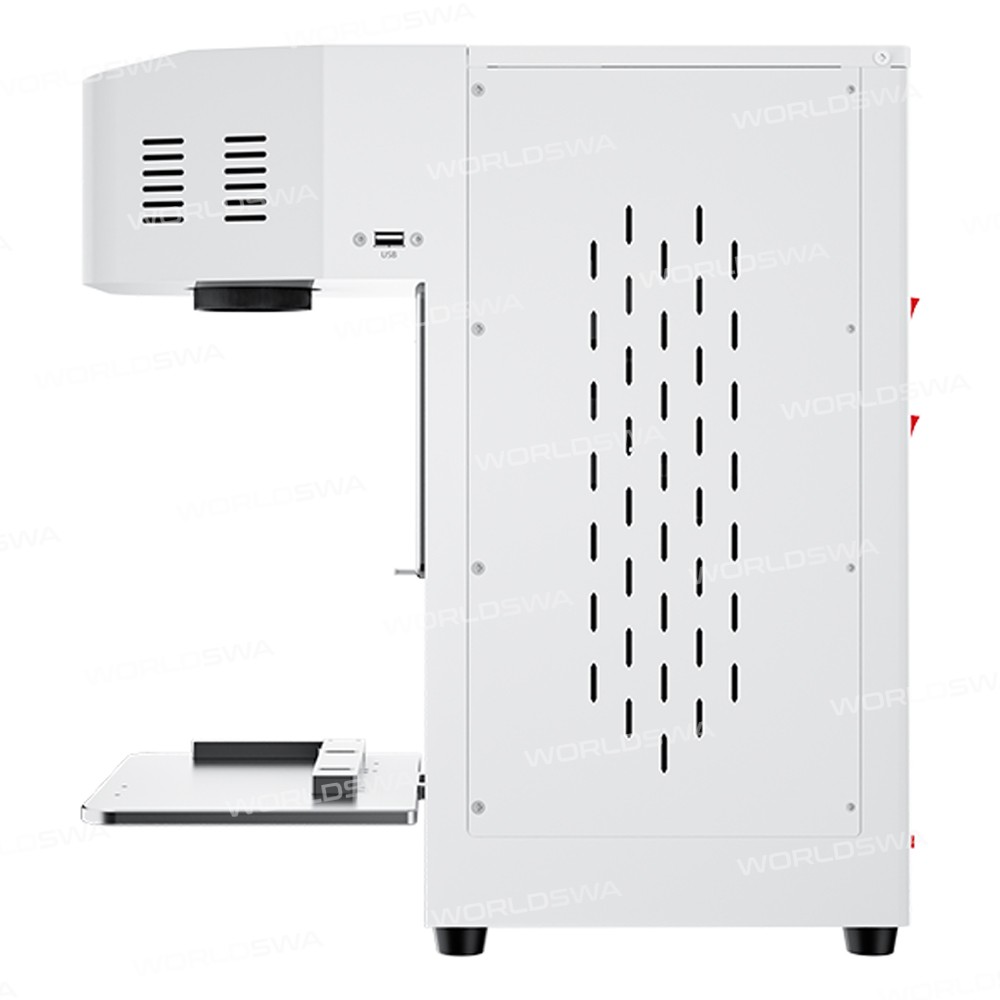

• The machine is equipped with maintenance and disassembly ports on the left and right.
• It can be started with one button
• It has the advantages of simple operation, small volume, and lightweight
• Summary: High-precision laser marking machine with automatic focusing and built-in computer.

Specification:

• Product model: 958F

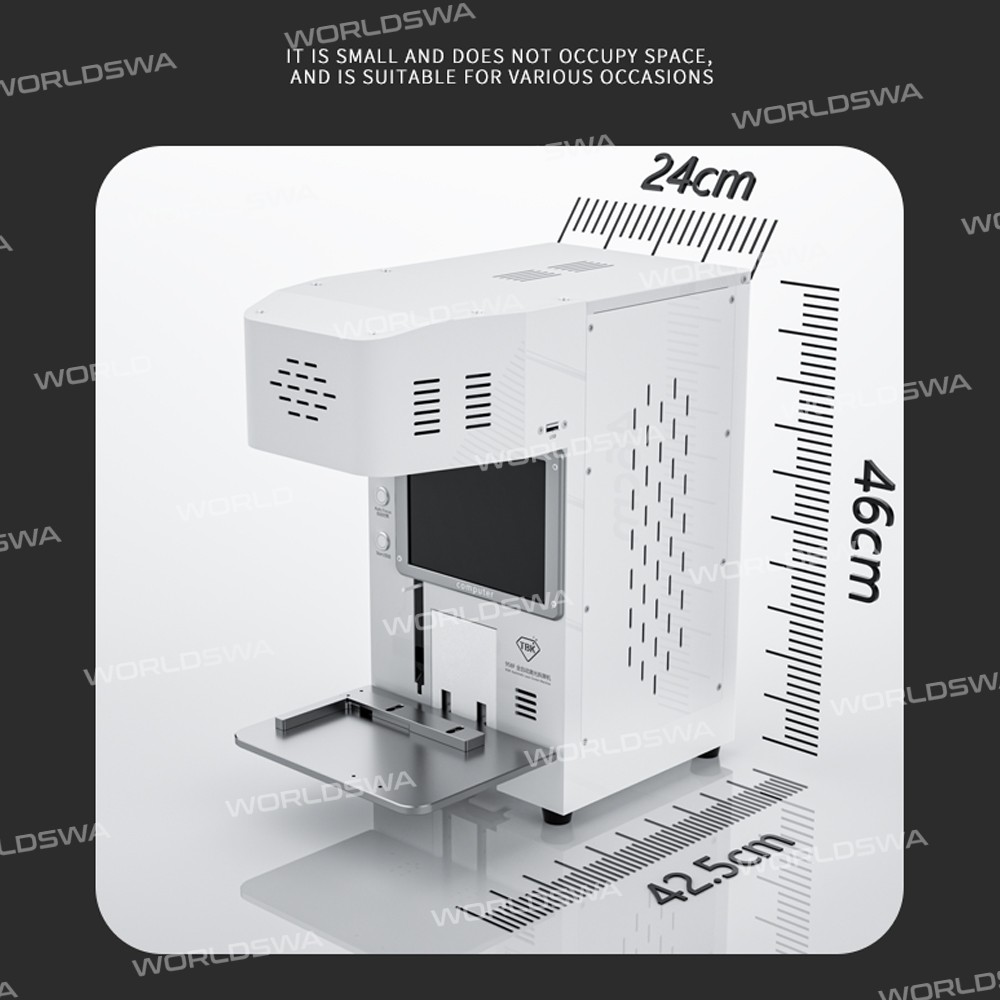

• Product Size: 240＊425＊460mm
• Brands: TBK
• Package Size: 320＊520＊640mm
• Operating Voltage: 110-220V
• Product power: 500W
• Laser power: 20W
• Net weight: 17kg
• Gross Weight: 29.2kg
• Screen size: 200＊150mm
• Marking accuracy: ≤0.001mm
• Repetition accuracy: ≤0.001mm
• Marking speed: ≤10000mm／s
• Marking depth: 0.015-0.5mm
• Cooling mode: Built-in cold air
• Marking format: 175mm*175mm
• Laser wavelength: 1064nm
• Marking line width: 0.05-0.01mm

Remove Mobile Phone:

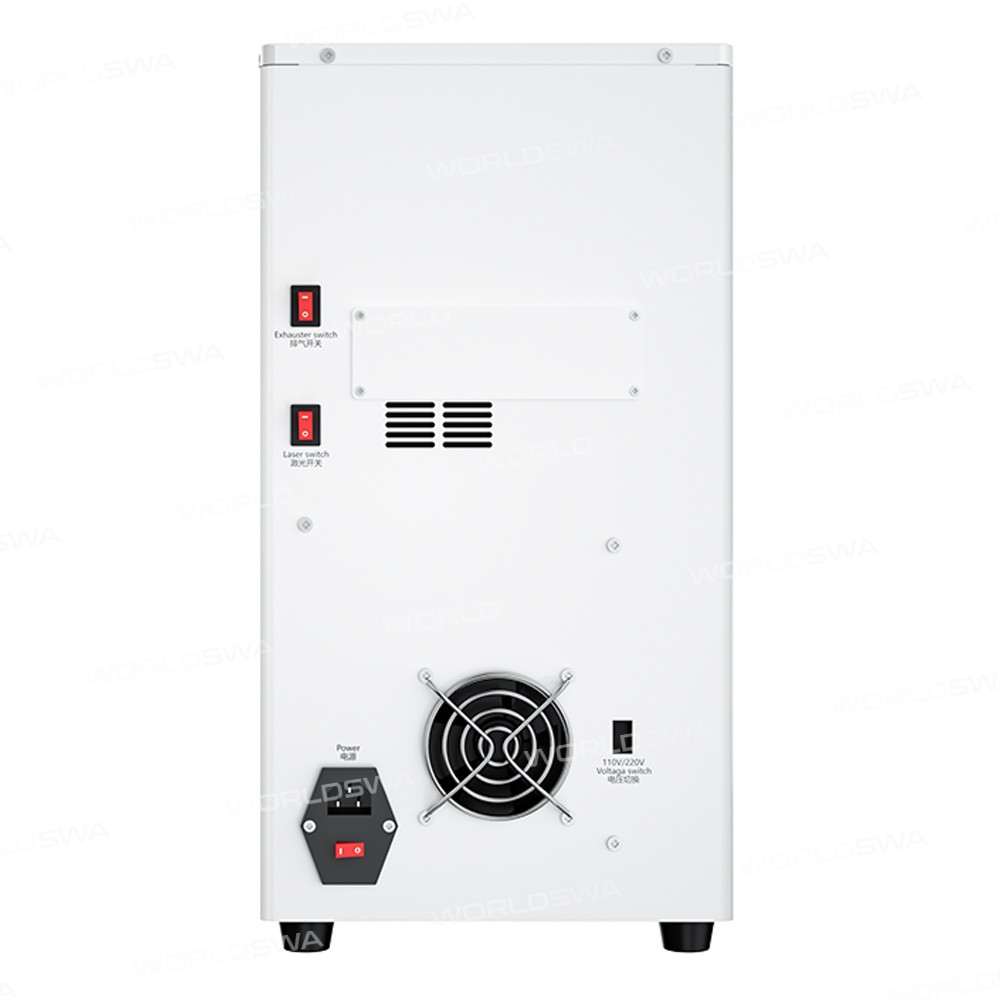

• Plugin the power cord and turn on the power supply, laser switch, and exhaust switch;
• Click the document and select the corresponding drawing;

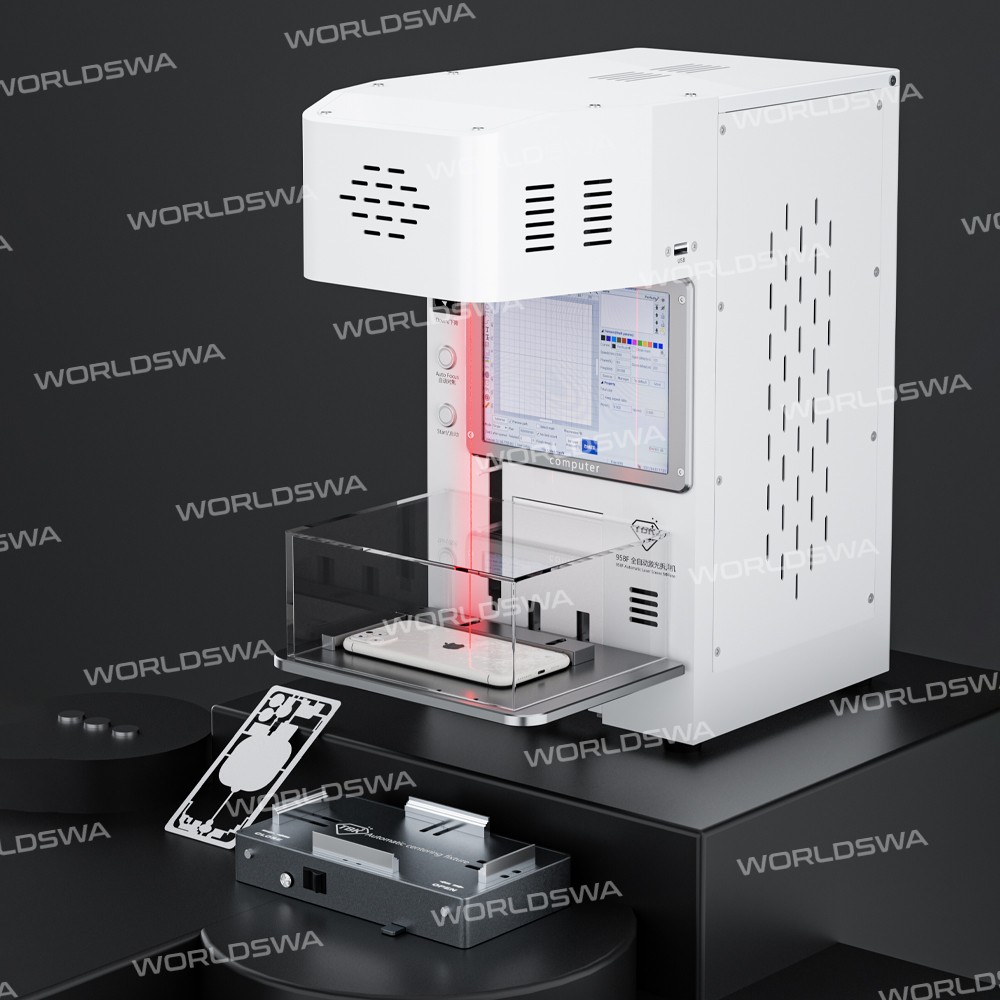

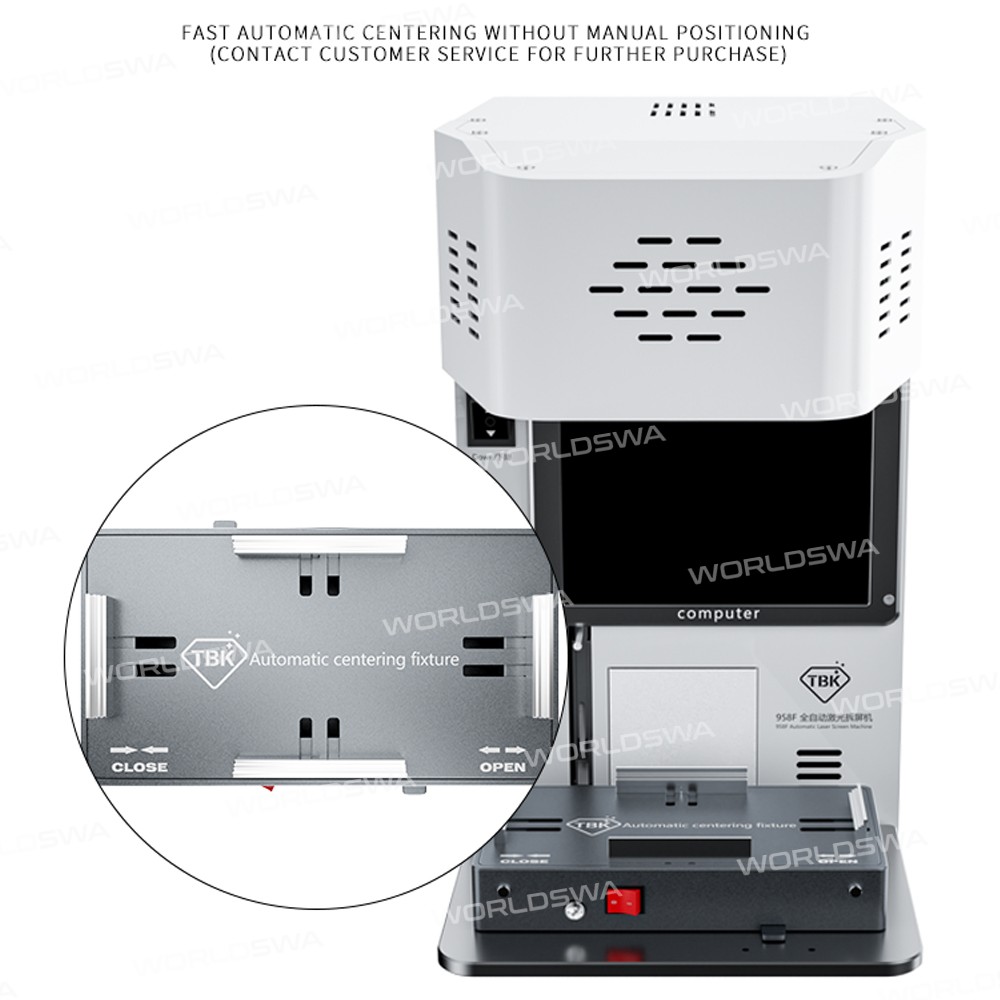

• Place the mobile phone along with the fixing fixture;
• Start the focus key, and after focusing is completed;
• Adjust the parameters, marking speed: 500-1000, power: 95, and adjust according to the mobile phone;
• Click red light F1 or keyboard F1 to check whether the red light coincides with the marking position of the mobile phone;
• Start the marking key to start marking; After marking, remove the mobile phone and remove it.

Print Photos:

• Import photos into a USB flash disk
• The pictures should be clear and the memory should not be greater than 1m as far as possible;
• Click "document management", find the picture to be imported, click ​"import", and close the page after successful import;
• Fix the object to be marked(the marking position is kept in a horizontal plane), start the focus key, and after focusing is completed;
• Click " import photos" in the toolbar just now, and select "import photos" in the vertical row;
• Reduce the photo appropriately and center it. Then, turn on the red light indication to confirm that the red light is fully displayed, and then stop the red light;
• Start to adjust the marking parameters, marking speed: 300-500, power: 95
• Check "reverse", select "marking mode", and select "dot and gray" ;
• Check "bidirectional scanning" and "dot mode", and change the value to 0.1;
• After the parameter is changed, click the marking directly.

Type Text:

• Click "t" on the vertical toolbar, input the text to be typed, and click "OK" after input;
• Click "F" on the right side of the screen, check to enable, select the filling method bow, and the filling is completed;
• Preview the red light, adjust the power by 90 and the marking speed by 1000;
• After changing the parameters, turn on the laser(press the laser key)and directly click the marking.

Print Vector File:

• Click "vector file" in the vertical toolbar, find the imported vector file, open it, adjust it to the appropriate size, and click"Auto Center";
• Click "F" on the right side of the screen, check to enable, select the filling method bow, and the filling is completed;
• Red light preview, adjust the power by 90 and the marking speed by 1000;
• After the parameter is changed, turn on the laser(press the laser key)and directly click the marking.

Package Includes:

• 1 x Host
• 1 x Power cable
• 1 x Allen wrench set
