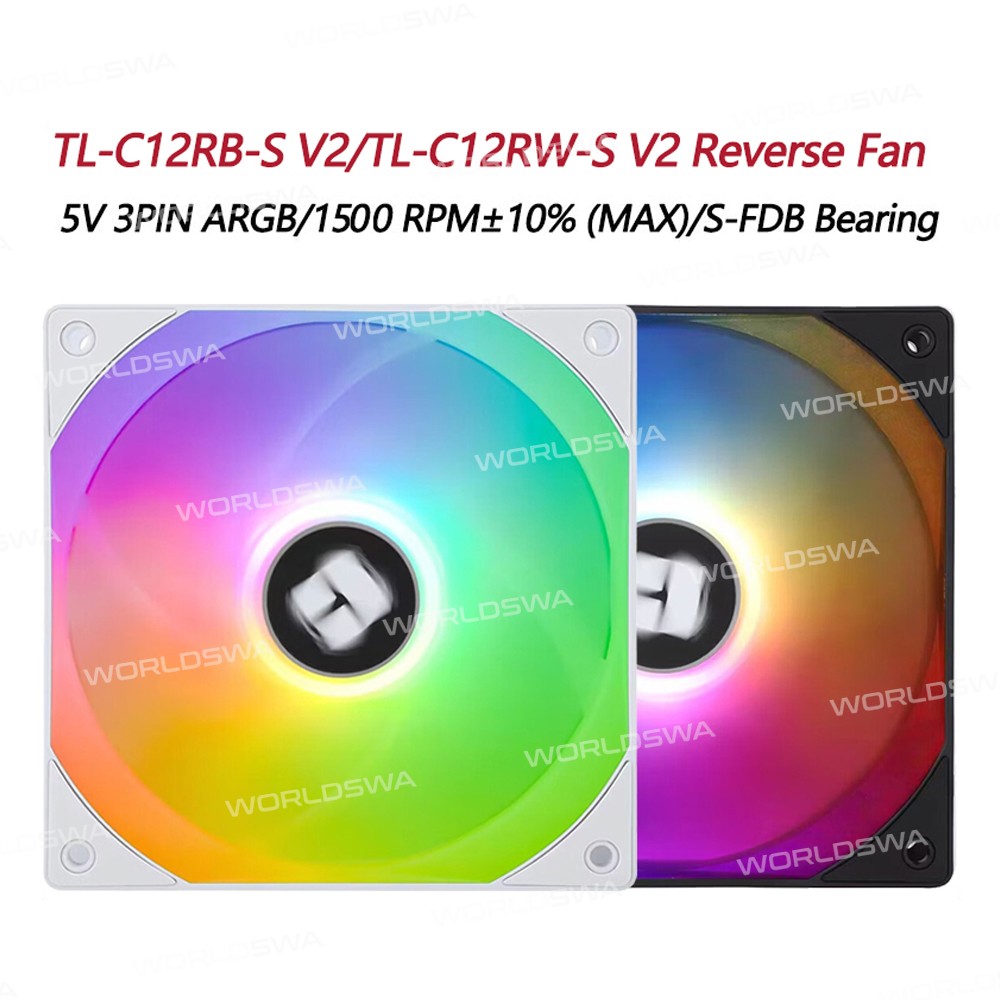

Thermalright TL-C12RB/TL-C12RW 5V 3Pin ARGB PWM Case Reverse Cooling Fan

Features:

• Developed the reverse TL-C12RW-S blade system fan, based on the Thermalright TL-C12 fan

• **Reverse Air Discharge**: 58CFM air volume, Phantom ARGB divine light synchro, 3-pin male and female head in series

• **Safe and Stable**: S-FDB bearing, safe speed 1500 RPM, support mainstream motherboard +5V ARGB Indicates the synchronization interface

• **Unique Design**: The C12RW-S V2 series fan blades rotate counterclockwise, the fan blade face is in the direction of the exhaust air

• **Comprehensive Consideration**: The C12RW-S V2 series fans are designed against the wind direction, with comprehensive consideration of chassis air duct and light effect to achieve unity

• **ARGB Water Magic**: Soft eclipse effect of the highlighted LED atomizing fan + 5V magic light beads, support ARGB water magic up to 17 modes

• **Performance Focused**: From an engineering perspective, focus on performance, 58 CFM 9 blades at 1500 RPM repeatedly tuning the blades, make it do what it's supposed to do

• **Shock Absorption**: Skin-like soft material silicone angle pad, providing good shock absorption effect

• **Stable Bearing**: Stably-FDB magnetic stability bearing solves the problem of fan blade shaking in hoisting mode

• **Industrial Strength**: UL Class A Safety insulation grade Industrial strength PBT+PC material

Specification:

• Fan size: 120*120*25mm

• Rated speed: 1500RPM (± 10%)

• Noise: 25.6 dB (Max)

• Air volume: 58CFM (Max)

• Wind pressure: 1.53mm H2O

• Fan interface: 4-pin PWM

• Working voltage: 12V DC

• Rated current: 0.20A

• Bearing Type: S-FDB Bearing

• ARGB interface: 5V 3Pin

Package includes:

• 1 x Cooling Fan

• 1 x Cable
