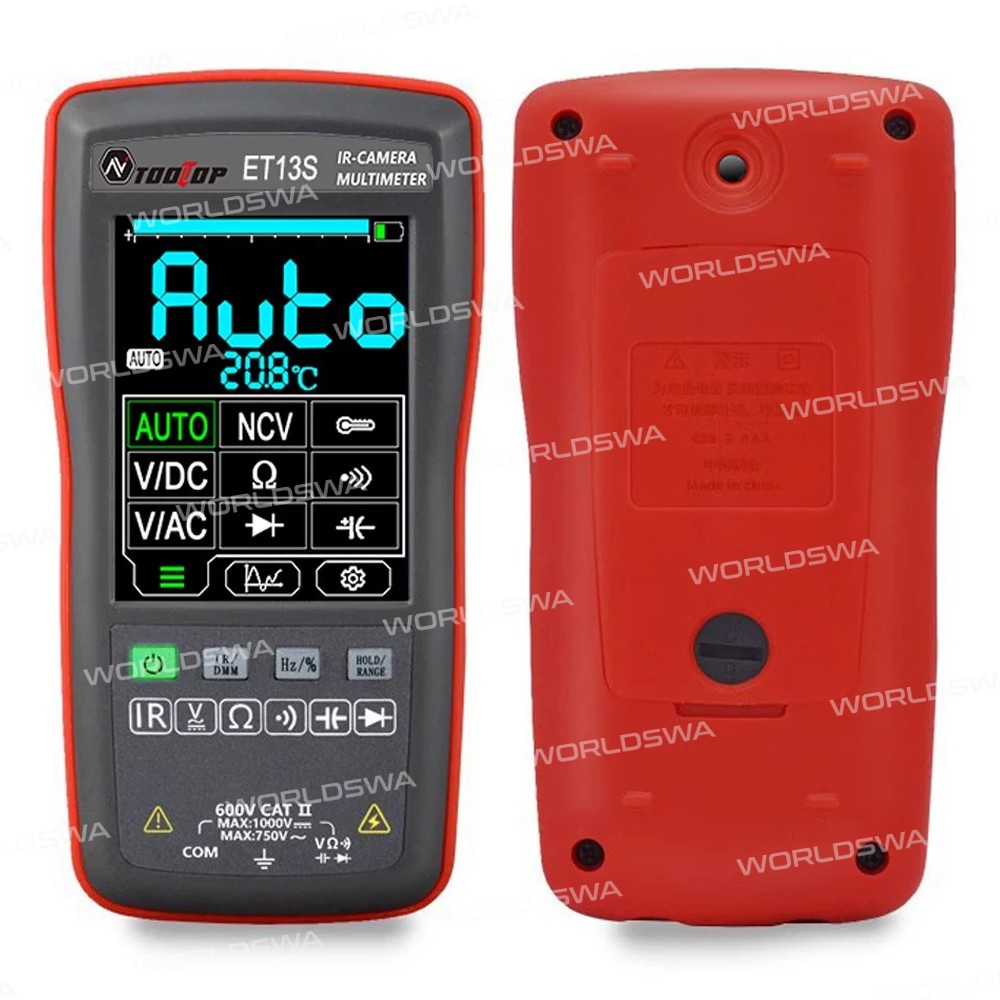

Tooltop ET13S 2-in-1 Multimeter with 2.8-inch Touchscreen and 550°C IR Thermal Imager

Tooltop ET13S 2-in-1 550℃ IR Thermal Imager Multimeter with 2.8-inch Touchscreen

Features:

• The ET13S integrates both thermal imager and 10,000-count multimeter functions to meet various measurement needs. It can accurately measure the temperature ranges from -20℃ to 550℃, providing an integrated solution for temperature detection and electrical parameter measurement.

• Equipped with a 2.8-inch touchscreen, the 192*192 high infrared resolution provides clear imaging. Supporting one button to directly access the functions, and simple and intuitive operation. Users can set the parameters according to their needs to make the measurement results more accurate. Both Chinese and English displays can be set depending on your reading preference.

• Accurate Temperature Measurement: The display clearly shows the maximum, minimum, and center temperatures, allowing users to understand the temperature distribution more comprehensively. The product is preset with five color palettes of iron red, rainbow color, fusion color, white-hot, and white-hot high light, which users can freely switch according to their actual needs to enhance the observation effect. And with an automatic testing hotspot tracking function, can quickly locate the temperature anomaly area.

• Comprehensive Multimeter Functions: The multimeter has comprehensive functions, including DC voltage, AC voltage, resistance, diode, continuity, capacitance, and other measurement modes, as well as analog bar display, room temperature display, automatic measurement, NCV non-contact voltage test, temperature measurement, and so on. In addition, with the multimeter data chart recording and data transmission function, the measurement data can be saved in the device and transferred to the computers via USB interface, with the upper computers software for in-depth analysis

• Long-Lasting Battery Life: Built-in 3.7V 850mAh lithium battery, supports USB charging, with automatic screen shutdown and automatic power-off function, effectively prolonging battery life. Meanwhile, it is equipped with a USB Type-C data transfer interface, which is convenient for data transfer and analysis, further enhancing work efficiency and portability

• Wide Range of Applications: Widely used in various occasions requiring temperature detection and electrical parameter measurements, such as electric power, chemical industry, construction, firefighting, and other fields. It mainly measures and analyzes the thermal properties of various materials, energy, environment, and industrial production. It can also be used in teaching and scientific research experiments to provide a scientific basis and understand the knowledge of thermal properties

Specification:

• Name: Thermal Imager Multimeter

• Material: Plastics

• Battery: 1 * built-in 850mAh lithium battery (included)

• Imaging capture frequency: 20Hz

• Thermal imaging pixel: 192* 192

• Display resolution: 240*240

• Field of view (Fov): 50.0°(H) × 50°(V) /72.1°(D)

• Emissivity: 0.1-0.99 is tunable and 0.95 is the default

• Measurement temperature ranges: -20℃ to +550℃

• Mode: Automatic gain

• Color board: Iron Red, Rainbow color, Fusion color, White Heat, White Heat Highlights

• Temperature measurement error: >0℃±2℃ or ±2%; ≤0℃±5℃ or ±5%

• Display temperature accuracy: 0.1℃/0.1℉

Multimeter Parameter:

• DC highest input voltage: 1000V

• AC highest input voltage: 750V

• Resistance highest measurement resistance: 99.9ΜΩ

• Capacitance highest measurement capacity: 99.99mF

• Duty cycle measurement ranges: 0.1%-99.9%

• Diode measurement ranges: OV-3V

• On-off detection maximum resistance: 999.9Ω

• Display Number: 9,999 words updated about 3 times per second

Other Parameters of the Device:

• Display Screen: 2.8 inches, 320 * 480 resolution

• Touchscreen: Resistive touchscreen

• USB interface: Type-C USB

• Storage capacity: 3.5MB

• Imaging format: BMP file

• Storage temperature: -20 to 60℃ (-4 to 140℉)

• Working temperature: 0-50℃ (32-122℉)

• Working humidity: <85%RH (Non-condensing)

• Item size: 134 * 69 * 25mm

• Item weight: 130g

• Package size: 185*160*40mm

Package includes:

• 1 x Thermal Imager Multimeter
