Tooltop ET2202 Auto Identification Color Screen Voltage Car Storage Battery Tester

Tooltop ET2202 Color Screen Auto Identification Voltage Car Storage Battery Tester

Product Overview

This intelligent battery tester is designed to check the status and performance of 12.0V or 24.0V storage batteries, providing detailed information on battery voltage, internal resistance, discharge current, and more.

Key Features:

• Automatic Identification**: Supports 12.0V or 24.0V batteries with one-button selection of intelligent measurement.
• Comprehensive Testing**: Performs battery test, starts-test, and load test functions, and provides analysis of lifespan, electric quantity detection, and more.
• Advanced Protections**: Features input overvoltage, reverse polarity connection, high voltage connection protections, and poor contacts of test clip.
• Convenient Temperature Measurement**: Supports engine temperature and air conditioning temperature measurement.

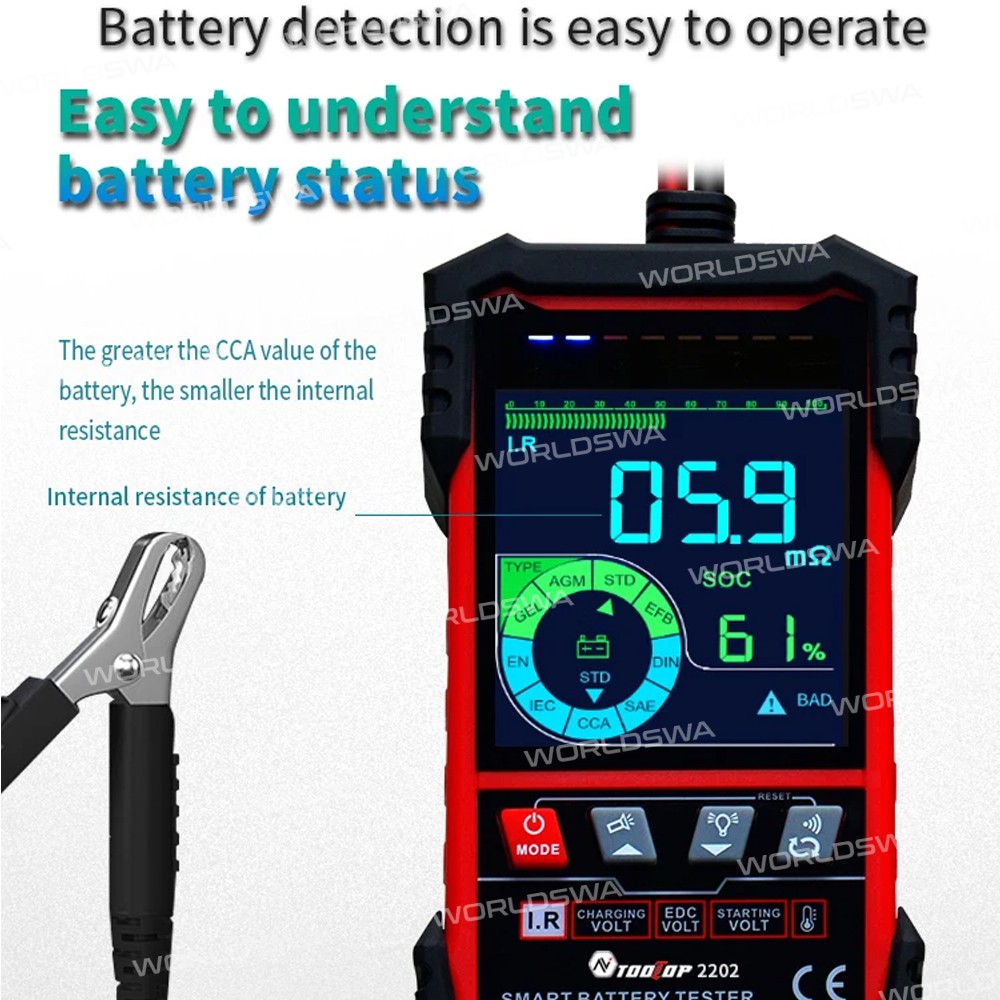

• Large LCD Color Screen**: 3.2-inch display shows function status and measuring results, with an analog bar graph to display battery lifespan.
• Durable Construction**: Housing made of TPR materials for comfortable use and comprehensive protections.
• Multi-Battery Support**: Supports various types of batteries, including EN, IEC, CCA, SAE, DIN.
• Reliable Wire Clamp**: All-copper material red and black wire clamp with over 10,000 occlusion tests.

Summary of Features:

Battery Test, Starts-Test, and Load Test Functions

Automatic Identification of 12.0V or 24.0V Batteries

Comprehensive Protections and Temperature Measurement

Specification:

• Name: Intelligent Battery Tester
• Material: TPR+Plastics+Metal
• Type: ET2202
• Battery support: 12.0V/24.0V activated leadacid battery
• Internal resistance measurement: Support
• Current of discharge: Support
• Analysis of lifespan: Support
• Electric quantity detection: Support
• Ability to start: Support
• Quality of battery: Support
• Function of lighting: Support
• Car starting test: Support
• Temperature detection: Support
• Vehicle charging capacity: Support
• Vehicle load measurement: Support
• Range CCA: 100-1999
• Range of capacity: ЗАН-250AH
• Test method: Four-wire Kelvin test
• Battery selection criteria: STD/AGM/GEL/EFB/EN/IEC/CCA/SAE/DIN
• Power supply: storage battery power supply/power supply
• Other: White backlight, overvoltage protections, reverse input protections
• Screen size: 55*57mm
• Package size: 216*145*49mm

Package includes:

• 1 x Tester
• 1 x Temperature Probes
• 1 x Power Cord
