Tooltop ET32C 2-in-1 Multimeter Car Signal Generator

Tooltop ET32C 2-in-1 Car Signal Generator Multimeter

Features:

• Adjustable signal parameters:** Output frequency: 1HZ to 9999HZ; Output amplitude: -12V to +12V

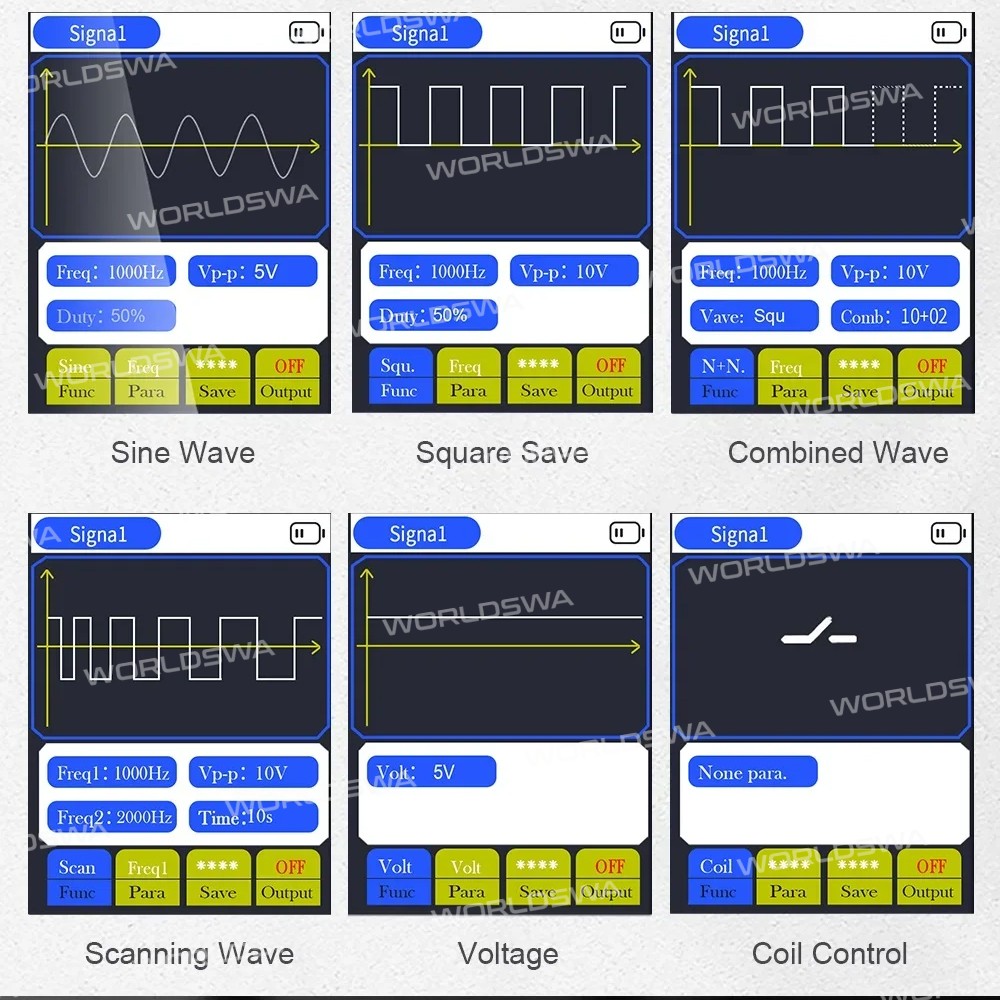

• Multiple signal output: Square wave, sine wave, combination wave (square wave N+N, sine wave N+N), scanning wave, and DC wave.

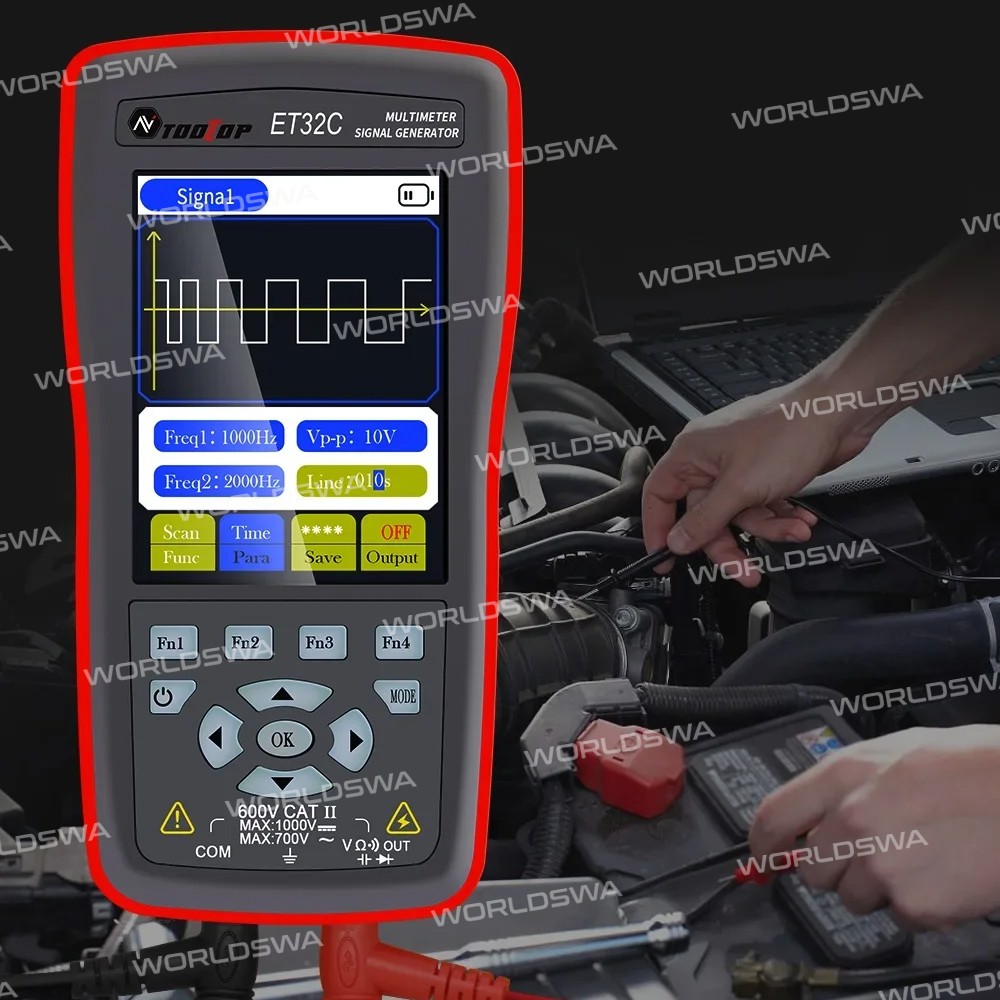

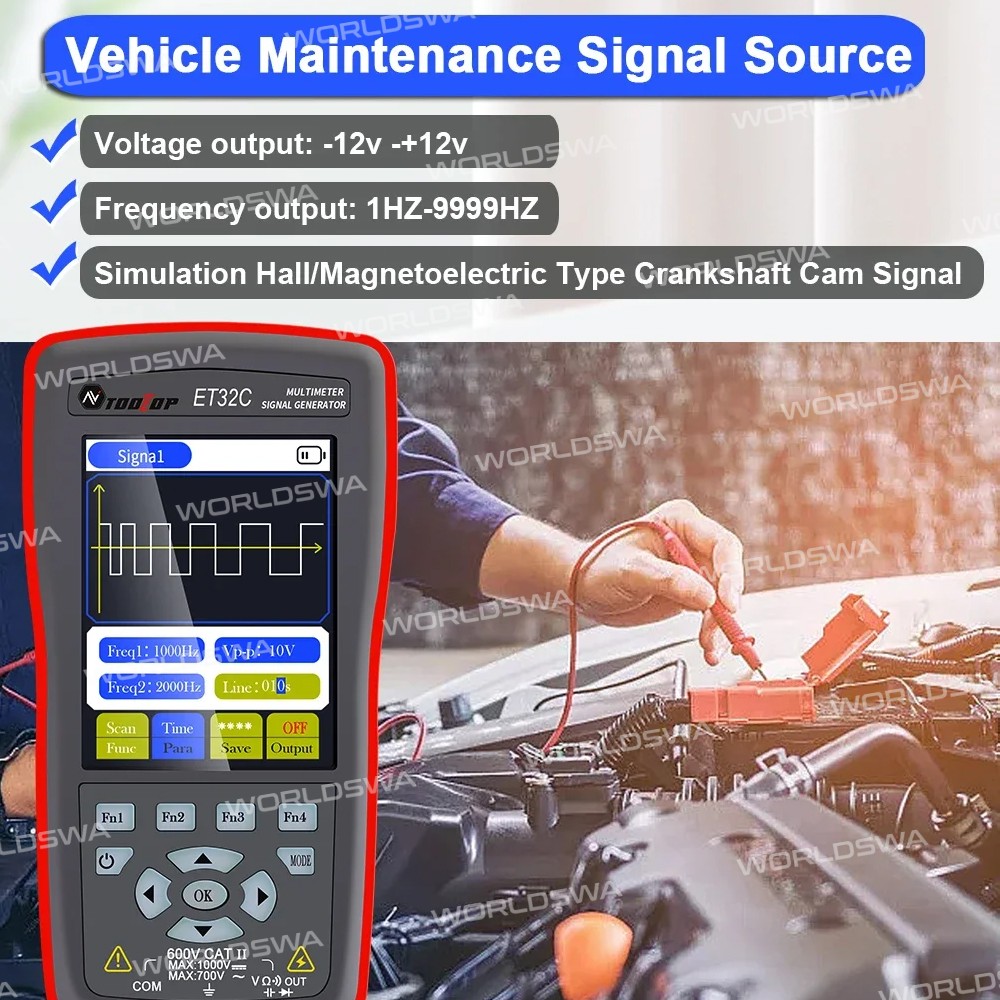

• Automotive signal simulator:** Simulate Hall-type and magnetoelectric crankshaft and cam signals. Supports crankshaft and cam signal simulation for gasoline and diesel vehicles
• Support magnetoelectric signal scanning or Hall signal scanning

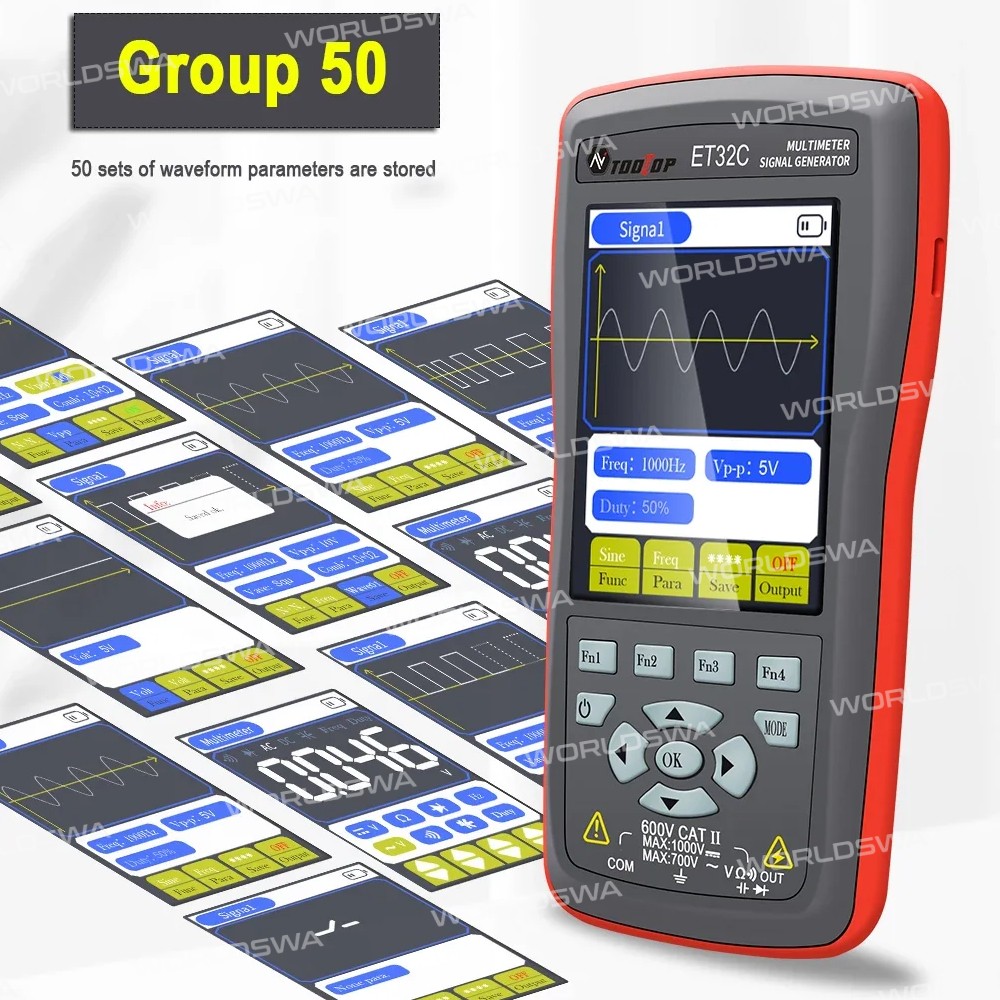

• Signal storage:** 50 groups of signal waveform storage, store waveforms in specified locations

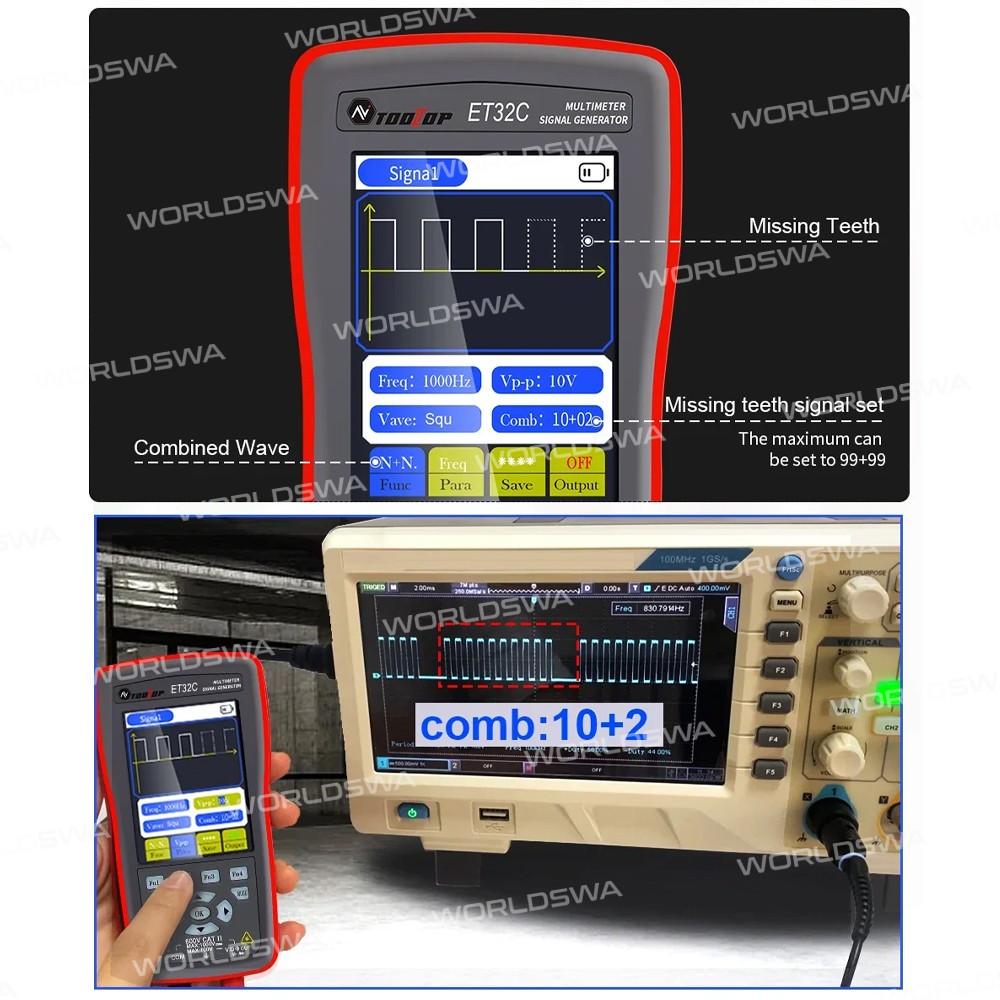

• Combined wave signal: Arbitrarily set missing tooth signal (e.g., combined wave 58+2, 10+1) without connecting to a computer
• Scanning wave signal: Output scanning wave to simulate crankshaft cam signal running from low speed to high speed
• Analog voltage output: -12V to +12V adjustable, step value 1V

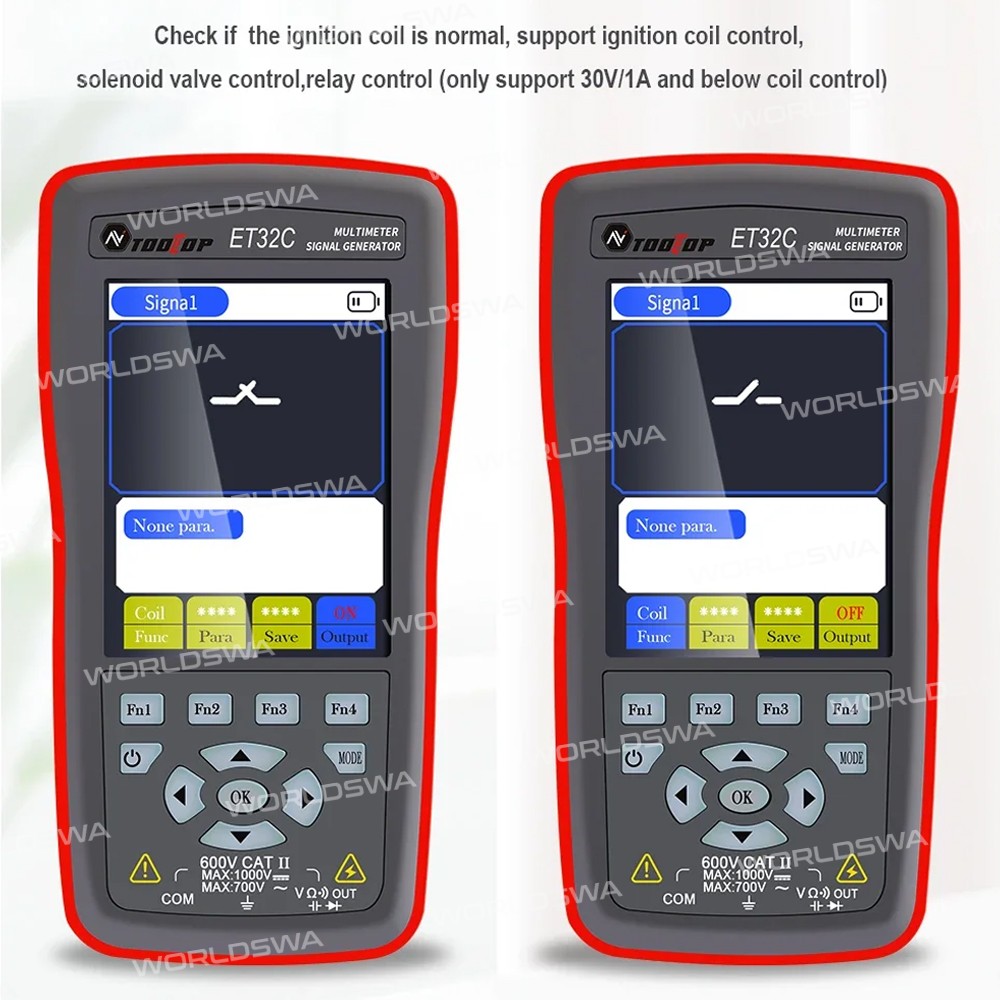

• Coil control:** Supports ignition coil control, solenoid valve control, and relay control (only supports coil control of 30V/1A and below)

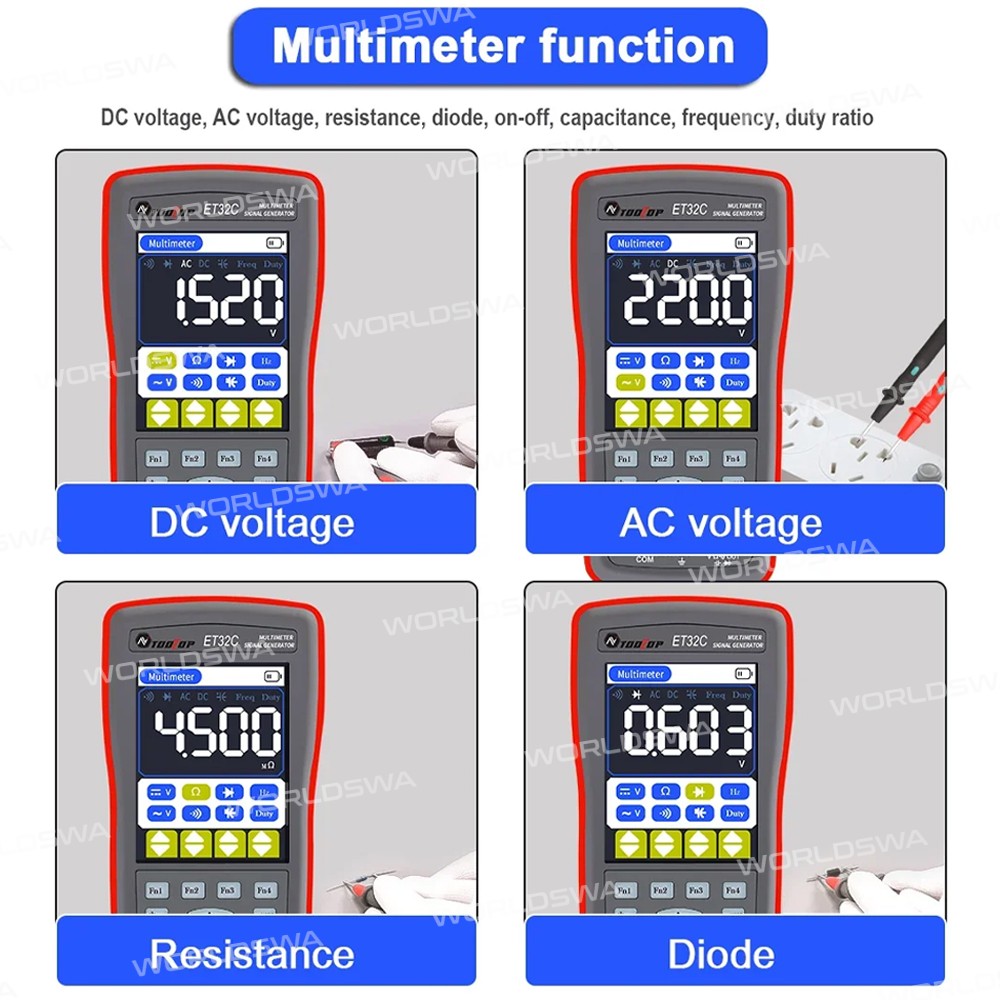

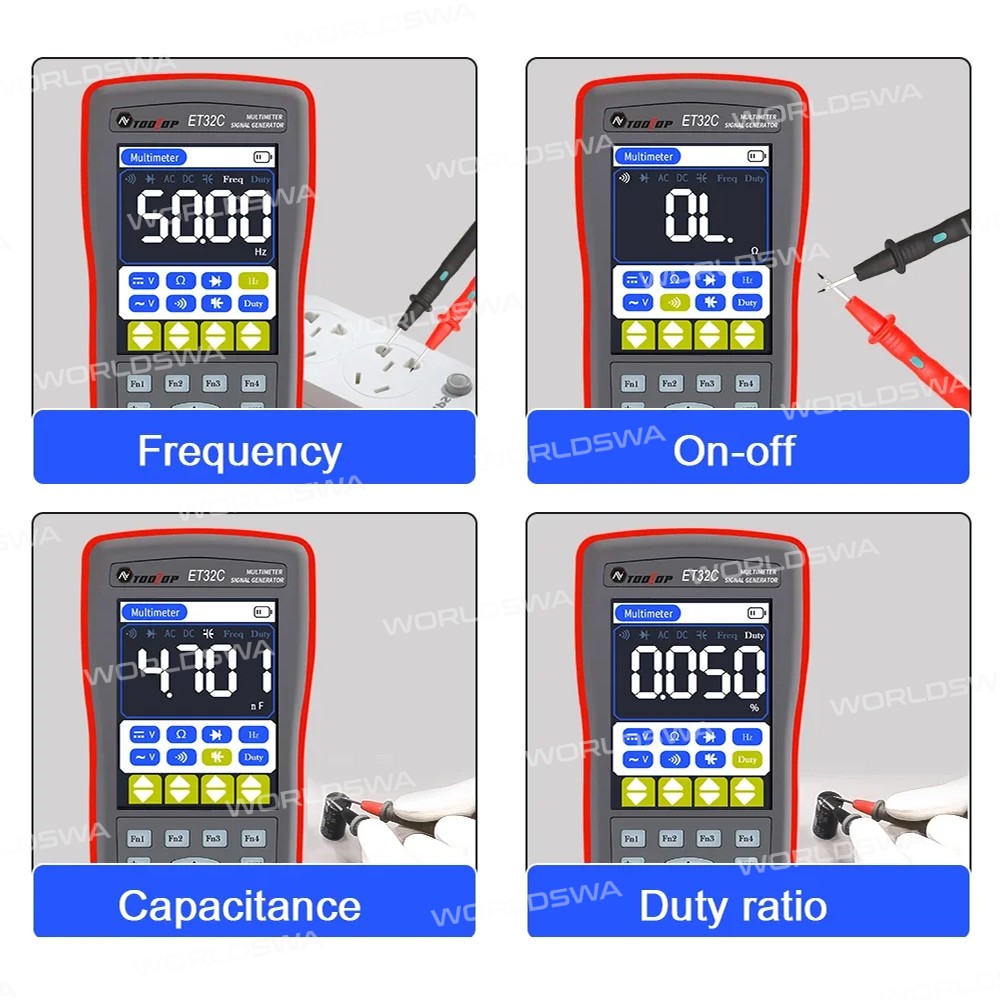

• Multimeter:** Measure DC voltage, AC voltage, resistance, diode, continuity, capacitance, frequency, and duty cycle. Quantity function
• The internal power supply of the equipment is isolated to prevent electric shock

Specifications:

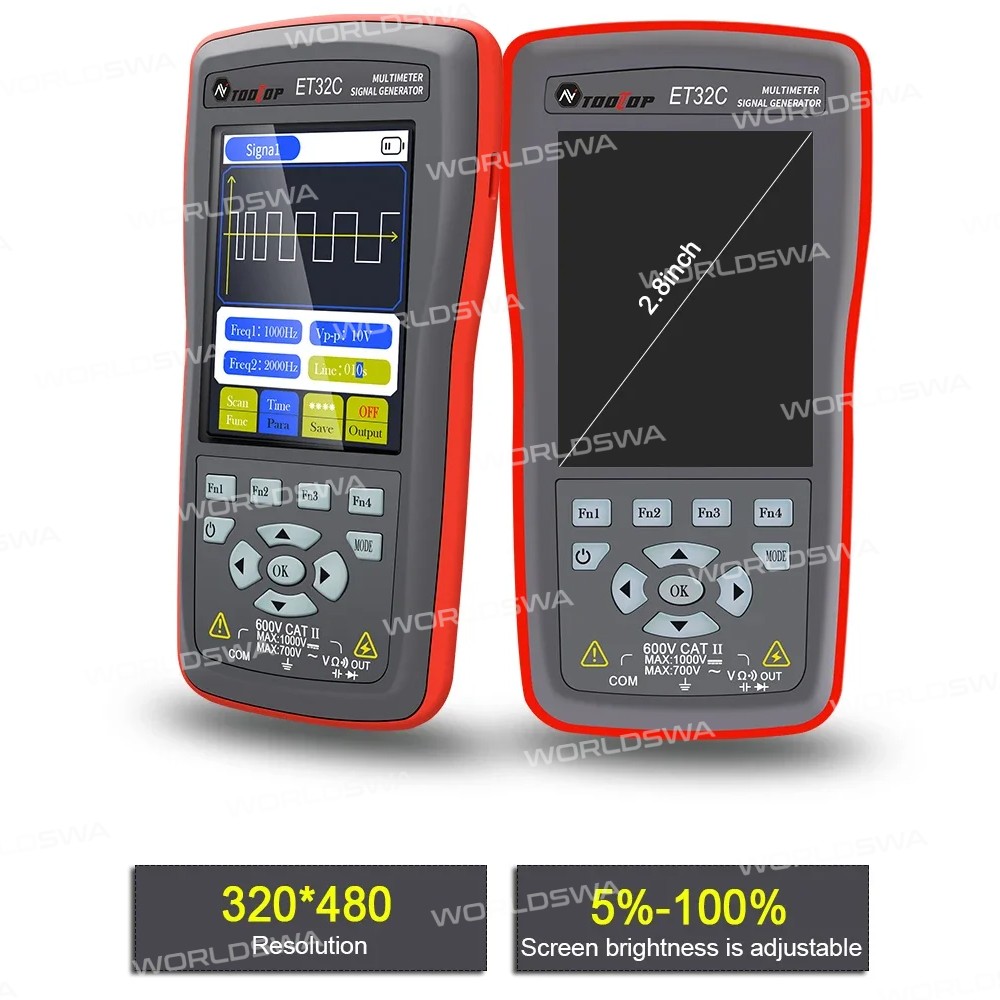

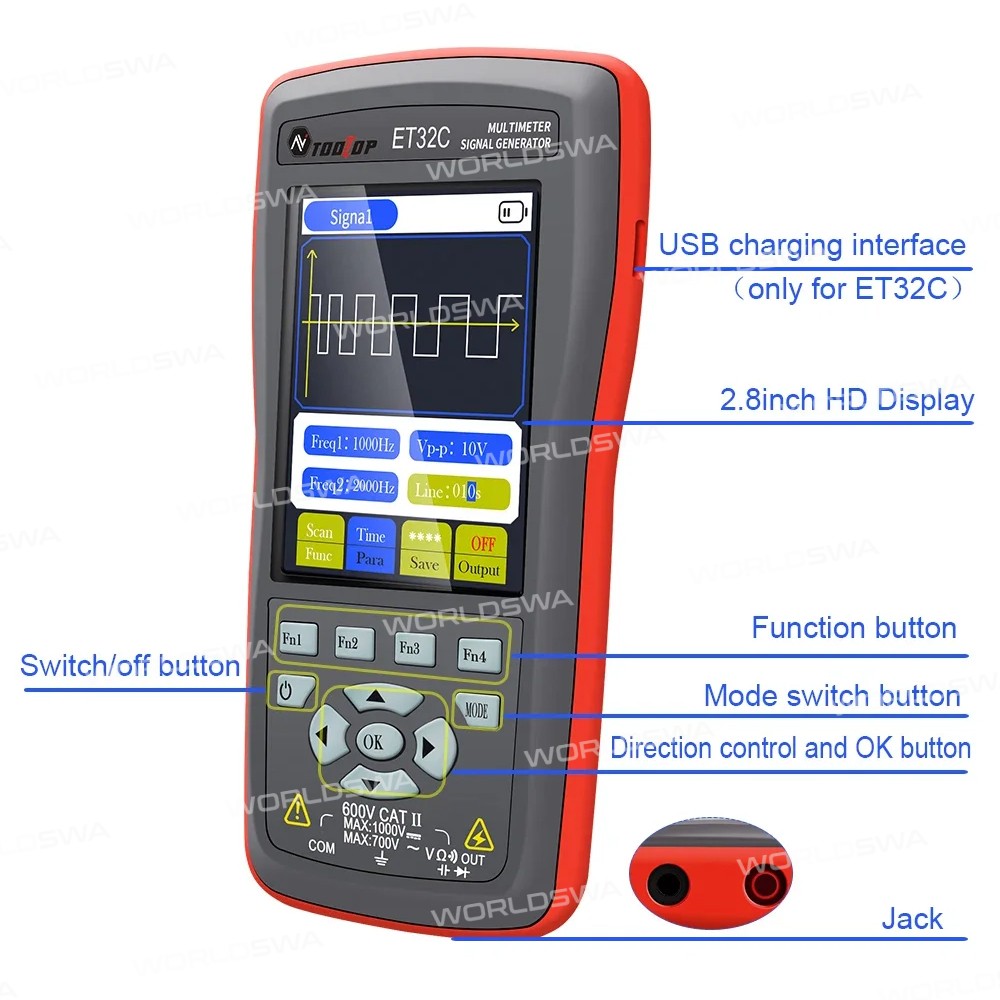

• Display screen: 2.8 inch 320 * 480 resolution
• Touch screen: Not supported
• USB interface: Type-C USB
• Battery: Built-in 4.2V lithium battery
• Storage temperature: -20~60 ℃ (-4~140 ℉)
• Working temperature: 0-50 ℃ (32-122 ℉)
• Working humidity: <85% RH (non-condensing)

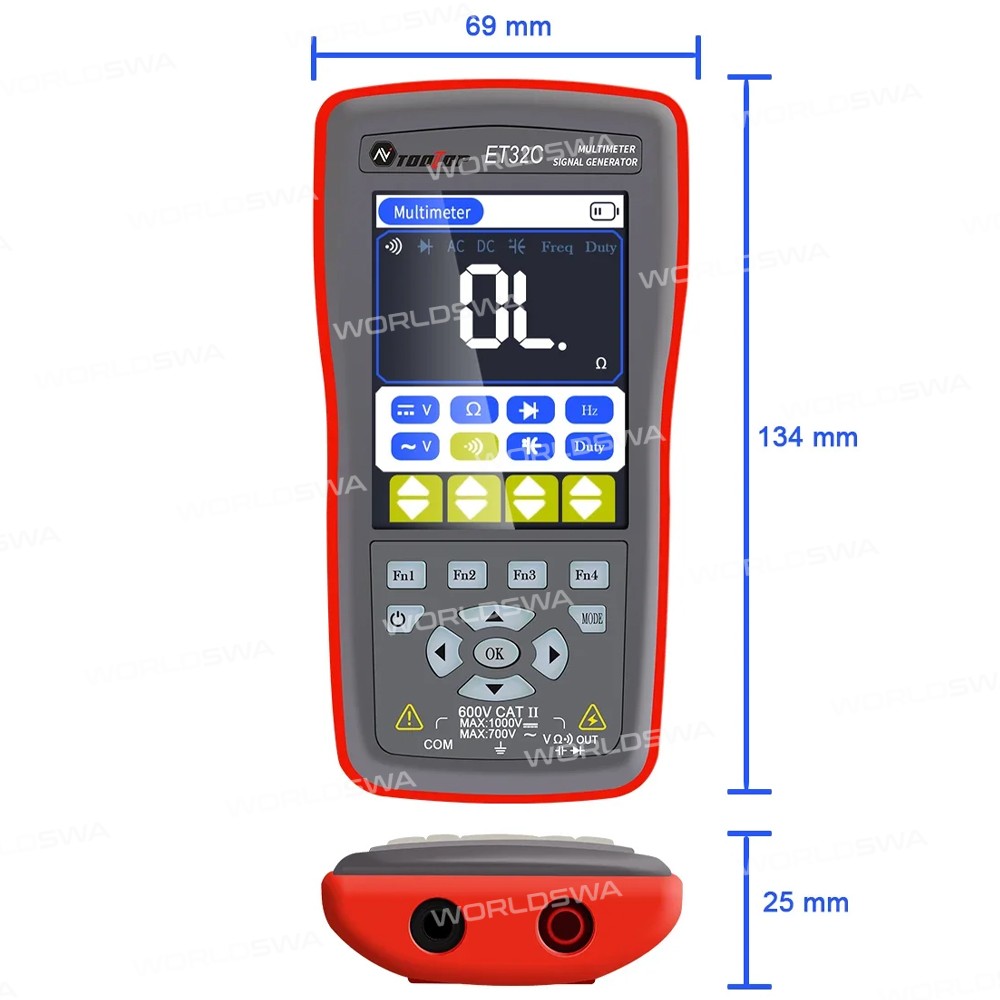

• Product size: 134*69*25mm
• Product weight: 125g (excluding accessories)

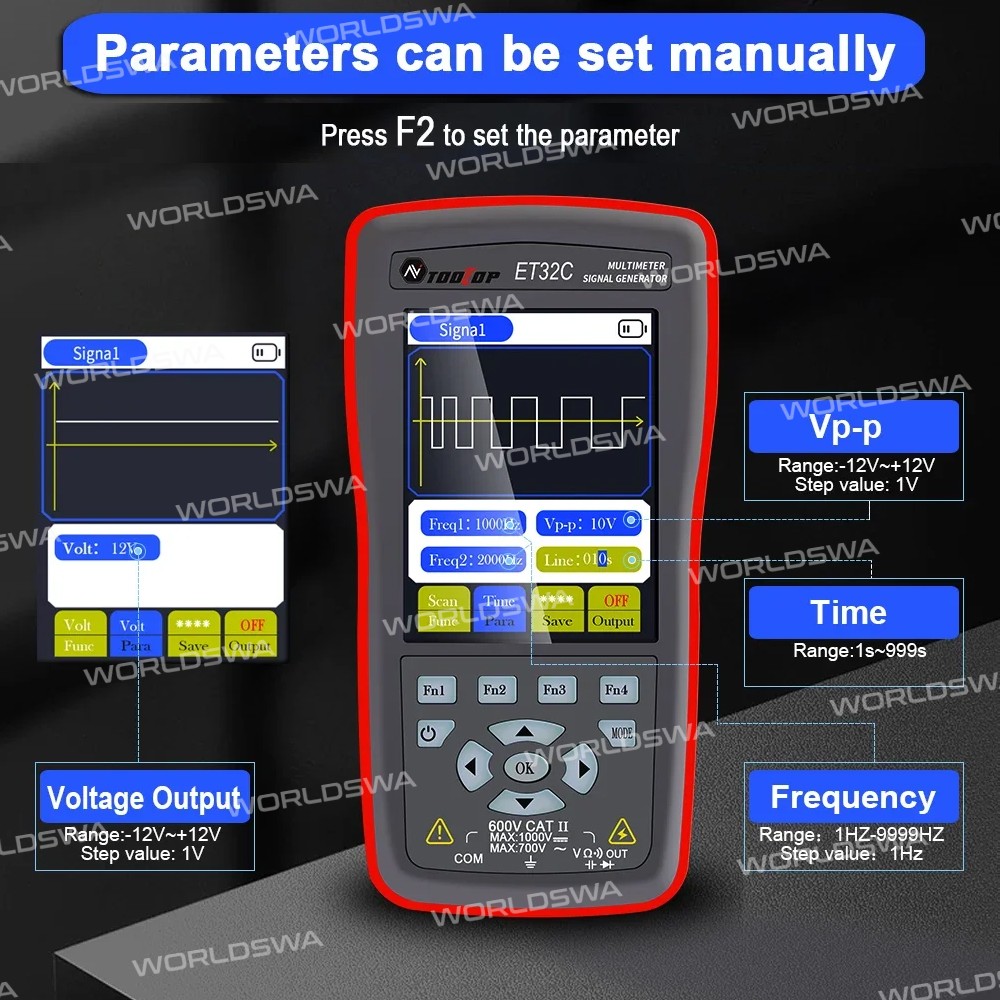

Signal Generator Parameters:

• Sine wave/square wave frequency range: 1Hz~9999Hz
• Sine wave/square wave frequency step: 1Hz
• Sine wave/square wave peak range: -12V~+12V
• Sine wave/square wave peak step: 1V
• Scanning wave scanning time range: 1s~999s
• Maximum number of combined wave combinations: 99+99
• Output voltage range: -12V to +12V
• Output voltage step: 1V
• Coil control power: Below 30V/1A
• Waveform storage: 50 sets
• Duty Setting: 1%~99%(only for square wave)

Multimeter Parameters:

• Maximum DC input voltage: 1000V
• Maximum AC input voltage: 750V
• Maximum measured resistance: 40MΩ
• Maximum measured capacitance value of capacitance: 100uF
• Maximum frequency measurement: 50KHz
• Duty cycle measurement range: 0.1%~99.9%
• Diode measurement range: 0V~1.5V
• Maximum resistance value for on/off detection: 30Ω
• Display: 4000 counts
• Updated: 3 times per second

Package Includes:

• 1 x Signal Generator Multimeter
• 1 x Test Leads
• 1 x Crocodile Clamp Wires
• 1 x USB Cable
