ET828 2-in-1 Digital Graphical Oscilloscope Multimeter by Tooltop - Waveform Storage Supported

Tooltop ET828 2-in-1 Digital Graphical Oscilloscope Multimeter Supports Waveform Storage

Features:

• **Efficient and Intelligent**: One-button waveform capture, improves work efficiency
• 2-in-1: 2.5Msps high-speed sampling, 1MHz analog bandwidth Oscilloscope + 4000 counts display digital multimeter
• Powerful uses: it can be used in different applications such as DIY electrical design, car overhaul, production line, equipment maintenance, and power system

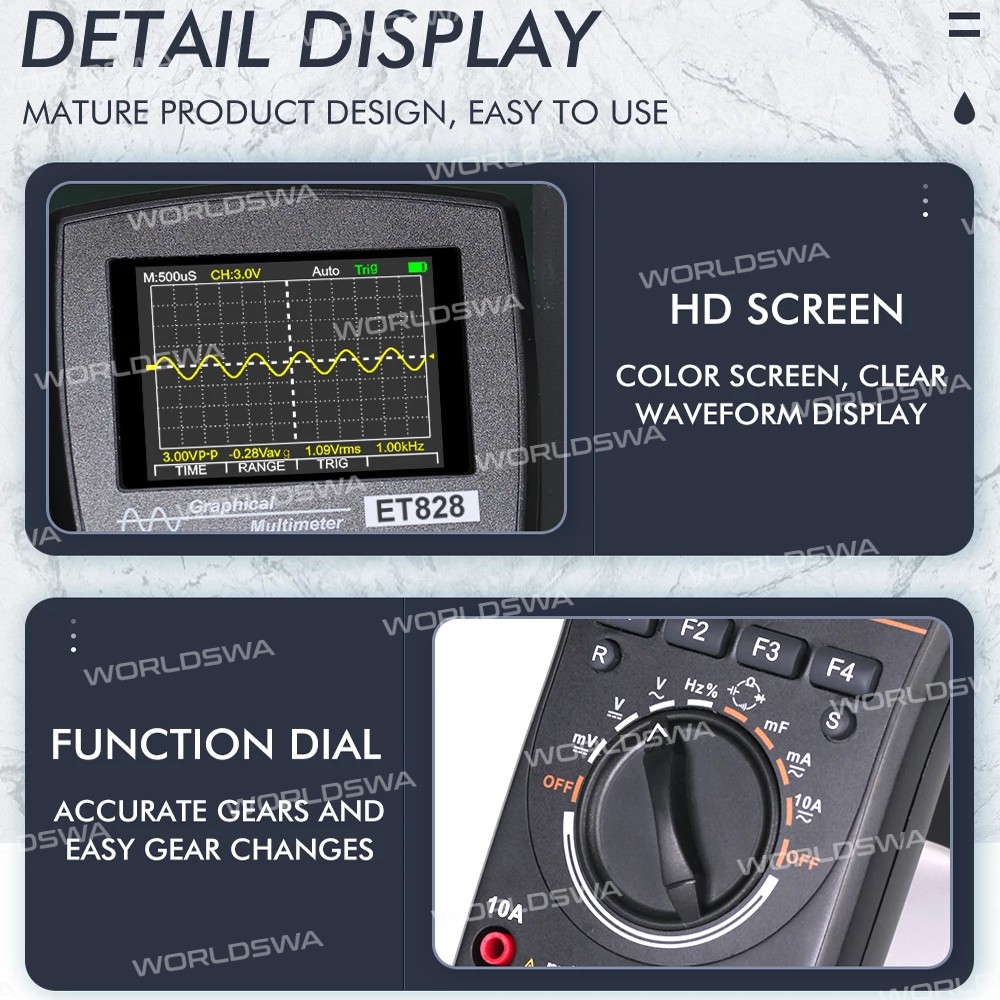

• Color screen display: 2.4-inch color screen, clear waveform display
• Multi-function multimeter: 4000 counts display, fast and accurate measurement of AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity

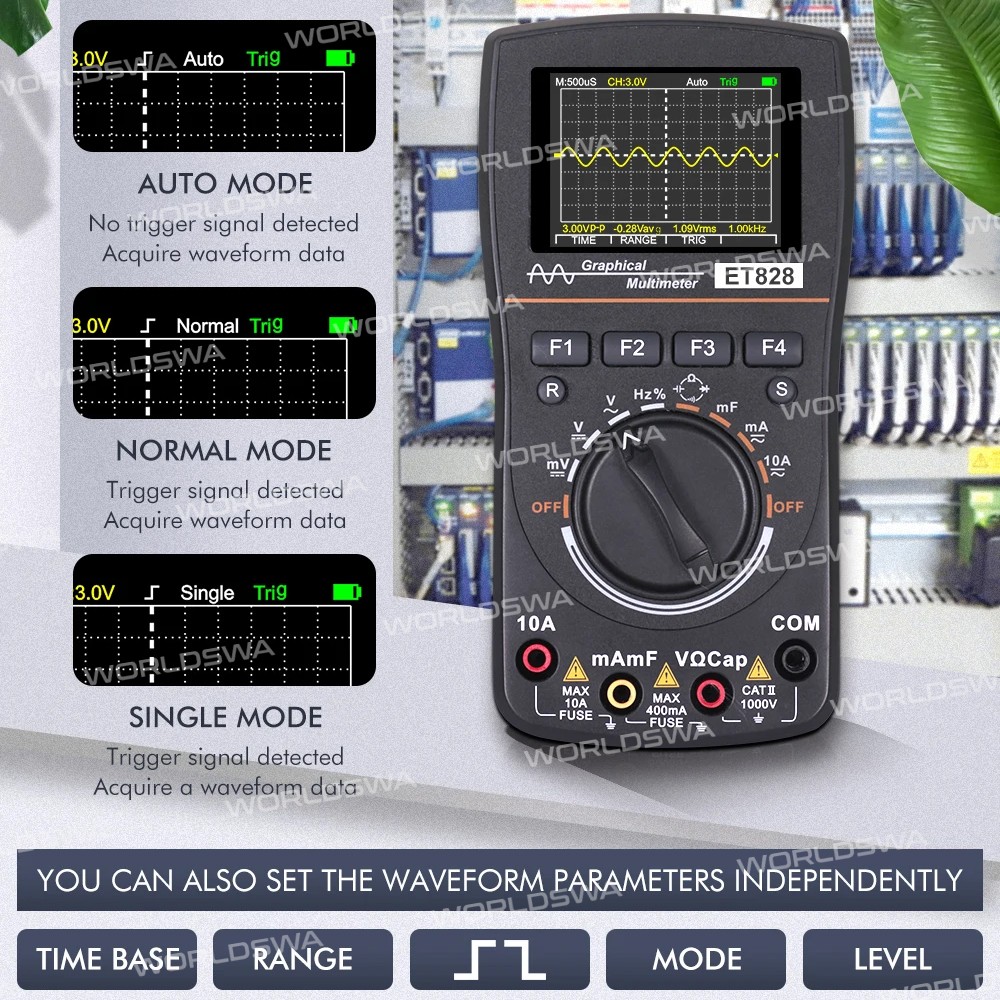

• Oscilloscope parameter independent setting: Auto/Normal/Single scanning modes, time base, amplitude, rising edge, falling edge, and level
• Can store 100 sets of data and 10 sets of waveform. Historical data and real-time display can be displayed on the same screen, greatly facilitating the analysis of data
• Panel calibration and memory calibration coefficients do not need potentiometer adjustment and higher reliability
• Overload protection 500mA/10A double fuse, double protection meter

Specification:

• Display: 240 x 320 LCD Screen
• Display area: About 2.4 inches
• Backlight: White
• Input resistance: 10MΩ
• Battery: AA battery x 3 (Not included)
• Power consumption: About 80mA
• Use time: Low light about 5 hours
• Storage: 100 Data, 10 Waveforms
• Use: 0℃~40℃; <75% RH
• Storage: -10℃~60℃; <90% RH
• Size: 83*160*32(mm)
• Weight: About 195g (without battery)

Oscilloscope Characteristics:

• Analog bandwidth: 1MHz (limited to ACV oscilloscope)
• Maximum real-time sampling rate: 2.5Msps
• Number of channels: One
• Input impedance: about 10MΩ
• Vertical sensitivity range: 300mV - 100V/grid
• Time base range: 2.5us~10s/div
• Vertical amplitude accuracy: ±(5%+ 0.2div)
• Time base accuracy: ±(0.01% + 0.1div)
• Scan mode: Auto/Normal/Single
• Trigger edge selection: Rising edge/Falling edge
• Automatic setting: Automatically set the time base and vertical amplitude
• Automatic measurement function: Vpp, Vavg, Vrms, Hz

Multimeter Characteristics:

• DC voltage: 400mV/4V/40V/400V/1000V ±(1.5%+10dgt)
• AC voltage: 400mV/4V/40V/400V/750V ±(1.0%+10dgt)
• DC Current: 40mA/400mA/4A/10A ±(1.2%+10dgt)
• AC Current: 40mA/400mA/4A/10A ±(1.5%+10dgt)
• Resistance: 400.0Ω~40.00MΩ ±(1.0%+5dgt)
• Capacitance: 51.2nF~100uF, 10.00mF ±(3.0%+5dgt)
• Frequency: 5Hz~5MHz ±(1.0%+5dgt)
• Diode test: Voltage is about 1.5V
• Continuity test: Judgment Resistance about <50Ω beep
• Fuse: 500mA/250V, 10A/250V

Package includes:

• 1 x Oscilloscope Multimeter (without Battery)
• 1 x Test Pen
