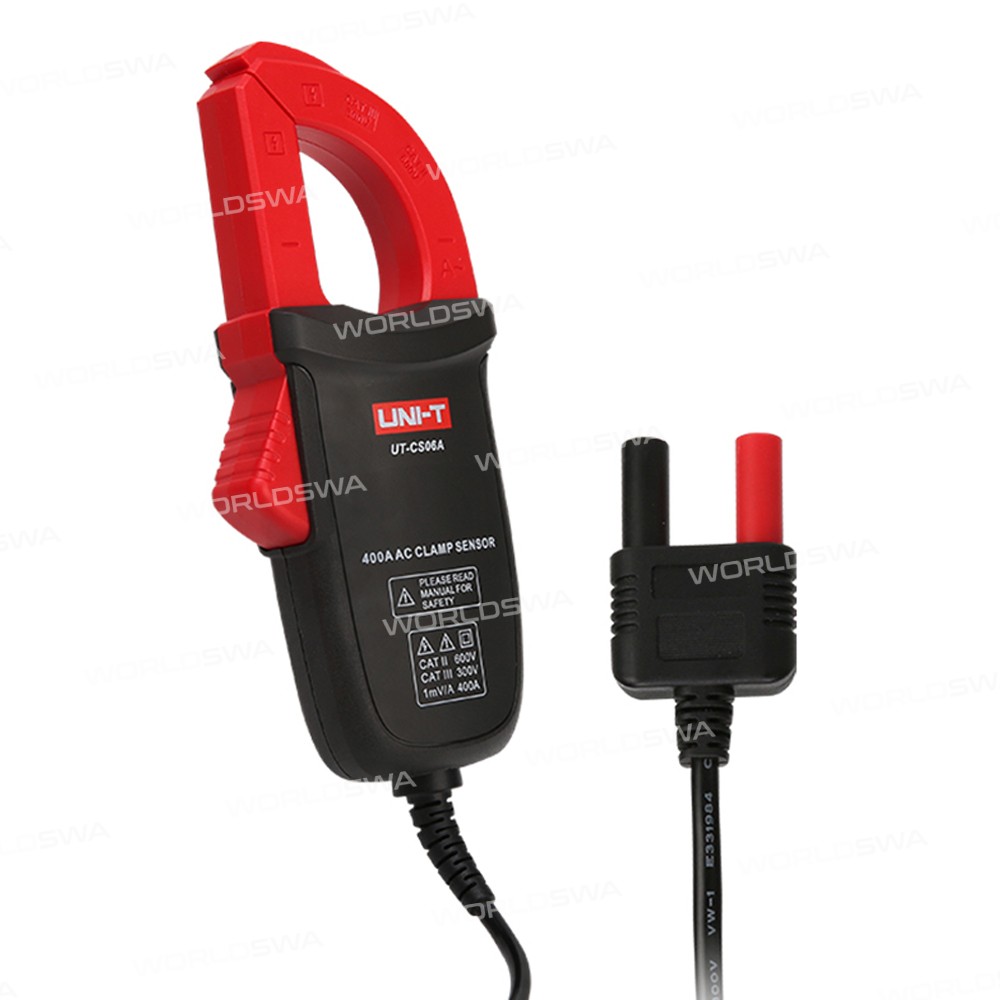

UT-CS06A 400A AC Current Clamp Sensor for UNI-T UT117C / UT139C / UT196 Multimeters

UNI-T UT-CS06A 400A AC Current Clamp Sensor for UT117C / UT139C / UT196 Multimeters

Features:

• UT-CS06A 400A AC Current Clamp is a current entry-level sensor for AC Current measurement of multimeter/data logger
• It suits most UNI-T multimeters and features a small-sized and convenient-to-use design, which is an ideal tool to extend the current ranges for the Multimeters

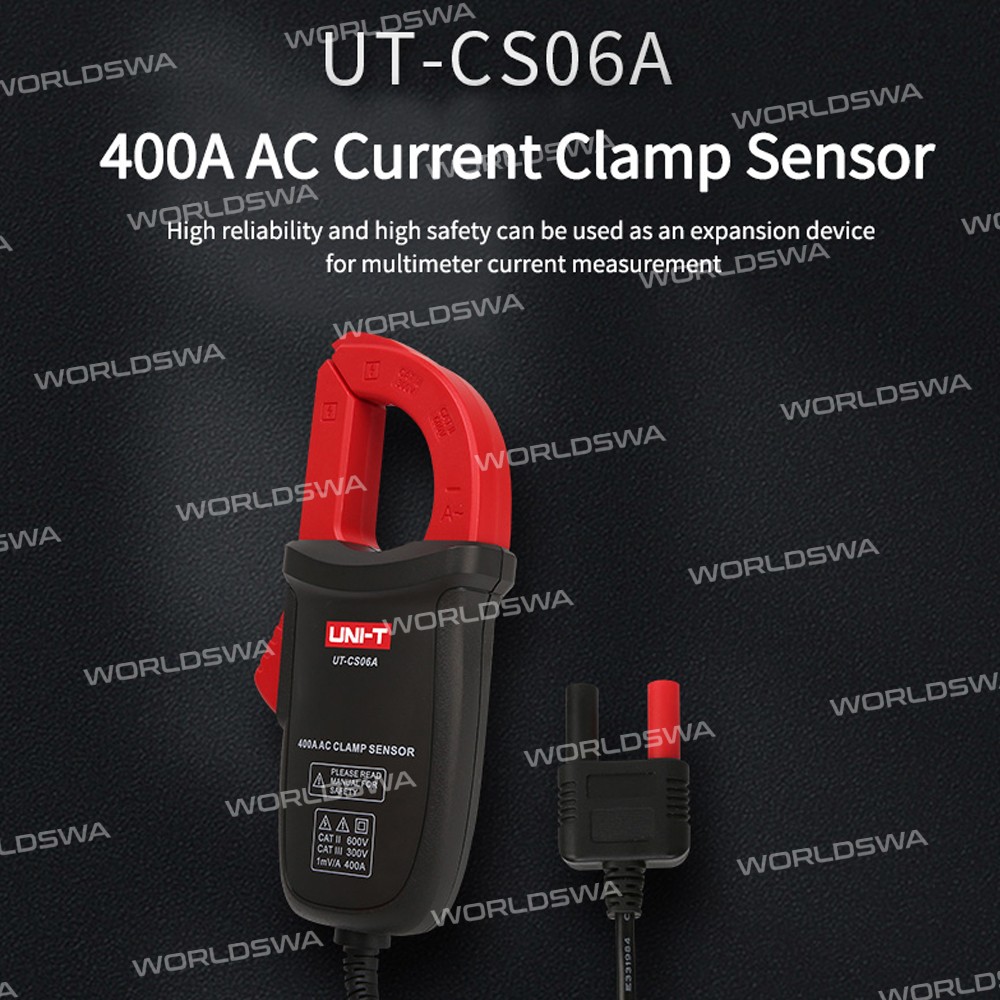

• 400A AC current clamp sensor, high reliability, and high safety can be used as an expansion device for multimeter current measurement

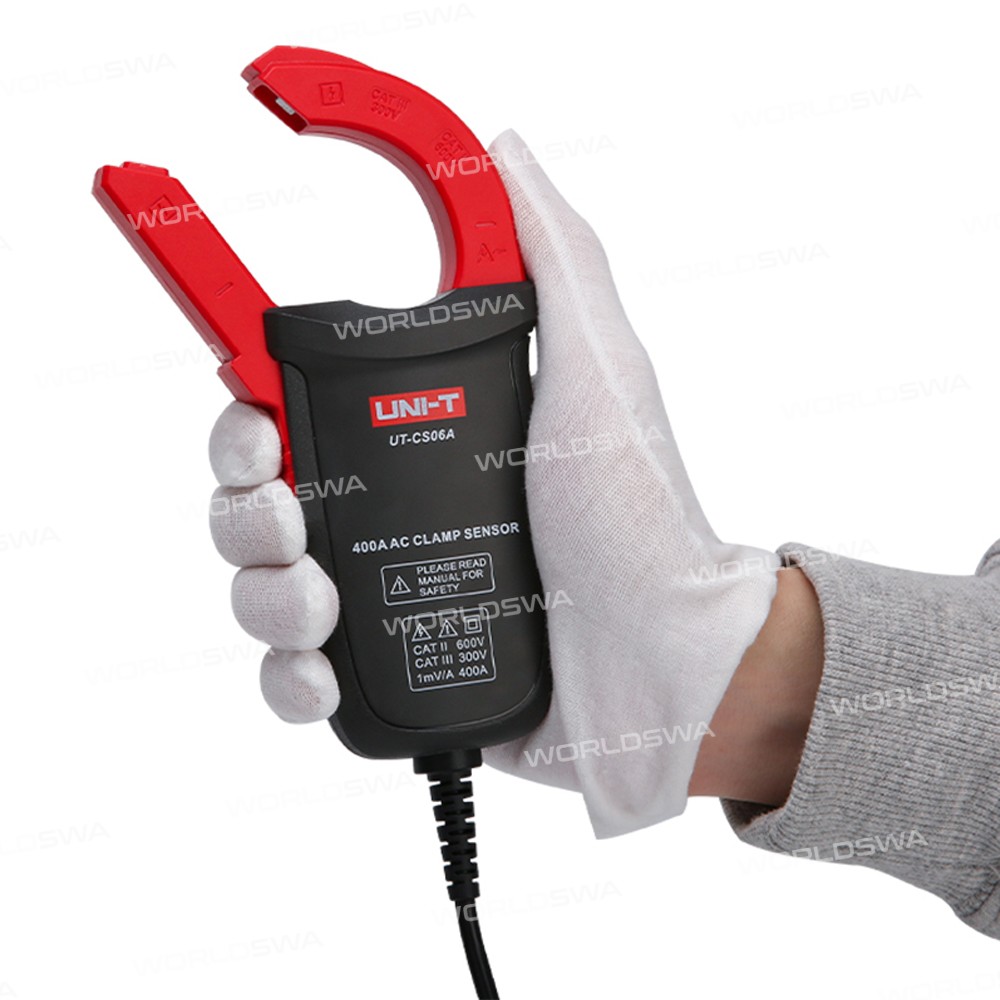

• Lightweight body, convenient for single-handed and high-altitude operations
• Compact structure, compact and portable
• Measure cables with a maximum diameter of 28mm

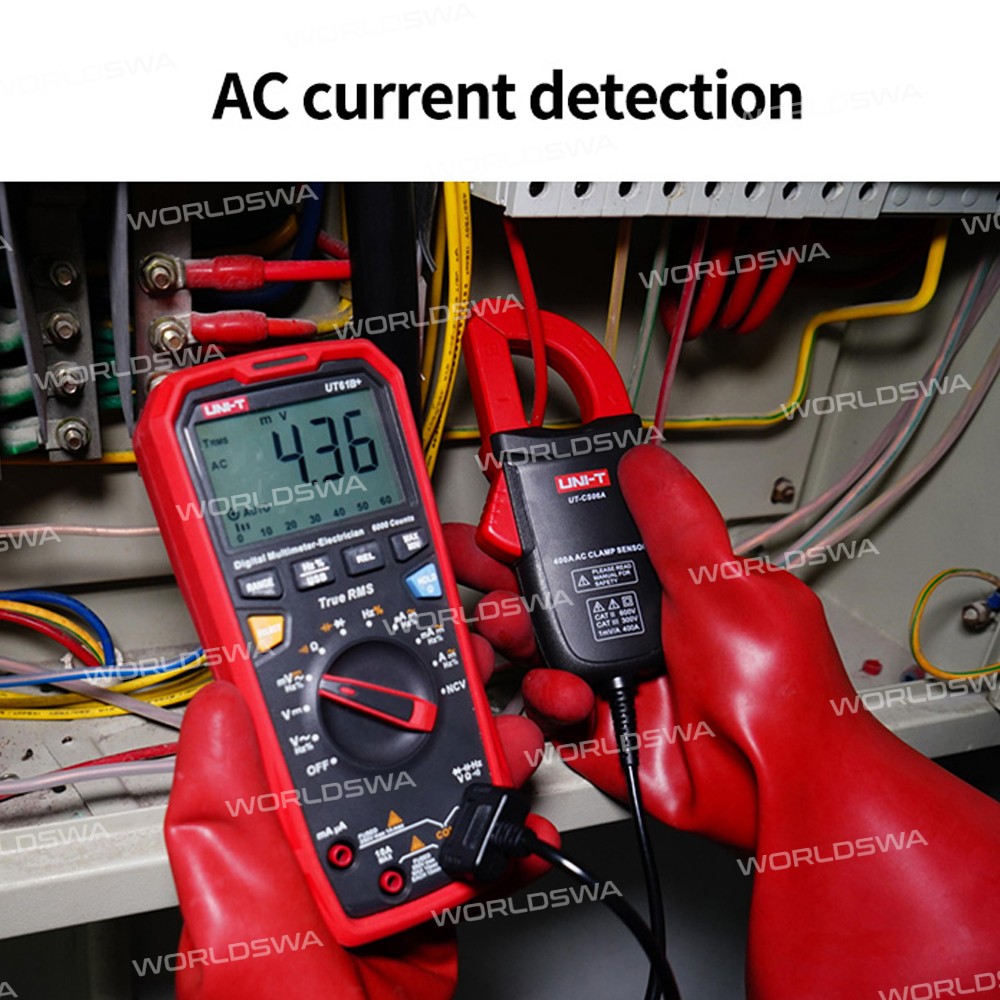

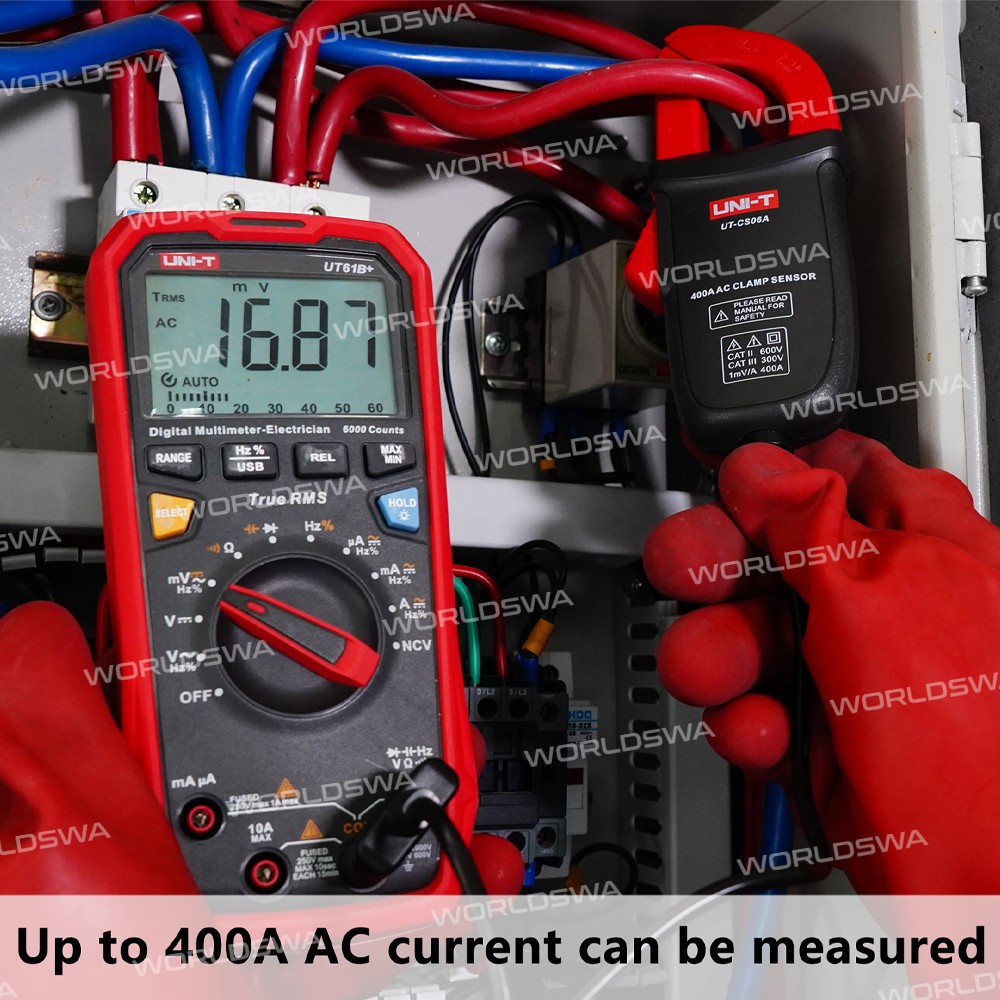

• Paired with a multimeter, accurate current readings can be obtained without interrupting the circuit. It can measure up to 400A AC current and has a frequency response of 50Hz~400Hz

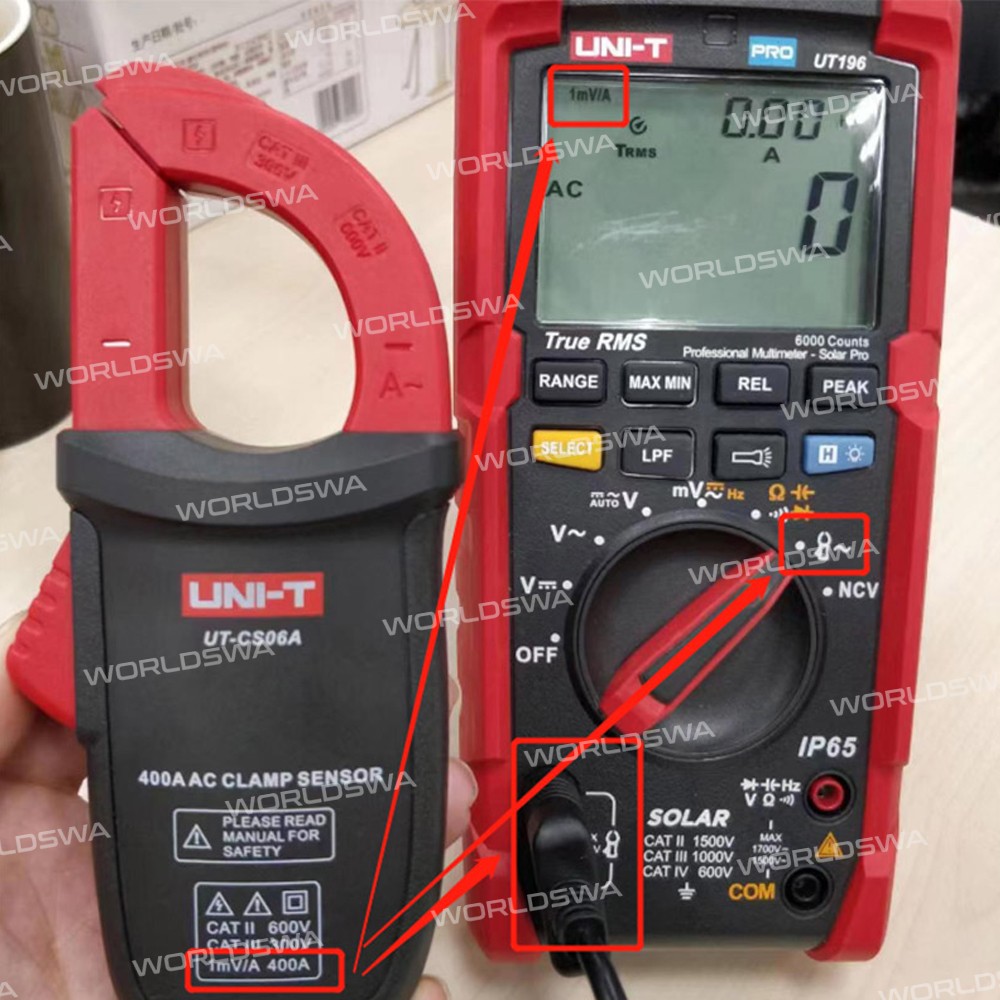

• 1mV/A output can quickly read on the instrument
• The safety level reaches CATII 600V and CATIII 300V
• Suitable for fields such as electricity, factories, inspection and maintenance, installation and maintenance of household appliances, etc
• Summary:** Compact and portable 400A AC current clamp sensor with high reliability and safety, ideal for multimeter current measurement in various fields.

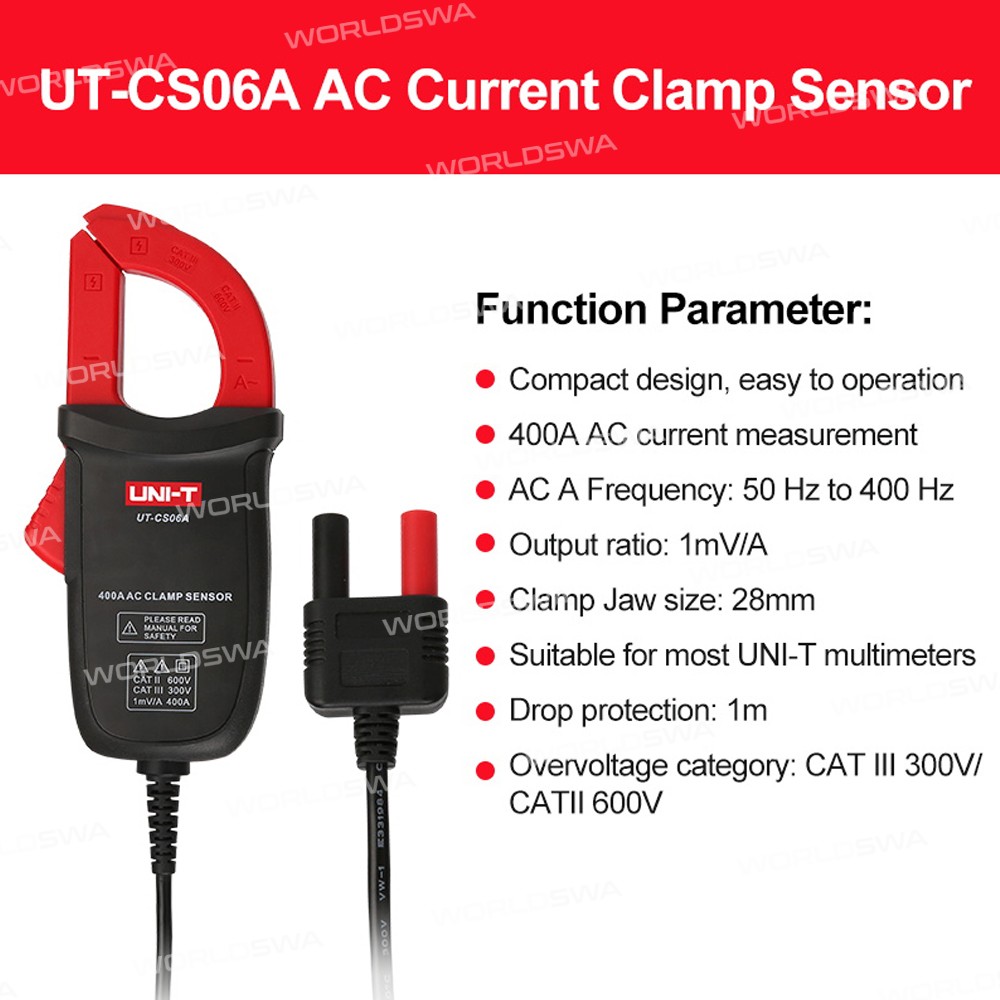

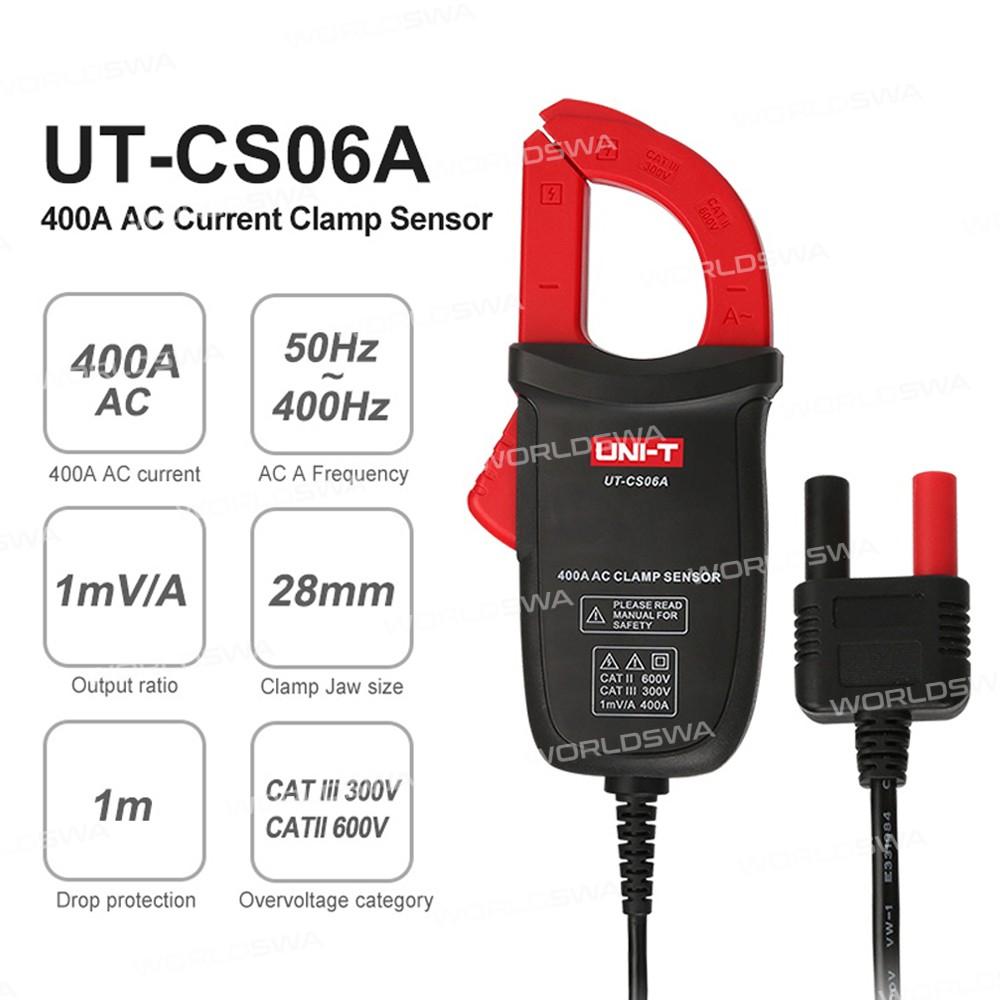

Specification:

• Model: UT-CSO6A

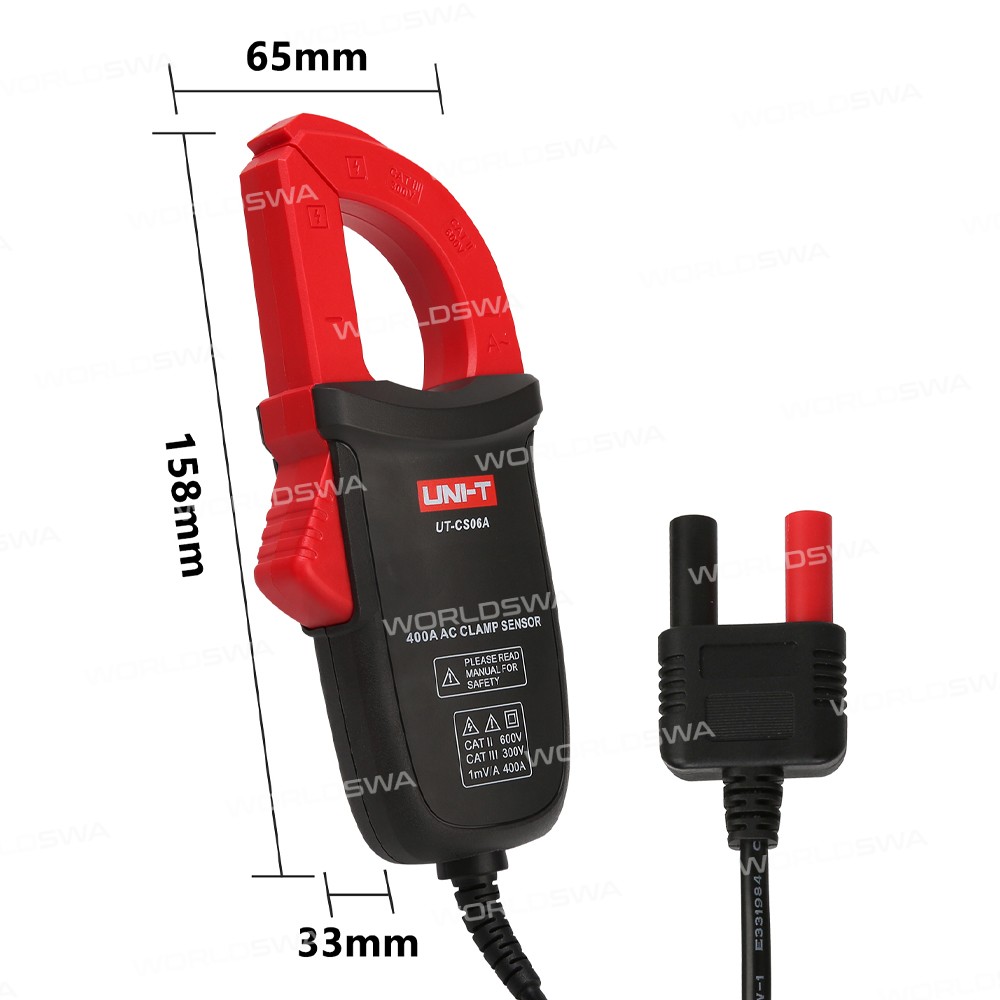

• Dimension: 158*65*33mm
• ACA Current: 1~400A
• Accuracy: ±2.5%±0.5A@50~60Hz; ±2.8%±0.5A@60~400Hz
• Jaw opening: 28mm
• Output ratio: 1mV/A

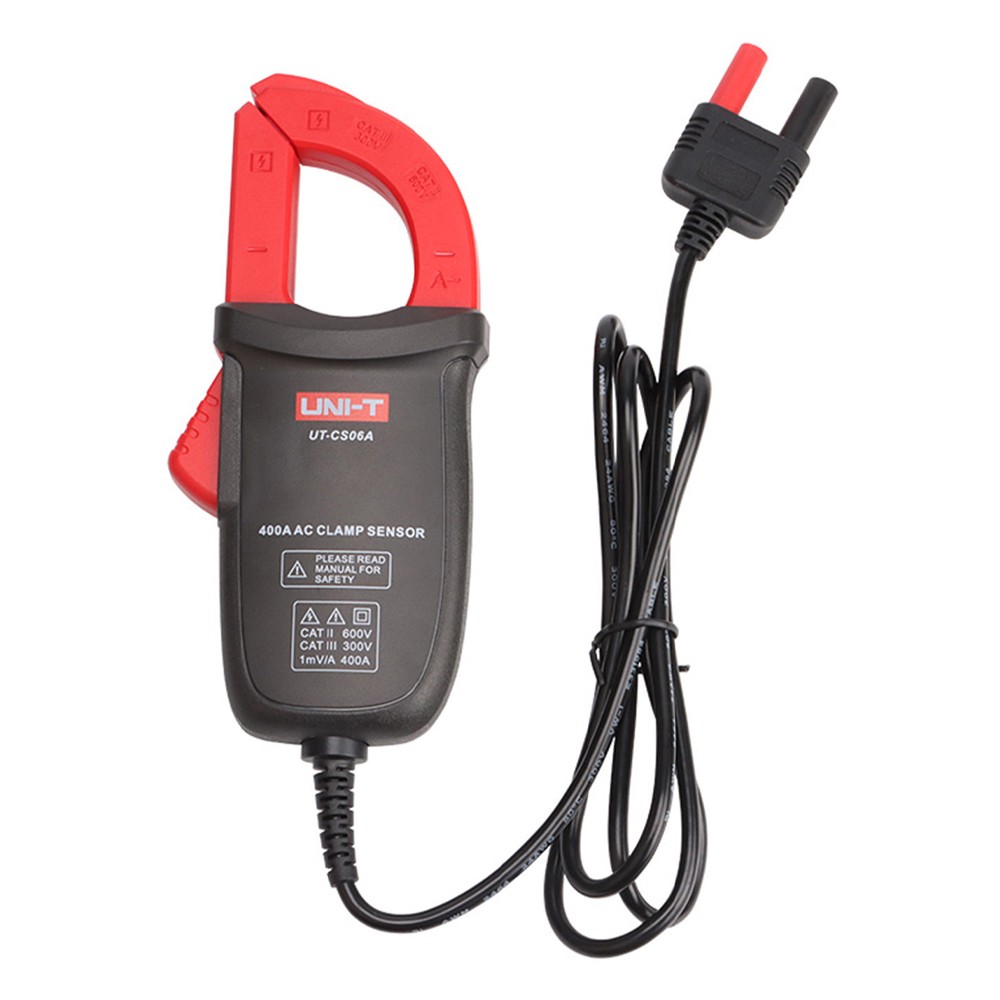

• Wire length: 1.1m
• True RMS: Depends on the Multimeter
• Response time: Depends on the Multimeter
• Frequency: 50HZ~400HZ
• Waveform display: Adaptable oscilloscope
• Accuracy: Depends on the Multimeter
• Power supply: No need battery
• Drop test: 1M
• Overvoltage category: CAT III 300V,CAT II 600V
• Certificates: CE, UKCA

Package includes:

• 1 x Current Clamp Sensor
