UNI-T UT-P06 300MHz Passive Probe for UTD4302C / UTD4304C Oscilloscopes
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.2% |
| 5 | NaN | -4.8% |
| 10 | NaN | -7.1% |
Product details
Description
UNI-T UT-P06 300MHz Passive Probe for UTD4302C / UTD4304C / UTD4302C Oscilloscopes
Product Overview

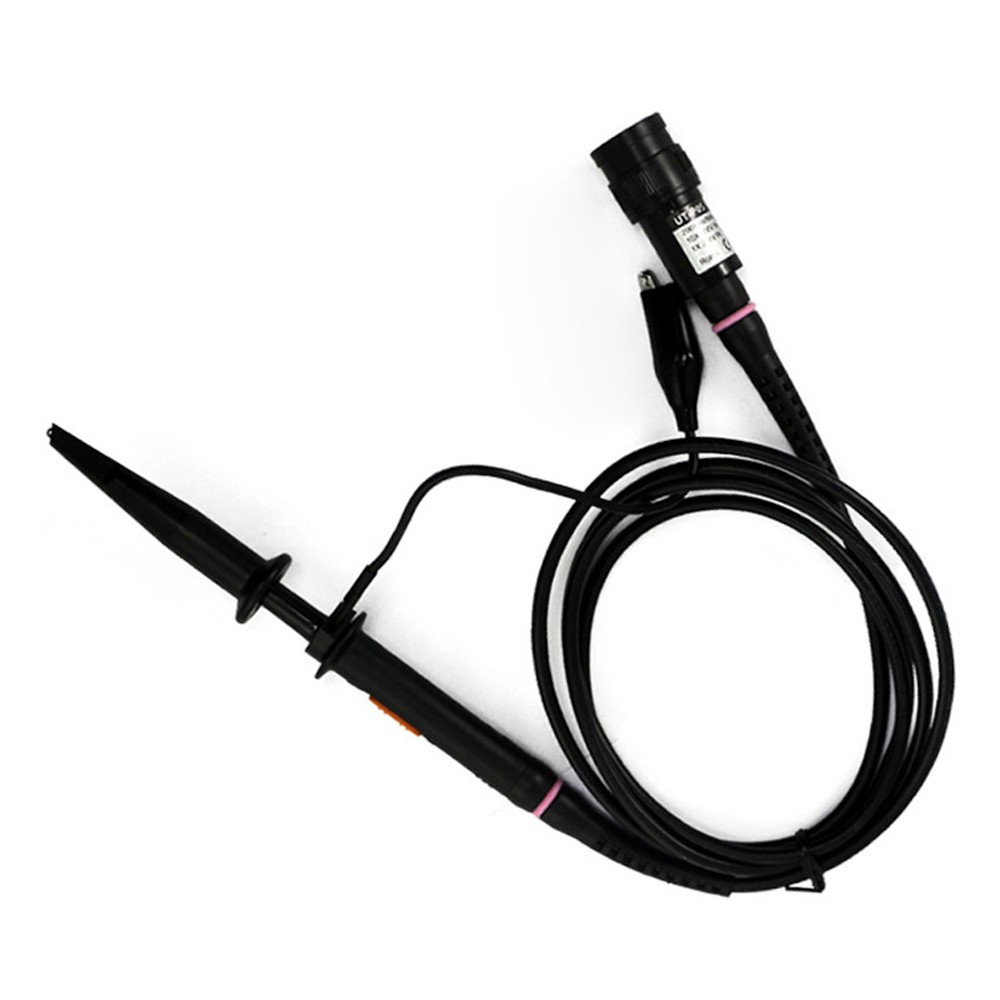

This passive probe is designed for use with UNI-T UTD4302C / UTD4304C / UTD4302C oscilloscopes, offering reliable and accurate signal transmission.
Specifications:
- Model: UT-P06
- Probe Type: 1X/10X Passive Probe
- Input Resistance: 1X: 1MΩ; 10X: 10MΩ
- Input Capacitance: 1X: 85pF~115pF; 10X: 18.5pF~22.5pF
- Compensation Range: 8pF~35pF
- Bandwidth: DC~6MHz; DC~300MHz
- Operating Voltage: 600V DC+ACpk
- Safety Level: Conformed IEC-61010 CAT II 1X:150V AC 10X:300V AC

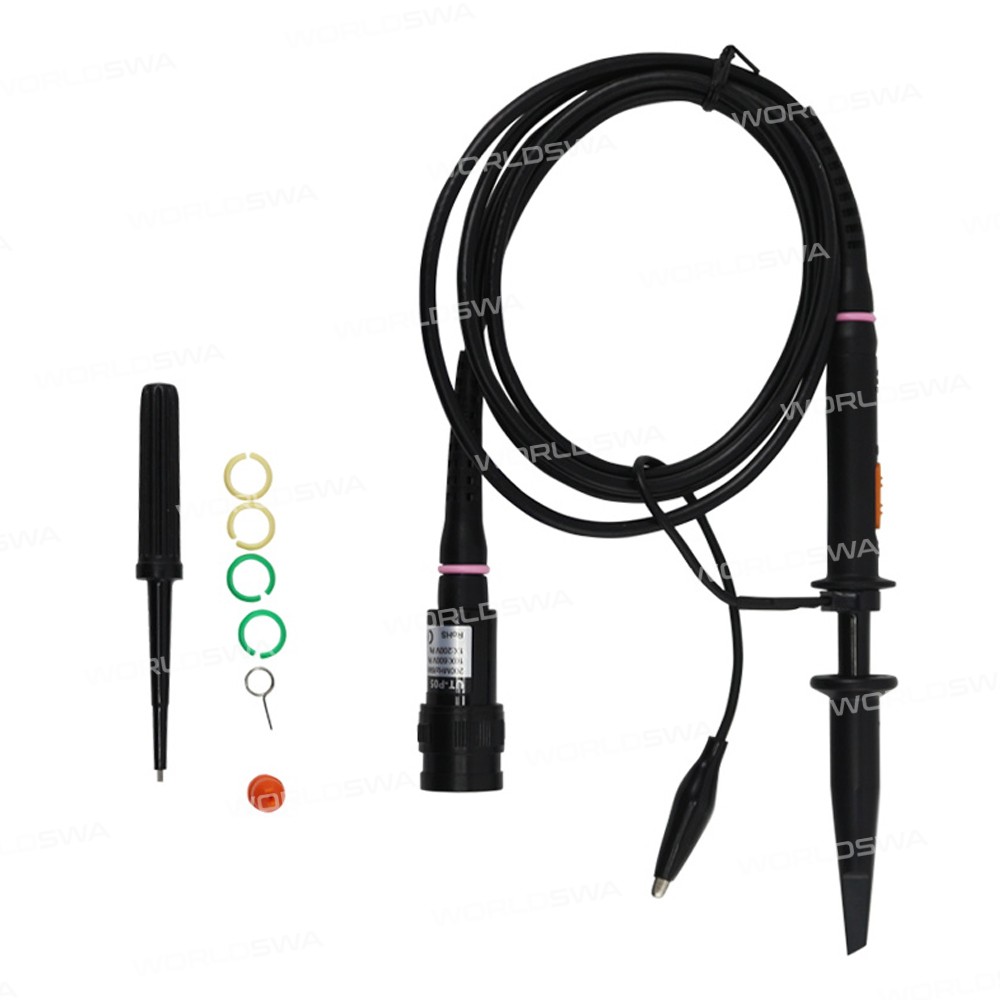

What's Included:
- Package includes: 1 x Passive Probe
Key Features Summary:
- High-frequency bandwidth up to 300MHz
- 1X and 10X attenuation ratios for flexible measurement
- Accurate signal transmission with low input capacitance
- Safe and reliable operation with IEC-61010 CAT II certification
