Product details

Description

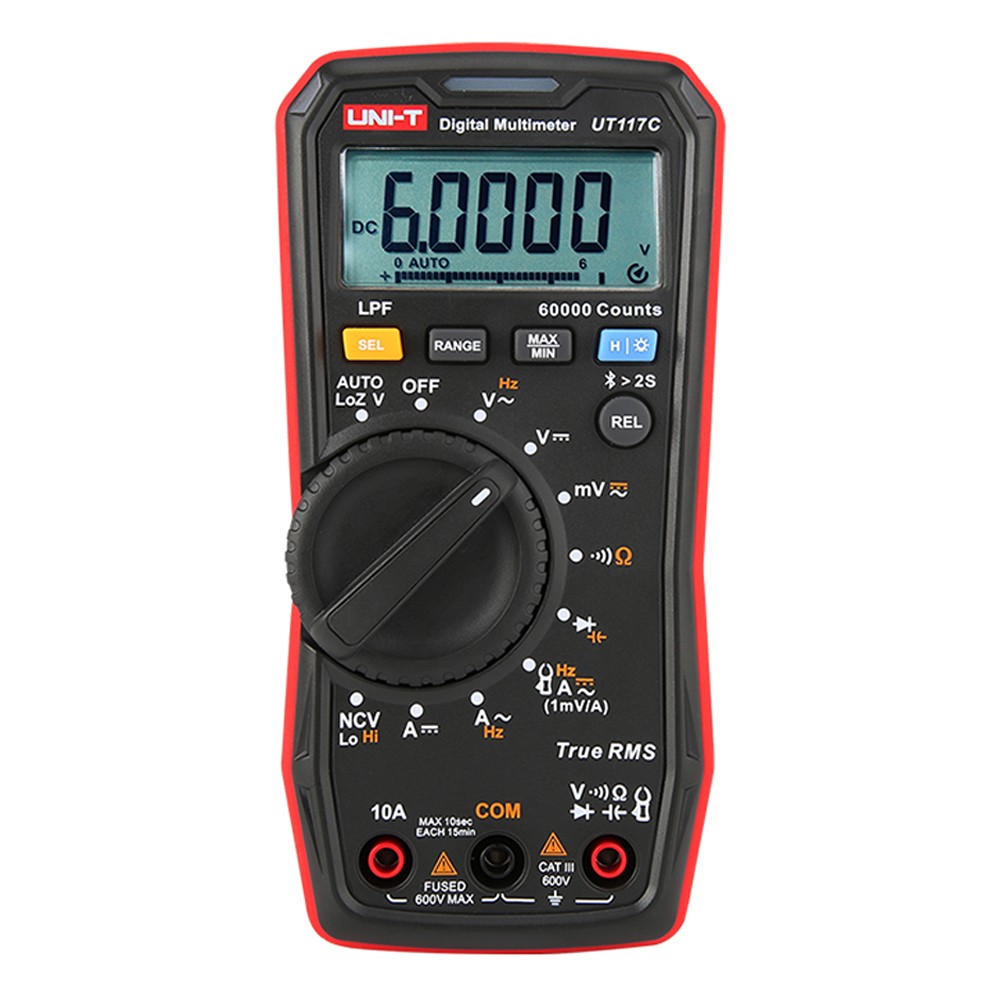

UNI T UT117C Auto-Range True RMS AC / DC Digital Multimeter with NCV & Bluetooth Function

If you need to purchase the UNI-T UT-CS06A Current Clamp Sensor separately, please Click Here


Features:

  • 60000-bit display, true RMS can accurately measure nonlinear loads
    Accurate measurement of nonlinear loads
  • The low-pass filtering LPF function ensures accurate measurement of variable speed drive (VSD): voltage/frequency
  • Equipped with Bluetooth communication function, recording and reporting test results through the Unitech Intelligent Test APP
  • LoZ function: Low input impedance to prevent erroneous readings caused by false voltages

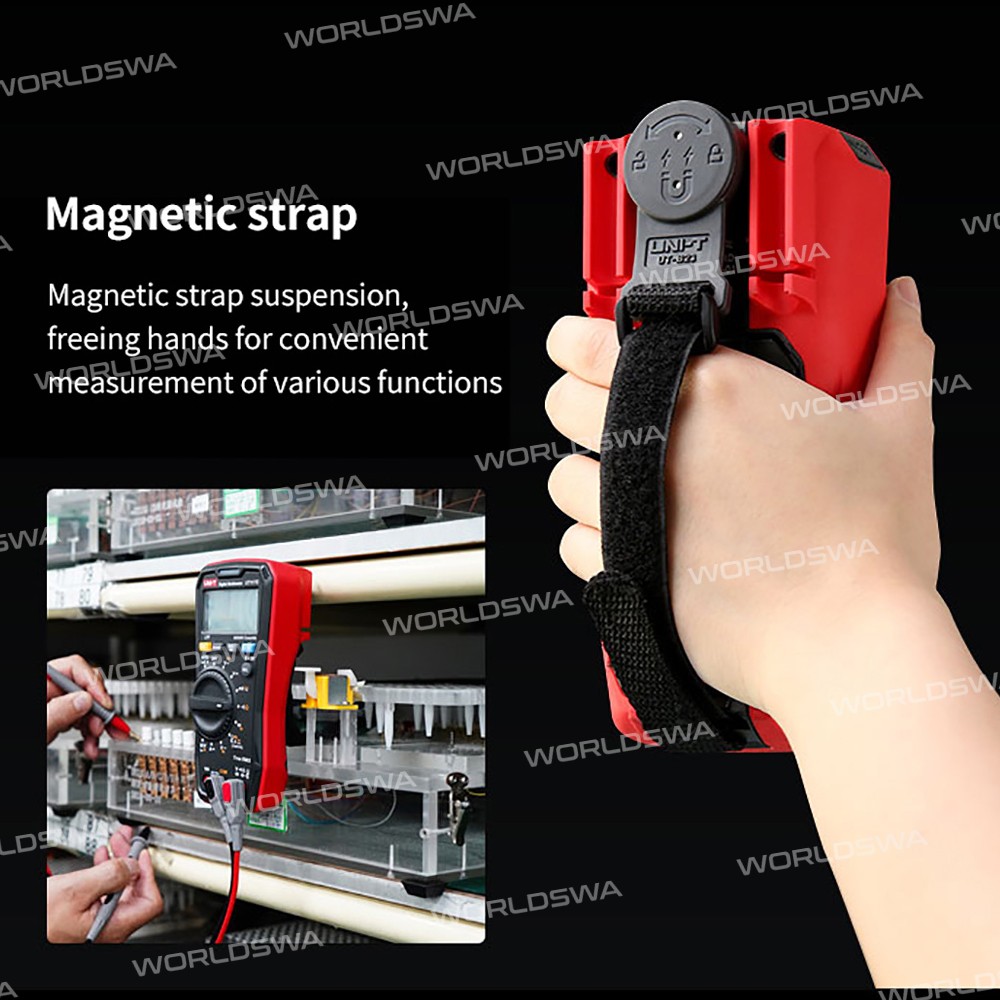

  • Optional magnetic instrument suspension cable straps can be used, which can be measured without being held by hand

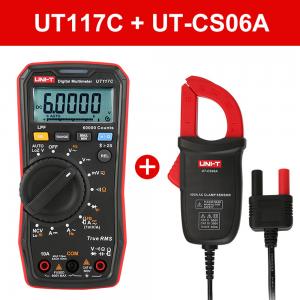

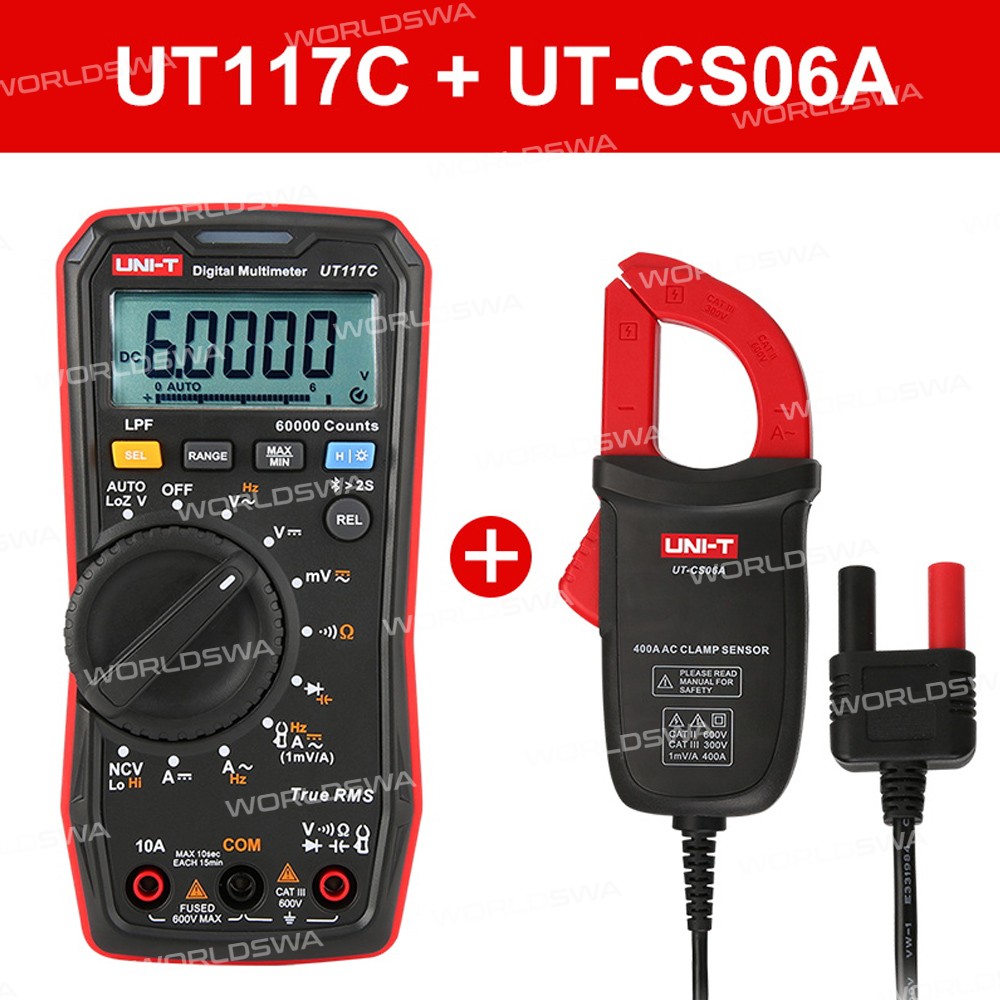

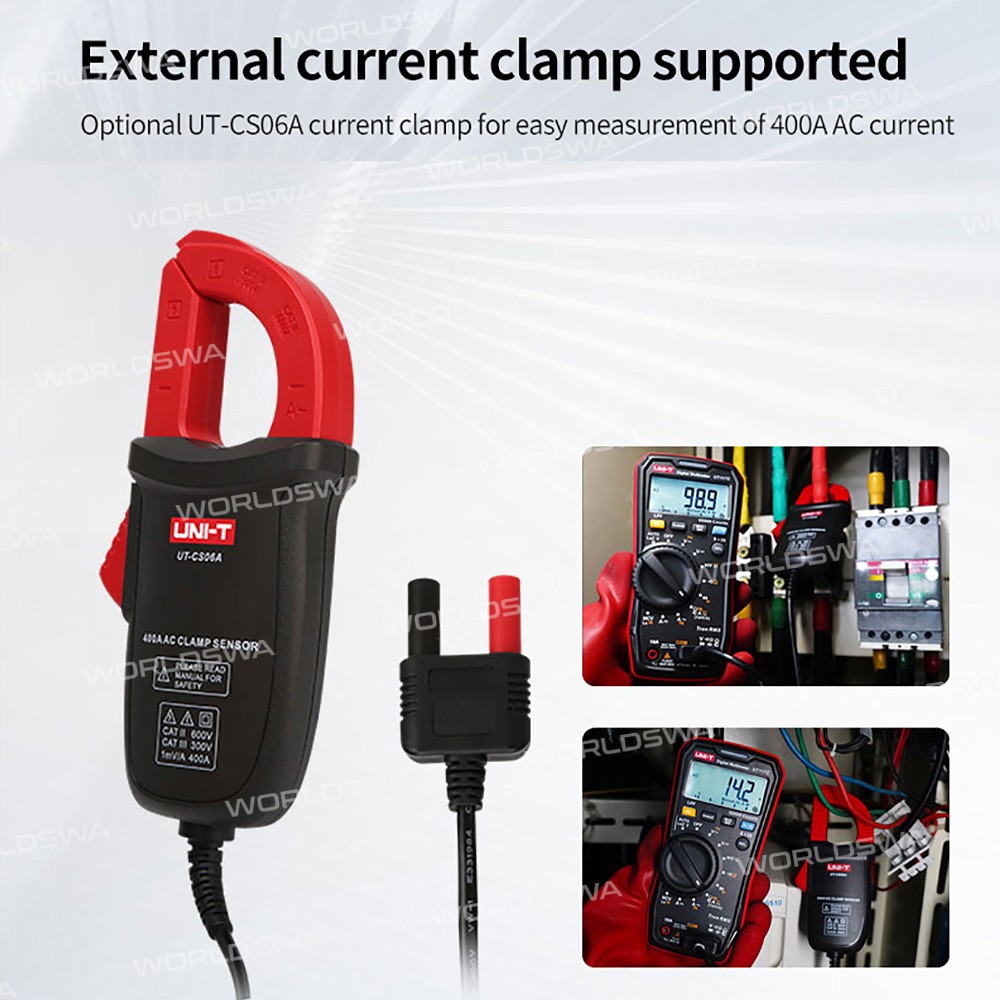

  • Optional UT-CS06A current clamp for 400A AC current measurement

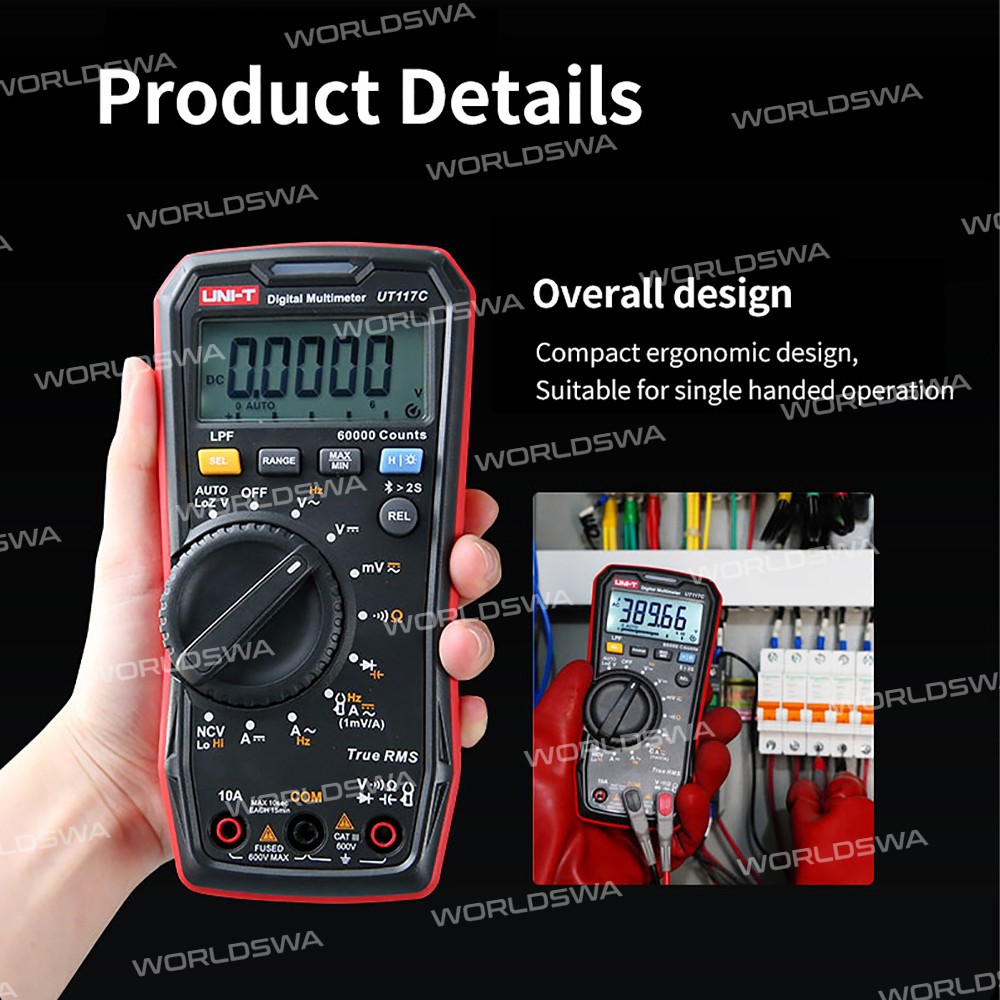

  • Compact ergonomic design, suitable for single-handed operation
  • Can measure 20 A (10 seconds instantaneous; 10 A continuous)

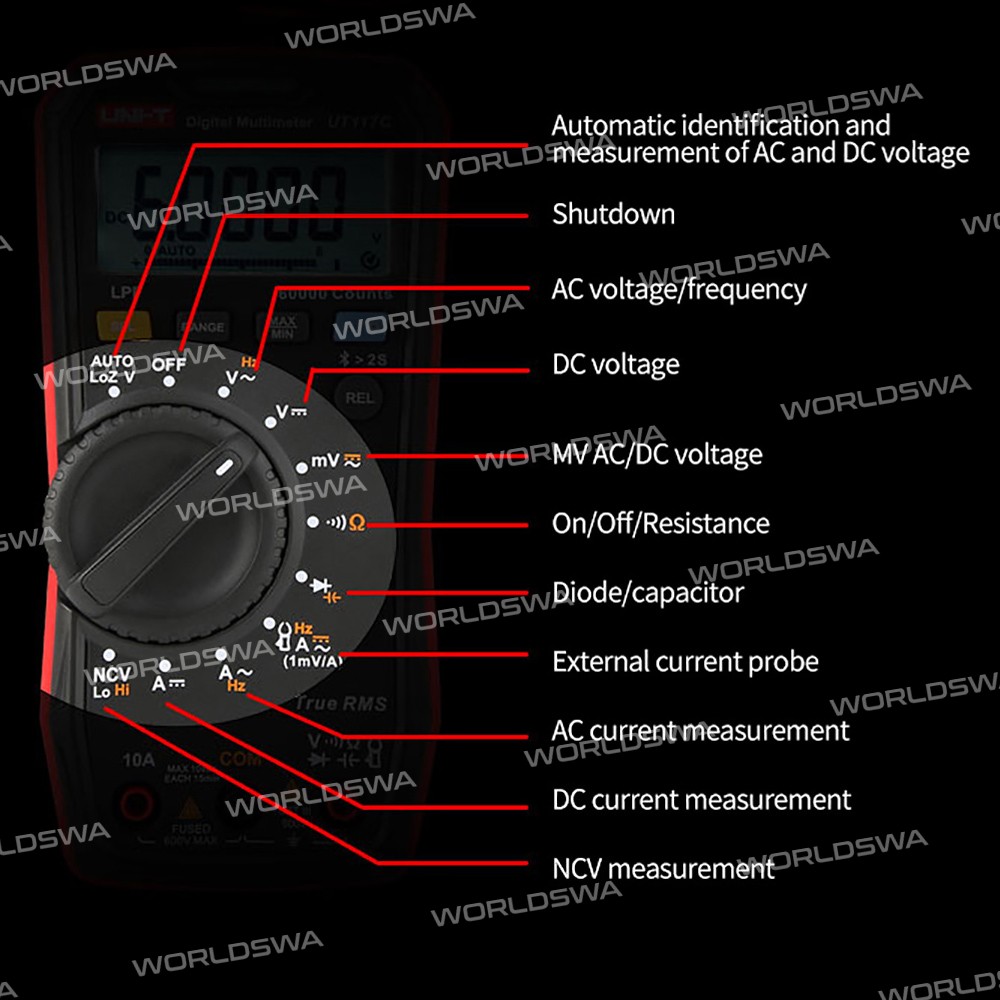

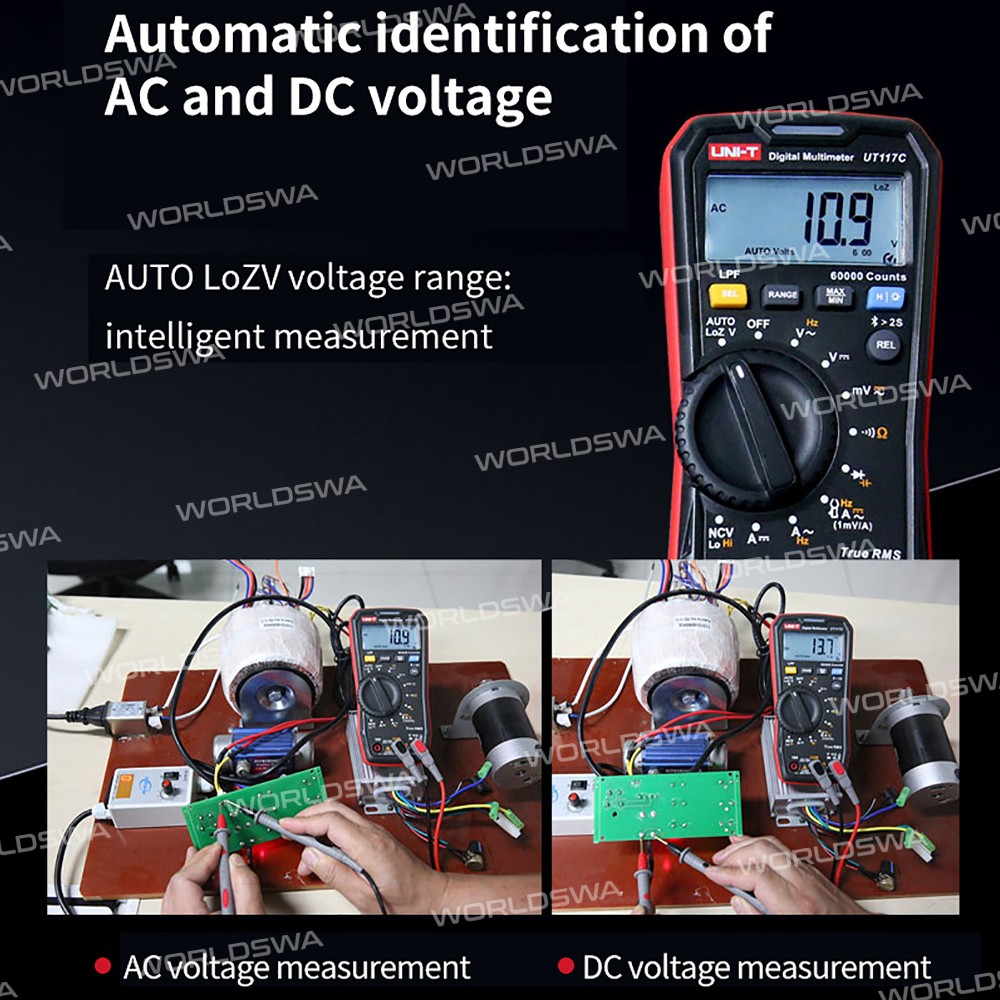

  • Automatic identification and measurement of AC and DC voltage
  • Measurement of resistance, on/off, frequency, and capacitance
  • Minimum/maximum/average values to record signal fluctuations
  • White LED backlight lighting
  • Safety level CAT III 600 V


Specification:

  • Model: UT117C
  • AC voltage: 600.00mV/6.0000V/60.000V/600.00V ±(1%+30)
  • AC current: 6.0000A/10.000A ±(1.5%+30)
  • DC voltage: 600.00mV/6.0000V/60.000V/600.00V ±(0.3%+10)
  • DC current: 6.0000A/10.000A ±(0.5%+10)
  • Auto-V Loz: 600.0V ±(1%+3)
  • LPF voltage(ACV): 600.0V ±(2%+3)
  • Frequency: 99.99Hz/999.9Hz/9.999KHz/50.00KHz ±(0.01%+3)
  • Resistance: 600.00Ω~6.0000MΩ ±(0.5%+5); 40.000MΩ ±(3%+5)

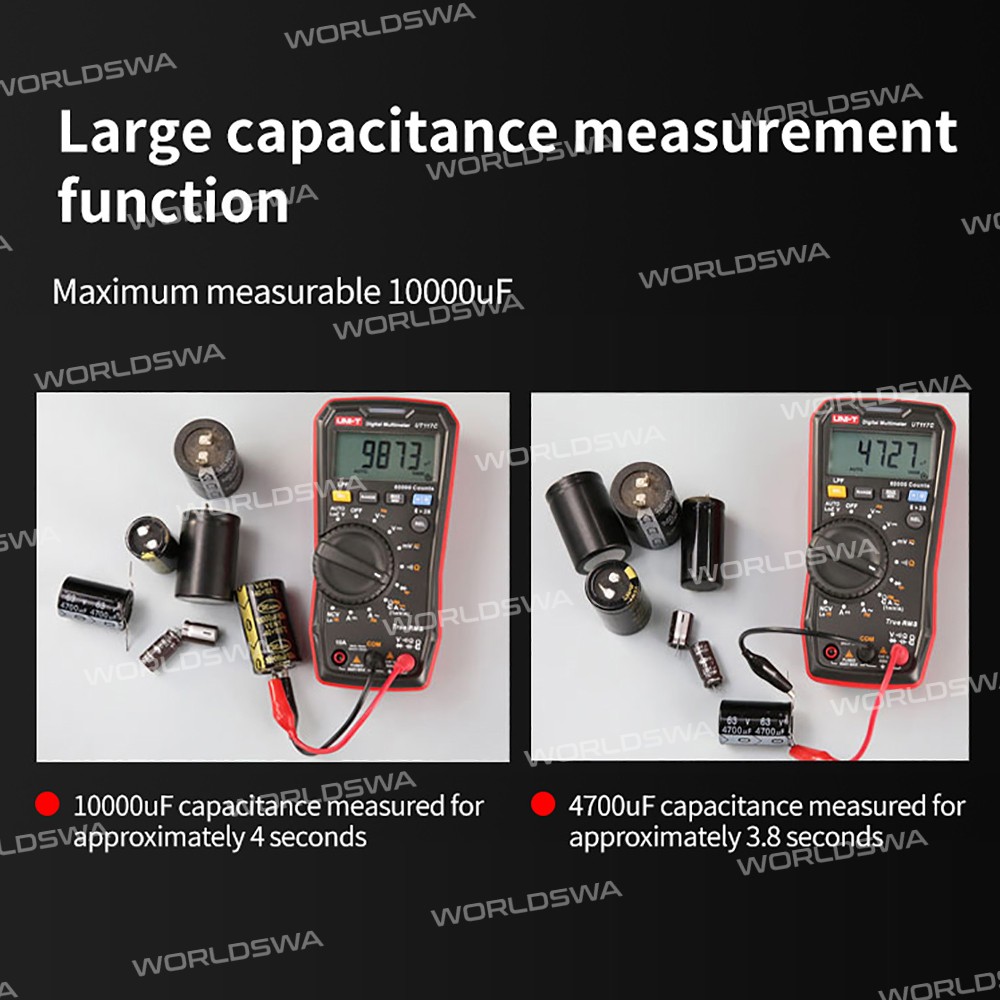

  • Capacitance: 1000nF/10.00uf/100.0uF ±(1.9%+5); 1000uF/10000uF ±(2.5%+5)
  • Display count: 60000
  • External current clamp: Ratio:1mV/A
  • Continuity Diode: Yes
  • NCV: Yes
  • Data hold: Yes
  • Manual/Auto range: Yes
  • Max/Min: Yes
  • Relative mode: Yes
  • High voltage warning: Yes
  • Audiable Visuable indication: Yes
  • Low battery indication: Yes
  • Auto power off: Around 15 minutes
  • LCD backlight: Auto power off after 5 minutes
  • Bluetooth: Yes
  • Drop test: 2M
  • Overvoltage category: CAT III 600V
  • Power supply: 1.5V AAA x 3(Not includes)
  • Product color: Red + Grey
  • Product weight: Around 346g
  • Product dimension: 169*84*48.8mm


Package includes:

  • 1 x Multimeter(without Battery)
  • 1 x Test line
  • 1 x Magnetic Strap
