UT118C UNI-T Pen-type Digital Multimeter for Voltage, Resistance, Capacitance, and Frequency Measurement

UNI-T UT118C Voltage / Resistance / Capacitance / Frequency Pen-type Digital Multimeter

Features:

• Full-featured pen multimeter with 600V anti-misuse protection and single-handed operation for convenient measurement.
• Thin and light with performance, ideal for travel and easy use.
• Automatic identification of on-off and diode measurements for quick circuit checking and improved work efficiency.

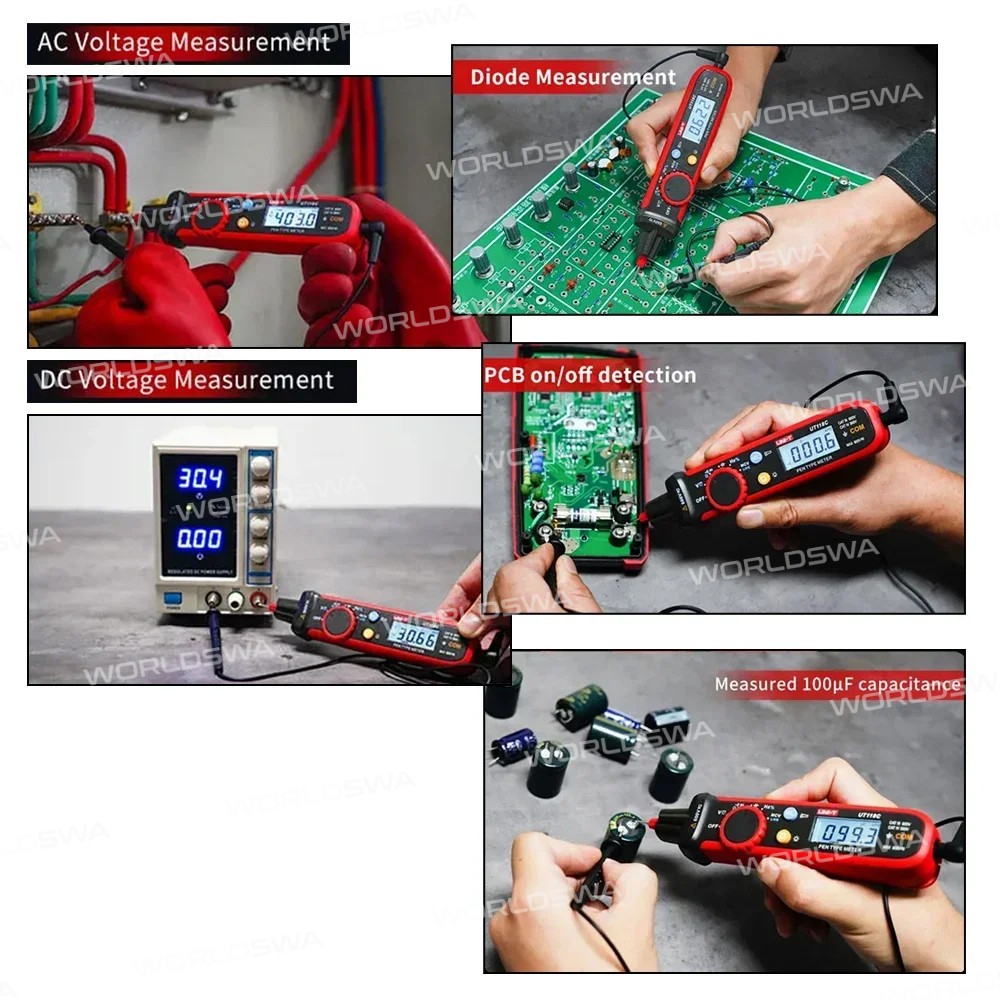

• Measures AC/DC voltage up to 600V, capacitance from 600.0nF to 60.00mF, and frequency up to 999.9kHz.
• Replace traditional low-voltage electric pens to quickly find zero firewire during installation and repair.
• LCD backlit body flashlight for safe measurement and easy reading in low-light environments.

**Summary:** A compact and feature-rich pen multimeter for efficient and safe measurement of voltage, resistance, capacitance, and frequency.

Specification:

• Model: UT118C
• A.C.Voltage: 6.000V/60.00V/600.0V ±(1%+4)
• D.C.Voltage: 6.000V/60.00V600.0V ±(1%+3)
• Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz ±(0.1%+5)
• Resistive: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ ±(1%+3); 6.000MΩ ±(1.5%+5); 60.00MΩ ±(2.5%+5)
• Capacitors: 600.0nF/6.000uF/60.00uF/600.0uF ±(3.5%+8); 6.000mF ±(5.0%+9); 60.00mF ±(10.0%+9)
• duty cycle: 0.1%~99.9%
• Number of Display Bits: 6000
• On/Off Diode: Yes
• NCV/LIVE: Yes
• Backlight/Flashlight: Yes
• Auto range: Yes
• High-Pressure Alarm: Yes
• Low battery alert/auto power off: Yes
• Safety Rating: CAT III600V/CAT IV 300V
• Accreditation: CE, cETLus, ROHS
• Power Supply: 1.5V Battery AAA (Not included)

Package includes:

• 1 x Pen Multimeter (without Battery)
• 1 x Test Line
