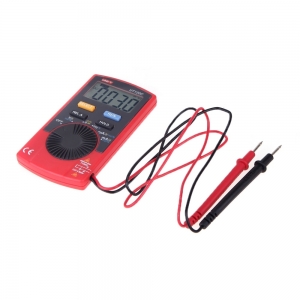

UNI-T UT120C Auto Ranging Digital Multimeter - Pocket Size AC / DC Voltmeter Ammeter

The UT120C: A Powerful and Accurate Digital Multimeter

This 4000 count notebook type auto-ranging digital multimeter boasts complete functions, stable performance, high accuracy, low power consumption, novel structure, high degree of safety, and reliability. It's capable of measuring AC/DC voltage and current, frequency, duty cycle, resistance, capacitance, diode forward voltage drop, and continuity, making it an ideal choice for measurement.

Features:

• Display Count: 4000
• Auto Range: √
• Duty Cycle 0.1%~99.9%: √
• Diode: √
• Auto Power Off Around 30 Minutes: √
• Continuity Buzzer: √
• Low Battery Indication ≤2.4V: √
• Data Hold: √
• Relative Mode: √
• Input Impedance for DCV Around 10MΩ: √
• Safety Rating: CAT II 600V
• Certifications: CE/EN:61010-1/EN:61326-1

Summary of Features:

Accurate and reliable measurements with auto-ranging and data hold functions, ensuring efficient and safe use.

Specifications:

• DC Voltage (V): 400mV/4V/40V/600V±(0.8%+3)
• AC Voltage (V): 4V/40V/400V/600V±(1.2%+3)
• DC Current (A): 400μA/4mA/40mA/400mA±(1.0%+3)
• AC Current (A): 400μA/4mA/40mA/400mA±(1.5%+5)
• Resistance (Ω): 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ±(1%+2)
• Capacitance (F): 4nF/40nF/400nF/4μF/40μF/100μF±(4%+3)
• Frequency (Hz): 10Hz~10MHz±(0.5%+3)
• Power: 3V Battery(CR2032, not included)
• LCD Size: 43mm * 22mm
• Product Size: 110mm * 58.2mm * 10.8mm

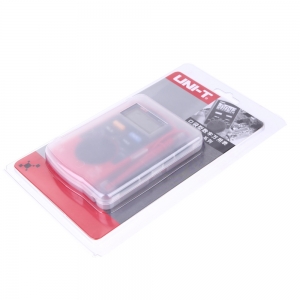

Package Includes:

• 1 x UT120C
