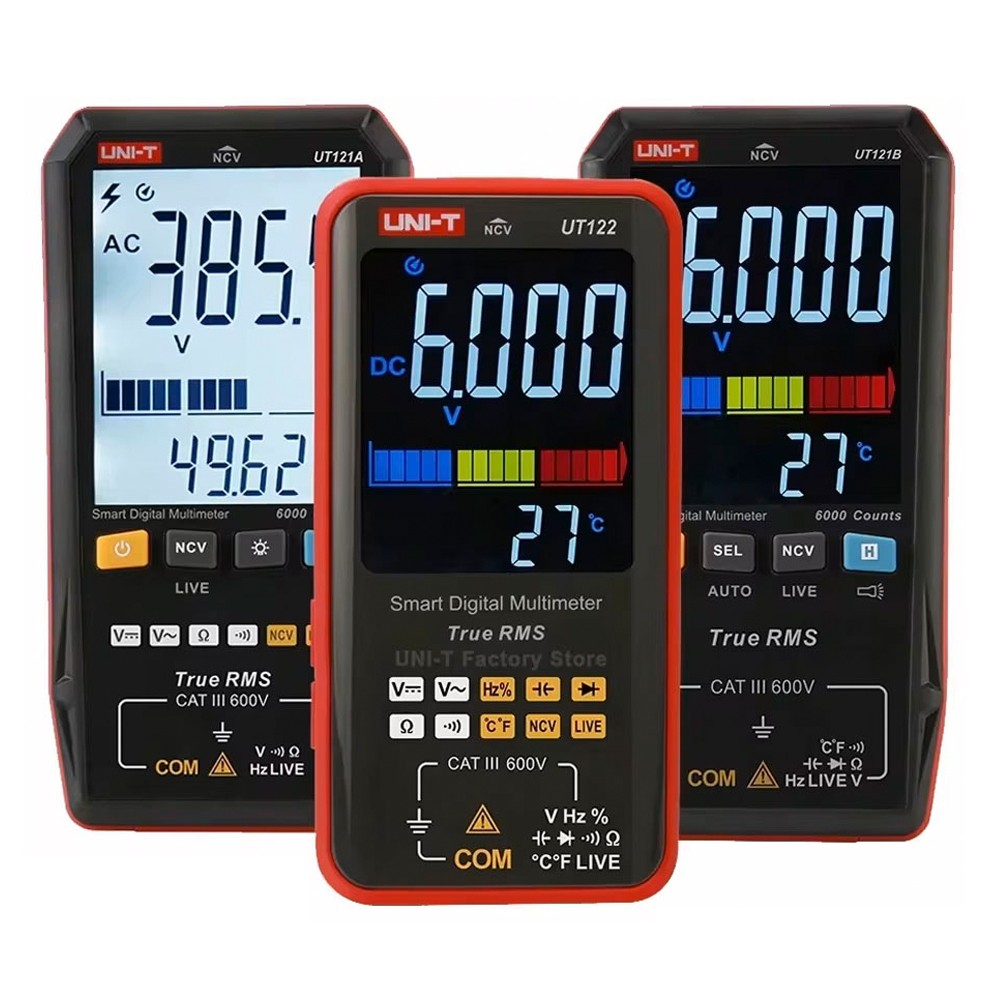

UNI-T UT121A / UT121B / UT122 Smart AC / DC True RMS Digital Display Multimeter

UNI-T UT121A / UT121B / UT122 Smart AC / DC True RMS Digital Display Multimeter

Features:

• True RMS

• AC/DC 600V voltage measurement

• AC 750V/DC 1000V voltage measurement (only UT121B & UT122)

• 60MΩ large resistance measurement (UT121A Max 10MΩ)

• 60mF large capacitance measurement (only UT121B)

• 99mF large capacitance measurement (only UT122)

• Built-in rechargeable lithium battery, Type-C charging (only UT122)

• Temperature measurement (only UT122)

• Full-scale input protection

• NCV/LIVE measurement

• Large-size LCD screen

• 19mm ultra-thin body

• 6000counts

• Intelligent identification gear

Specification:

	Range	UT121A	UT121B	UT122
AC voltage (V)	6.000V/60.00V/600.0V	±(1.0%+3)		±(1.0%+3)
	6.000V/60.00V/600.0V/750.0V		±(1.5%+3)
AC voltage frequency (Hz)	10Hz-1kHz	±(0.5%+2)	±(0.5%+2)	±(0.5%+2)
DC voltage (V)	6.000V/60.00V/600.0V	±(0.7%+3)		±(0.5%+3)
	6.000V/60.00V/600.0V/1000.0V		±(1.2%+3)
Resistance (Ω)	6000Ω/60.00KΩ/600.0KΩ/6.000MΩ/10.00MΩ	±(2.0%+5)
	600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ		±(2%+5)
	600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ			±(2.0%+5)
Capacitance (F)	60.00nF/600.0nF～600.0μF/6000uF～60.0mF		±(10%+5)
	99.99nF/999.9nF～9.999μF/9.999mF～99.99mF			10%
Frequency (Hz)	10.00Hz-10.00MHz		±(0.1%+3)	±(0.1%+3)
Temperature(℃/℉)	–40℃～1000℃/–40°F～1832°F		±3℃/±6℉	±3℃/±6℉
Features
Display count		6099	6099	6199
Dual display		√	√	√
Auto range		√	√	√
NCV detection		√	√	√
LIVE detection		√	√	√
Diode test		/	√	√
Continuity buzzer		√	√	√
LCD high voltage alert		√	√	√
Flashlight		√	√	√
Low battery indication		√	√	√
Auto power off		√	√	√
Data hold		√	√	√
Category ratings		CATⅢ 600V	CATⅢ 600V	CATⅢ 600V
General Characteristics
Power	2*1.5V AAA(no include)
Display	UT121A/UT122B: 52*66mm; UT122: 65*55mm
Product size	UT121A/UT122B: 143*74*17mm; UT122: 144*71*15.5mm
Product net weight	UT121A/UT122B: 142g; UT122: 157g

Package includes:

• 1 x Multimeter

• 1 x Test Leads
