UT123D UNI-T Auto Range True RMS EBTN Display Smart Digital Multimeter DC / AC

UNI-T UT123D Auto Range True RMS EBTN Display DC/AC Smart Digital Multimeter

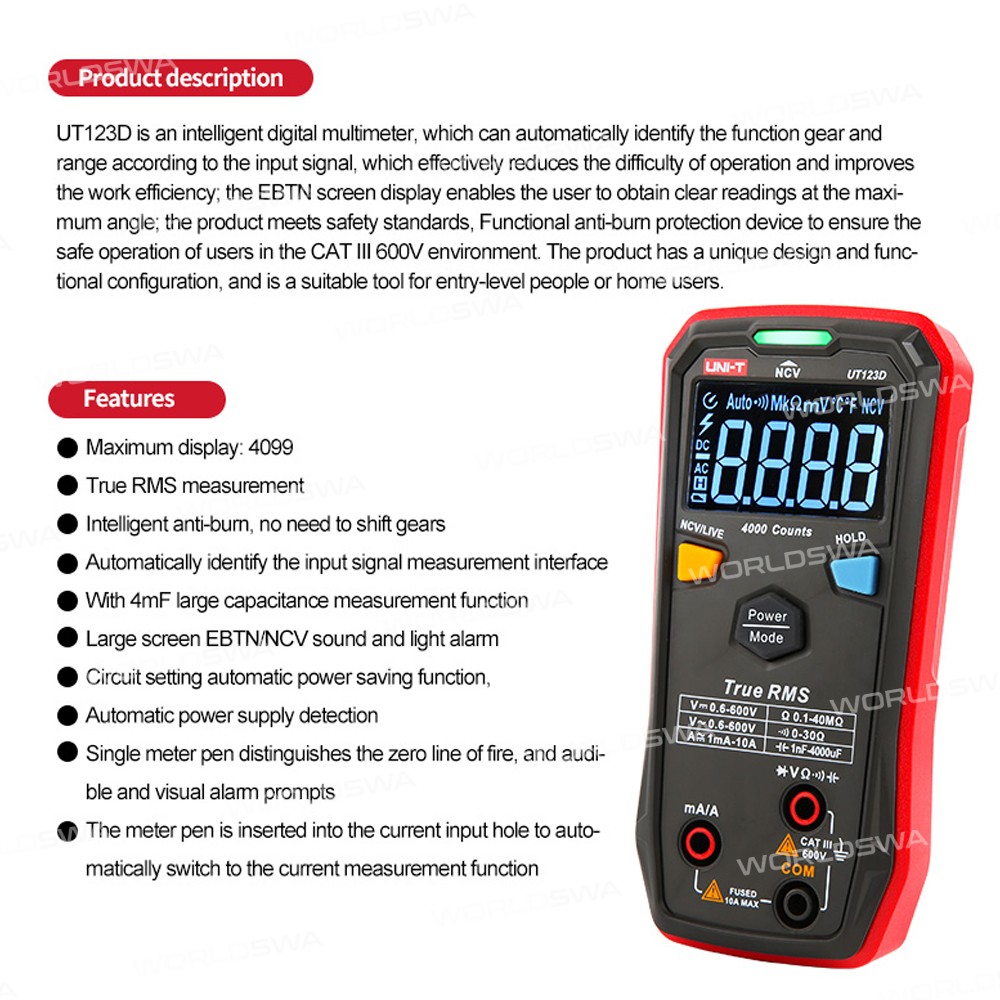

Product Overview

The UT123D is an intelligent digital multimeter designed for entry-level users and home users. It features an EBTN screen display, automatic range identification, and true RMS measurement, making it an ideal tool for various applications.

Key Features:

• **Effortless Operation**: Automatically identifies function gear and range according to the input signal, reducing operation difficulty and improving work efficiency.
• EBTN screen display enables clear readings at maximum angles.
• Meets safety standards with a functional anti-bum protection device, ensuring safe operation in CAT Ill 600V environments.
• Unique design and functional configuration make it a suitable tool for entry-level users and home users.
• Maximum display: 4099.
• True RMS measurement.
• Intelligent anti-bum, no need to shift gears.
• Automatically identifies the input signal measurement interface.
• With 4mF large capacitance measurement function.
• Large screen EBTN/NCV sound and light alarm.
• Circuit setting automatic power saving function.
• Automatic power supply detection.
• Single meter pen distinguishes the zero line of fire, and audible and visual alarm prompts.
• The meter pen is inserted into the current input hole to automatically switch to the current measurement function.

Specifications:

• DC voltage: 4.000~600V ±(0.5%+3)
• AC voltage: 4.000~600V ±(1.0%+5)
• AC current: 999.9mA~9.999A ±(1.2%+3)
• DC current: 999.9mA~9.999A ±(1.0%+3)
• Resistance: 400Ω~40.00MΩ ±(1.0%+2)
• Capacitance: 40.00nF~4000uF
• Maximum display: 4099
• True RMS: Yes
• Diode: Yes
• On-off/buzzer: Yes
• NCV: Yes

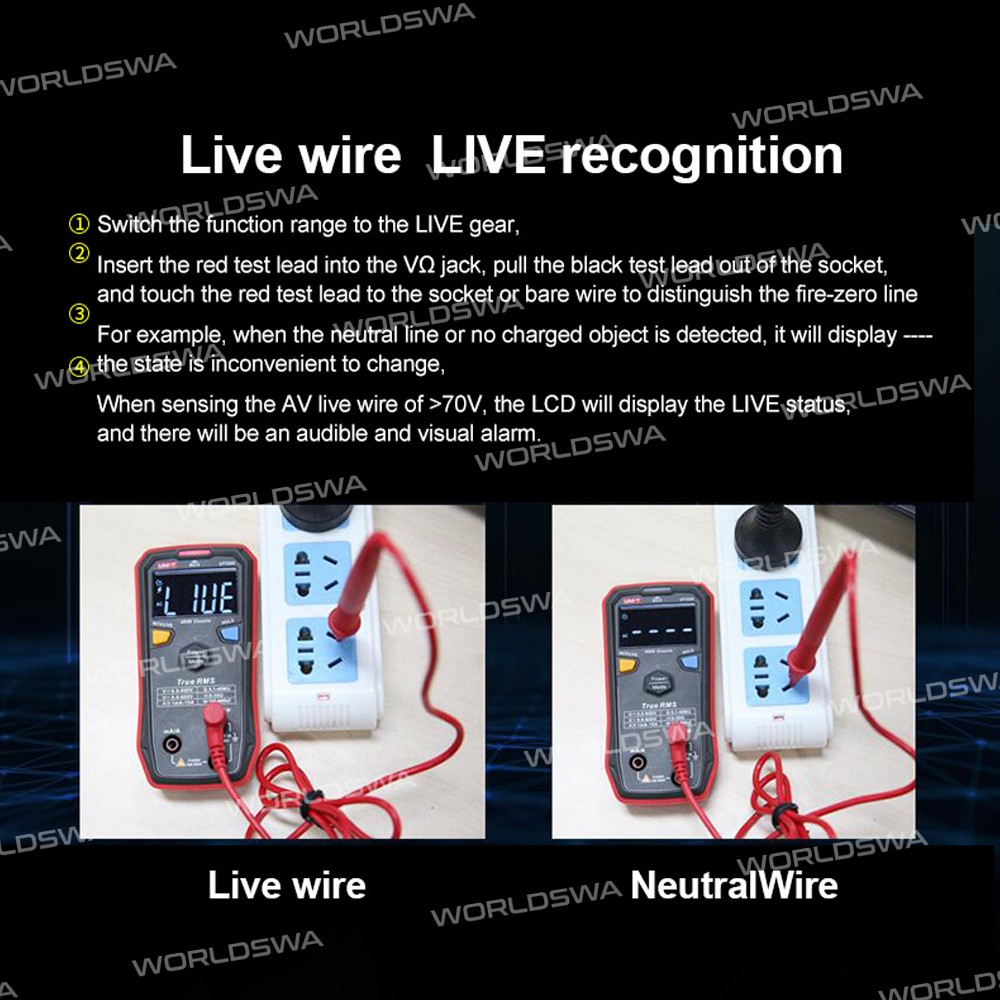

• LIVE: Yes (Distinguish the zero line of fire)
• Auto range: Yes
• Low voltage display: Yes
• Automatic shut-down: Yes
• Weight: 137g
• Power supply: AAA 1.5V battery x2 (not included)
• Size: 130*65*28mm

What's in the Box:

• 1 x Multimeter (Without battery)
• 1 x Test line
