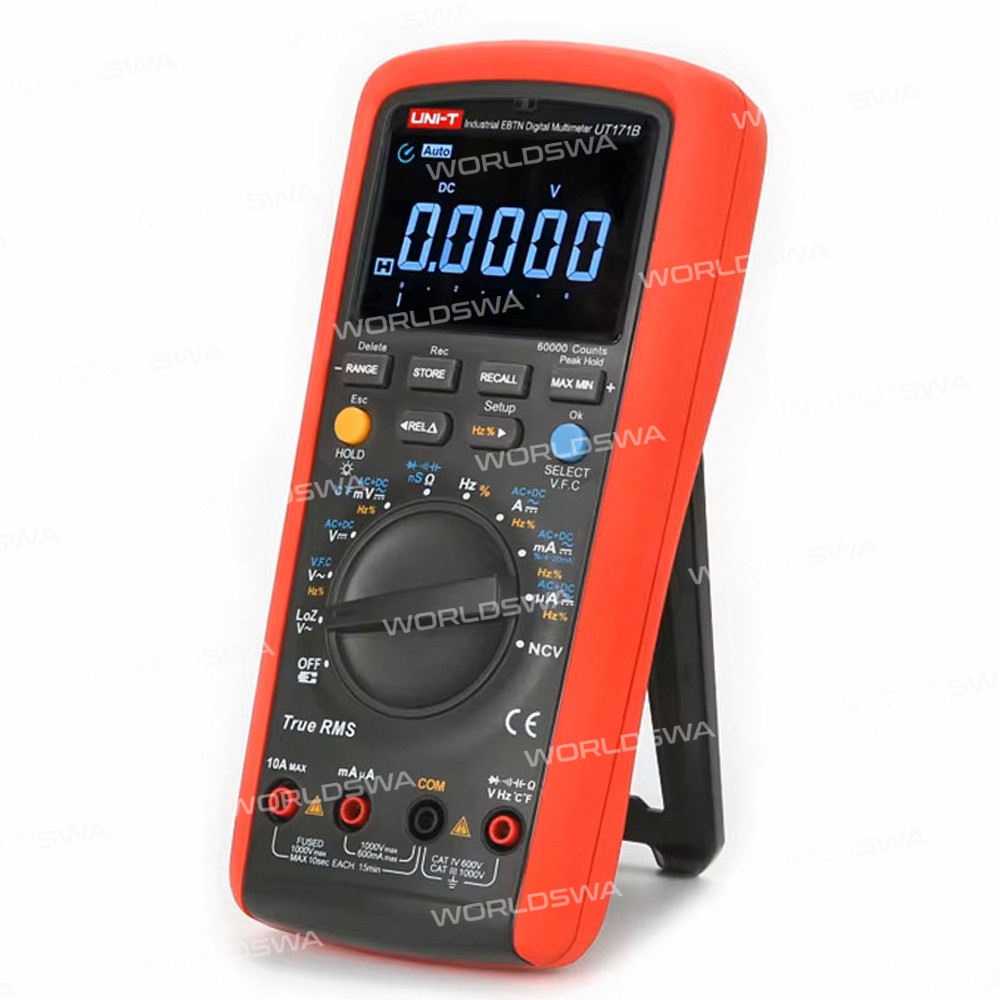

UNI-T UT171B High-Precision True RMS Industrial Digital Multimeter

UNI-T UT171B High-precision Industrial True RMS Digital Multimeter

Product Overview

This high-precision industrial true RMS digital multimeter is designed for professionals who demand accuracy and reliability in their measurements. With its advanced features and capabilities, it is ideal for a wide range of applications, including electrical, electronics, and industrial measurements.

Key Features:

• Faster measurement speed: 5 times/s, twice as fast as other multimeters in its class
• Variable square wave signal output (frequency 0~4800Hz 0.5Hz, low impedance)
• High-precision measurements: Counts 40000/60000/RMS True
• LoZ AC voltage test
• uA/mA/A AC/DC current test
• AC+DC measurement model
• Resistance, electrical conductivity measurement nS
• VFC household industrial frequency conversion voltage test
• Built-in lithium battery 7.4V/1800mA, charging tips circuit
• Temperature test -40~1000℃
• IIl 1000V/CAT IV600V CAT
• With electronic storage records 1000/10000
• Support USB/Bluetooth transmission mode
• Anti misplugging alarm
• It can be used for large current 20A measurement

Summary of Key Features:

Faster measurement speed, high-precision measurements, and advanced features for industrial applications

Specification:

• Model: UT171B
• DC Voltage (V): 600mV/6V/60V/600V/1000V ±(0.025%+5)
• AC Voltage (V): 600mV/6V/60V/600V/750V ±(0.4%+40)
• DC Current(A): 600uA/6000uAV60mA/600mA/6A/10A ±(0.15%+2)
• AC Current (A): 600uAW6000uA/60mA/600mA/6A/10A ±(0.75%+5)
• Resistance (Q): 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.05%+2)
• Admittance(nS): 60nS ±(1.0%+10)
• Capacitance(F): 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF ±(2.5%+40)
• Frequence (Hz): 10Hz~10MHz ±(±0.01%+5)
• Temperature(C): 40℃~1000℃ ±(1.0%+30)
• Temperature(F): 40℉~1832℉±(1.5%+50)
• Display Count: 60000
• Auto/Manual Range: Yes
• True RMS: Yes
• Bandwidth(Hz): Yes
• AC DC: Yes
• V.F.C: Yes
• 4-20mA Loop: Yes
• LoZ(ACV): Yes
• Diode: Yes
• Continuity Buzzer: Yes
• Duty Cycle: Yes
• NCV: Yes
• Data Hold/MAX/MIN: Yes
• Relative Mode: Yes
• Peak Hold: Yes
• Data Storage: Yes
• Data Comparsion Function: Yes
• USB Interface: Yes
• Display Type: Yes
• CD Backlight: Yes
• Analogue Bar Graph: Yes
• Mis-plug Alarm: Yes
• Low Battery Indication: Yes
• Rechargeable Battery: Yes
• Auto Power Off: Around 15 Minutes
• Input Protection: Yes
• Input Impedance for DCV: Around 1GΩ
• Power: 4V 2000mAh Li-ion Battery

Package includes:

• 1 x Multimeter
• 1 x Test Lead
• 1 x Point Contact Temperature Probe
• 1 x USB Interface Cable
