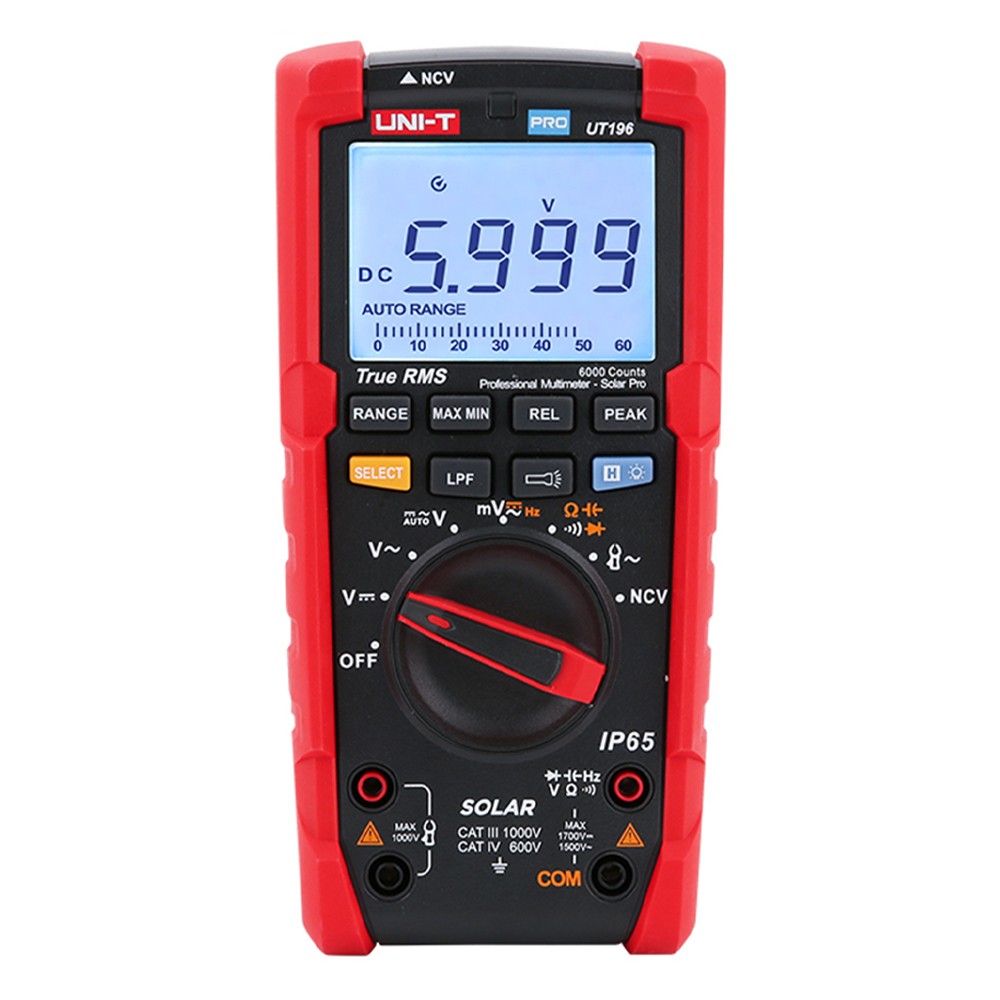

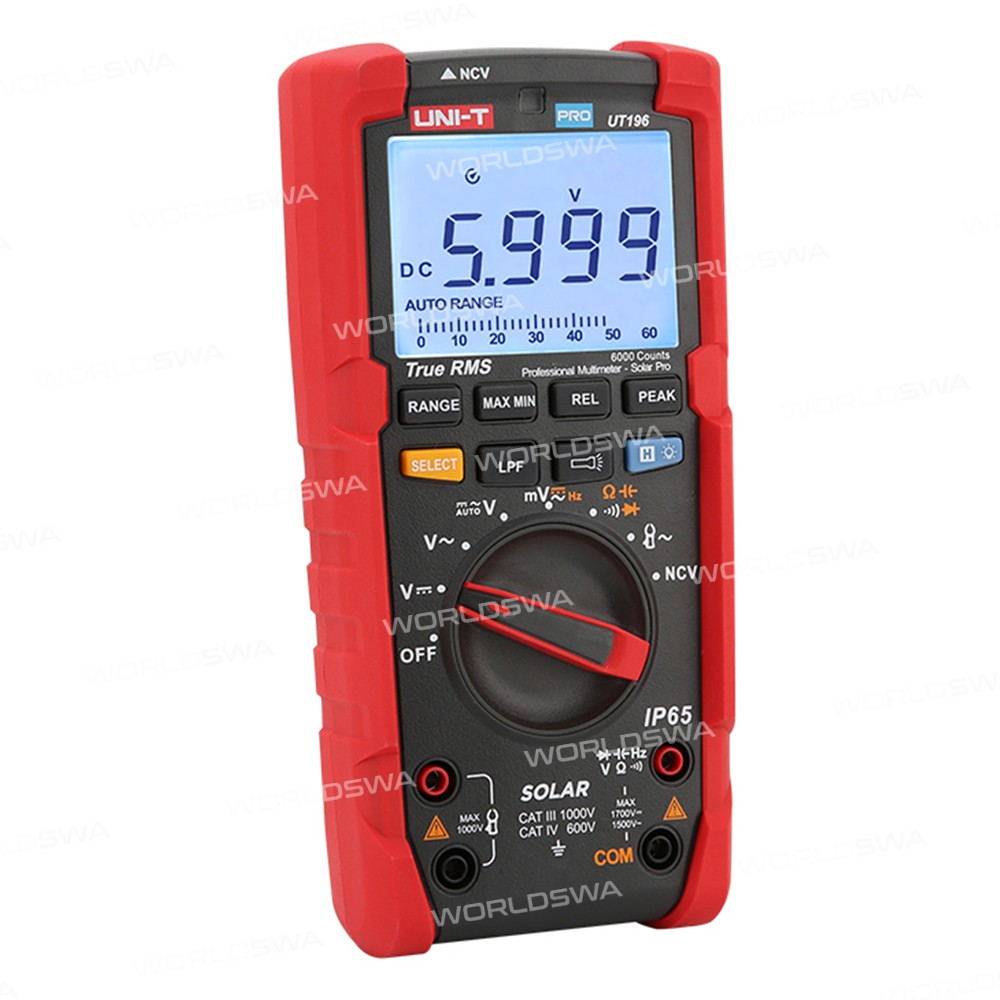

UT196 UNI-T 1500V AC / DC True RMS Digital Multimeter with Peak Hold, Professional

UNI-T UT196 1500V AC / DC Voltage True RMS Professional Digital Multimeter with Peak Hold

Features:

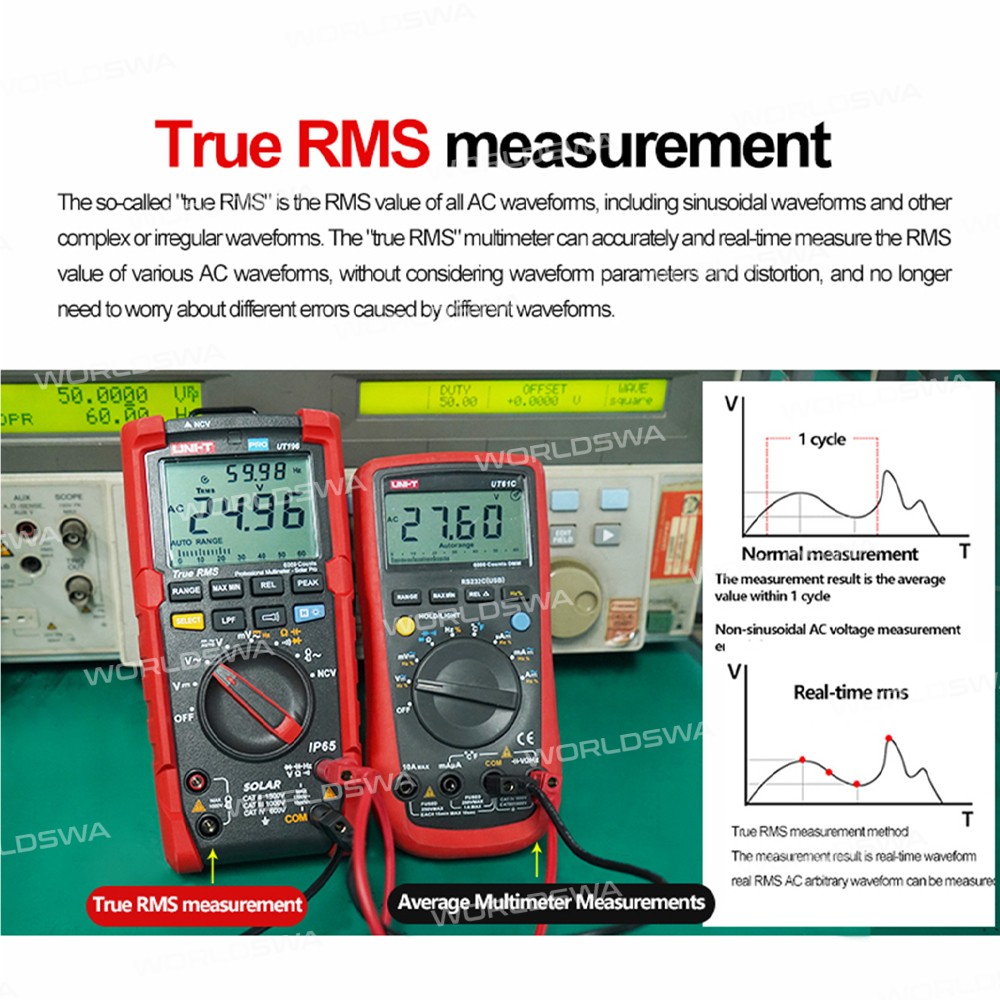

• **True RMS Measurement**: Display digits: 6000

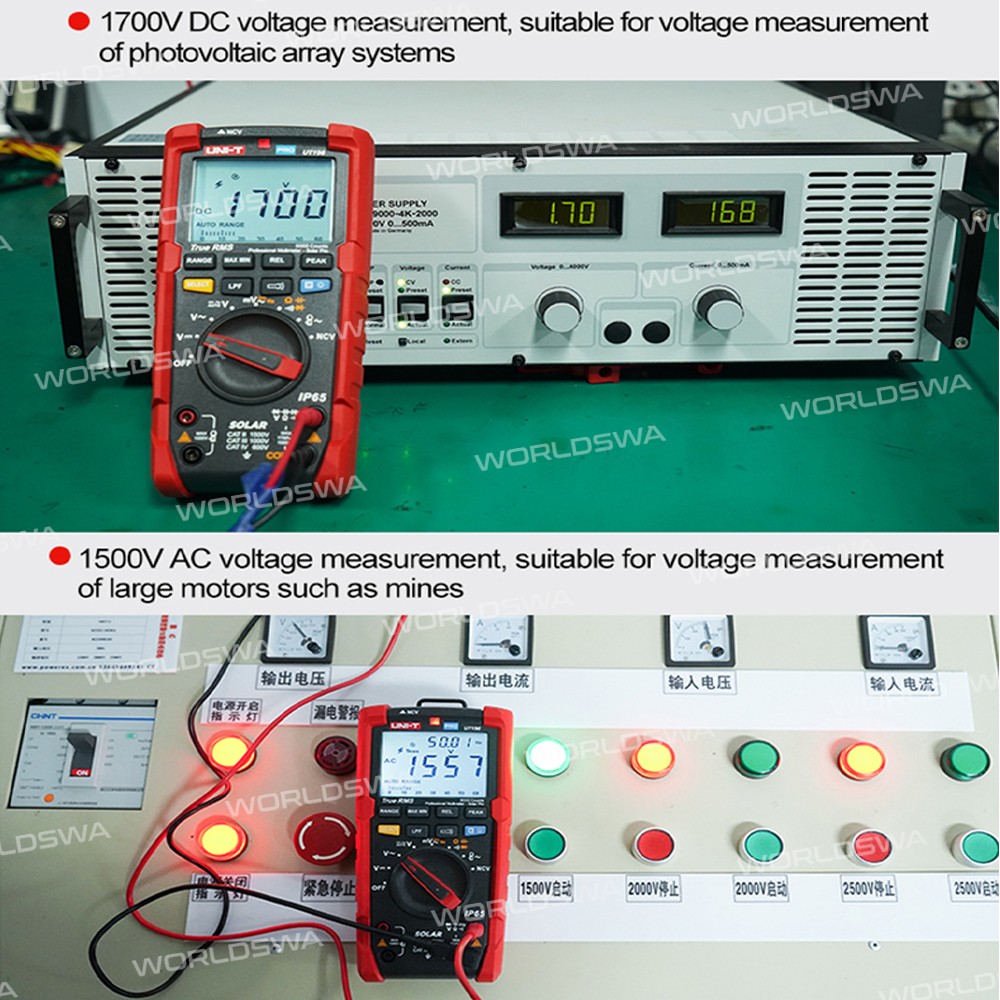

• **Wide Voltage Measurement Range**: 1700V DC voltage measurement, suitable for voltage measurement of photovoltaic array systems; 1500V AC voltage measurement, suitable for voltage measurement of large motors such as mines
• **Flexible Current Clamp**: Optional flexible current clamp to extend the current measurement range to 3000A

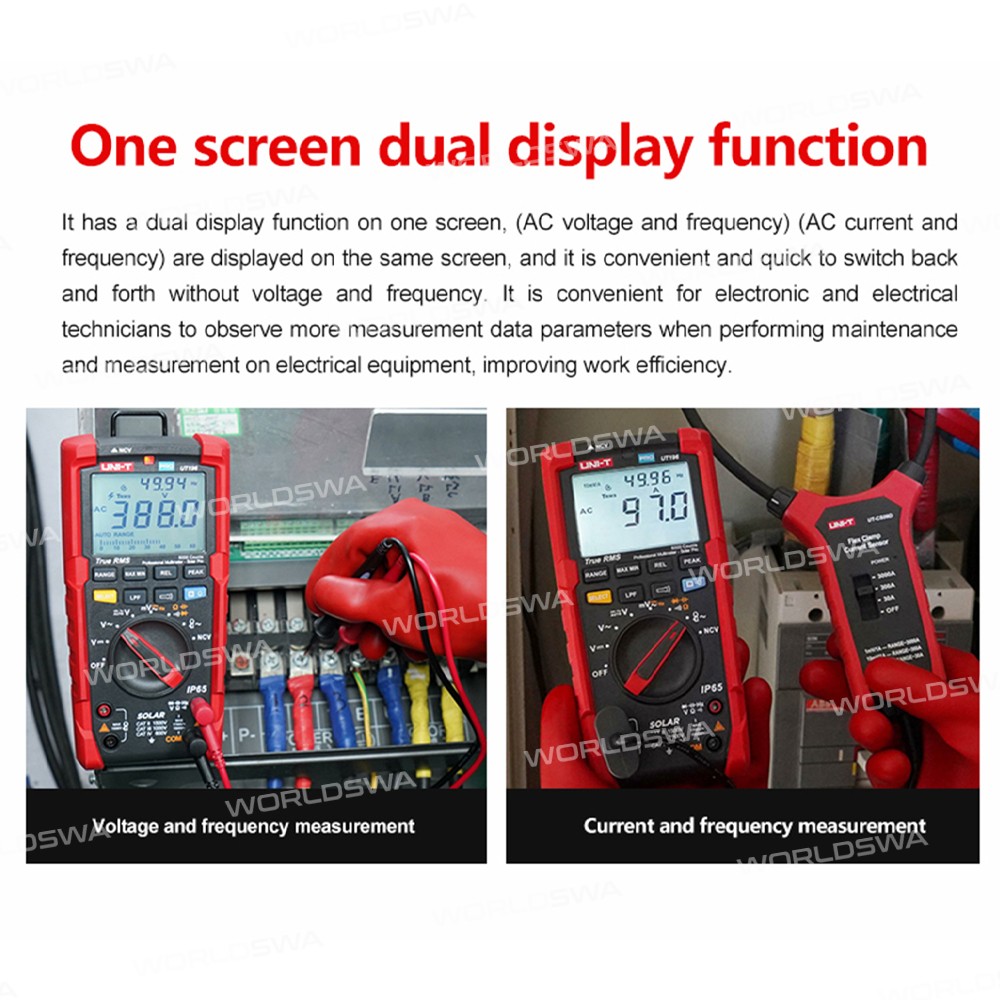

• **Multi-Function Display**: AC voltage and frequency, AC current and frequency are displayed on the same screen

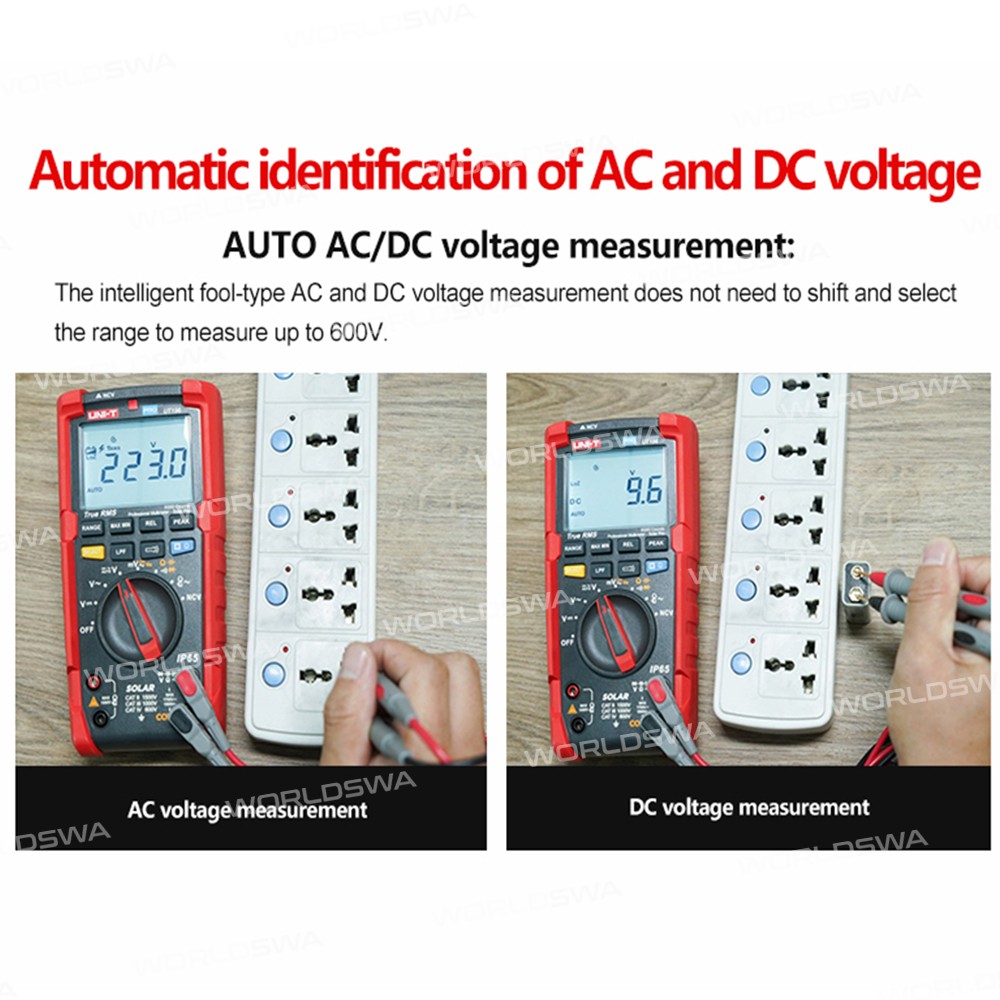

• **Auto Identification**: Automatic identification of AC and DC voltage (low impedance)
• **NCV Non-Contact Electrical Inspection**: With NCV non-contact electrical inspection function
• **Convenient Design**: With backlight and flashlight

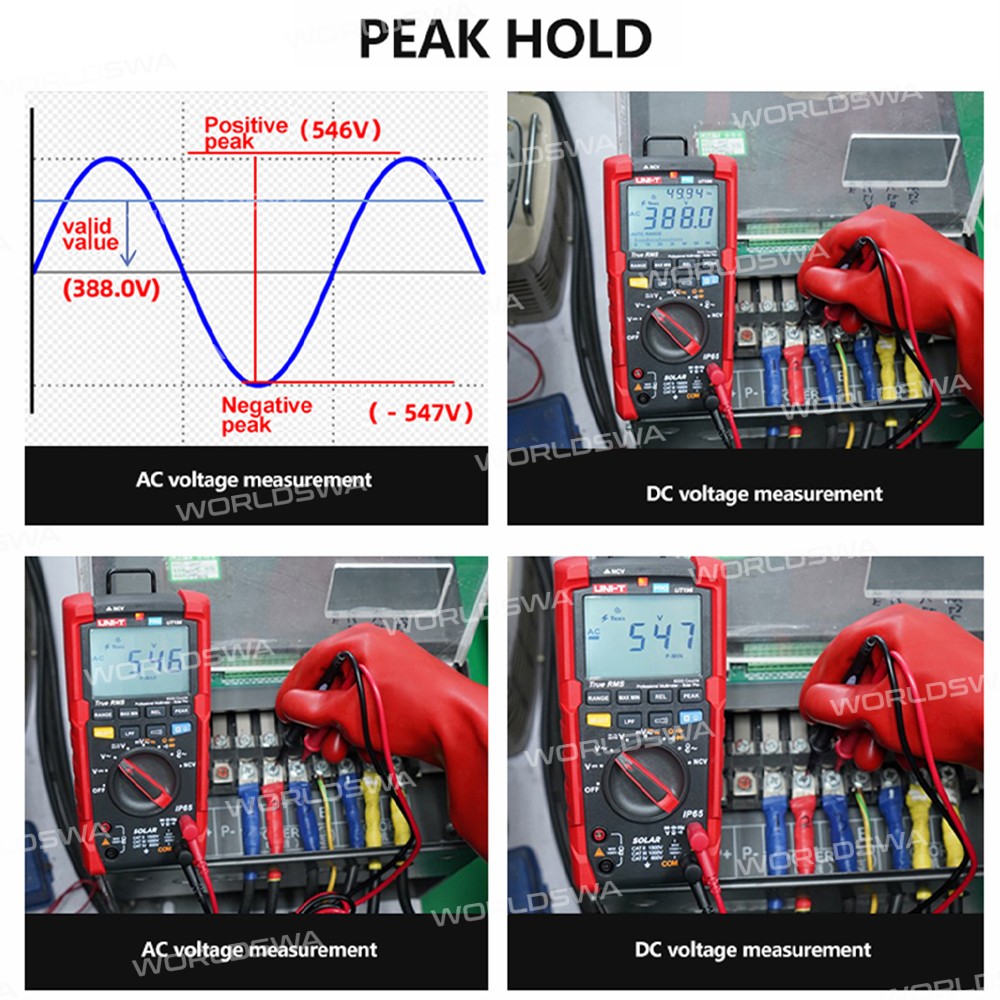

• **Peak Hold**: Capture peak values

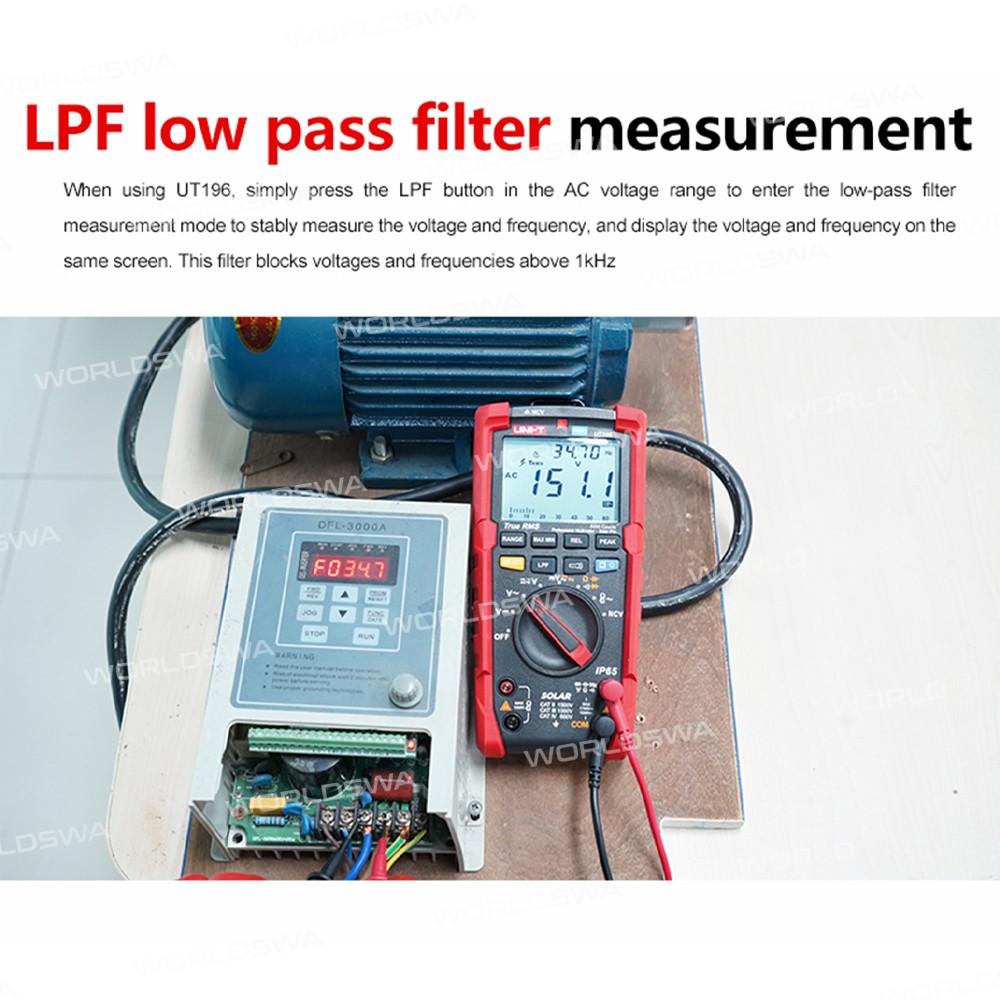

• **Low-Pass Filter**: Low-pass filter function (cutoff frequency: 1kHz)

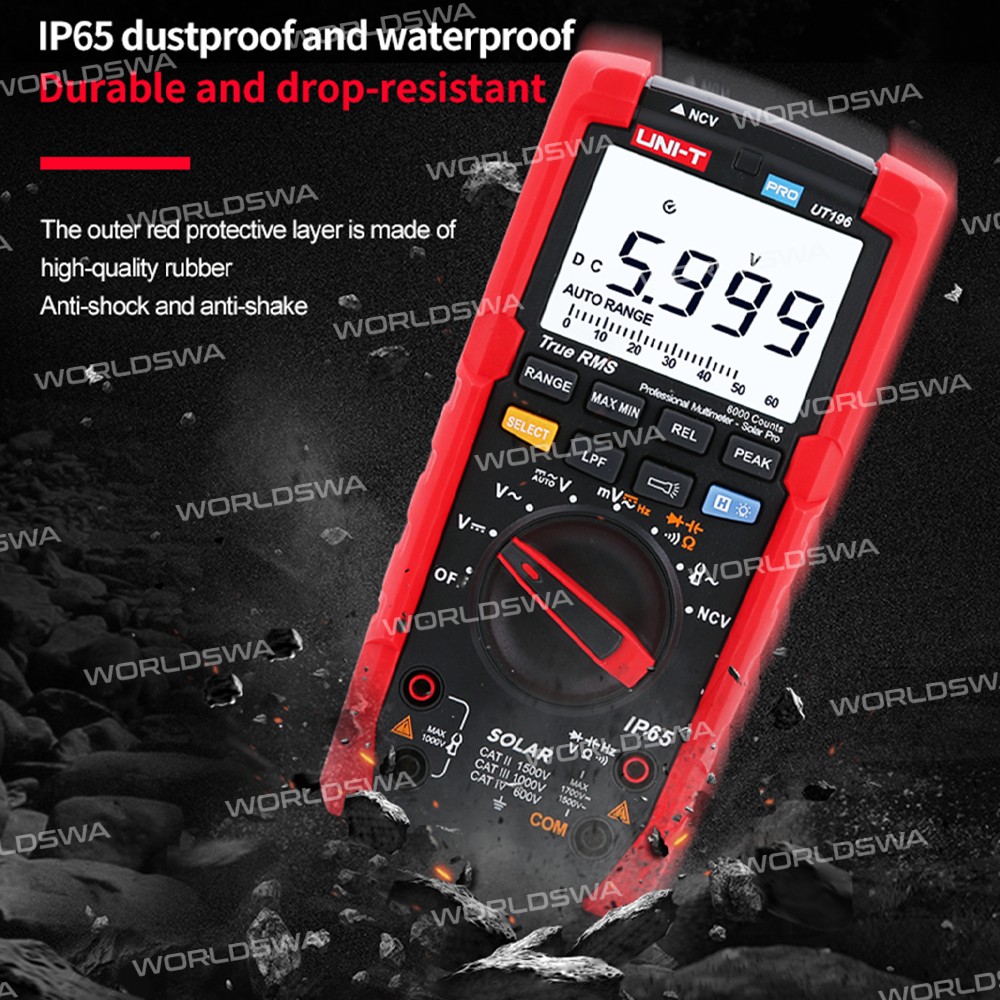

• **Waterproof and Dustproof**: Waterproof and dustproof grade: IP65

Specification:

• **Model**: UT196
• **DC Voltage**: 600.0mV/6.000V/60.00V/600.0V/1700V ±(0.2%+5)
• **AC Voltage**: 600.0mV/6.000V/60.00V/600.0V/1500V ±(0.8%+3)
• **AC and DC Voltage**: 600V ±(2.0%+3)
• **Frequency**: 60.00Hz/600.0Hz/6.000kHz/60.00kHz/600.0kHz/1.000MHz ±(0.08%+4)
• **Resistance**: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ ±(0.8%+2)

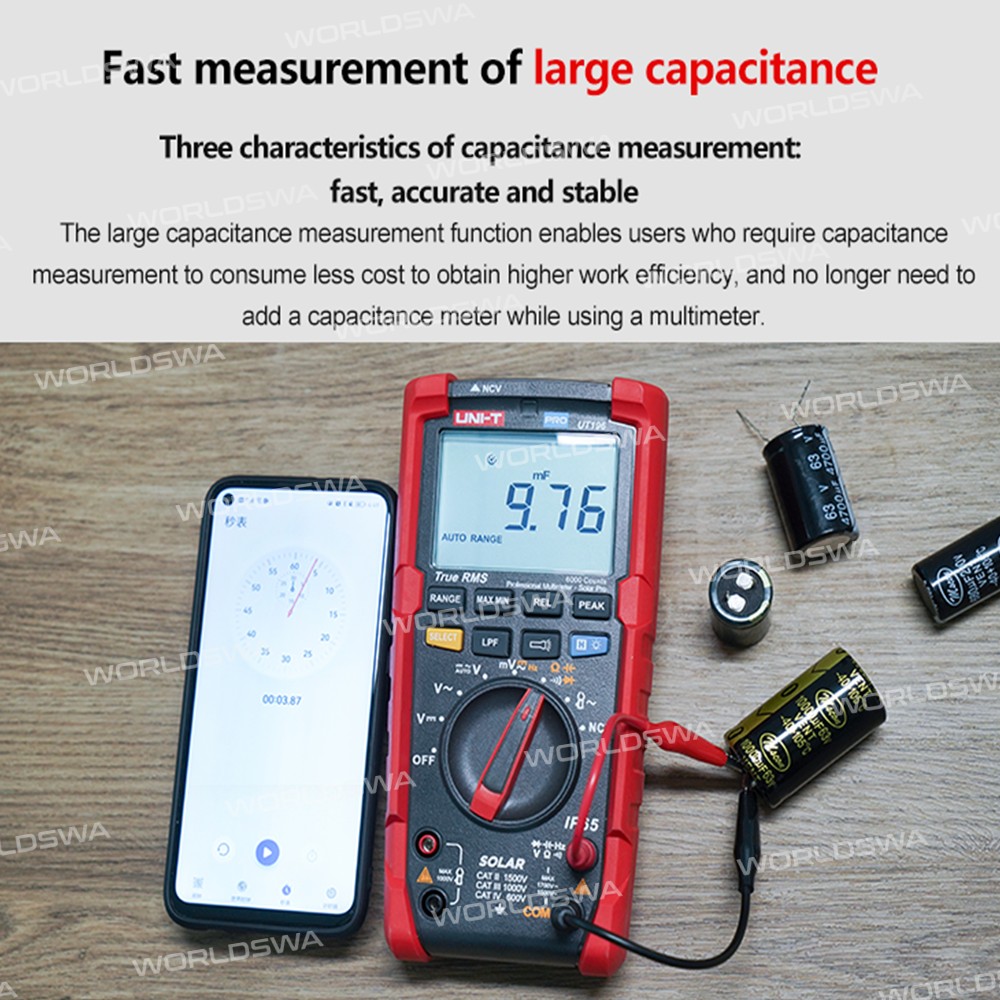

• **Capacitance**: 60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.00mF ±(1.9%+5)
• **Max Display**: 6000
• **Dual Display**: Yes
• **Autoranging**: Yes
• **NCV Test**: Yes
• **Diode Test**: Yes
• **On and Off Beep**: Yes
• **Relative Value Measurement**: Yes
• **Maximum Value**: Yes
• **Minimum Value**: Yes
• **Peak Capture (PEAK)**: Yes
• **Low Pass Filtered Measurements**: Yes
• **Sound and Light Prompt**: Yes
• **Low Voltage Display**: About 7.5V
• **Data Retention**: Yes
• **Analog Strip**: Yes
• **Automatic Shut-Down**: About 15 minutes: Yes
• **Flashlight**: Yes
• **IP Protection Class**: IP65
• **Drop Test**: 2M
• **Safety Level**: CATⅡ1500V/CATⅢ1000V/CAT IV 600V

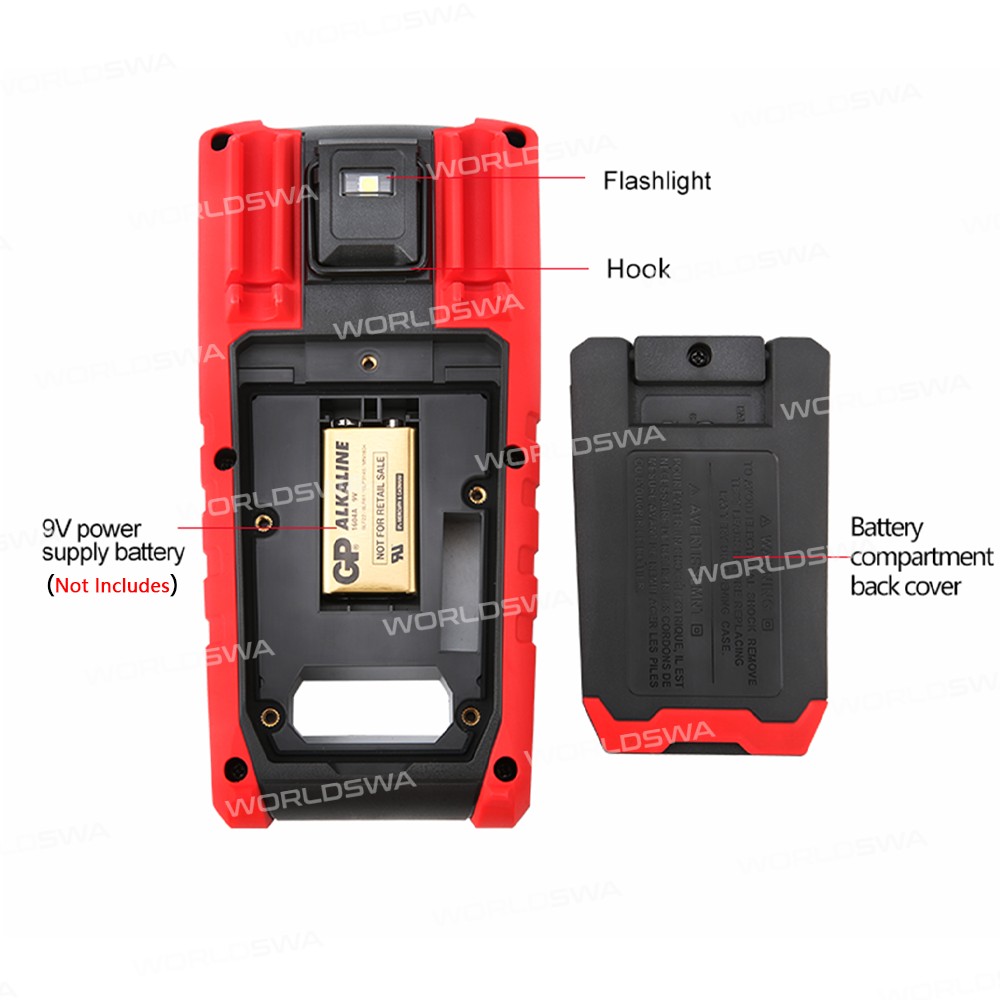

• **Power Supply**: 9V 6F22 (Not includes)
• **Body Color**: Red+Gray
• **Body Weight**: 485g
• **Dimensions**: 195*95*58mm

Package includes:

• 1 x Multimeter (without Battery)
• 1 x Test Cable
