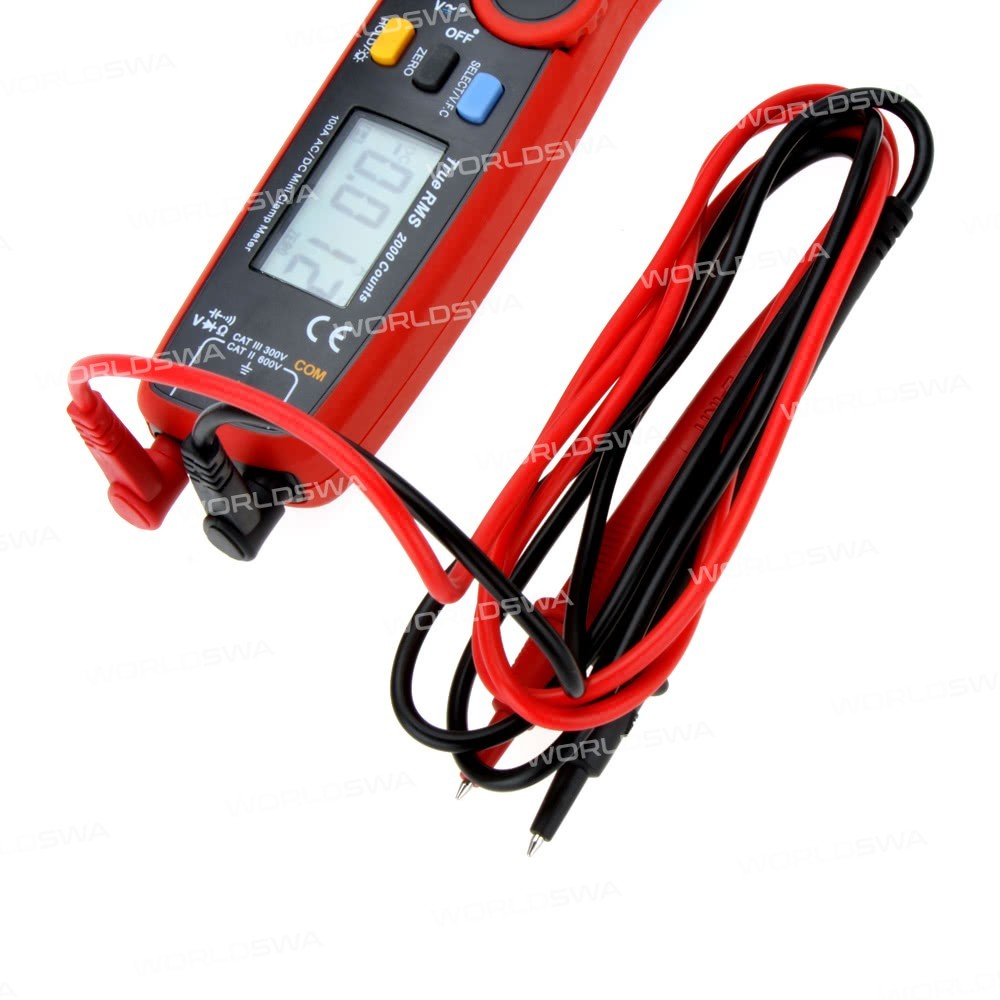

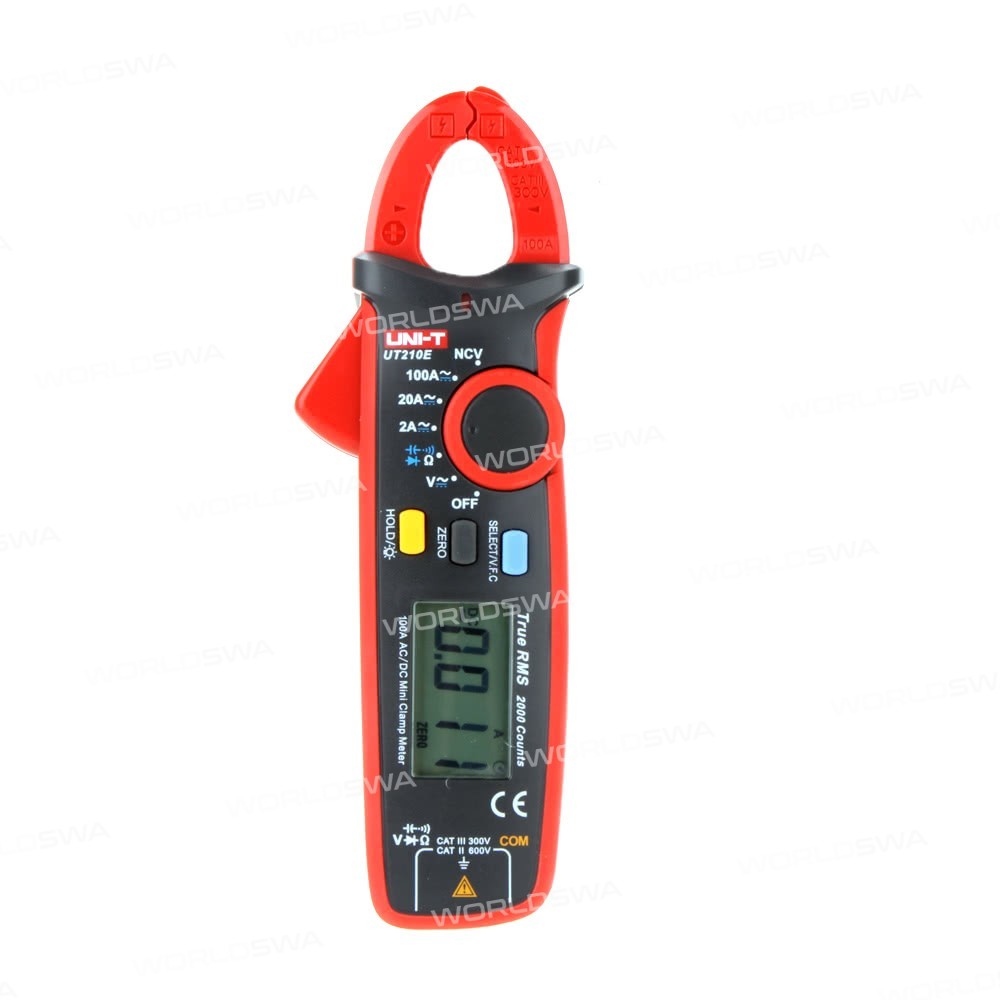

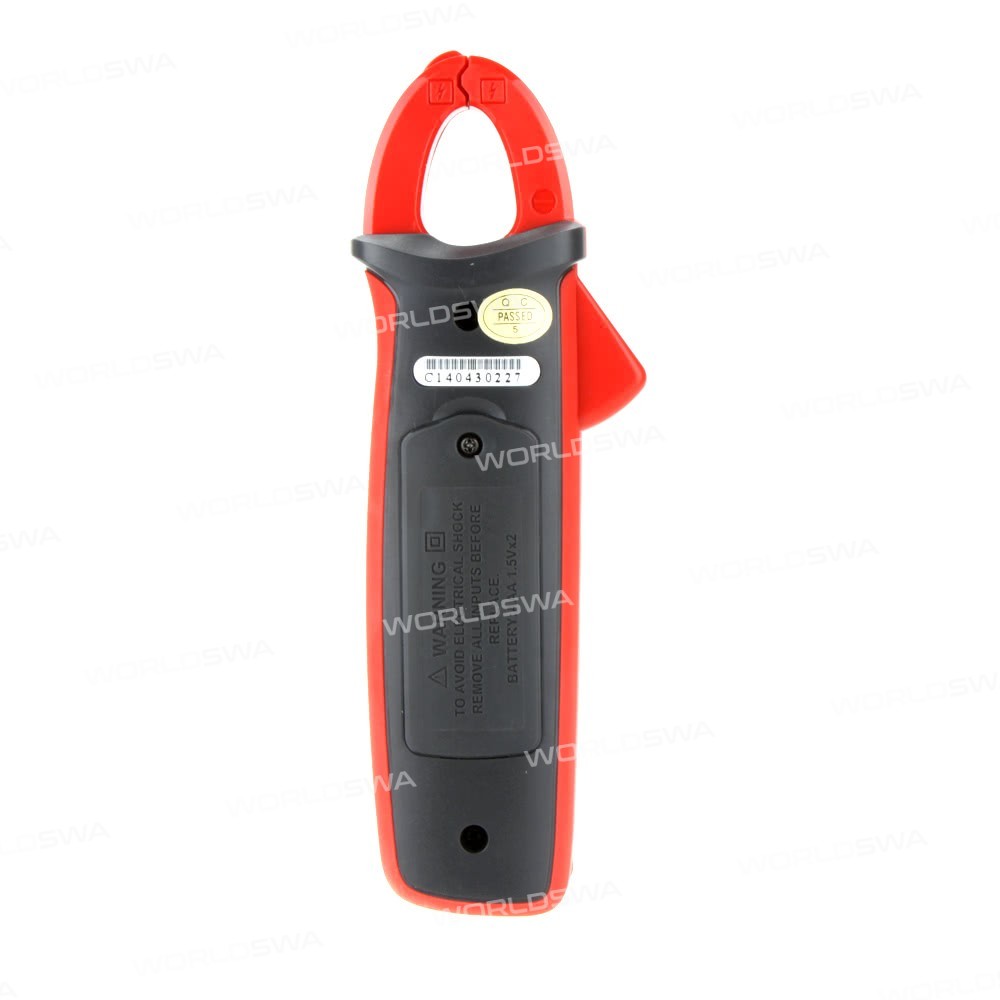

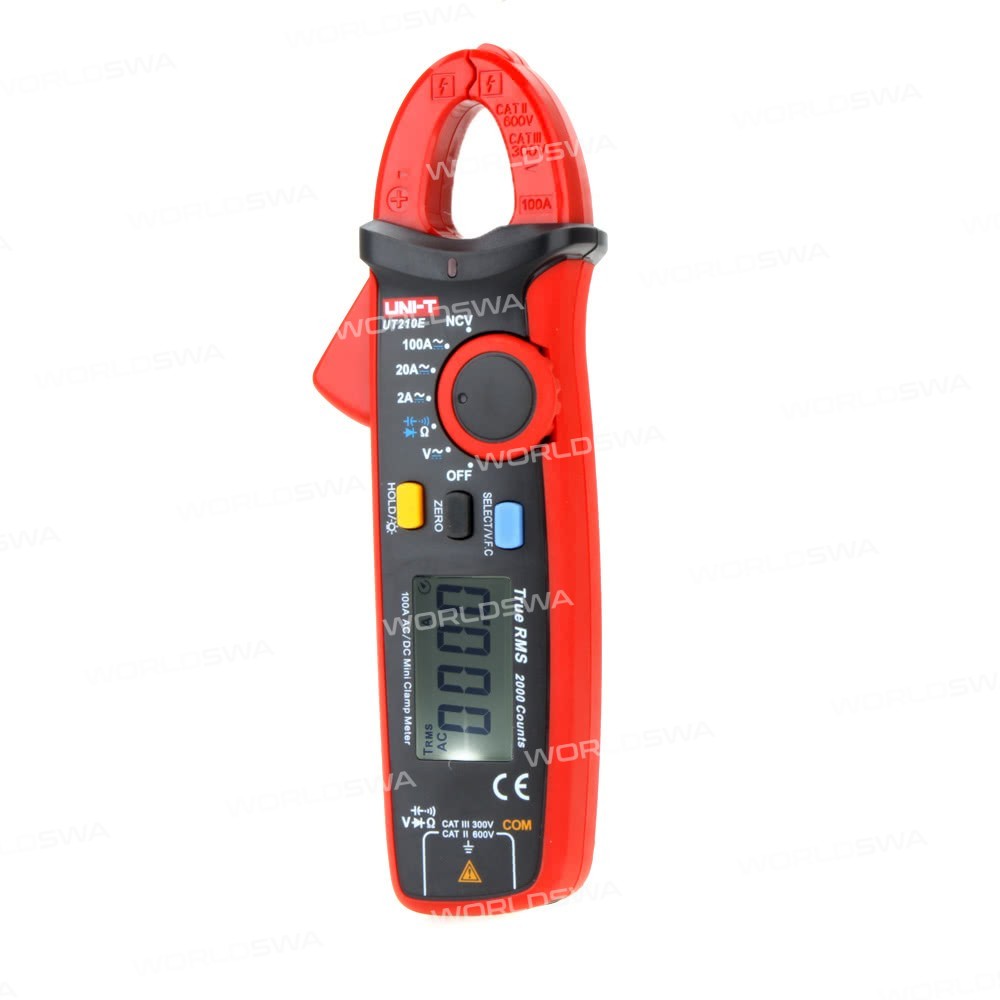

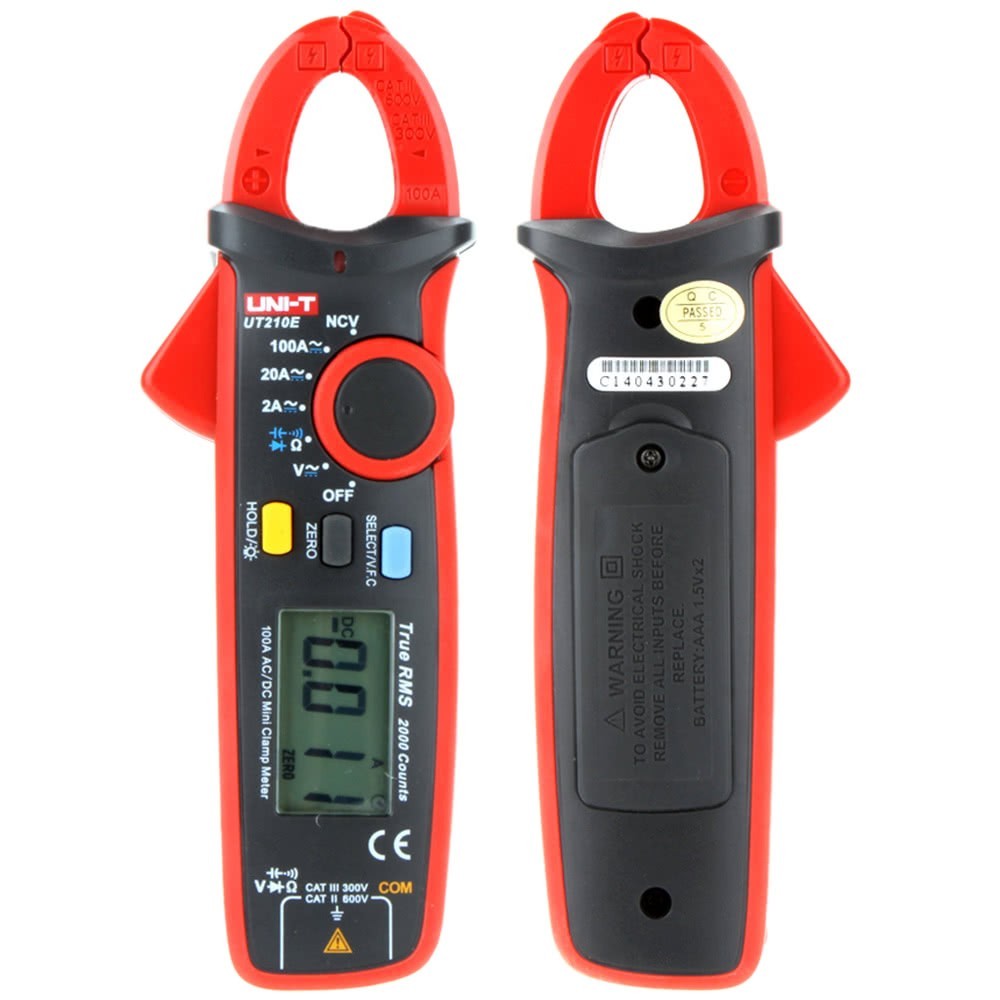

UNI-T UT210E Digital Clamp Multi-meter: 2000 Counts, True RMS, Auto Range, Clamp Meter, Ammeter, Voltmeter, Resistance & Capacitance Tester

UT210 series Mini Clamp: A High-Reliability and High-Accuracy Electric Testing Instrument

This mini clamp is designed with high reliability, security, auto range, and small size, making it an ideal tool for various applications. It can precisely test small current signals and filter high-frequency interference signals, ensuring accurate measurements. The unique exterior design and full-range overload protection make it a remarkable new practical electric testing instrument.

Applications:

This mini clamp is suitable for various industries and applications, including:

• Colleges and universities
• Smelting
• Telecommunications
• Manufacturing
• Oil
• Defense
• Power
• Foundry
• Circuit of power equipment inspection, maintenance, and repairs

Features:

**Ideal for Advanced Electricians**

• Ultra-portable tools for advanced electricians
• 100A AC and DC measurement with 1mA resolution
• True RMS response for AC
• V.F.C function for measuring signal at variable frequency
• 600V AC and DC voltage measurement
• Resistance, diode, continuity, and capacitance functions
• Non-contact voltage detection with LED indication
• Display backlight
• Data HOLD, MAX, MIN, MAX-MIN, and ZERO model

Specification:

• AC Current (A) : 2A/20A/100A ±(2.5%+5)
• DC Current (A) : 2A/20A/100A ±(2%+3)
• AC Voltage (V) : 2V/20V200V/600V ±(1.0% + 3)
• DC Voltage (V) : 200mV/2V/20V200V/600V ±(0.7%+3)
• Resistance (Ω) : 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(1.0%+2)
• Capacitance (F) : 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4%+5)
• Display Count: 2000
• Auto Range: √

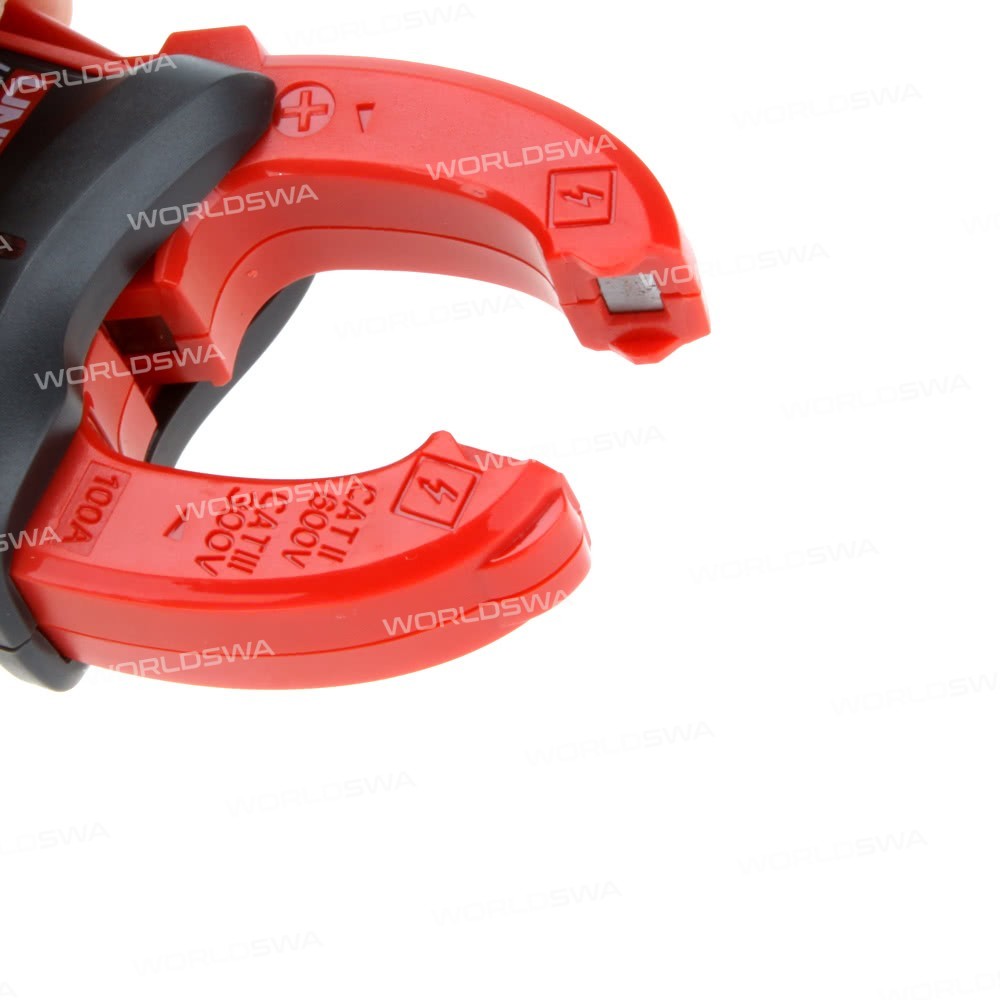

• Jaw Capacity: 17mm
• True RMS: √
• Diode: Around 3.0V
• V.F.C.: √
• NCV: √
• Data Hold: √
• Zero Mode: √
• LCD Backlight: √
• Auto Power Of: Around 15 Minutes
• Continuity Buzzer: √
• Low Battery Indication: ≤2.5V
• Input Protection: √
• Input Impedance for DCV: ≥10MΩ

General Characteristic:

• Product Net Weight: 170g
• Product Size: 175mm * 60mm * 33.5mm

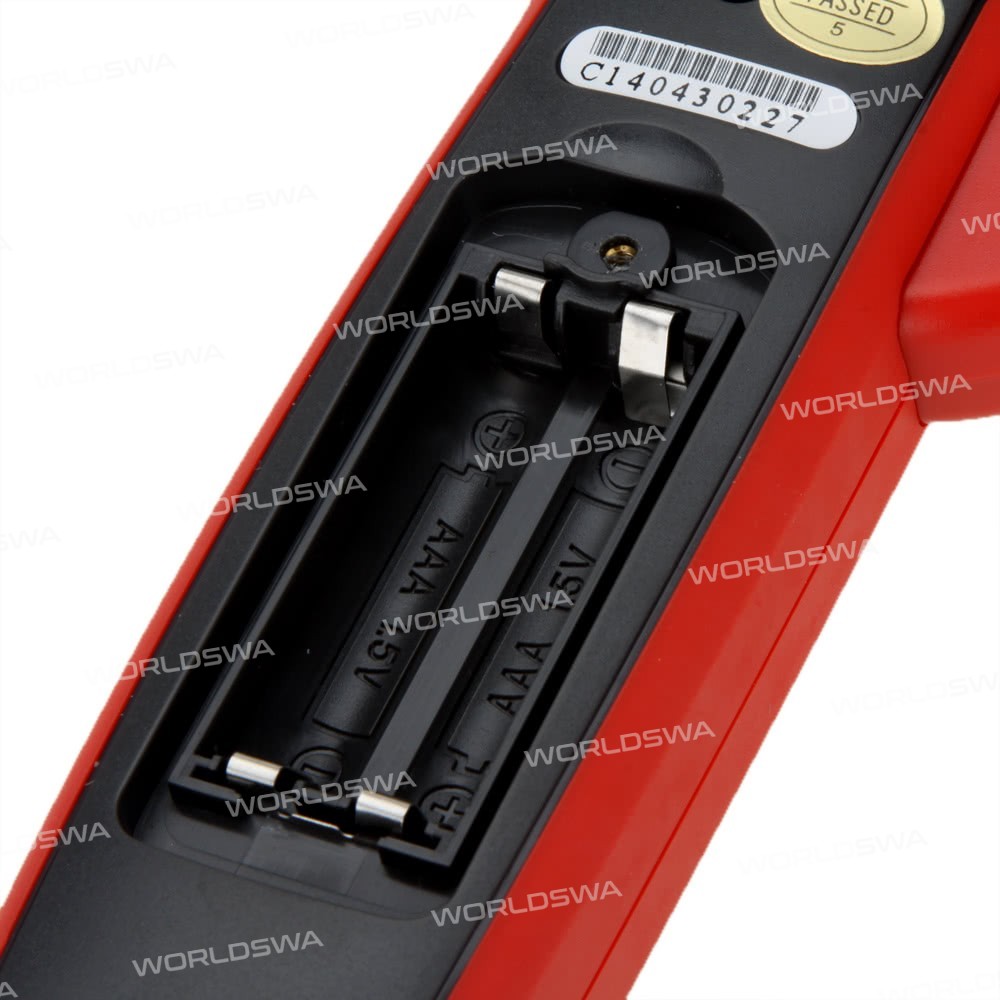

• Power: AAA 1.5V x 2 (not included)
• LCD Size: 39.3mm * 21.5 mm

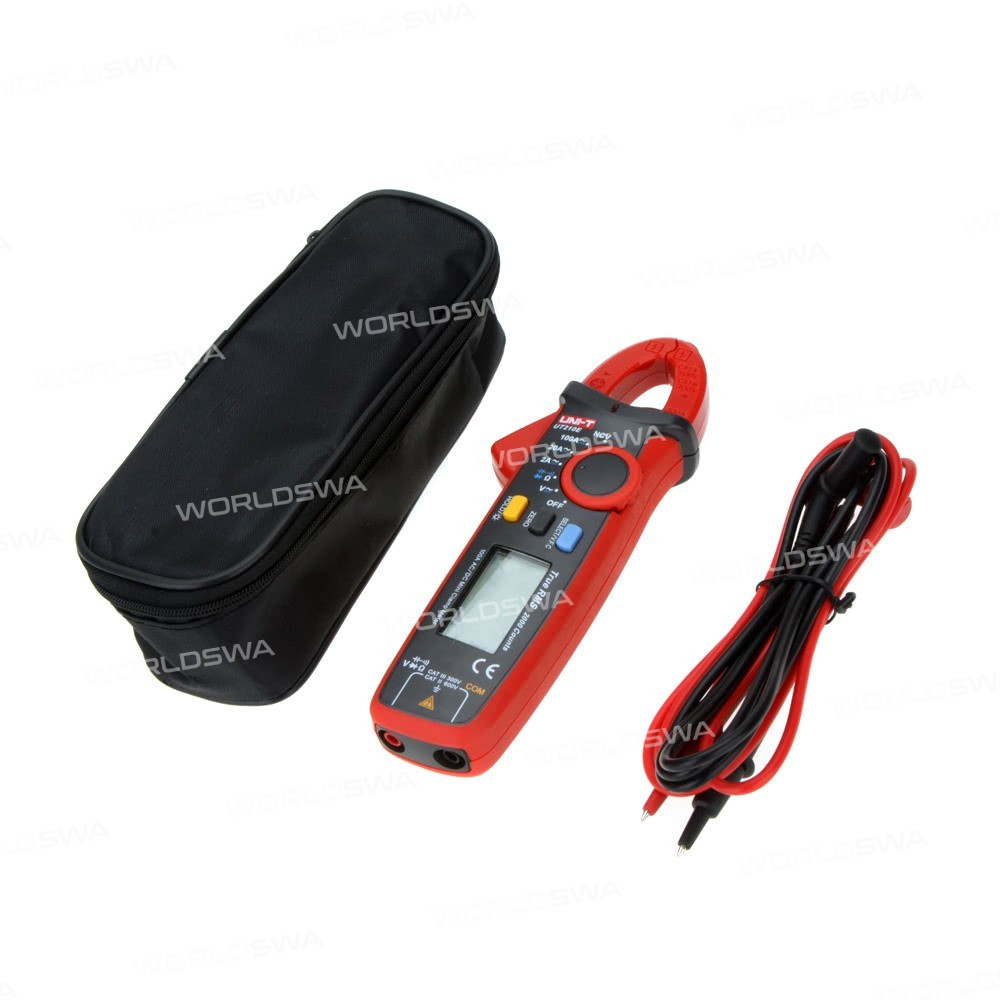

Package Includes:

• 1 x Multimeter
