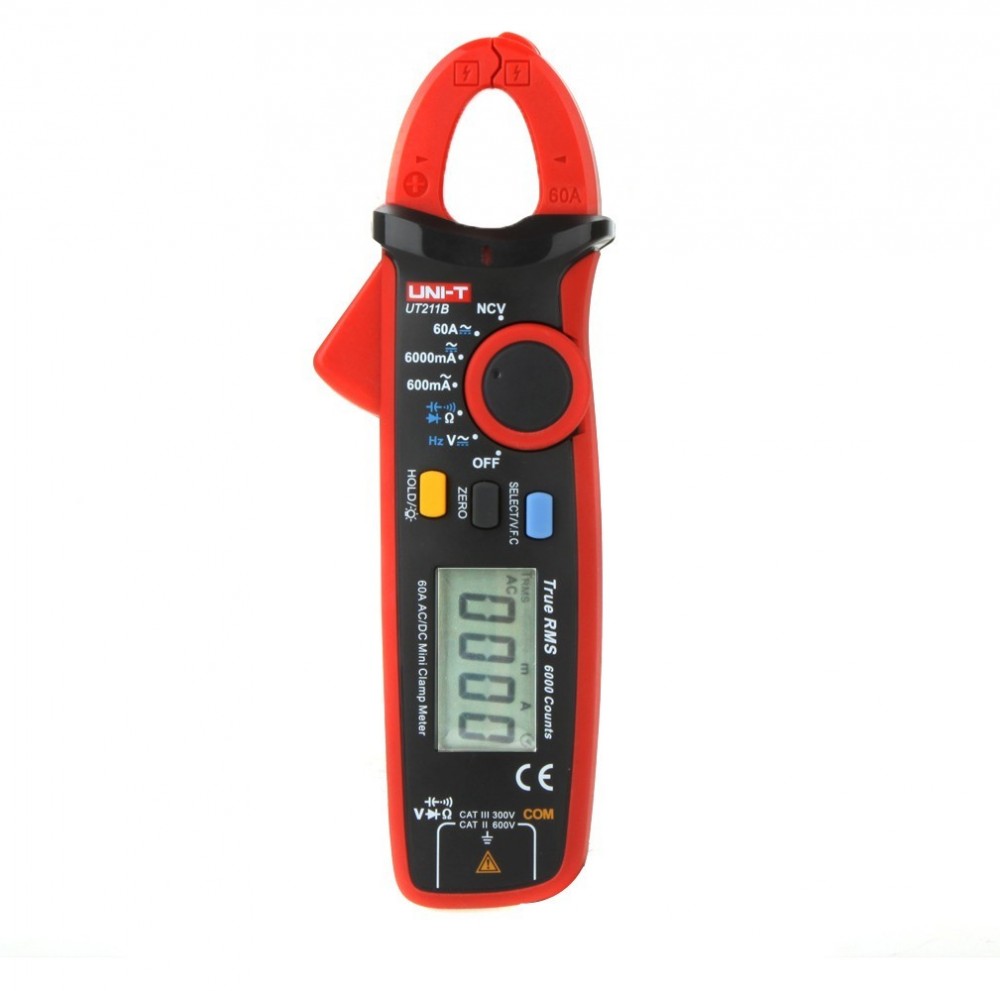

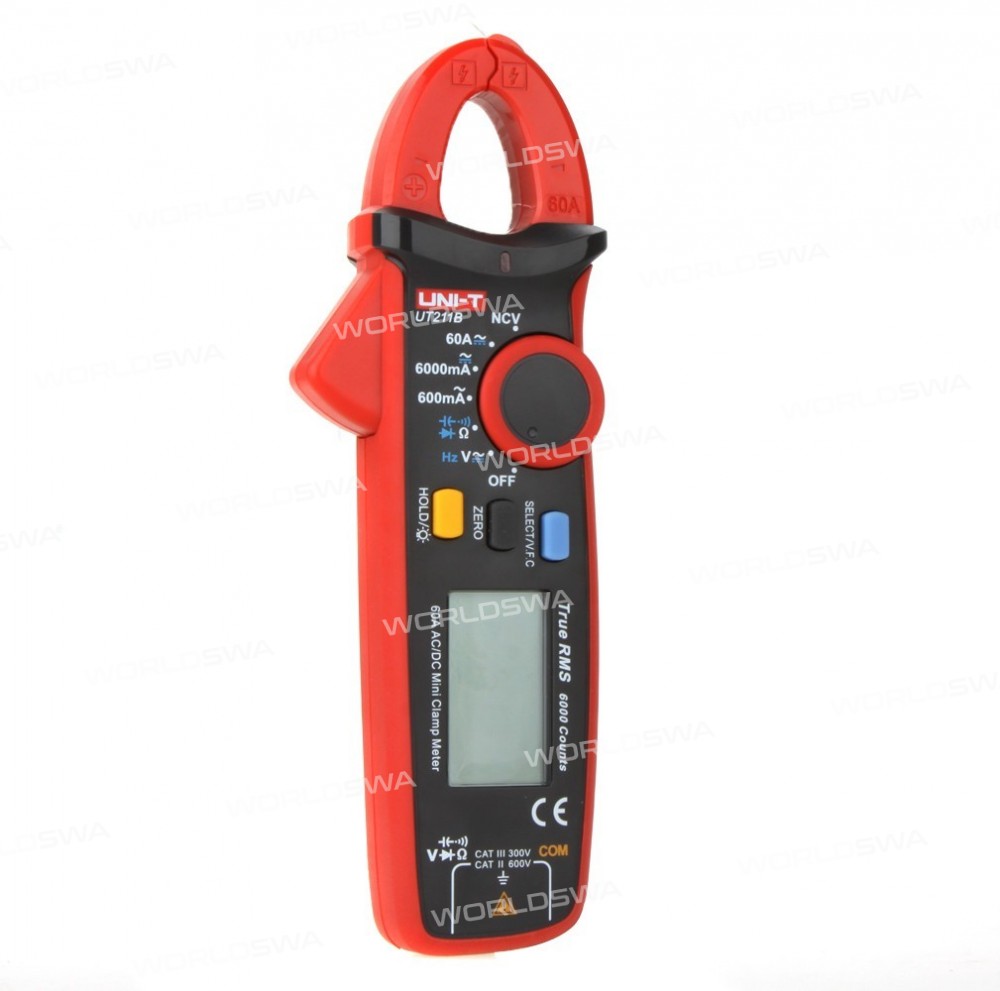

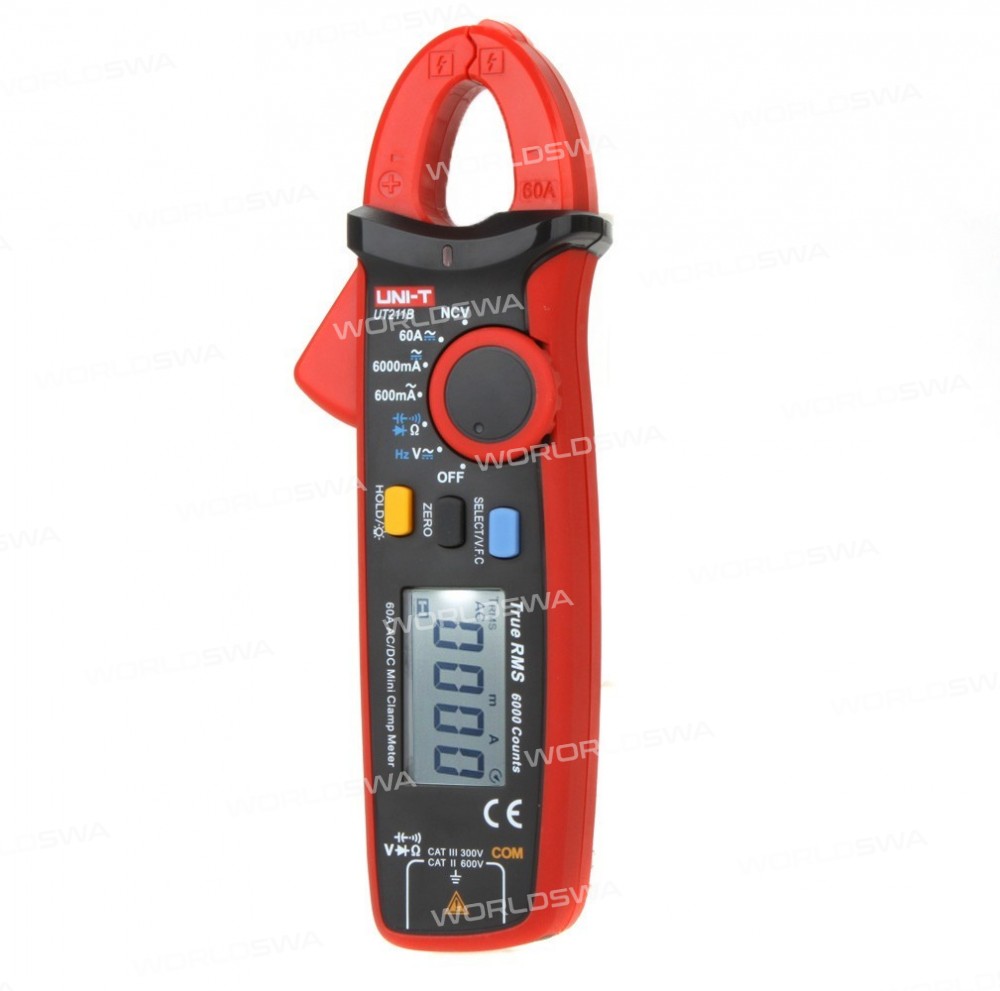

UNI-T UT211B 60A True RMS Clamp Meter with VFC NCV Test Tool, High Resolution

UNI-T UT211B 60A High-Resolution True RMS Clamp Meters W / VFC NCV Test Tool

Product Overview

The UNI-T UT211B is a high-resolution true RMS clamp meter that offers advanced features and accurate measurements. With a max resolution of AC/DC 1uA, this device is ideal for professionals and DIYers who require precise readings.

Key Features:

• **High-Resolution Measurement**: Max resolution of AC/DC 1uA
• **True RMS Measurement**: Accurate readings for both AC and DC measurements
• **VFC Frequency Conversion Function**: With VFC, you can measure frequency conversion
• **NCV Non-Contact AC Voltage Testing**: Test AC voltage without making contact
• **Zero Mode**: Reset the meter to zero for accurate measurements
• **Data Hold**: Hold the measurement data for easy reference
• **LCD Backlight**: Illuminated display for easy reading in low-light conditions

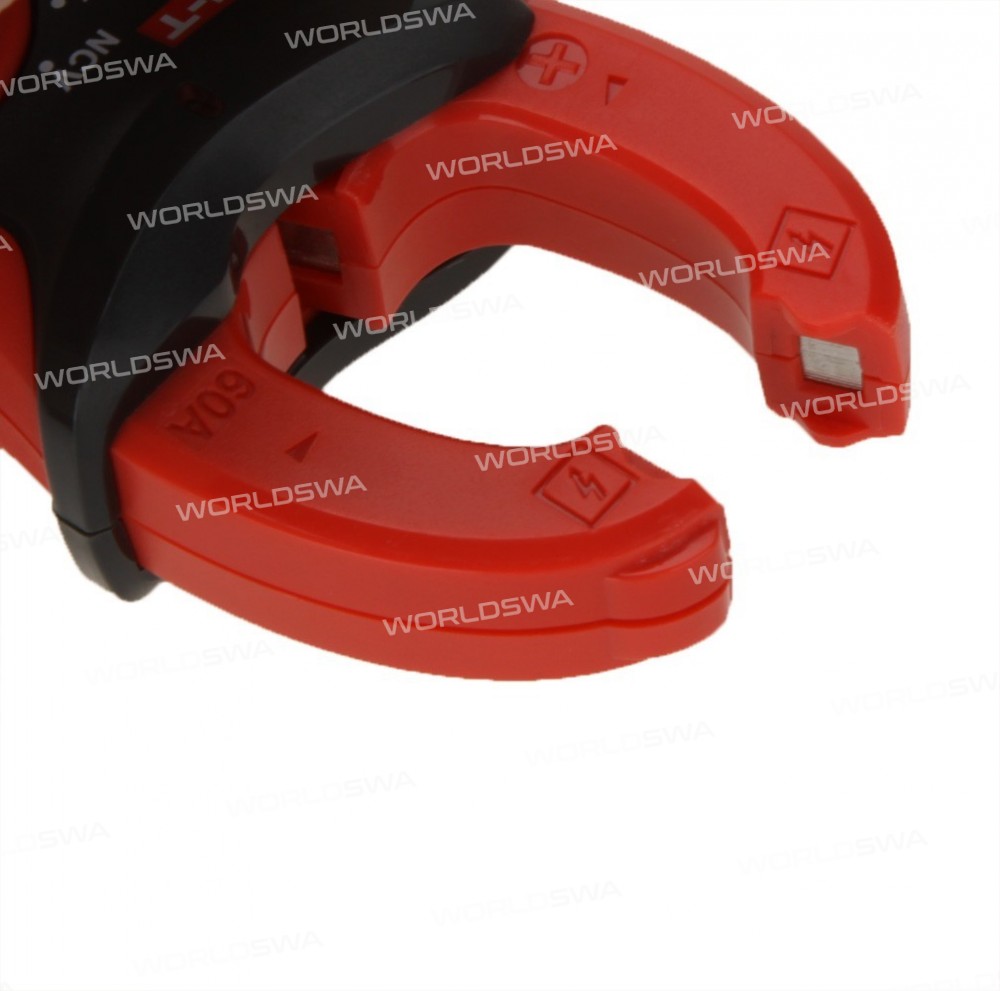

• **17mm Jaw**: Measure dense cables with ease
• **Auto Power Off**: Automatically turns off after 15 minutes of inactivity
• **Low Battery Indication**: Notification when the battery level falls below 2.5V

Specifications:

• **Display Count**: 6000
• **Auto Range**: Support
• **True RMS**: Support
• **Diode**: Around 3.0V, Support
• **V.F.C.**: Support
• **NCV**: Support
• **Data Hold**: Support
• **Zero Mode**: Support
• **LCD Backlight**: Support
• **Auto Power Off**: Around 15 Minutes
• **Continuity Buzzer**: Support
• **Low Battery Indication**: ≤2.5V
• **Input Protection**: Support
• **Input Impedance for DCV**: ≥10MΩ
• **AC Current (A)**: 600mA/6000mA/60A ±(1.5%+10)
• **DC Current (A)**: 6000mA/60A ±(2%+3)
• **AC Voltage(V)**: 6V/60V/600V ±(0.8%+3)
• **DC Voltage(V)**: 600mV/6V/60V/600V ±(0.7%+3)
• **Resistance (Ω)**: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(0.8%+2)
• **Capacitance (F)**: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(4%+5)

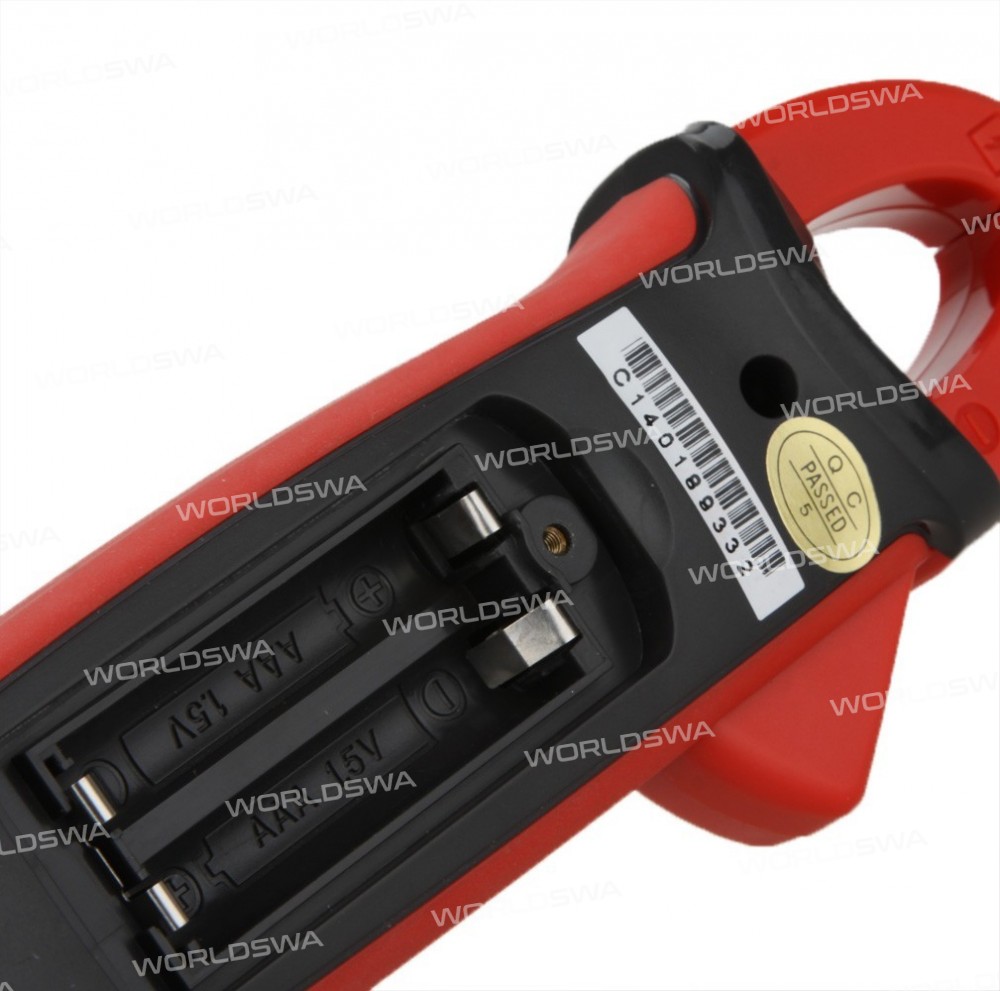

• **Power**: AAA 1.5V * 2 (not included)
• **LCD Size**: 39.3mm * 26.5 mm
• **Product Size**: 175mm * 60mm * 33.5mm

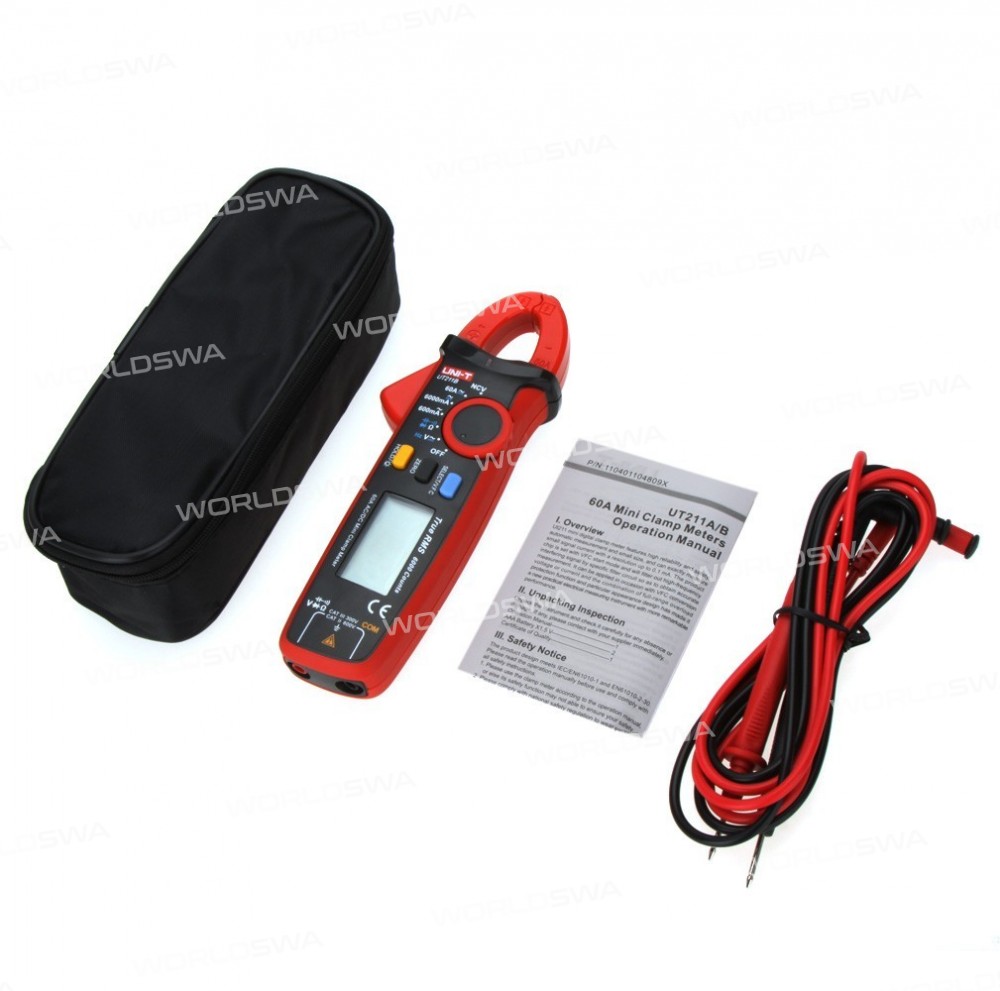

Package Includes:

• 1 x UT211B

Certifications:

This product complies with CE (European Union) directives and ETL, the North American safety standard certification.
