UT25CL UNI-T Handheld Professional Non-contact Cable Locator

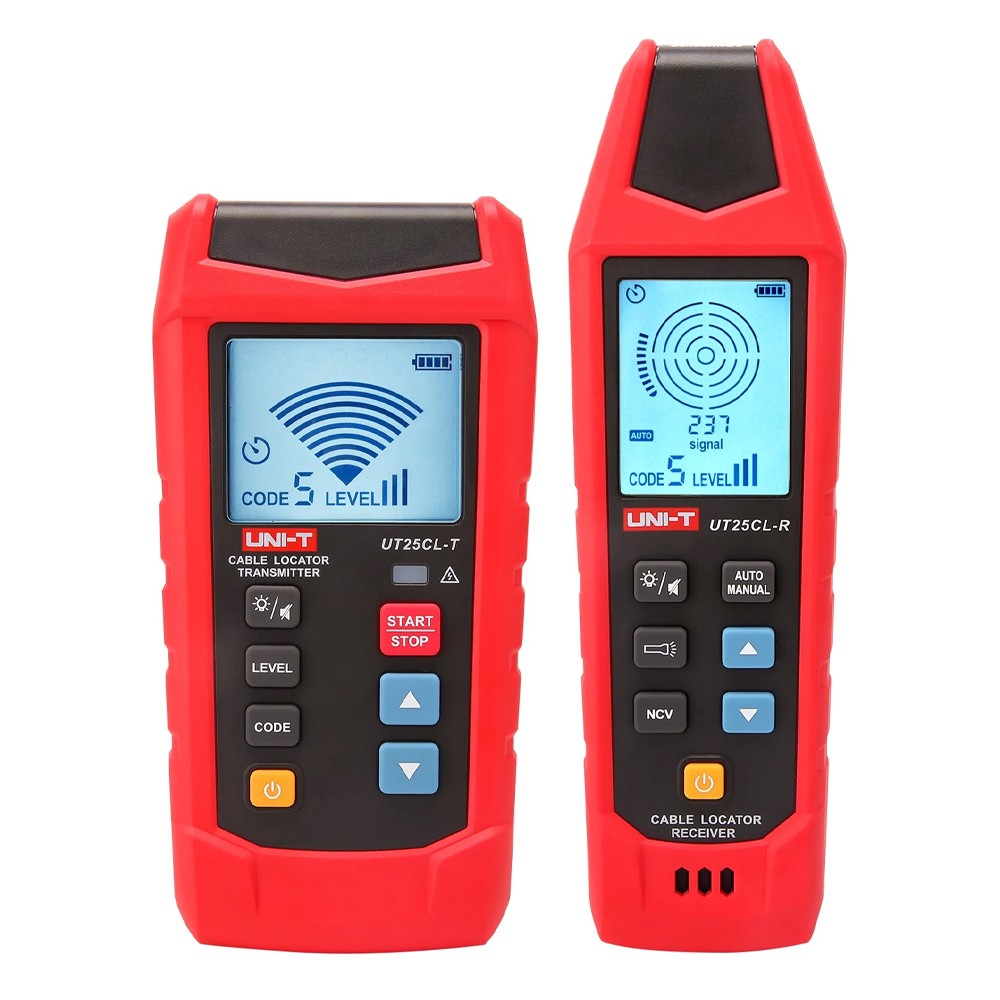

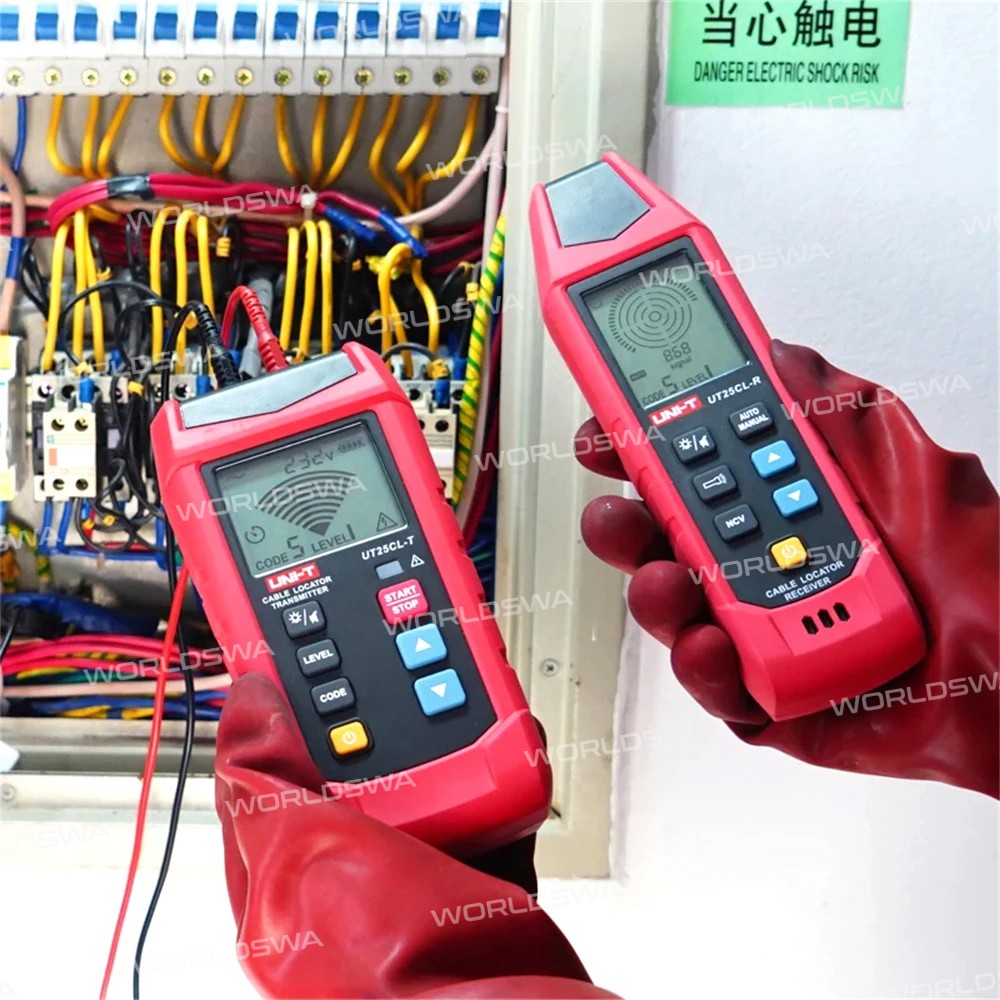

UNI-T UT25CL Handheld Professional NCV Non-contact Cable Locator

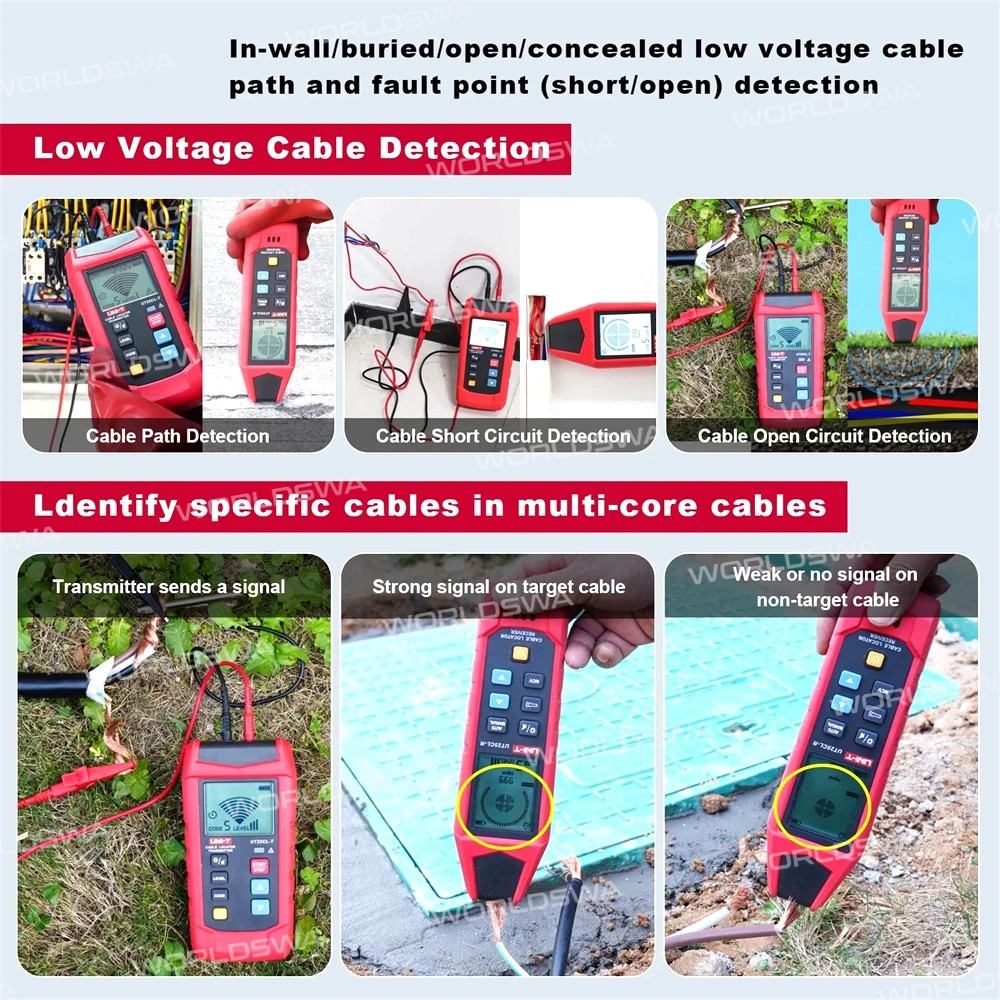

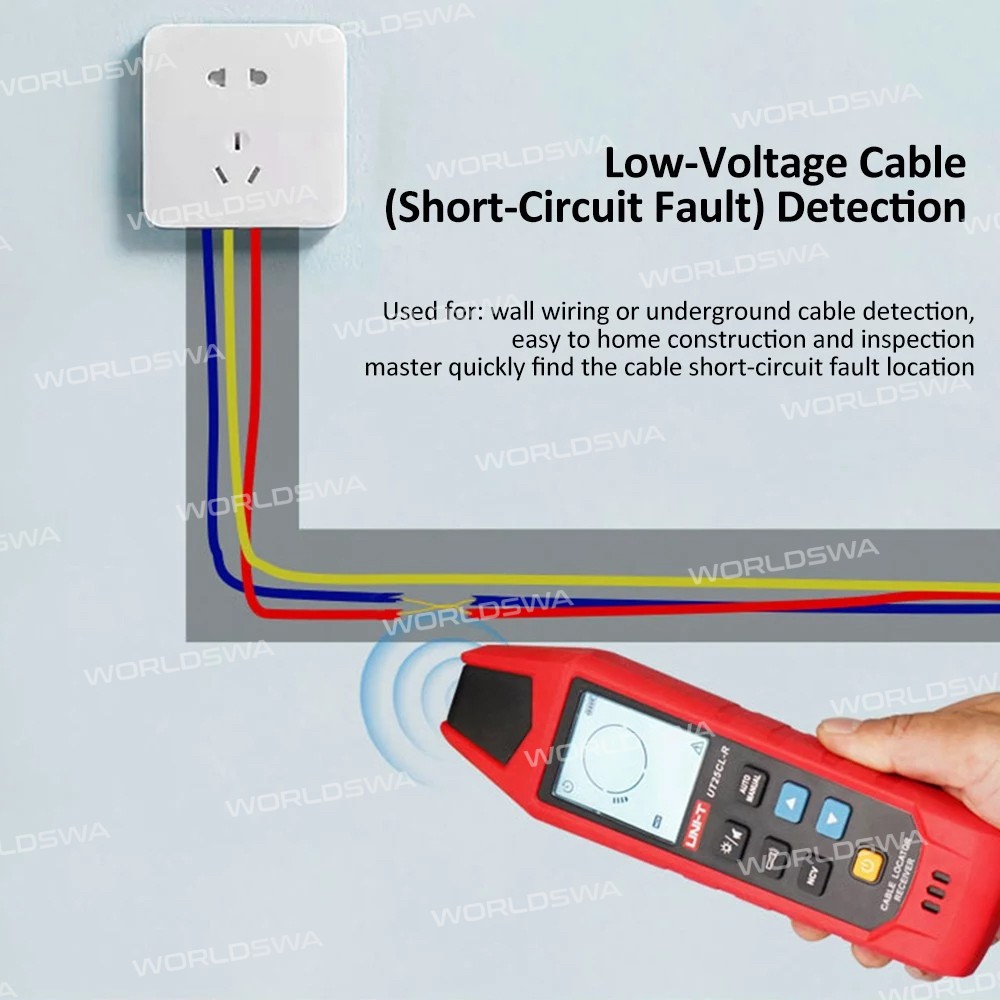

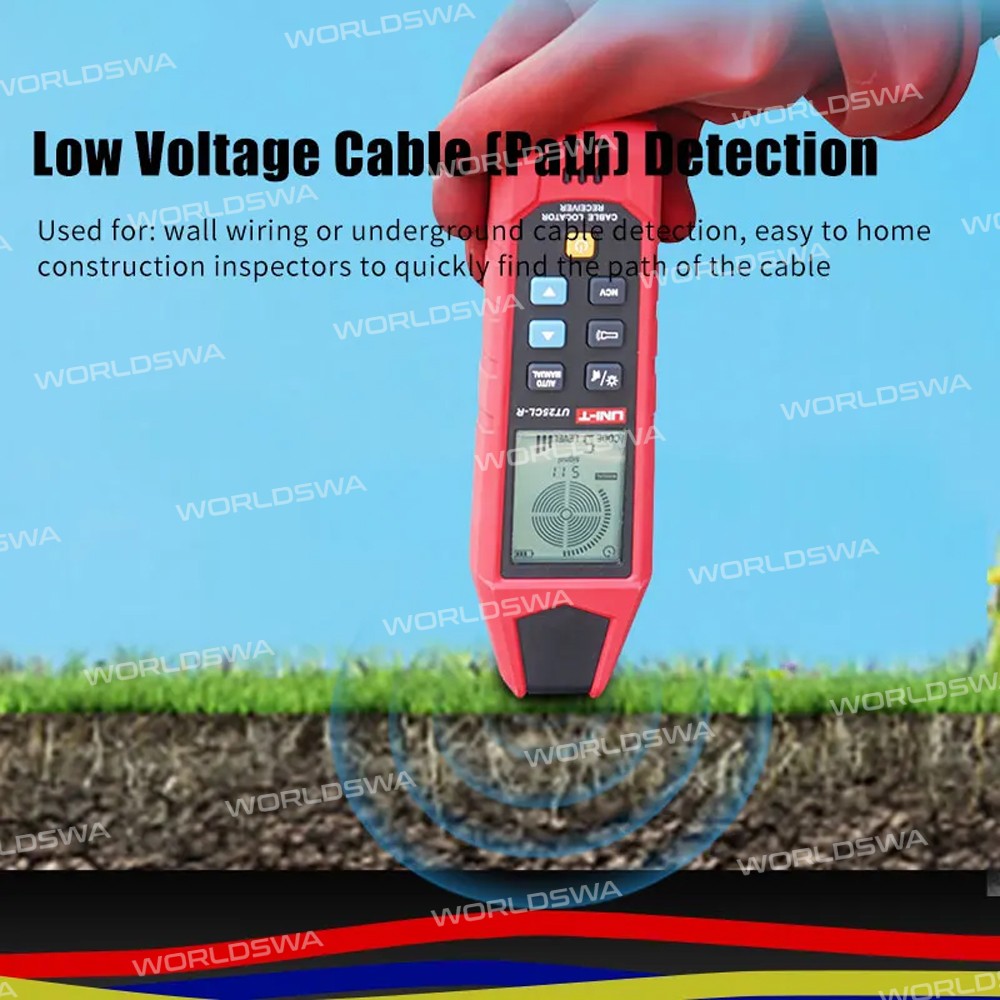

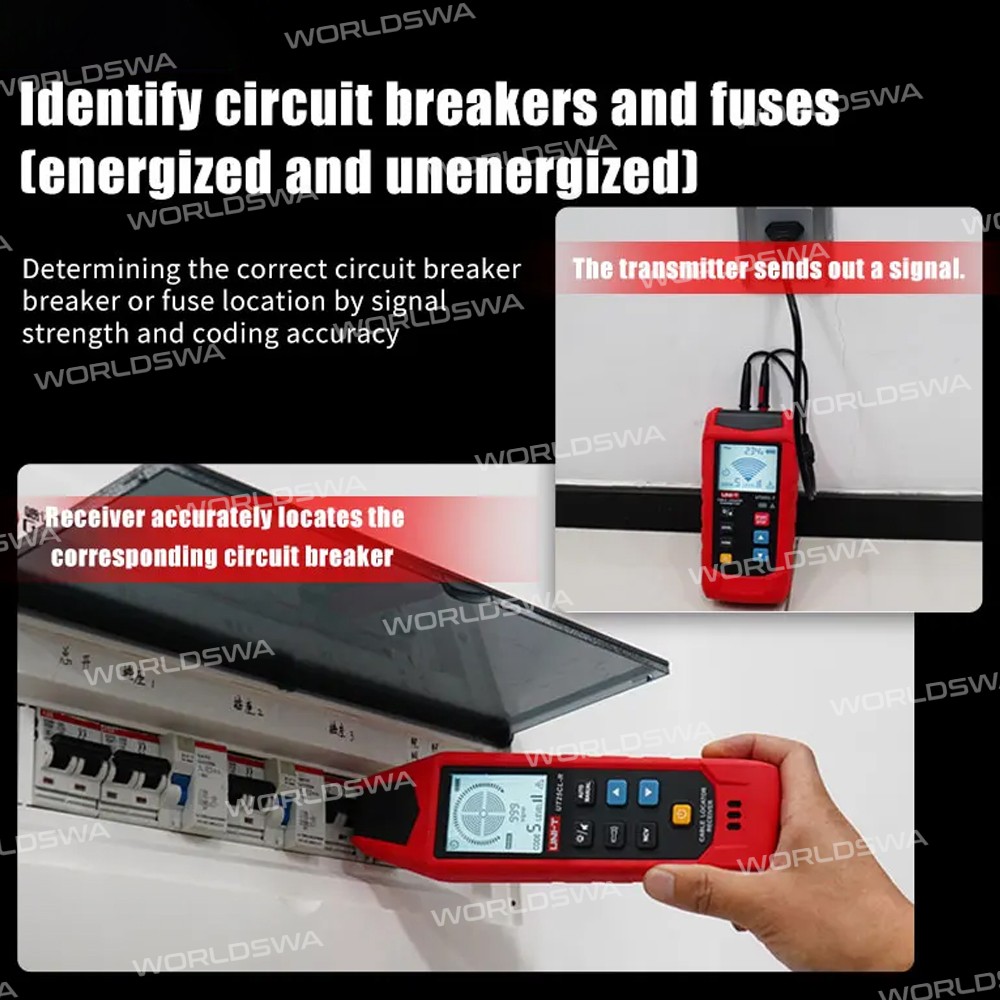

This handheld cable locator can detect the path of low-voltage cables buried in the ground (such as cabling inside walls); test and diagnose opens, shorts, and other problems occurring at cabling; and detect if the tested cable is energized. The transmitter can display corresponding voltages (voltage of energized cable: ≥8V), and the receiver can simultaneously display the signal strength, transmitter code, transmitter power level, low battery, etc.

Features:

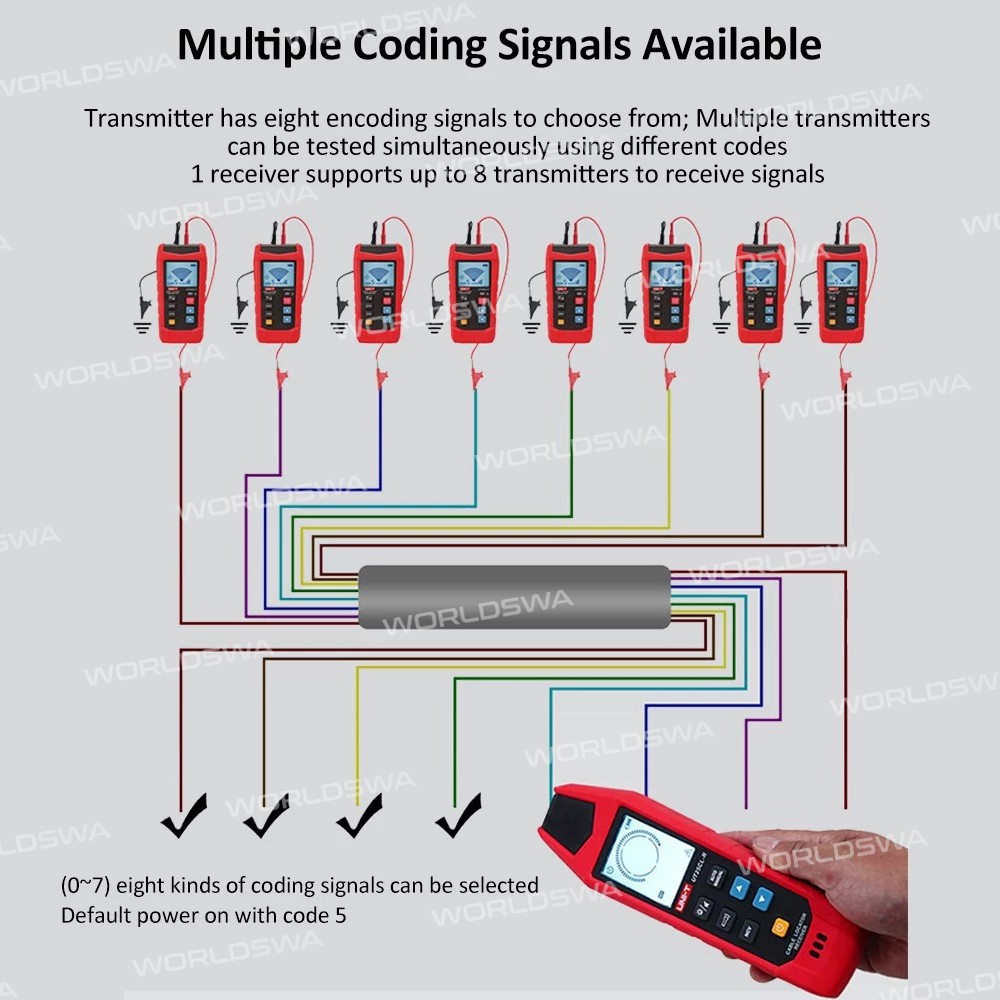

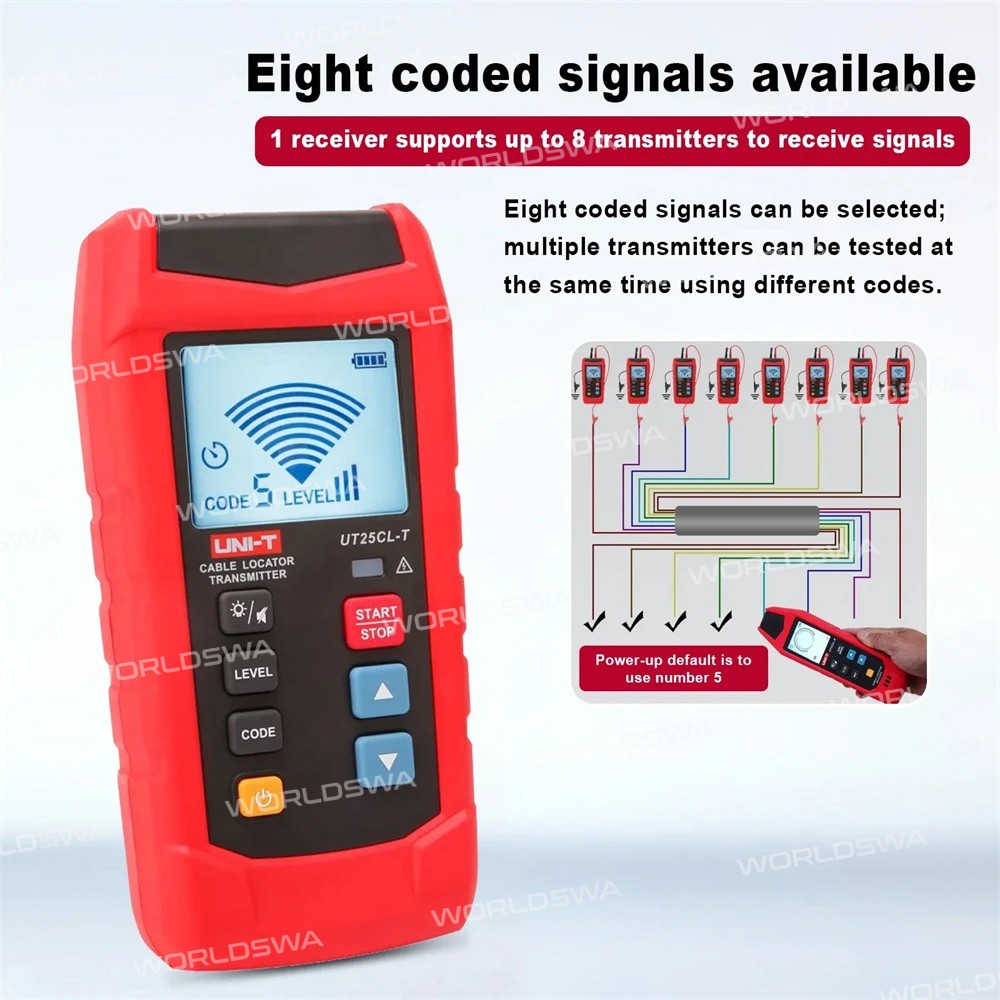

• Multiple Coding Signals Available: The Transmitter has eight encoding signals to choose from; Multiple transmitters can be tested simultaneously using different codes, and one receiver can support up to 8 transmitters for signal reception

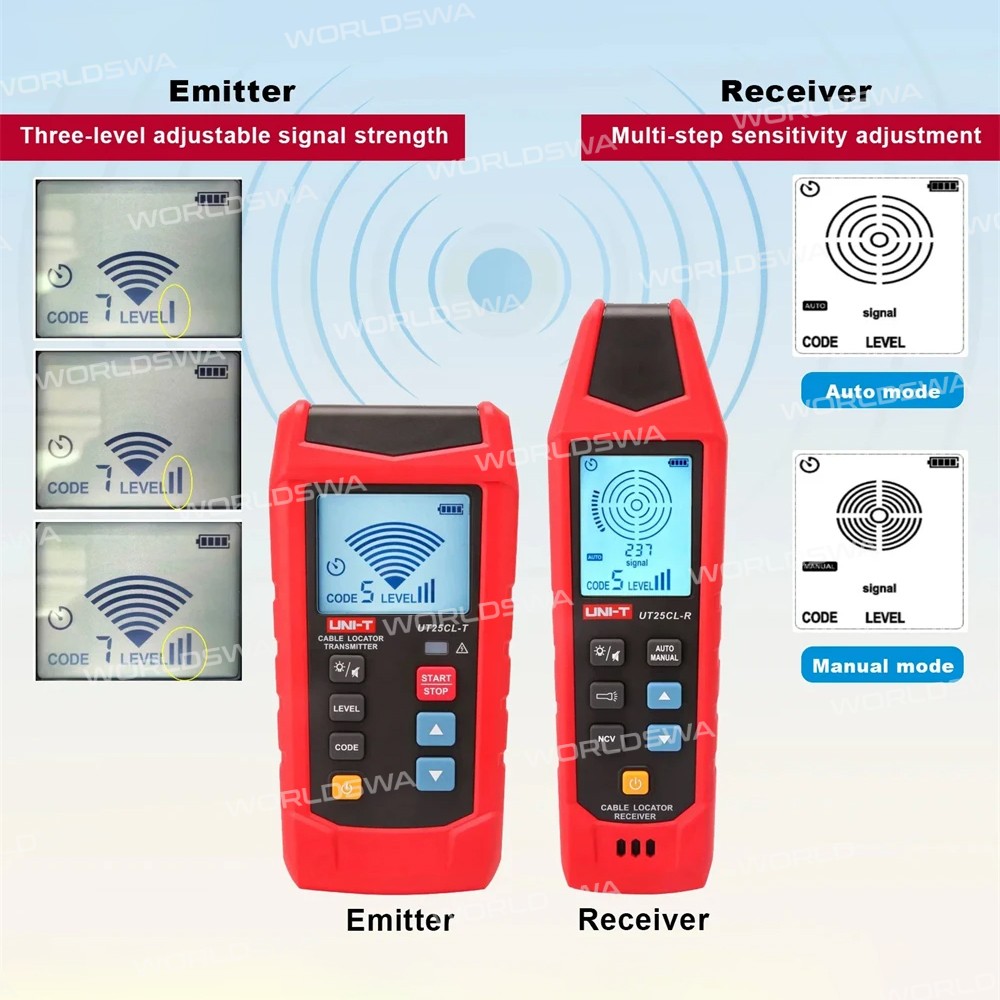

• Signal Strength Adjustable: Emiter: Adjustable signal strength in three levels, helps to avoid false signals causing misreading and prevents strong signals from covering too large an area and causing receiver oversaturation
• Multi-Level Sensitivity Adjustable: The receiver can be set to automatic or manual detection mode, and sensitivity can be adjusted in manual mode

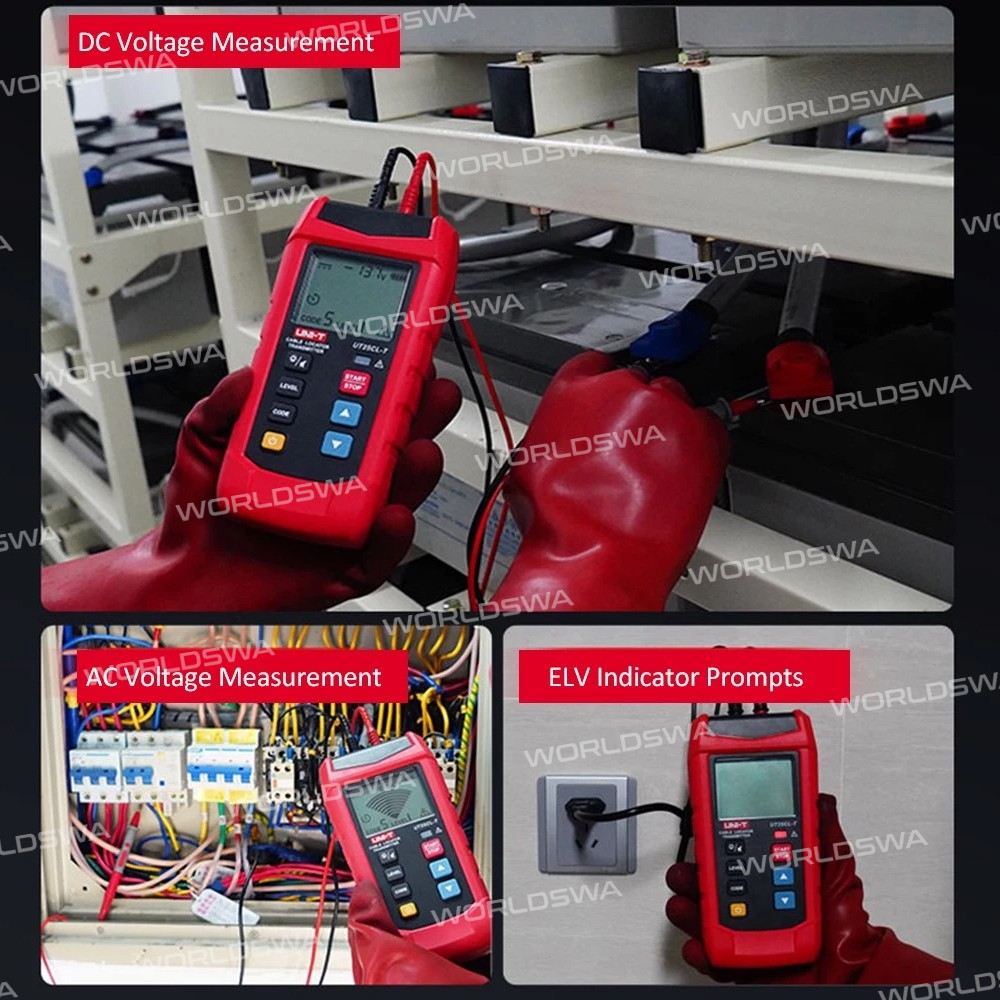

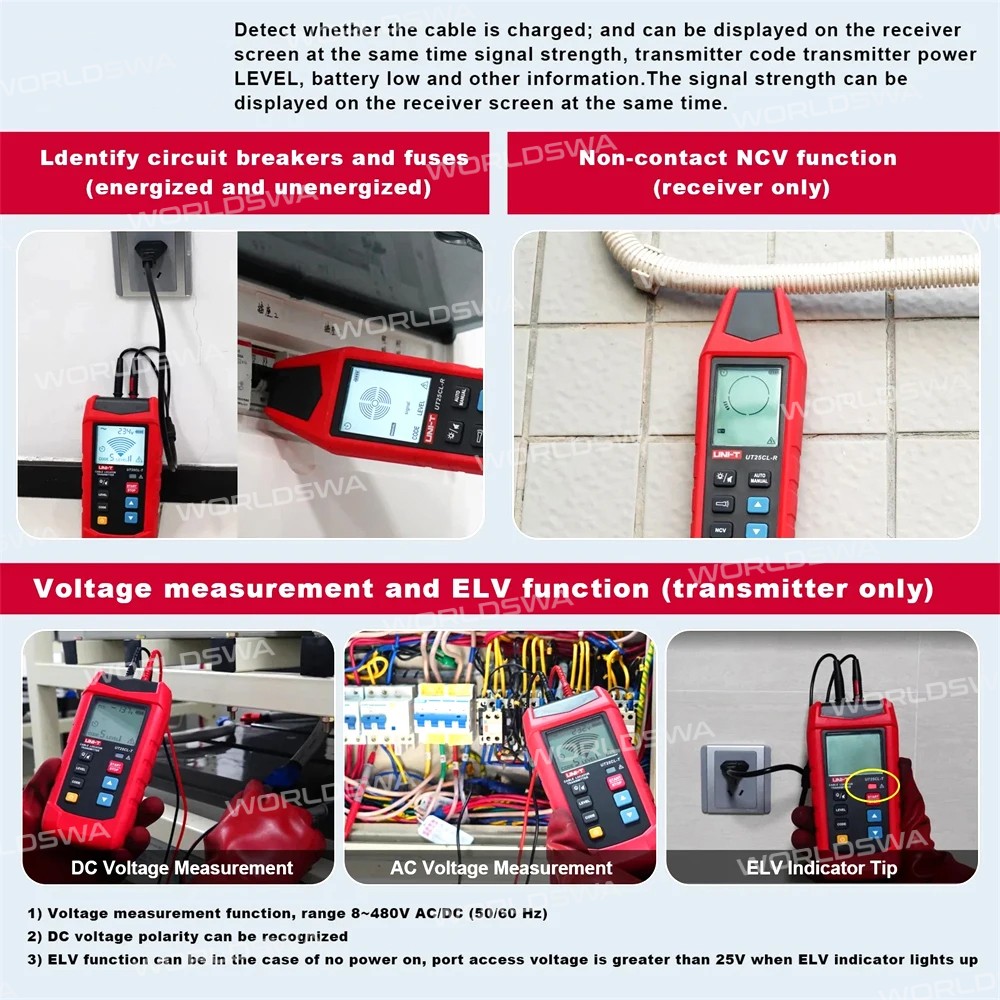

• Voltage Measurement and ELV Function (Emitter only): Voltage measurement function, range 8-480V AC/DC (50/60Hz), can recognize DC voltage's polarity. The ELV function can light up the ELV indicator light when the port is connected to a voltage greater than 25V without turning on the device

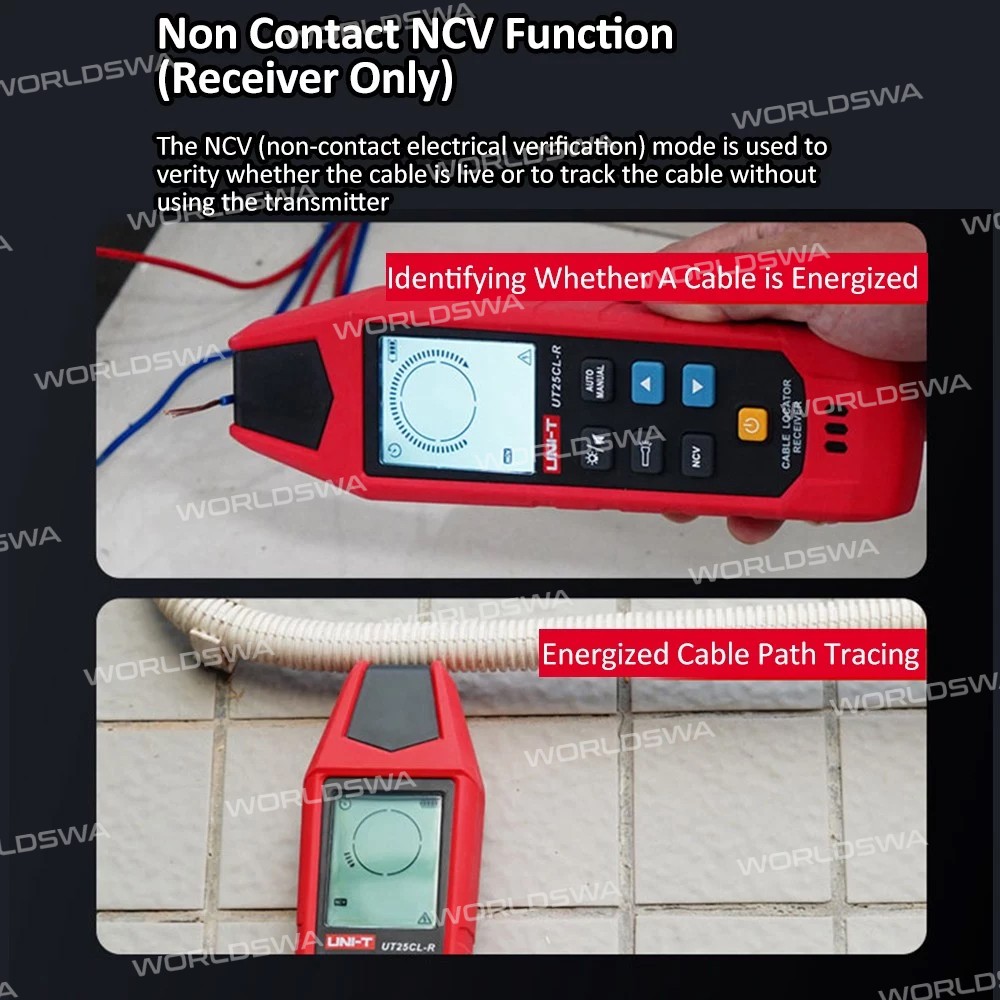

• Non-Contact NCV Function (Receiver Only): The NCV (non-contact electrical verification) mode is used to verify whether the cable is live or to track the cable without using the transmitter
• Flashlight and Backlight Function (Receiver only): Turning on the flashlight and backlight during use in the dark or dark environment can facilitate line finding
• Summary:** Detects low-voltage cables, diagnoses opens and shorts, measures voltage, and has adjustable signal strength and sensitivity.

Specifications:

• Model: UT25CL
• Material: ABS

Transmitter:

• Working Frequency: 33kHz
• Identification Range of External Voltage: 8~480V
• Identification Frequency of External Voltage: DC/AC: 50-60Hz
• Measurement Accuracy of External Voltage: 2.5%±3deg
• Strength of External Overvoltage: 480V DC/AC
• Overvoltage Rating: CAT III 480V
• Pollution Degree: 2
• Display: Segmented LCD (TN translucent)
• Battery: 6 * 1.5V AA (LR06) (Not included)
• Power Consumption: 165mA (including backlight, output short circuit, Ill, CODE5)
• Fuse: F0.6A 600V
• Operating Temperature: 0 ~40℃; Max. 80%RH (Non-condensing)
• Storage Temperature: -20~60C; Max. 80%RH (Non-condensing)
• Operating Altitude: ≤2000m
• Transmitter Size: 189 * 96 * 48mm
• Transmitter Weight: 534g
• Drop Proof: 1M
• Button Life: 10000 times
• Backlight: Supported (white)
• CODE (Code value): 0, 1, 2, 3, 4, 5, 6 and 7. (Default code: 5)
• Level of Signal Strength: 1, 2, and 3. (Default level: 3)
• Single Pole Testing: Supported (Support testing in energized condition; Maximum 480V)
• Dual Pole Testing: Supported (Support testing in energized condition; Maximum 480V)

Receiver:

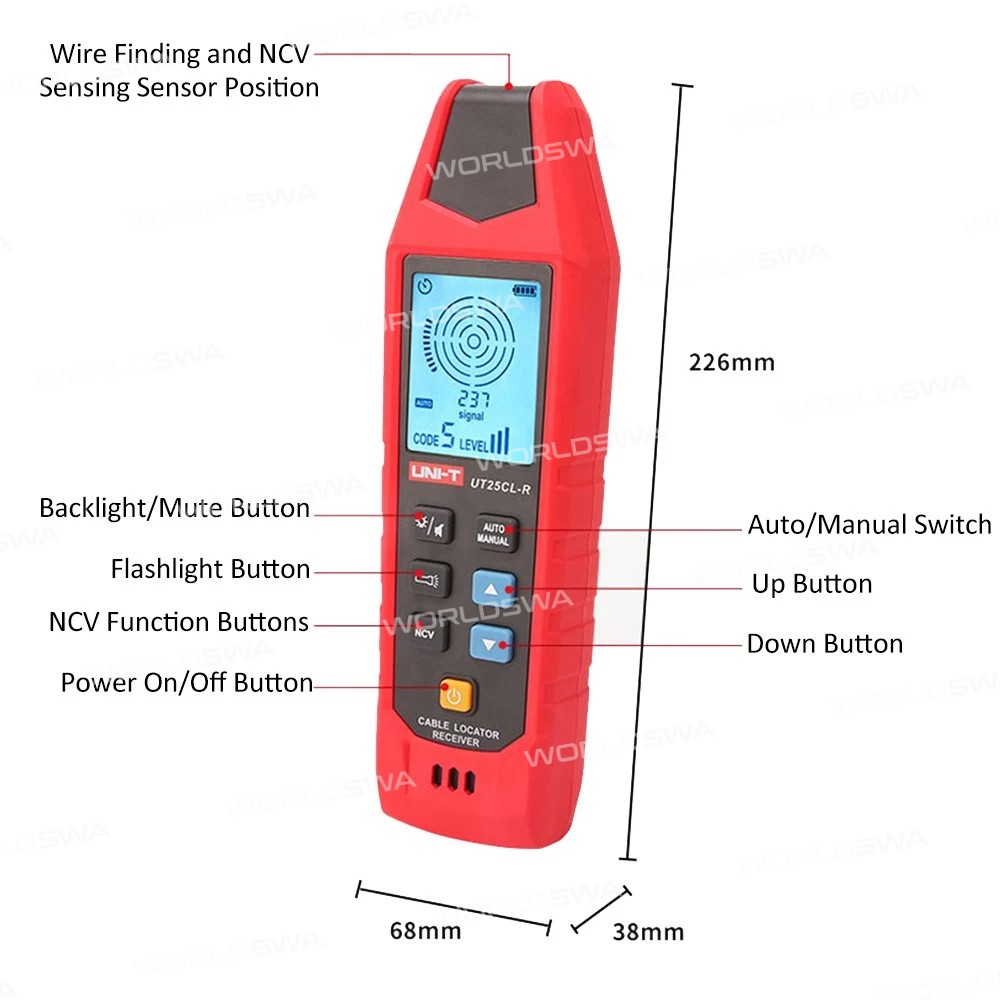

• Working Frequency: 33kHz
• Locating Depth: Related to the medium and the method used
• Tracking Mode for Single Pole: About 0~2.5m (Use separate loop wire for 2.5m)
• Tracking Mode for Dual Poles: About 0~0.5m
• Grid Voltage Identification: About 0~0.4m
• NCV: Voltage identification range: 80~1000V, 50Hz/60Hz (Approach the measured cable)
• Display: Segmented LCD (TN translucent)
• Battery: 6 * 1.5V AAA (LR03) (Not included)
• Power Consumption: About 30mA (Excluding backlight and flashlight); About 65mA (Excluding backlight); Maximum 95mA (including backlight)
• Operating Temperature: 0~40C; Max. 80%RH (Non-condensing)
• Storage Temperature: -20~60℃; Max. 80%RH (Non-condensing)
• Operating Altitude: ≤2000m
• Receiver Size: 226 * 68 * 38mm
• Receiver Weight: 361g
• Button Life: 10000 times
• Indication for Running Out of Power (For transmitter): Supported
• Backlight: Supported
• Flashlight: Supported
• CODE (code value): 0, 1, 2, 3, 4, 5, 6 and 7
• Levels of Signal Strength of Transmitter: Level 1, Level 2, and Level 3
• Reception Sensitivity (Manual Adjustment): Including 9 levels
• Index Range of Signal Strength: 0~999
• Analog Bar Range of Signal Strength: 0~43
• Receive Multiple Transmission Signals: Supported (A receiver can receive signals generated by a maximum of 8 transmitters at the same time)

Package includes:

• 1 x Transmitter (without Battery)
• 1 x Receiver (without Battery)
• 2 x Alligator Clips (Red + Black)
• 2 x Dual Inline Test Leads (Red + Black)
• 2 x Connected Probe (Red + Black)
• 1 x AC Polarity Plug Cord
• 1 x Auxiliary Grounding Spike
• 1 x Tool Bag
