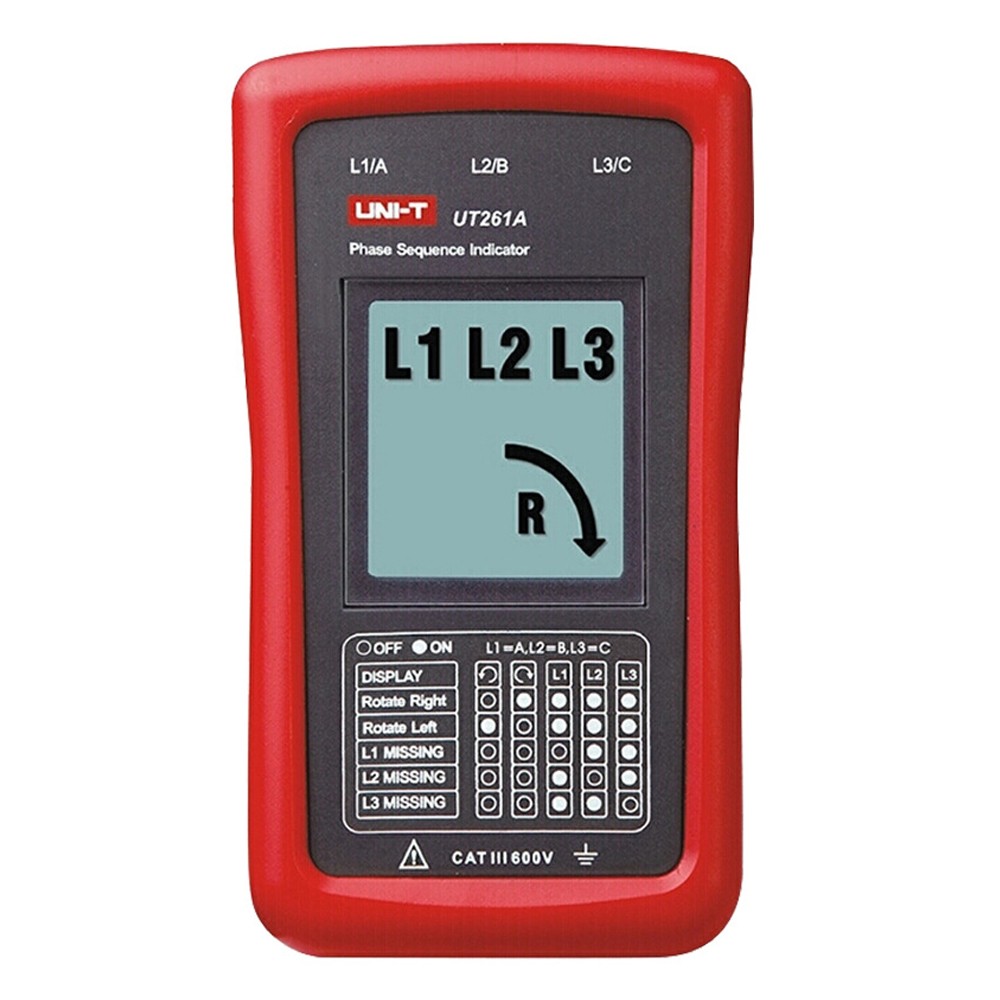

UT261A UNI-T AC 40-690V Motor Steering and Phase Sequence Meter

UNI-T UT261A AC 40-690V Phase Sequence and Motor Steering Meter

Overview

The UT261A is a reliable and efficient phase sequence and motor steering meter, designed for determining the 3-phase power phase sequence and missing phase indication in AC 40-690V three-phase power systems.

Features:

• **Phase Sequence Indication**: UT261A series is used for determining the 3-phase power phase sequence and missing phase indication.
• **Voltage Measurement**: Measures AC voltage of 40~700V respectively.
• **Frequency Range**: Operates in the frequency range of 15~400Hz.
• **Durable Design**: Can withstand impact from 2 meters of height.
• **Easy to Use**: Suitable for AC 40-690V three-phase power system, with ample measuring range and intuitive LCD display.
• **Safety First**: Equipped with CAT Ⅲ 600V safety grade and double insulation protection design to ensure user safety.
• **Convenient Power Supply**: No batteries or external power supply required, powered directly through the measured circuit.

Specification:

• Model: UT261A
• AC Voltage: 40V~690V
• Frequency: 15Hz~400Hz
• Working Voltage: <3mA
• Phase Sequence Indication: LCD
• Missing Phase Indication: LCD
• Power: No Battery Required
• Product Color: Red and Grey
• Product Weight: 180g
• Product Size: 70*75*30mm

What's in the Box:

• 1 x Phase Sequence Indicator
