UNI-T UT501C 5GΩ 1000V Insulation Resistance Tester Digital Megohmmeter Auto Range Backlight
0 out of 5 stars
No review yet| Qty | Price | Discount |
|---|---|---|
| 1 | NaN | |
| 3 | NaN | -3.1% |
| 5 | NaN | -4.7% |
| 10 | NaN | -7.1% |
Product details
Description

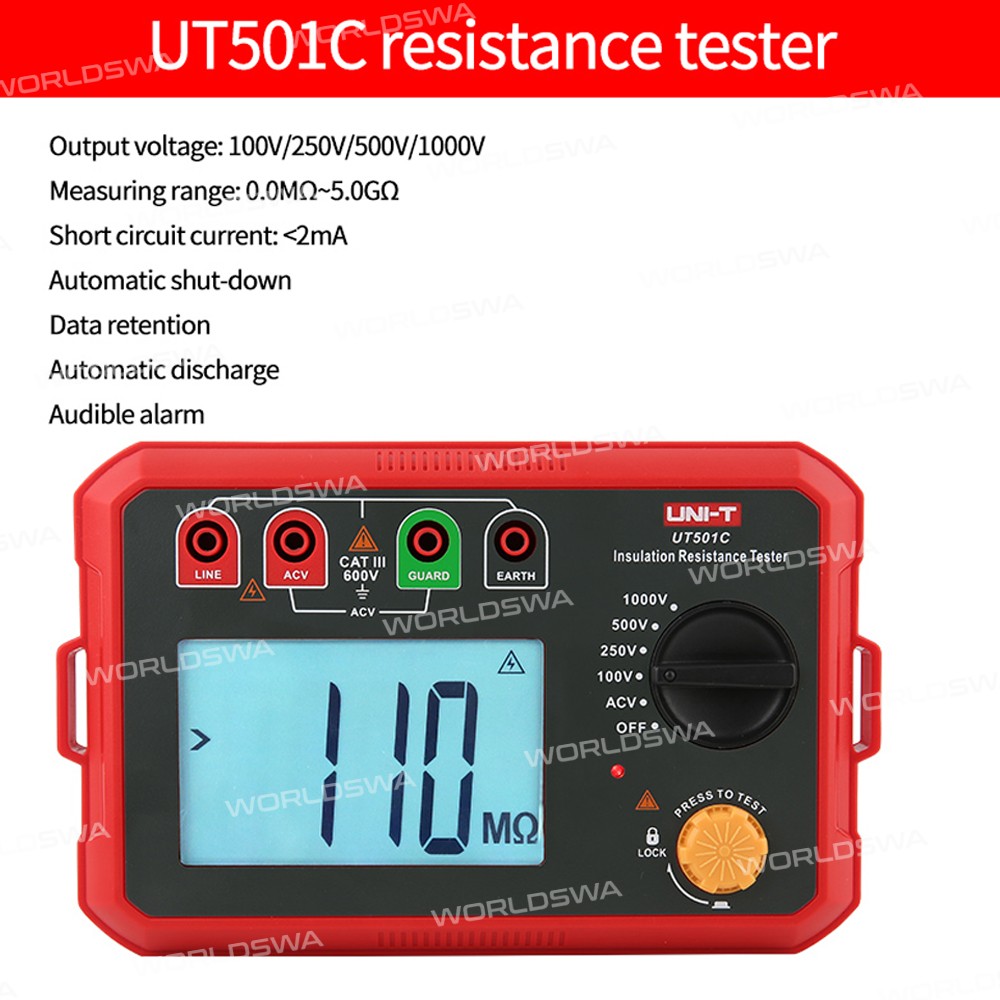

UNI-T UT501C 5GΩ 1000V Insulation Resistance Tester Digital Megohmmeter Auto Range Backlight
Features:
- Insulation resistance/AC voltage/Buzzer alarm
- Backlight display/Automatic shutdown/Voltage reminder
- UT500 series digital insulation resistance testers, with their new design, large scale integrated circuit, and digital circuit, is utilized to measure insulation resistance, alternating voltage, and other parameters
- This series of testers have features of complete functions, high accuracy, stable performances, comfortable and reliable operation
- The tester is used in maintenance, test, and verification for various electrical equipment and is applicable to measure the insulation resistance of transformer, motor, cable, switch, electric appliances, etc
Specification:
Specifications | Output Voltage | Measurement Range | UT501C | UT502C |
Insulation Resistance Measurement | 100V | 0.00MΩ～100MΩ | √ | |
250V | 0.00MΩ～500MΩ | √ | √ | |
500V | 0.00MΩ～2.00GΩ | √ | √ | |
1000V | 0.00MΩ～5.00GΩ | √ | √ | |
2500V | 0.00MΩ～20.0GΩ | √ | ||
Accuracy | 0.00MΩ～99.9MΩ: ±(3%+5) | √ | ||
100MΩ～5.00GΩ: ±(5%+5) | ||||
0.00MΩ～99.9MΩ: ±(3%+5) | √ | |||
100MΩ～9.99GΩ: ±(5%+5) | ||||
10.0GΩ～20.0GΩ: ±(10%+5) | ||||
Voltage Measurement Range | AC: 30V～750V (50Hz/60Hz)， ±(2%+3) | |||
Short-Circuit Current | <2mA | |||
Powered by | Adaptor (optional, without charging function) | |||
6×1.5V AA(not included) | ||||
Auto Power Off | √ | |||
Self-Lock Function | √ | |||
Low Battery Indication | √ | |||
Data Hold | √ | |||
Auto Discharge | √ | |||
Audible and Visual Alarm | √ | |||
Overrange Indication | √ | |||
Backlight function | √ | |||
Altitude | ≤2000 m | |||
Operating temperature and Humidity | 0℃~35℃,<75% RH | |||
Storage temperature and Humidity | -20℃~60℃,<80% RH | |||
Rating | CAT III 600V | |||
General Features | ||||
Product Color | Red + grey | |||
Product Weight | 0.6kg | |||
Product Size | 183.5mmx115mmx74mm | |||
Package includes:
- 1 x Resistance Tester(without battery)
- 2 x Test cable
