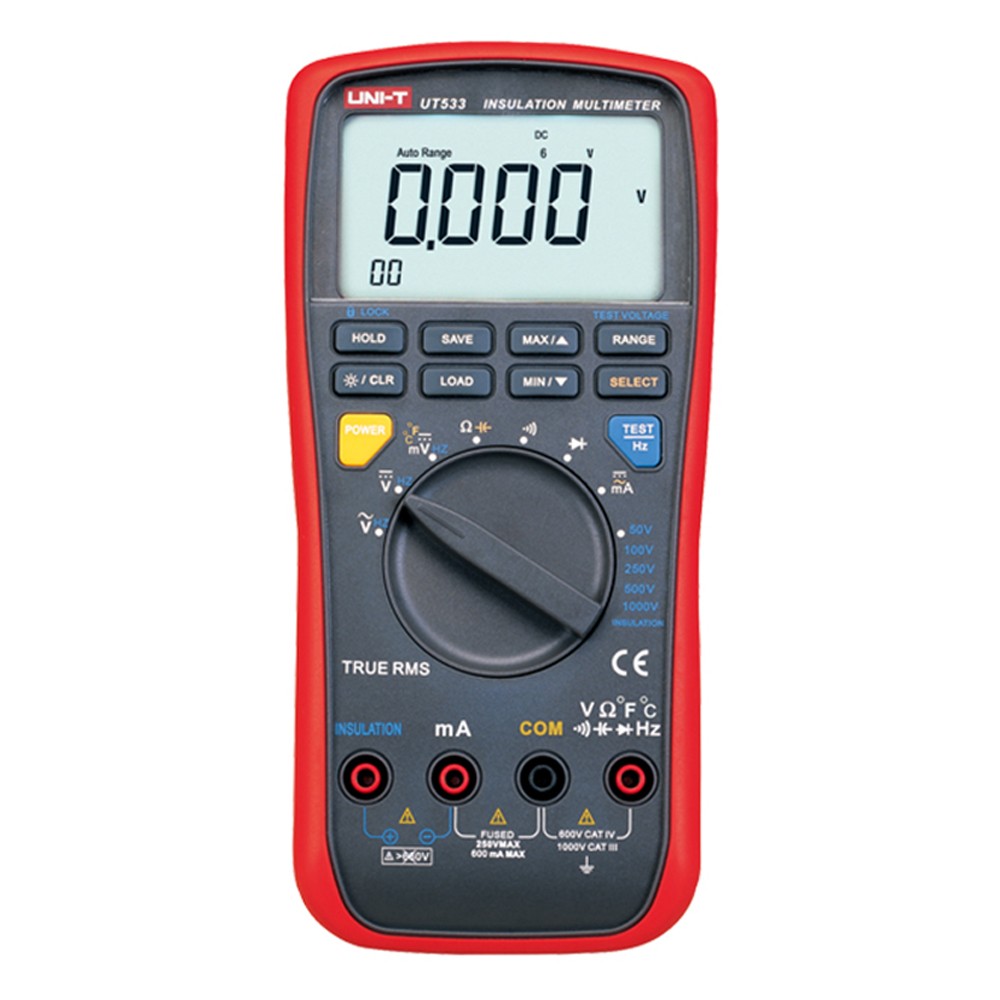

UNI-T UT533 Auto Range True RMS Insulation Resistance Digital Multimeter

UNI-T UT533 Auto Range True RMS Insulation Resistance Digital Multimeter
Specification:

Model			UT533
Insulation Resistance(Ω)	Test Voltage	50V/100V/500V/1000V/2500V	0%～10%
	50V	0.1MΩ~50.0MΩ	±(3%+5)
	100V	0.1MΩ~100.0MΩ	±(3%+5)
	250V	0.2MΩ~99.9MΩ	±(3%+5)
		100MΩ~250MΩ	±(3%+5)
	500V	0.5MΩ~99.9MΩ	±(3%+5)
		100MΩ~500MΩ	±(3%+5)
	1000V	4.0MΩ~99.9MΩ	±(3%+5)
		100MΩ~999MΩ	±(3%+5)
		1.00GΩ~2.00GΩ	±(5%+5)
	Short-Circuit Current	<2mA	√
Multimeter Specifications
DC Voltage (V)	60mV/600mV/6V/60V/600V/1000V		±(0.09%+6)
AC Voltage（50Hz~1KHz）	6V/60V/600V/1000V		±(1%+3)
DC Current (A)	60mA/600mA		±(1.0%+2)
AC Current（50Hz~1KHz）	60mA/600mA		±(1.5%+2)
Resistance (Ω)	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ		±(0.9%+2)
Capacitance (F)	10nF/100nF/1μF/10μF/100μF		±(3%+5)
Frequency (Hz)	60Hz/600Hz/6kHz/60kHz/600kHz/1MHz		±(0.1%+3)
Temperature (°C)	-40°C ～ 537°C		±(1%+10)
Temperature (°F)	-40°F～998°F		±(1%+18)
Features
Display Count			6000
Auto Range			√
True RMS			√
Diode			√
Auto Power Off			√
Continuity Buzzer			√
Low Battery Indication			√
Data Hold			√
MAX/MIN			√
Data Logging			99
LCD Backlight			√
Full Icon Display			√
General Characteristic
Power	1.5V Alkaline Batteries (LR6) × 6 (No Battery)
LCD Size	81mm X 46mm
Product Color	Red and Grey
Product Net Weight	505g
Product Size	96.7*202.8*46 mm

Package includes:

• 1 x Insulation Resistance Multimeter(without Battery)

• 1 x Test Lead

• 1 x Alligator Clip

• 1 x K-type Thermocouple Temperature Probe
