UNI-T UT60S True RMS Digital Multimeter with Button-type LCD Display for AC / DC Measurements

UNI-T UT60S Button-type LCD Digital Display True Effective Value AC/DC Digital Multimeter

Features:

• Full-featured button design with laser engraving light instructions
• Automatic recognition of current input jack
• While measuring AC voltage, the secondary display can simultaneously display the current power frequency value
• Large-screen LCD 9999-digit analog-to-digital display, true effective value measurement, fast ADC analog-to-digital converter (3 times/sec)
• Full-featured misdetection protection can withstand 1000V overvoltage shock at most, and set up with over-voltage,over-current alarm prompts

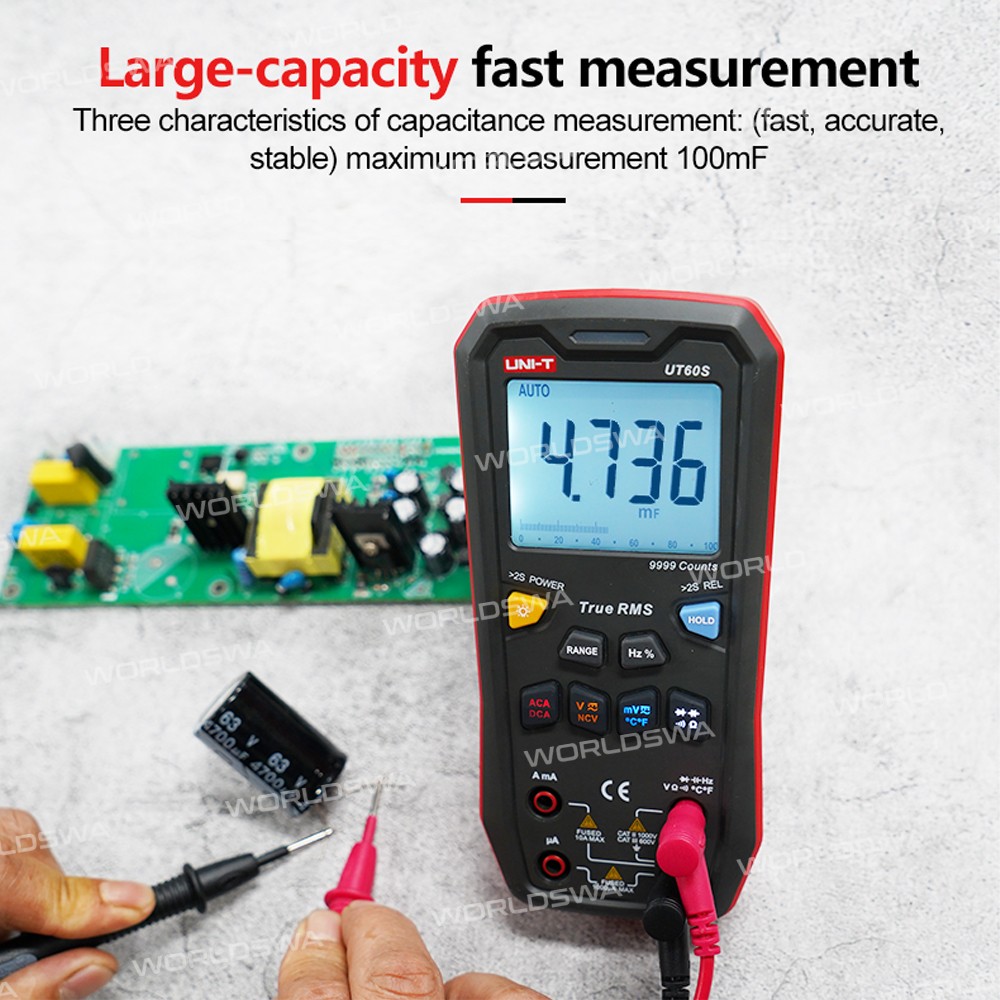

• Large-capacity measurement with extended range, measurement response time compared with similar products <100mF, stable readings within about 10 seconds
• The product has NCV non-contact measurement and sound and light prompt
• The power consumption of the whole machine is about 7mA, and the circuit is equipped with an automatic power-saving function
• The micro power consumption is only about 5uA in sleep mode, which effectively extends the battery life by 300 hours
• Summary: Advanced features, high accuracy, and long battery life

Specification:

• Model: UT60S
• DC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3)
• AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.8%+3)
• DC Current: 999.9uA/999.9mA/9.999A/10A ±(0.8%+3)
• AC Current: 999.9uA/999.9mA/9.999A/10A ±(1.0%+3)
• Resistance: 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ ±(0.8%+2)
• Capacitor: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF ±(4.0%+5)
• Frequency: 99.99Hz～9.999MHz ±(0.1%+5)
• Duty Cycle: 0.1～99.9% ±(3%+5)
• Temperatue: – 40℃～1000℃ / –40°F～1832°F ±4℃/±5℉
• Display Count: 9999
• Auto Range: Yes
• REL: Yes
• NCV: Yes
• Diode: Yes
• Continuity Test: Yes
• Acousto-optic Indication (NCV/continuity/battery power): Yes
• Low Battery Indication: ≤3.6V
• Data Hold: Yes
• Auto Power Off: 15Min
• Operation Temperature: 0℃～40℃
• Safety: CATII 1000V/CATⅢ 600V
• Battery: 1.5V AAA x 3
• Product Color: Red and Gray
• Product Net Weight: 290g
• Product Size: 169*81*46mm

Package includes:

• 1 x Multimeter (Battery not included)
• 1 x Test line
