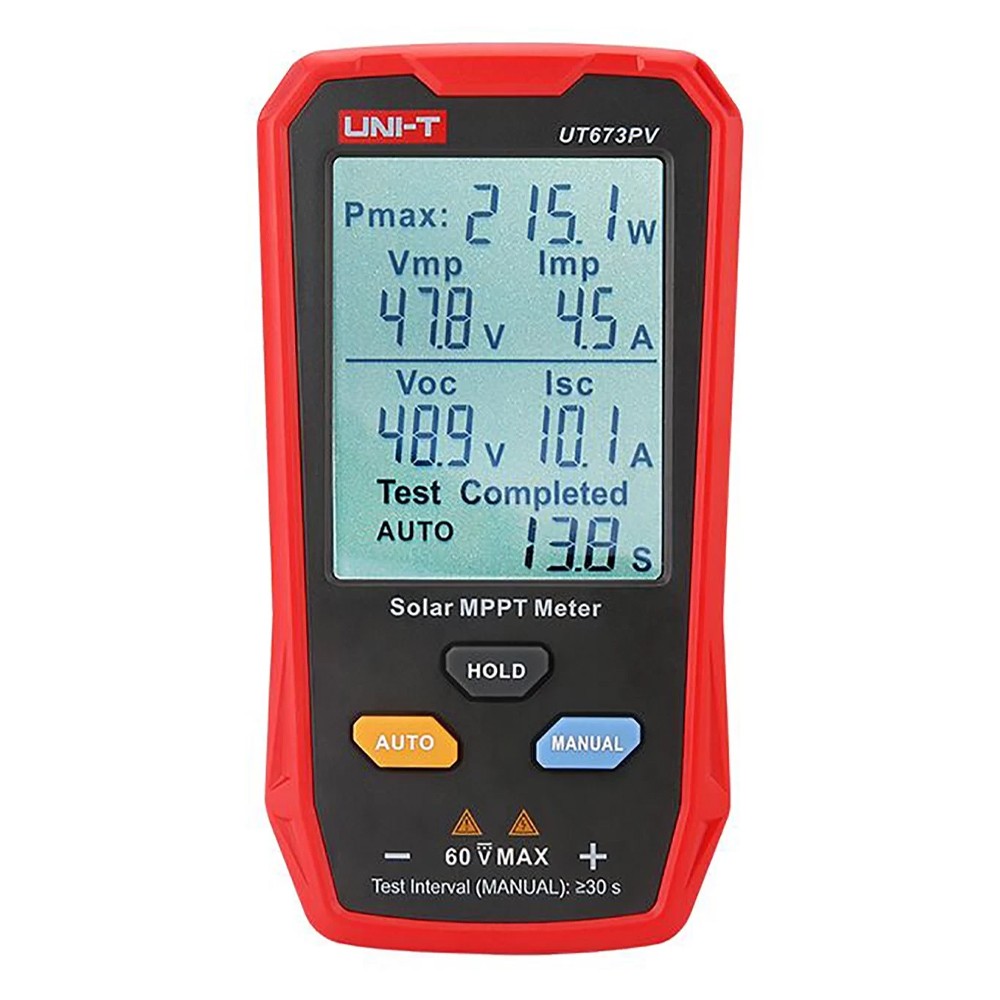

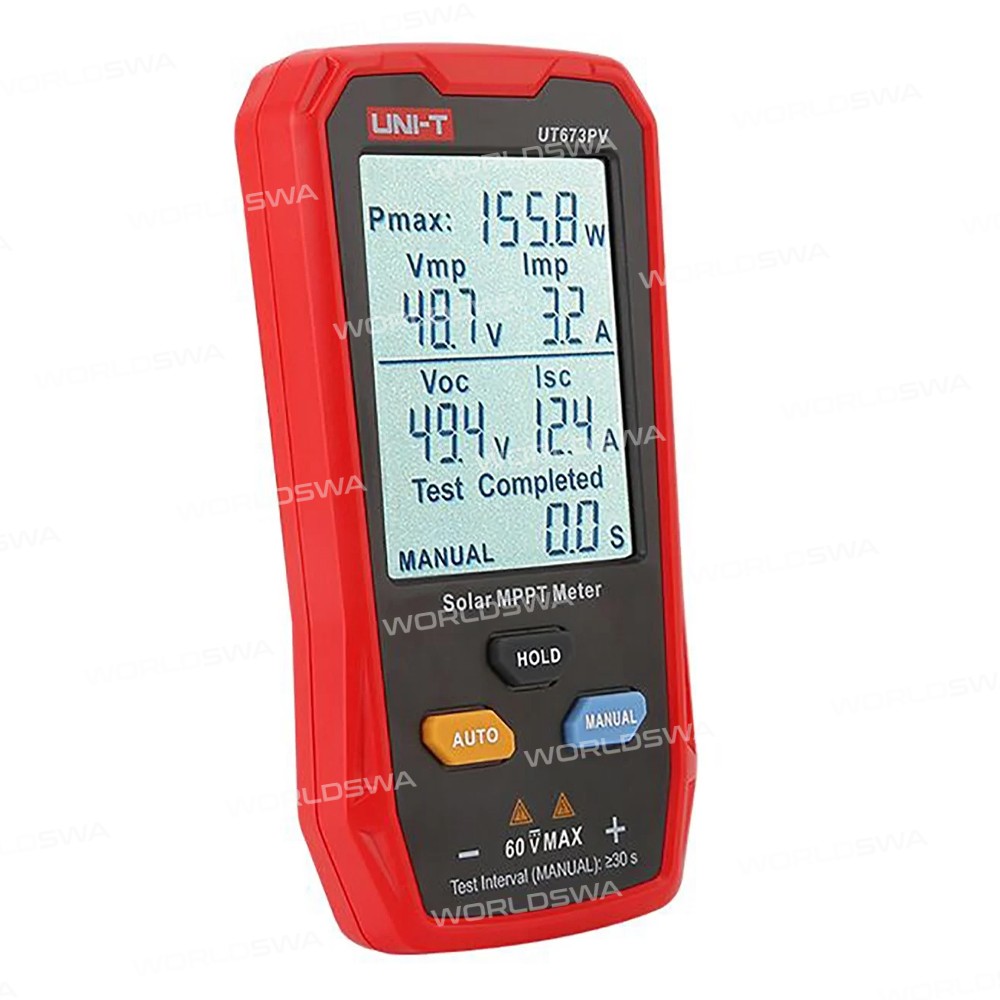

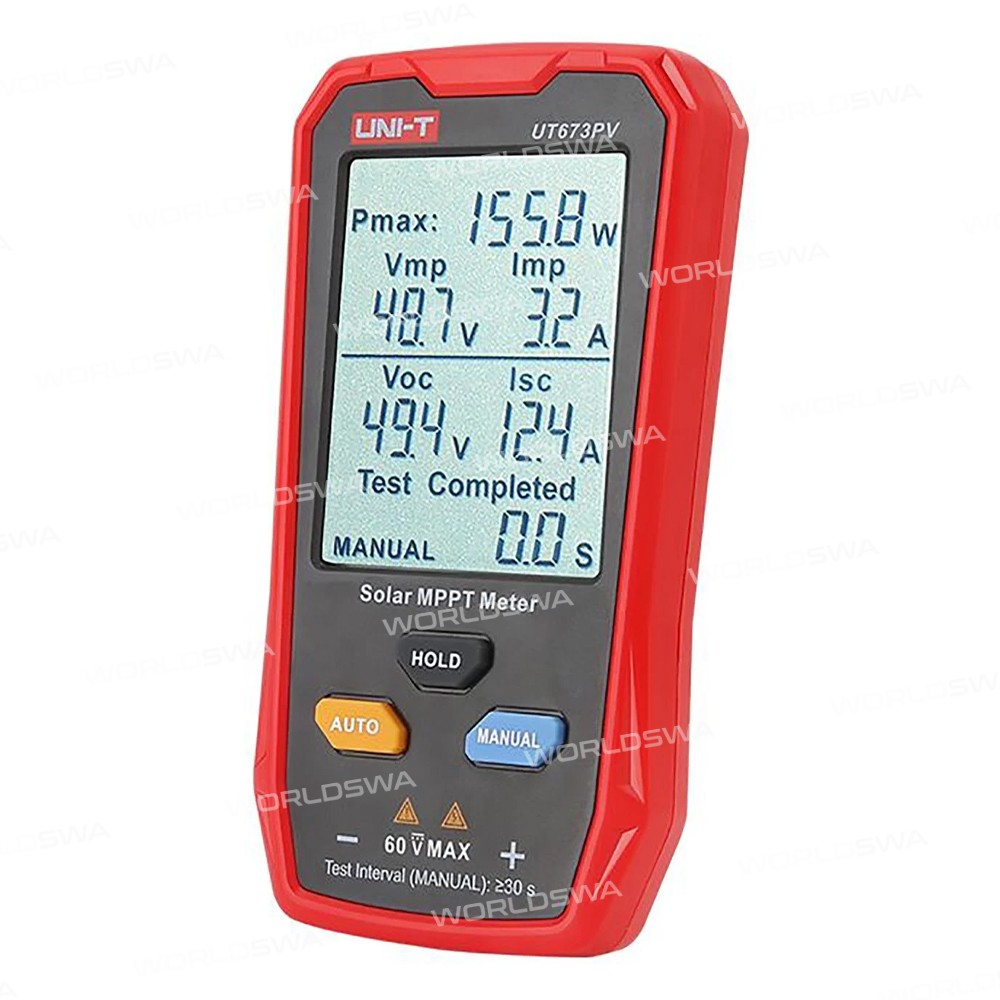

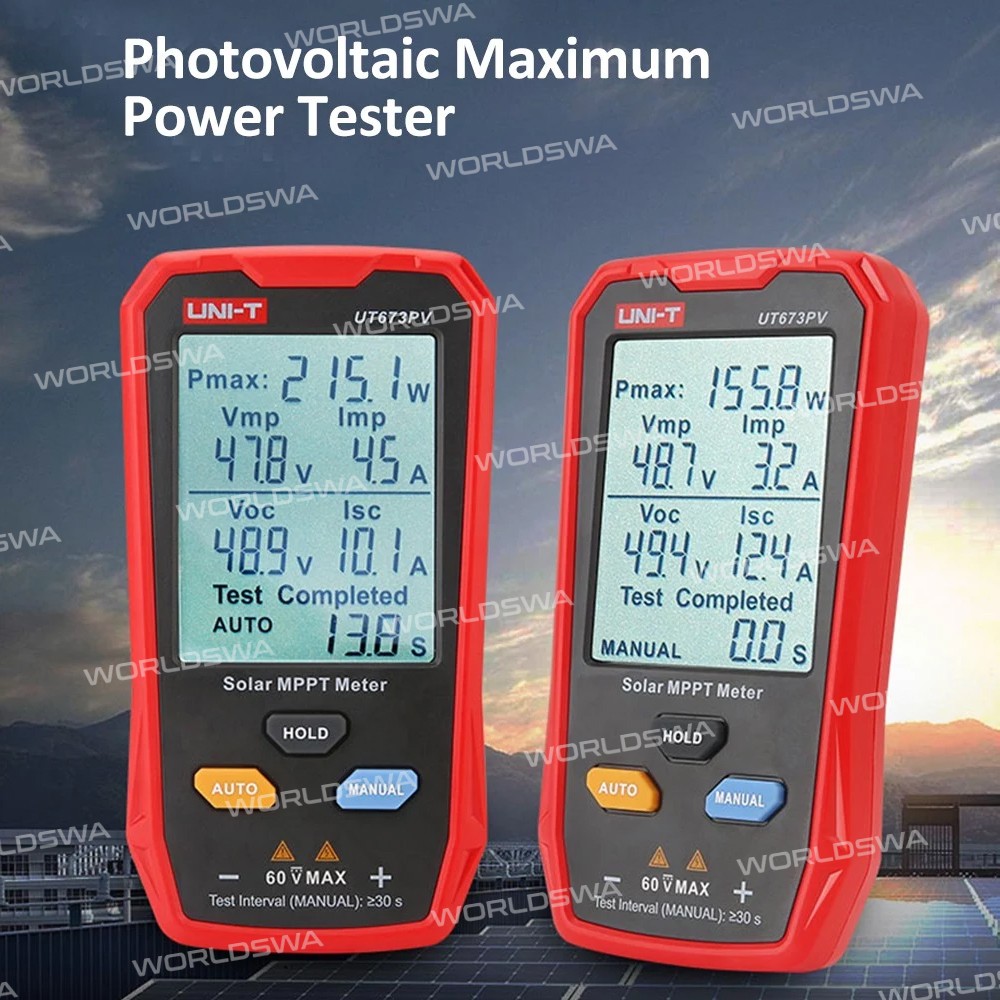

UNI-T UT673PV Solar Maximum Power MPPT Meter Photovoltaic Tester

UNI-T UT673PV Solar MPPT Meter Photovoltaic Maximum Power Tester

Features:

• Summary:** Quickly measure the maximum power of solar modules, open-circuit voltage, and short-circuit current simultaneously.

• UT673PV Solar MPPT meter can measure the maximum power of solar modules rapidly.

• MPPT is the most important indicator for judging if a solar panel generates power with low efficiency, and is commonly used for measuring solar panels or troubleshooting faulty module.

• Photovoltaic maximum power tracking point test: maximum power (Pmax), peak power voltage (Vmp).

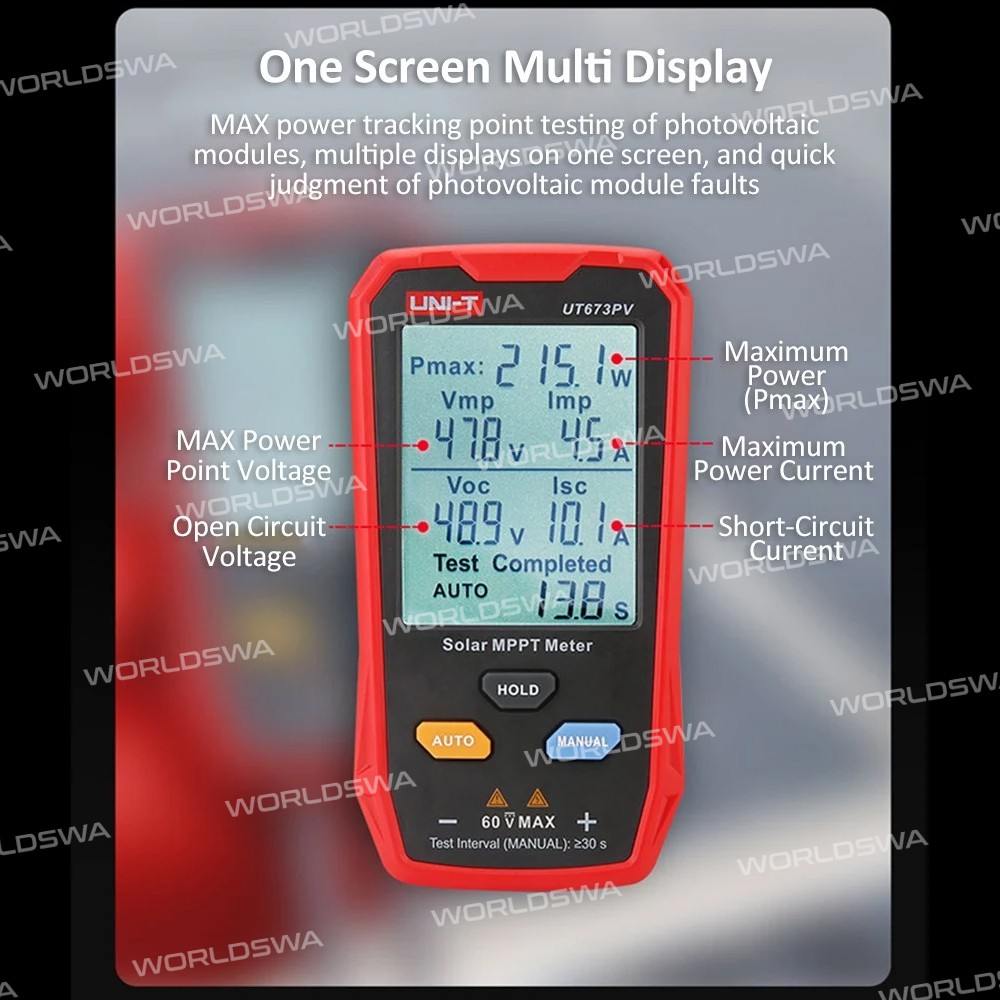

• Display peak power current (Imp), open circuit voltage (Voc), and short circuit current (Isc) simultaneously to quickly determine the fault situation of photovoltaic modules.

• 800W maximum power test, meeting the requirements of high-power dual glass component testing for leading enterprises in the industry.

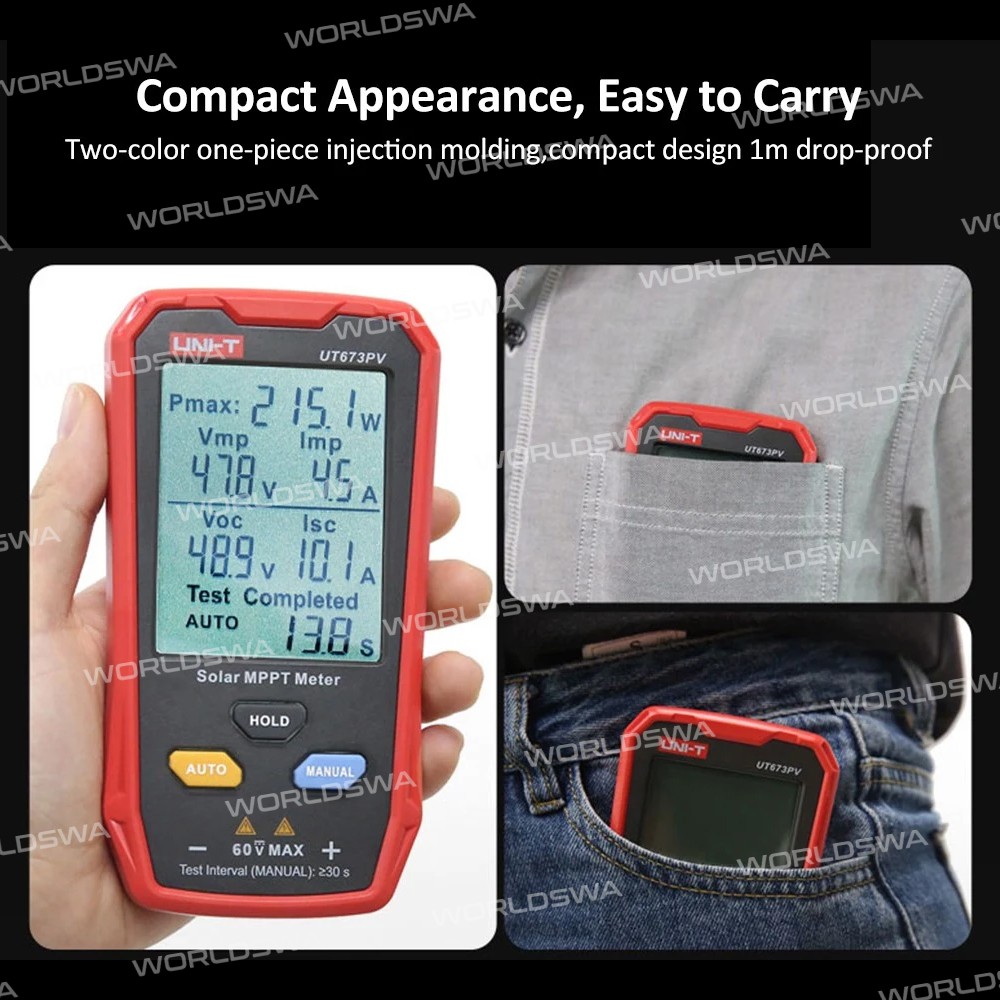

• Compact size, palm-sized, easy to carry.

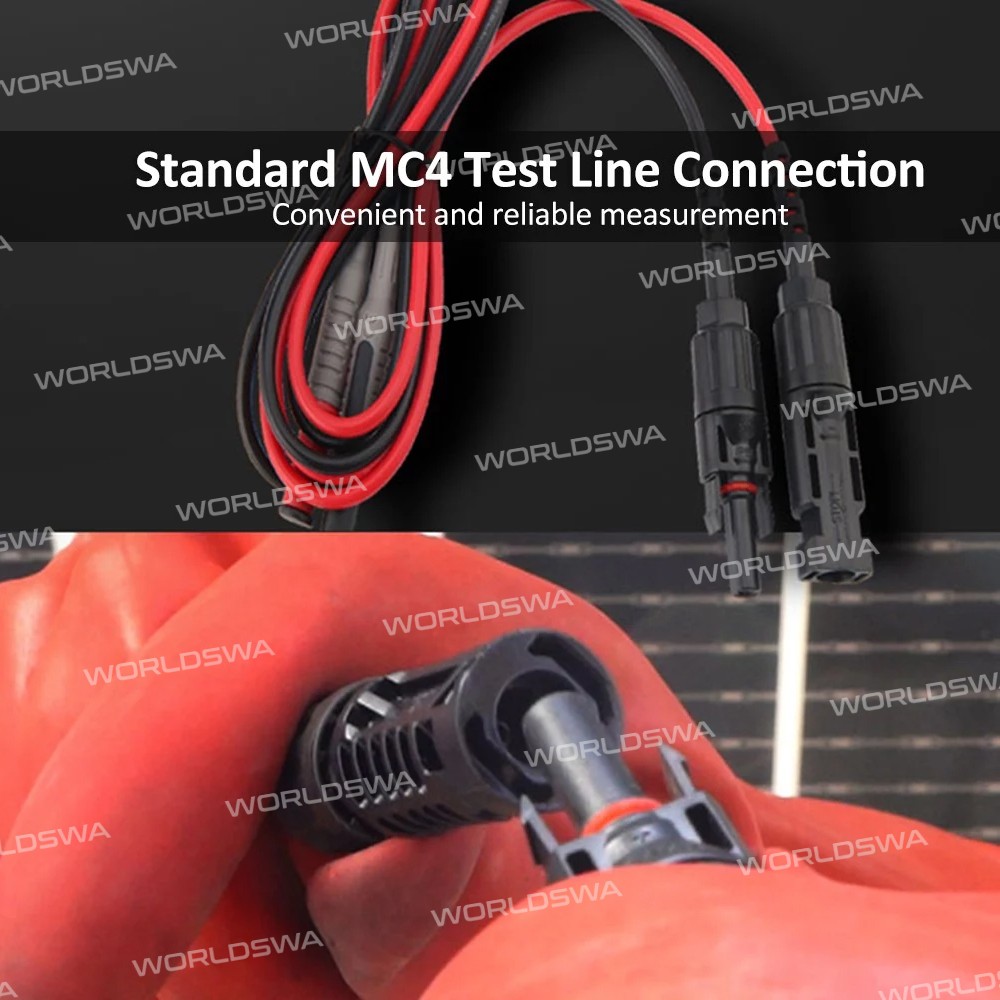

• MC4 test line connection, convenient and reliable measurement.

• No battery power is required, direct power supply from photovoltaic panels.

• CE, ETL, RoHS certification, measurement safety and reliability.

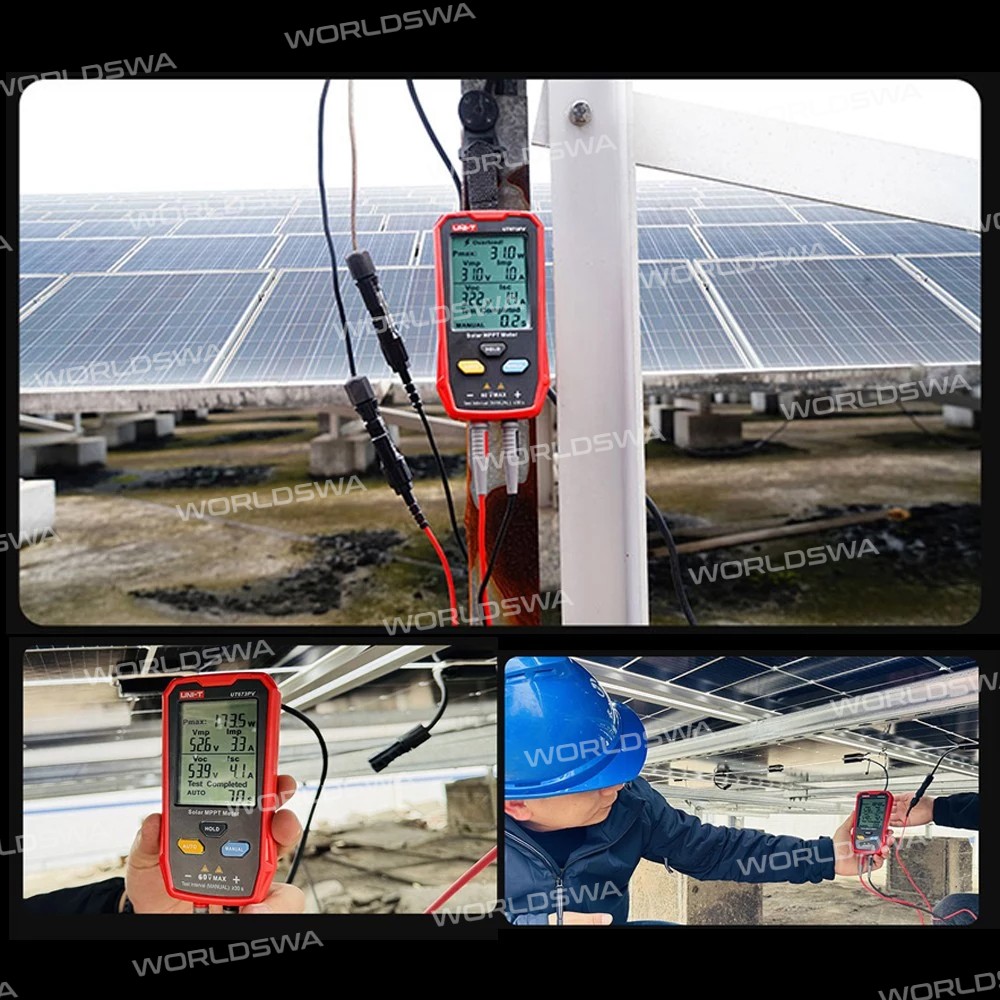

• Application fields: Manufacturers of solar panels, users of solar panels, etc.

Specifications:

• Model: UT673PV

• Material: ABS

• Color: Red + Grey

• Max Power Measurement: 5~800W, ±(1.5%+5)

• Max Power Current (DC): 0~35A, ±(1.5%+5)

• Open Circuit Current (DC): 12~60V, ±(1.5%+5)

• Short Circuit Current (Isc): 0~35A, ±(1.5%+5)

• Input Protection: Yes

• Reverse Protection: Yes

• Over Voltage Protection: Yes

• Over Current Protection: Yes

• Over Temperature Protection: Yes

• Over Power Protection: Yes

• Data Hold: Yes

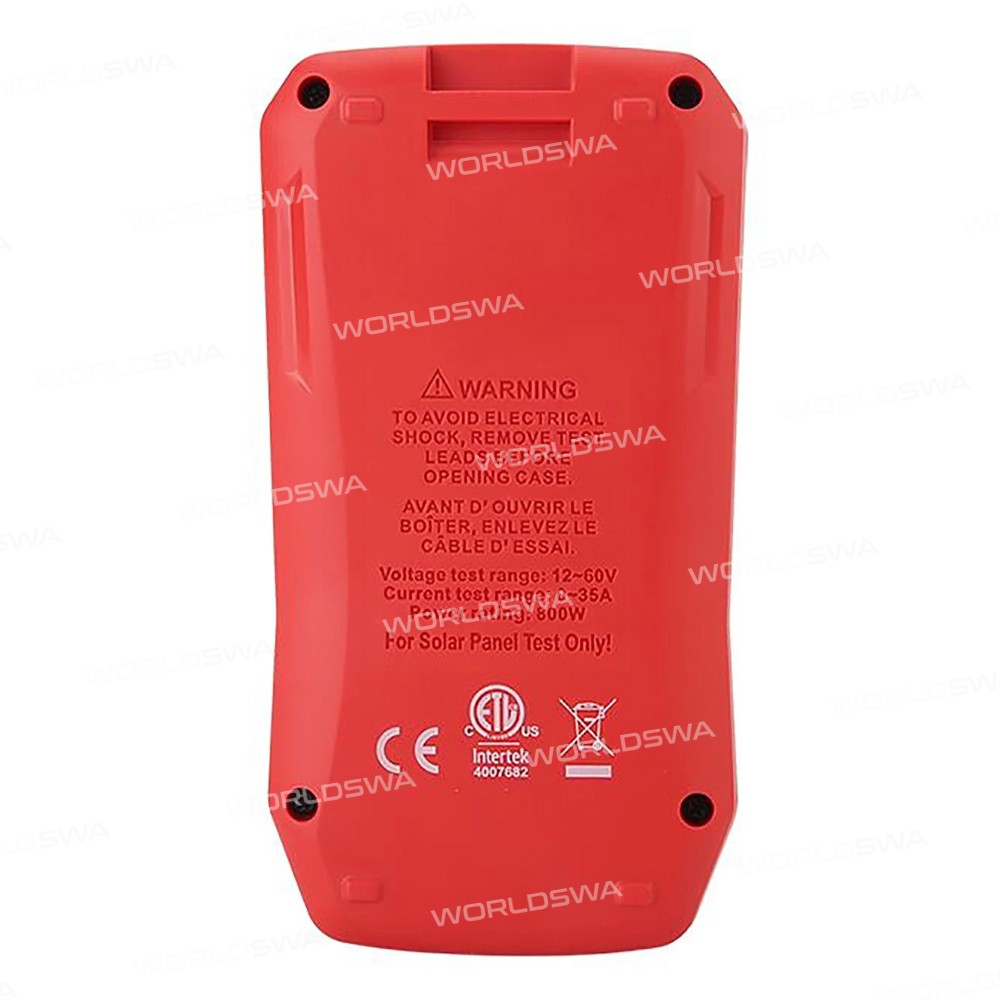

• Certificate: CE, ETL, RoHS

• Power Supply: No battery needed, powered by solar panel

• Item Size: 142 * 76 * 22mm

• Item Weight: 155g

Package includes:

• 1 x Solar MPPT Meter

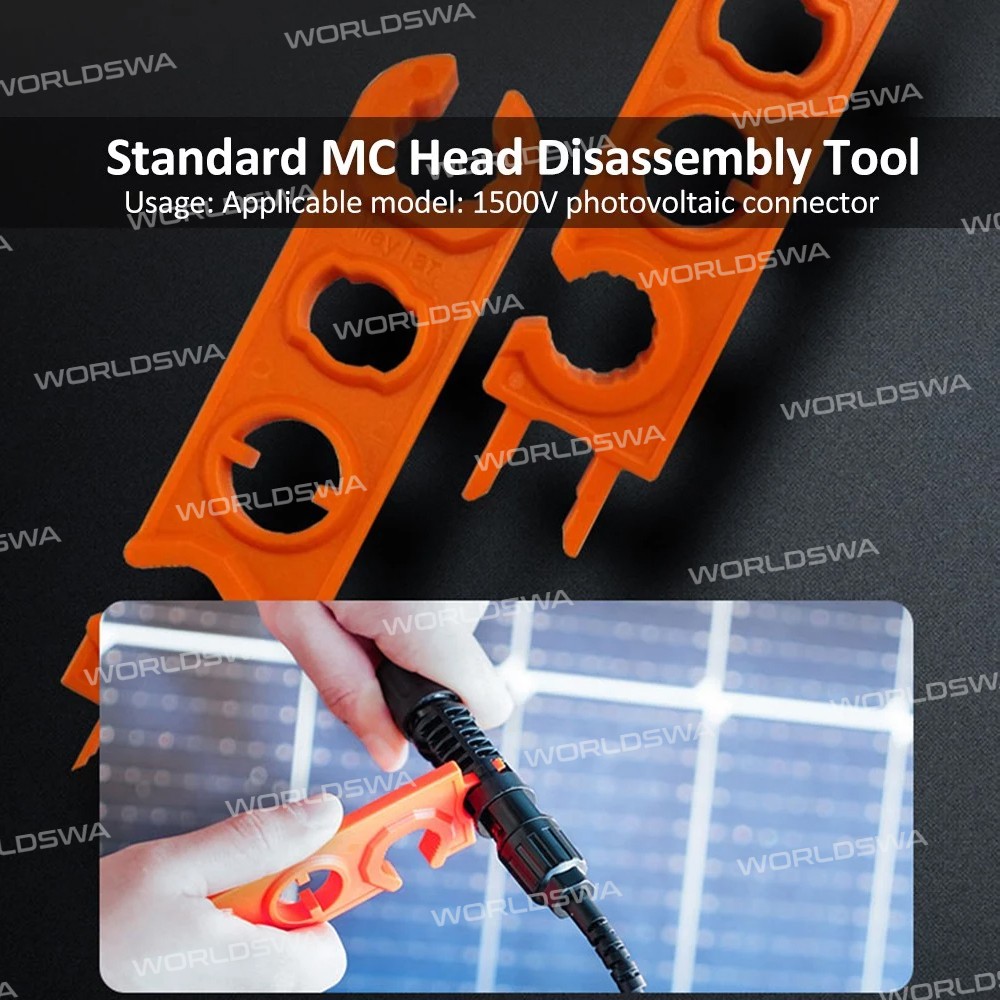

• 1 x MC Head Disassembly Tool

• 1 x MC4 Head Test Line
