**UNI-T UT682 - Wire Tracker**

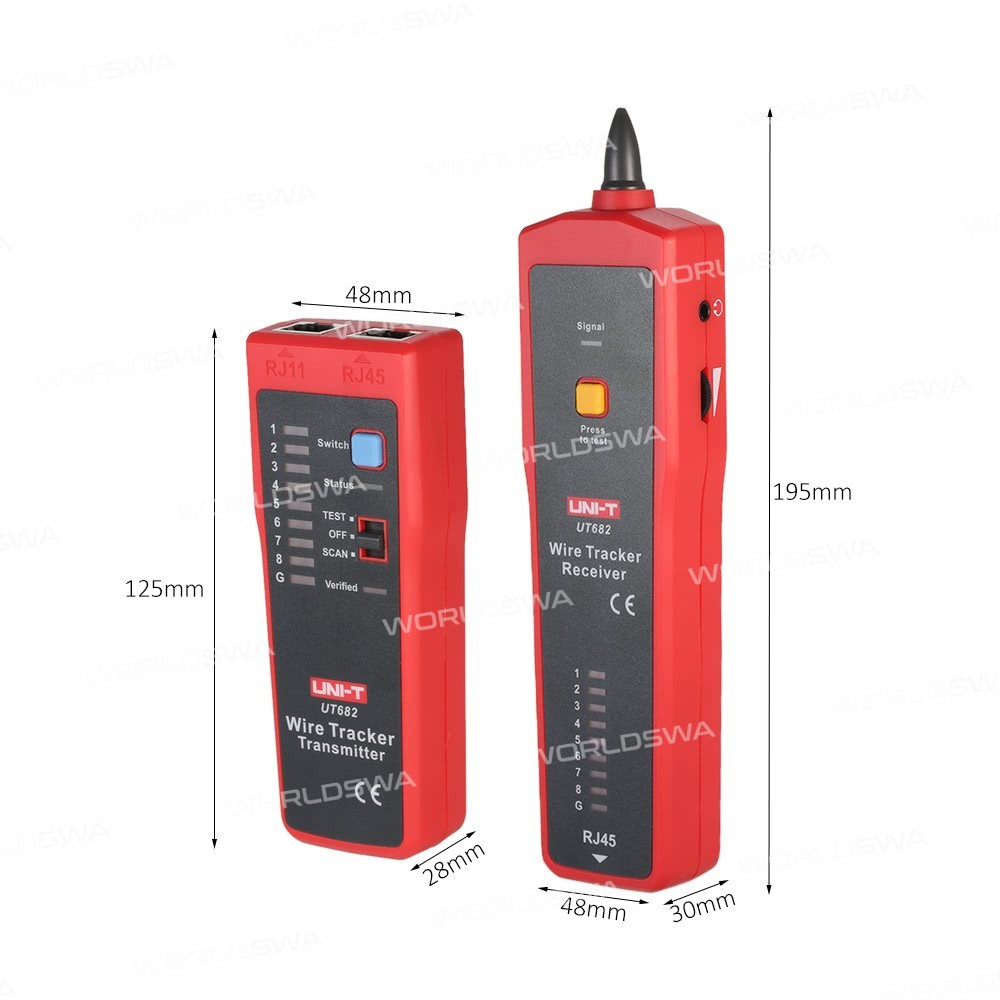

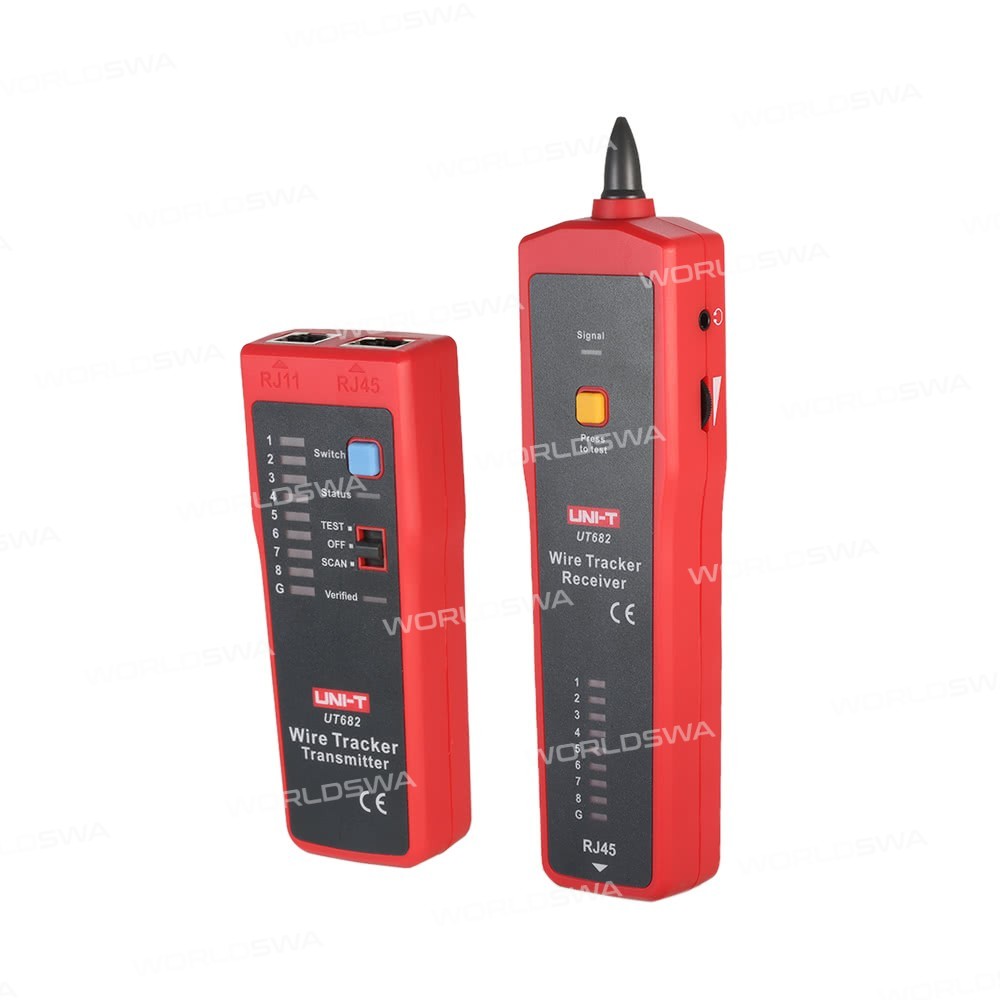

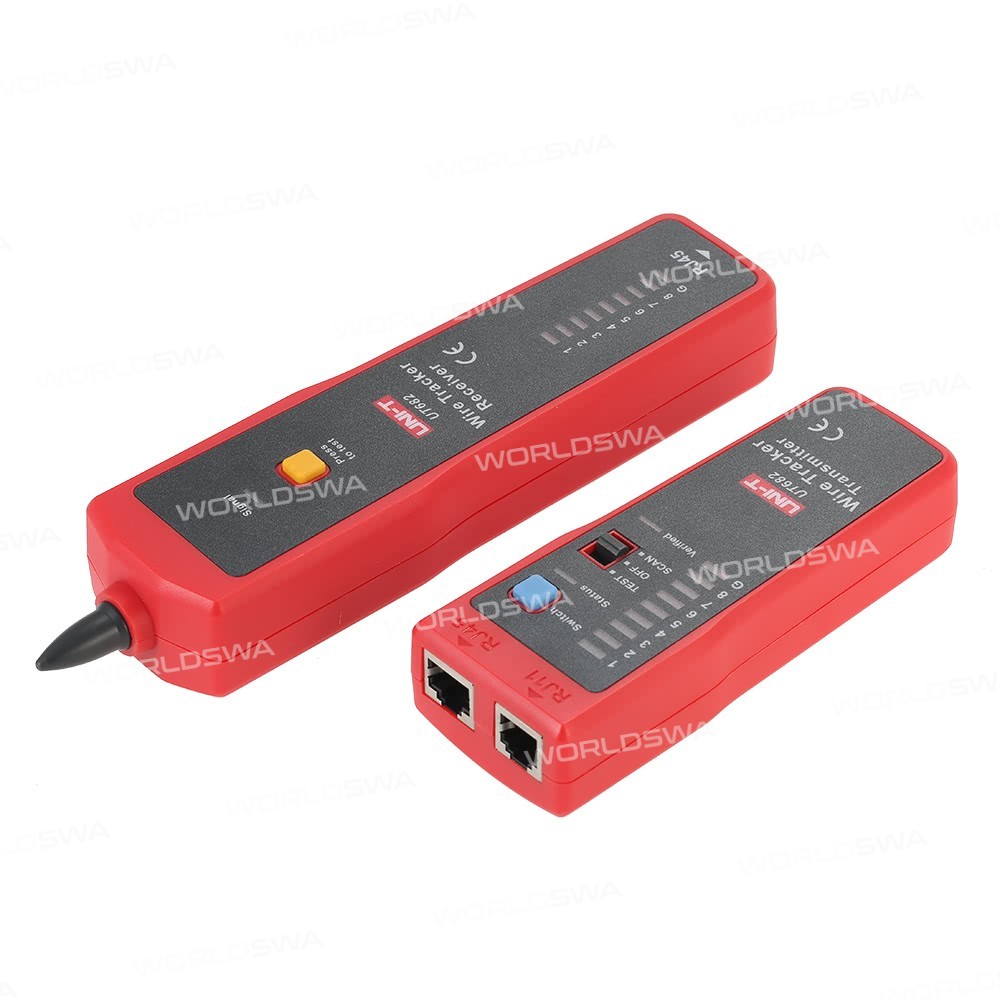

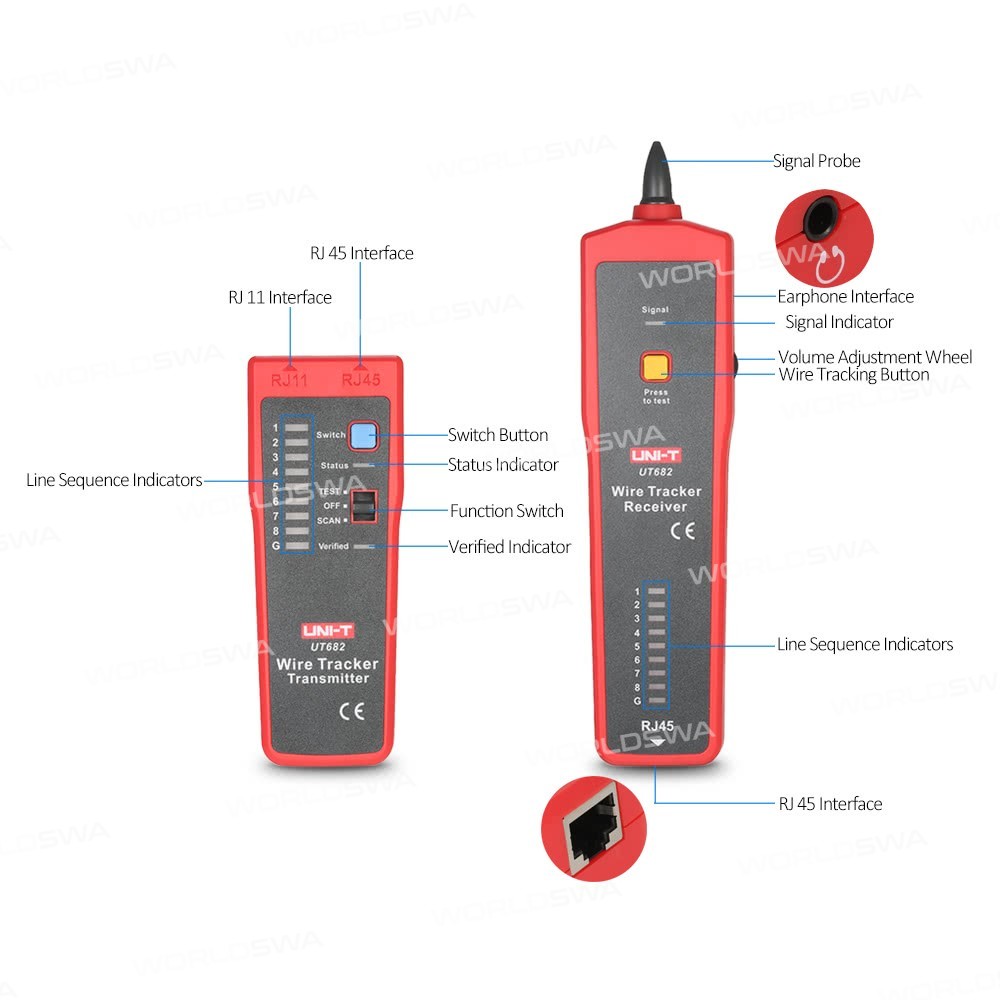

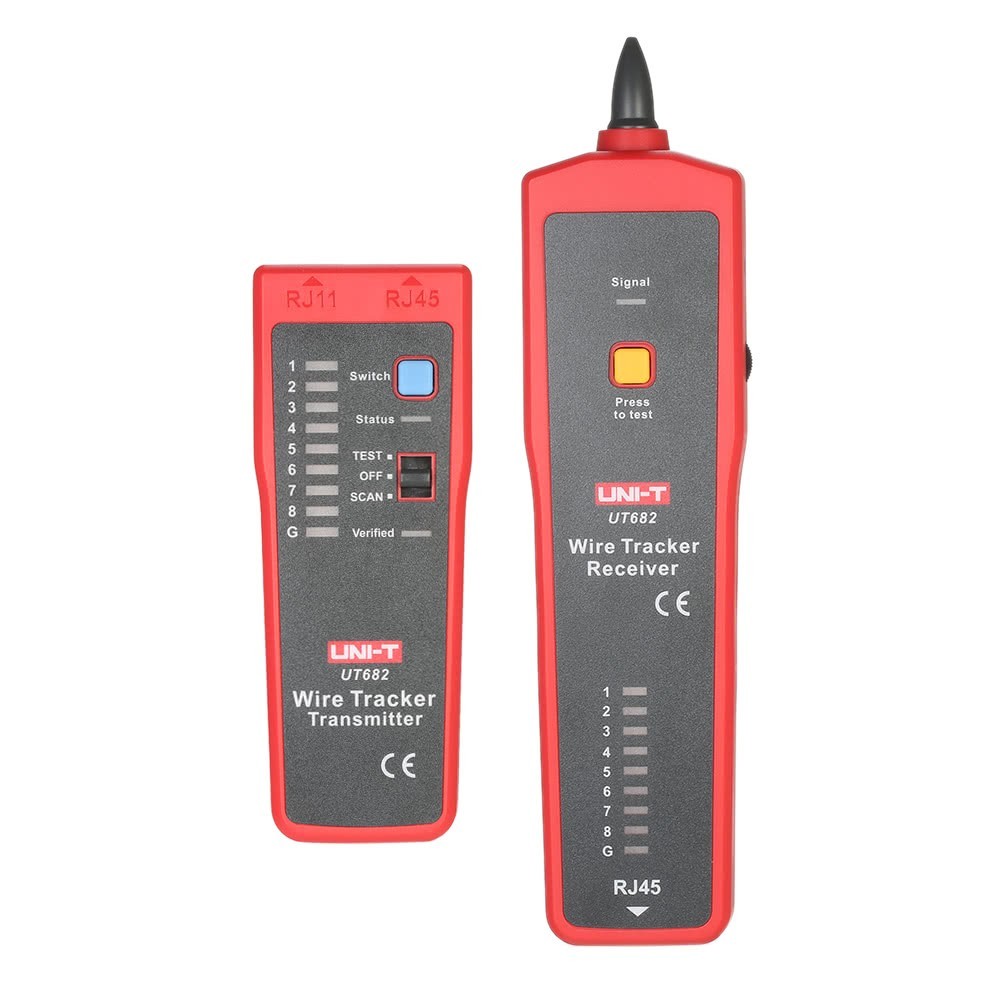

A comprehensive tool for tracking and maintaining network systems with communication lines and integrated wiring circuits. It consists of a transmitter and a receiver, offering fast and accurate measurements for various applications, including telephone wire tracking, network wire tracking, cable wire tracking, and network wire checking.

Features:

• Product name: Wire Tracker

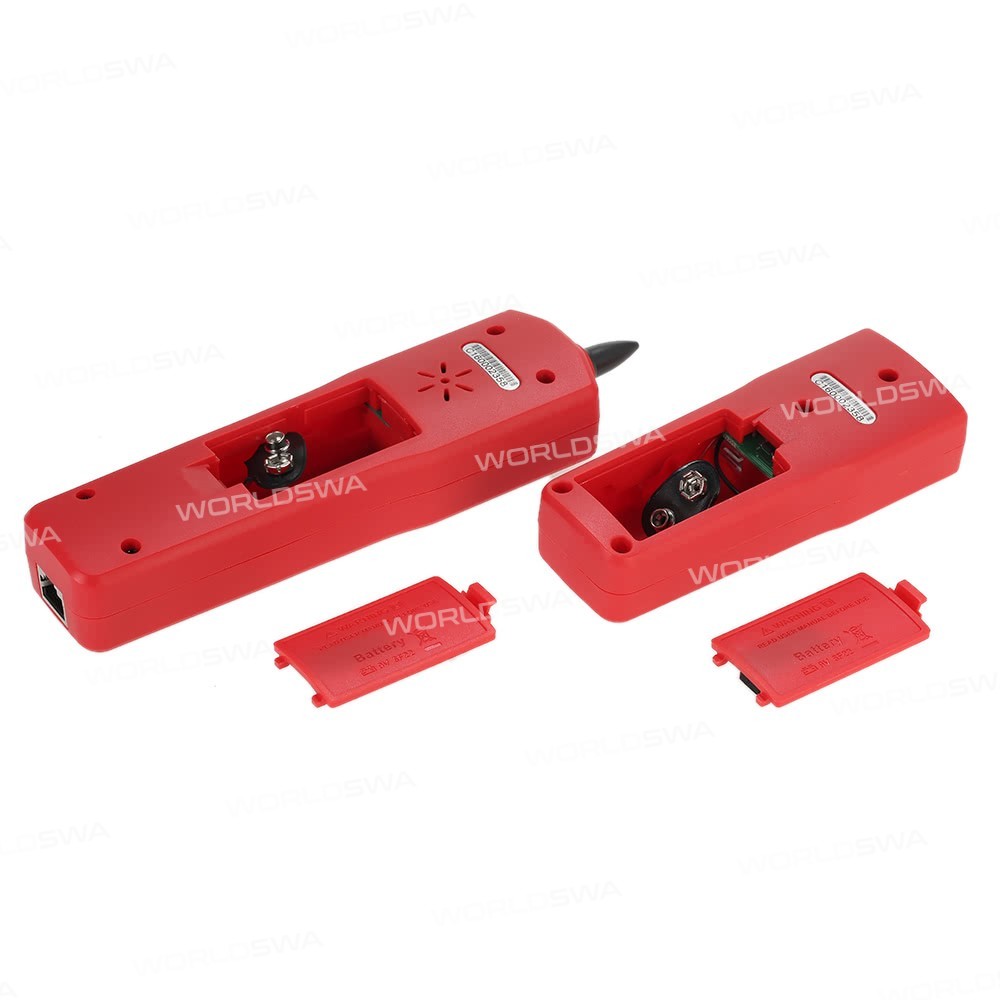

• Power supply: 9V Battery (NOT included)
• Signal transmission form: Multifrequency pulse
• Short circuit, open circuit test: Support
• Telephone line polarity instructions: Support
• Audio signal test range: ≥1000m
• Video line distance: ≥100m
• Low battery indication(Transmitter): Support
• **Summary:** A versatile wire tracker with advanced features for efficient network system maintenance.

**Operation Instructions**

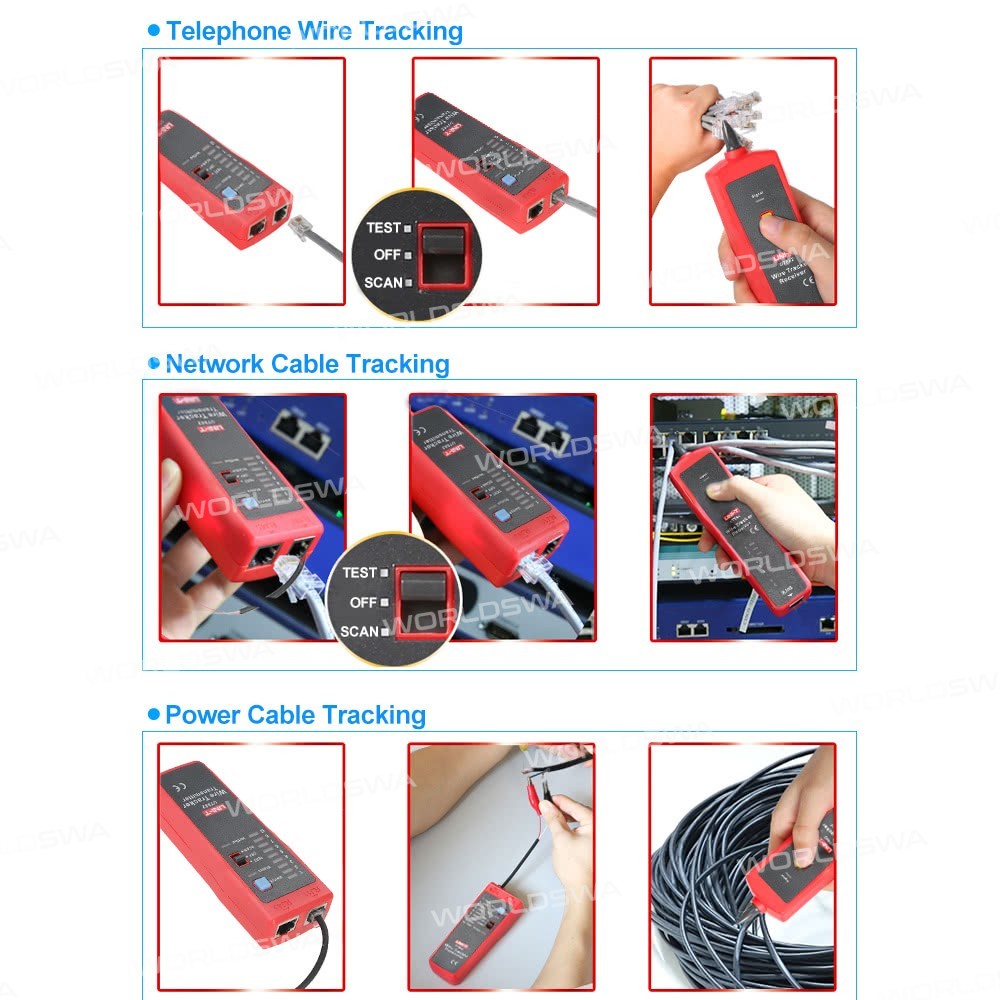

Telephone Line Tracking Function

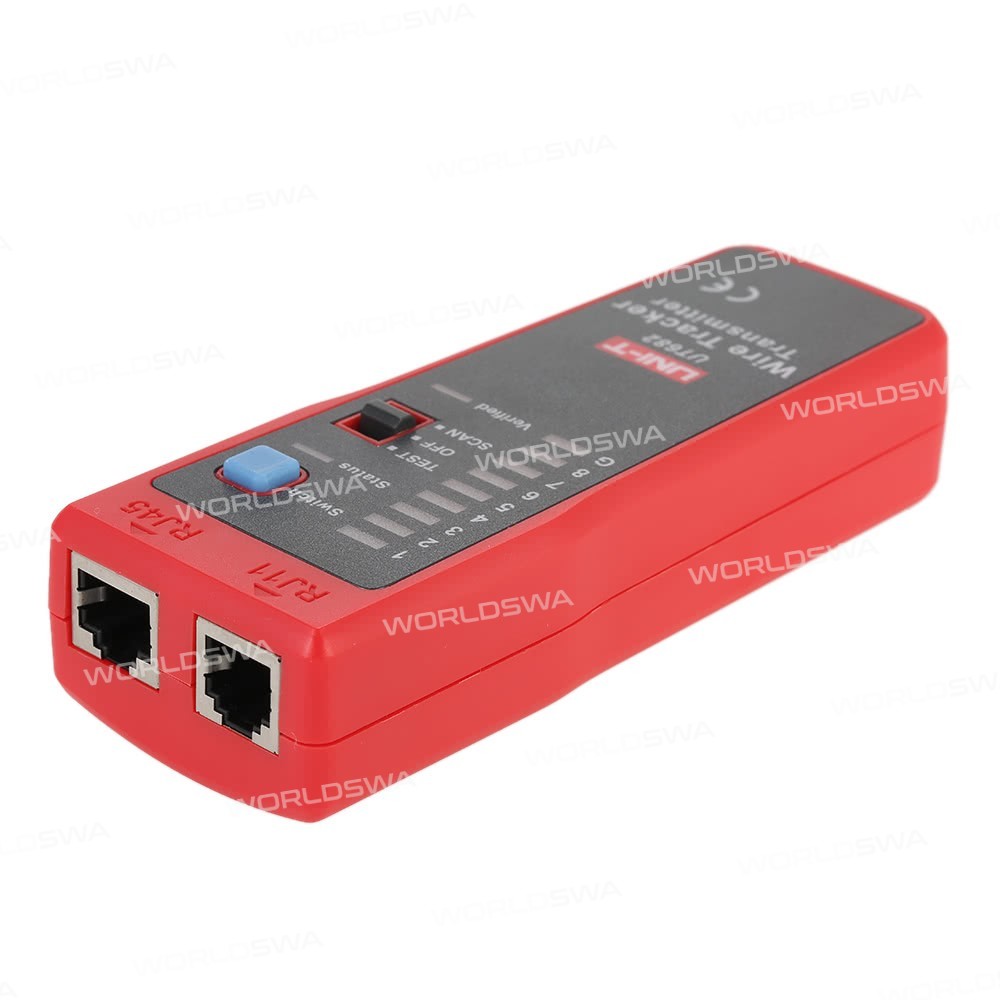

• Connect the telephone line head into the transmitter’s RJ11 interface;

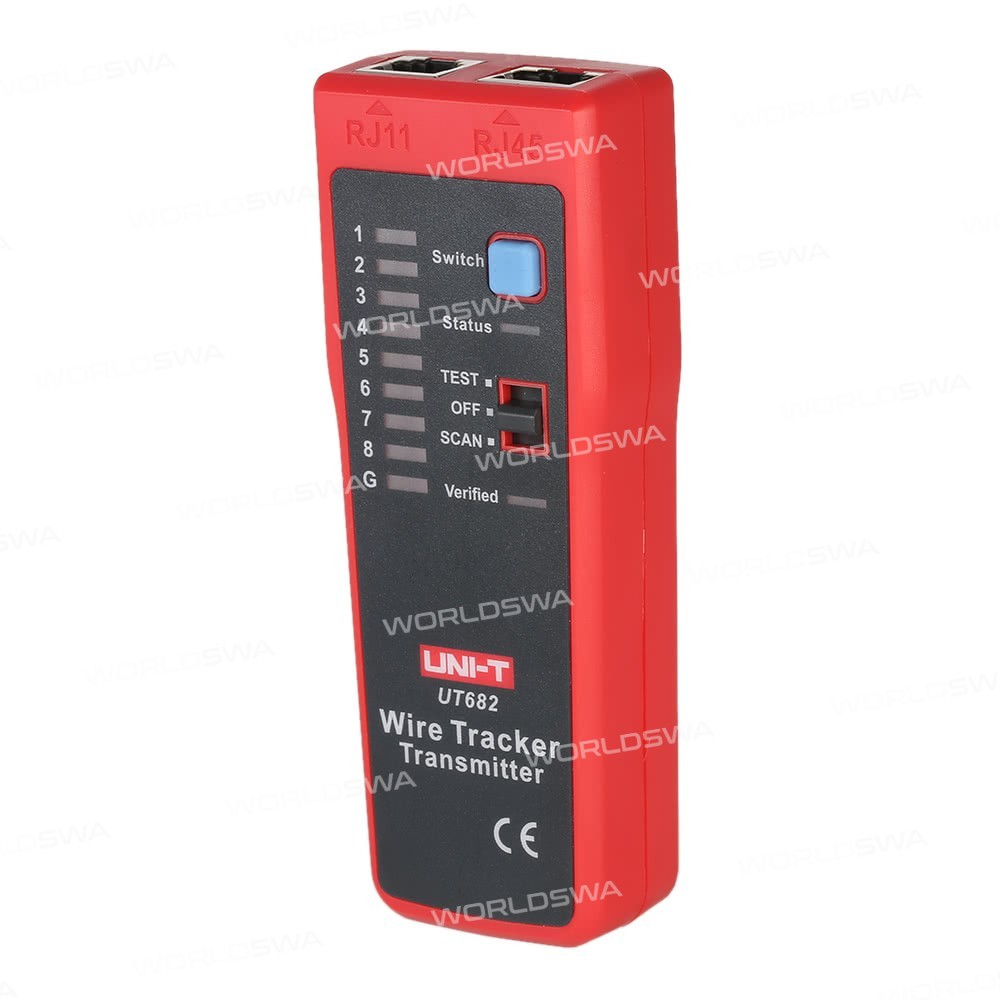

• Press the transmitter functional select switch to the “TEST” position. Line tracking indicator “Status” will flash, indicating that the transmitter works properly;

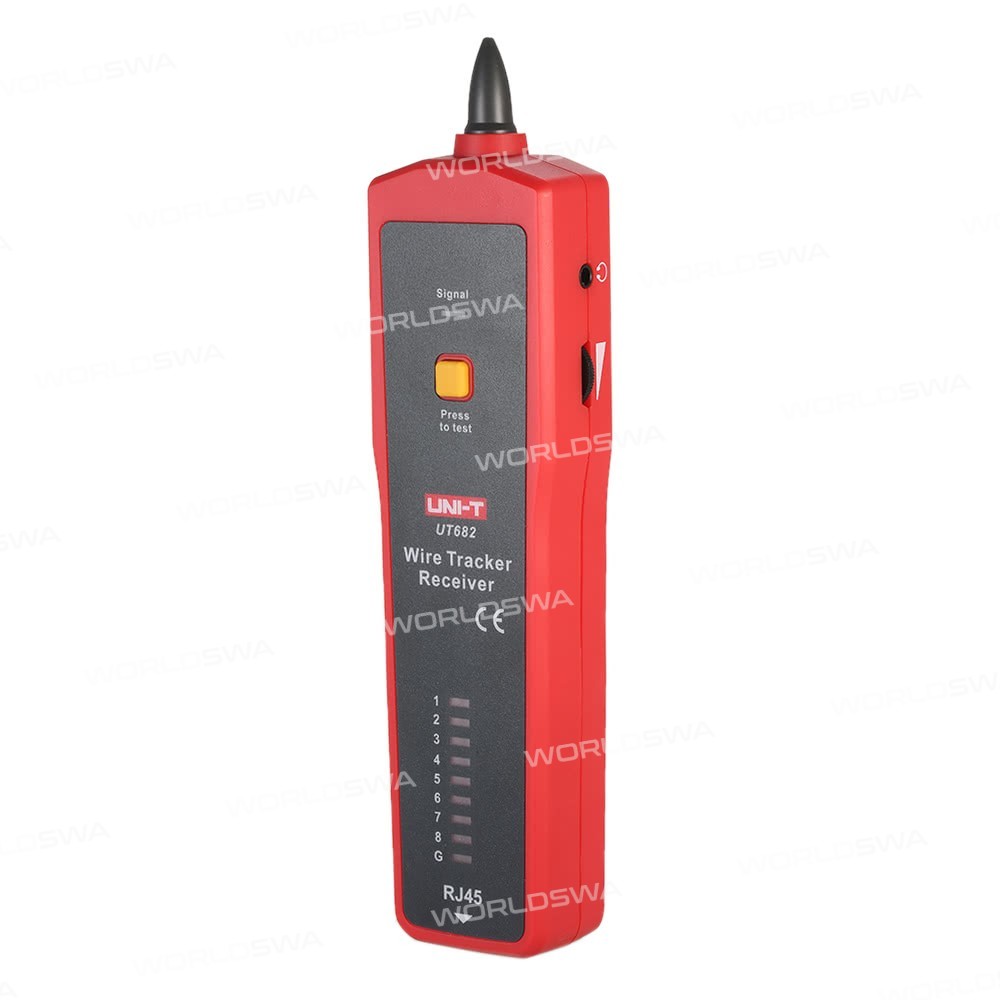

• Hold down the receiver “Press to test” button and look for the target cable with the receiver probe.
• During the testing, lightly press the “Switch” button to switch between single and double audio test patterns.

Network Line Tracking Function

• The network line with a crystal head into the transmitter RJ45 interface;
• Press the transmitter functional select switch to the “TEST” position, Line tracking indicator “Status” will flash, indicating that the transmitter works properly;
• Hold down the receiver “Press to test” button and look for the target cable with the receiver probe.
• During the testing, lightly press the “Switch” button to switch between single and double audio test patterns.

Power Cable Line Tracking Function (Power cable must not be powered)

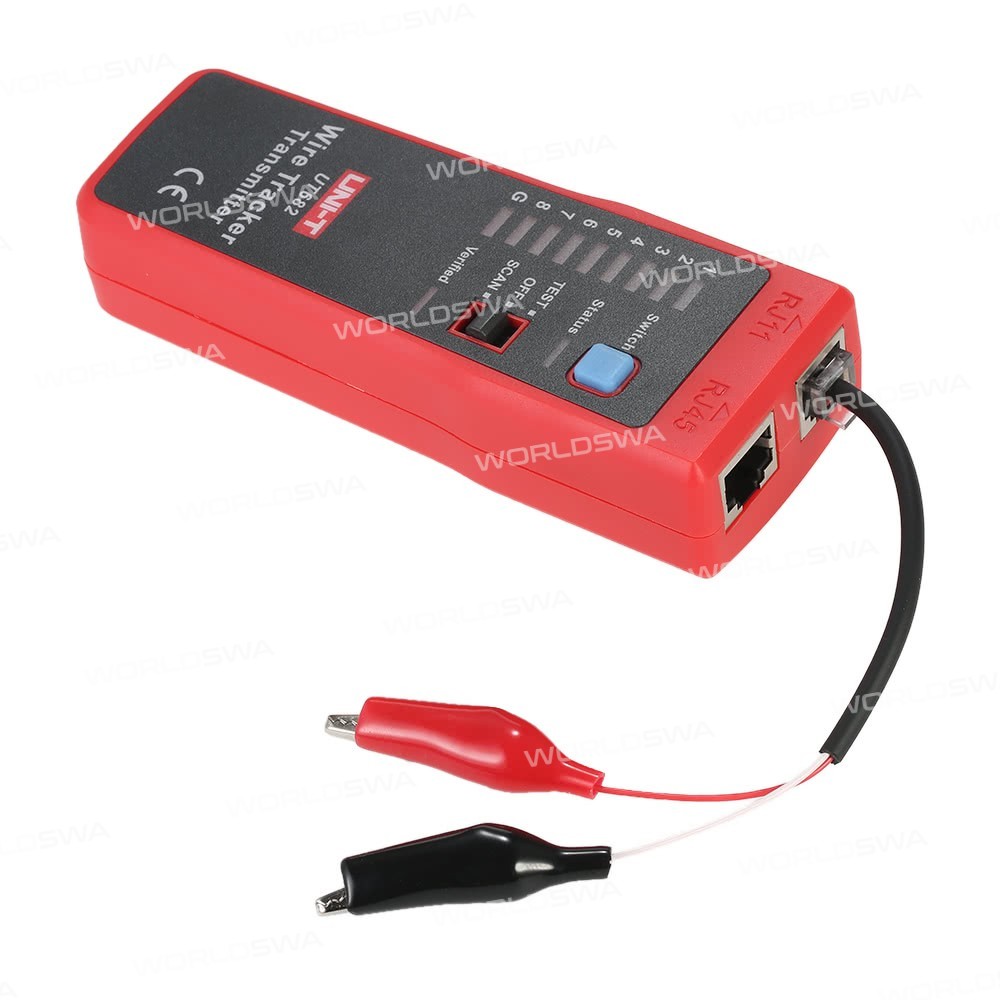

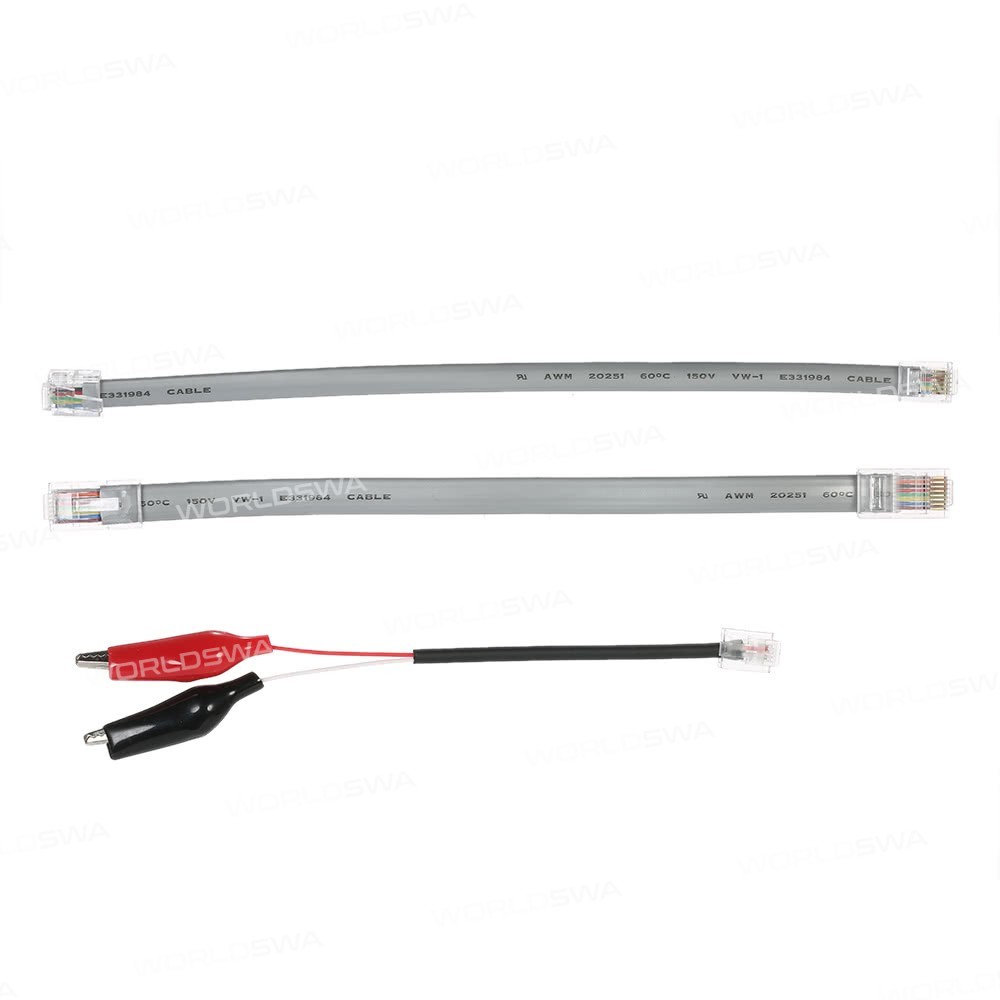

• Connecting the transmitter with the metal cable using alligator clip adapter wiring;
• Adjust the transmitter functional select switch to the “TEST” position, line tracking indicator “Status” will flash, indicating that the transmitter works properly;
• Hold down the receiver “Press to test” button and look for the target cable with the receiver probe.
• During the testing, lightly press the “Switch” button to switch between single and double audio test patterns.
