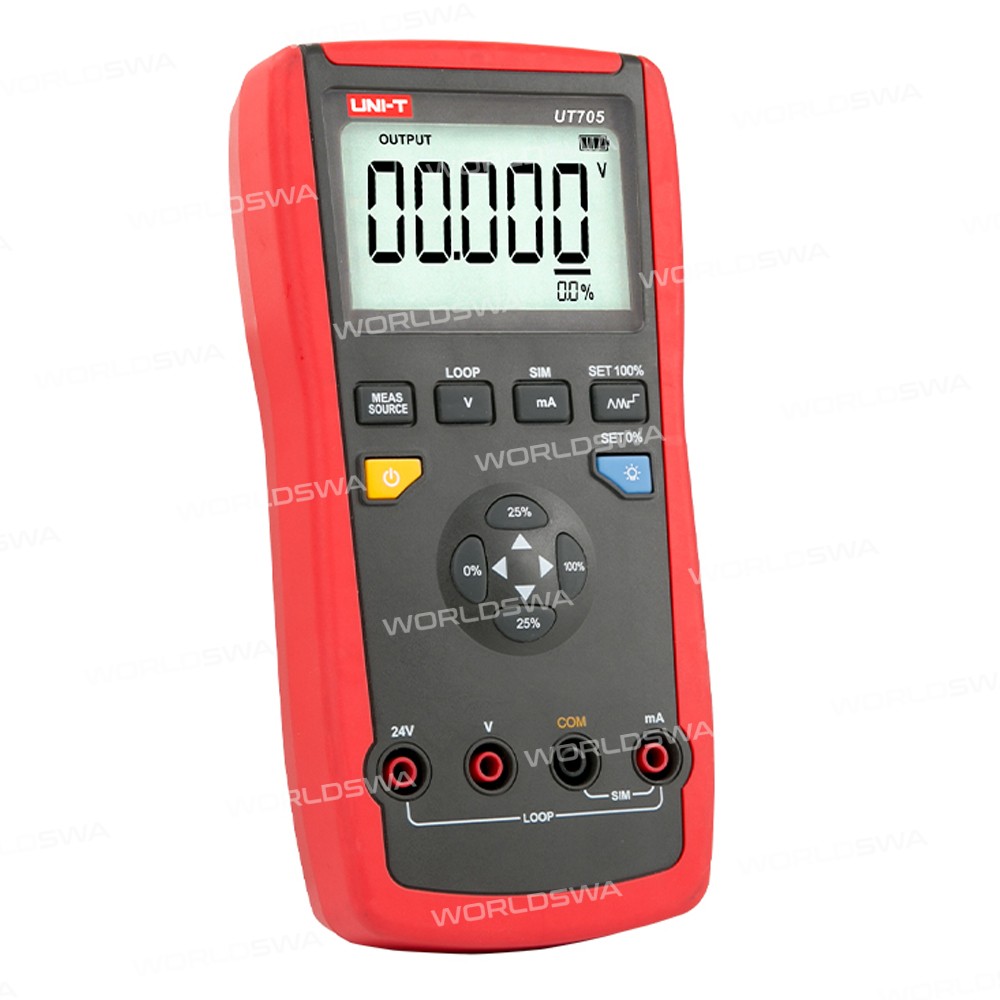

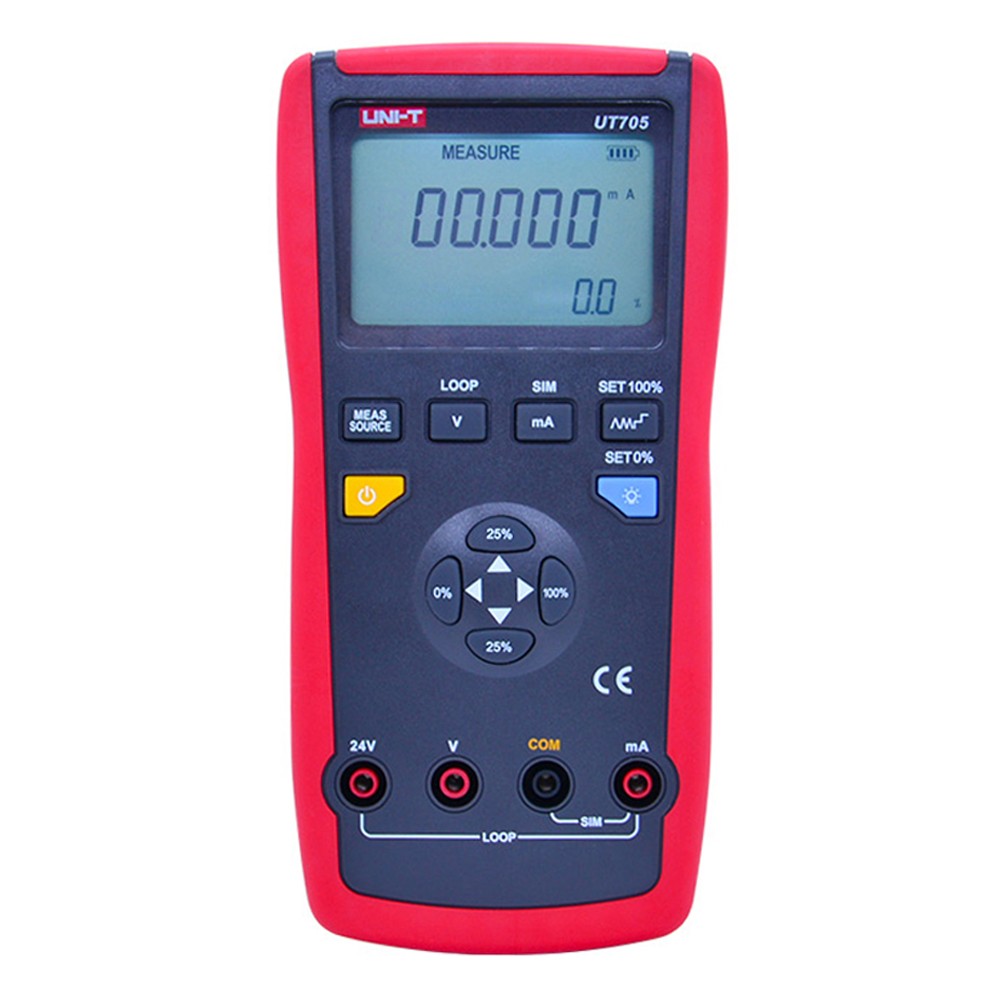

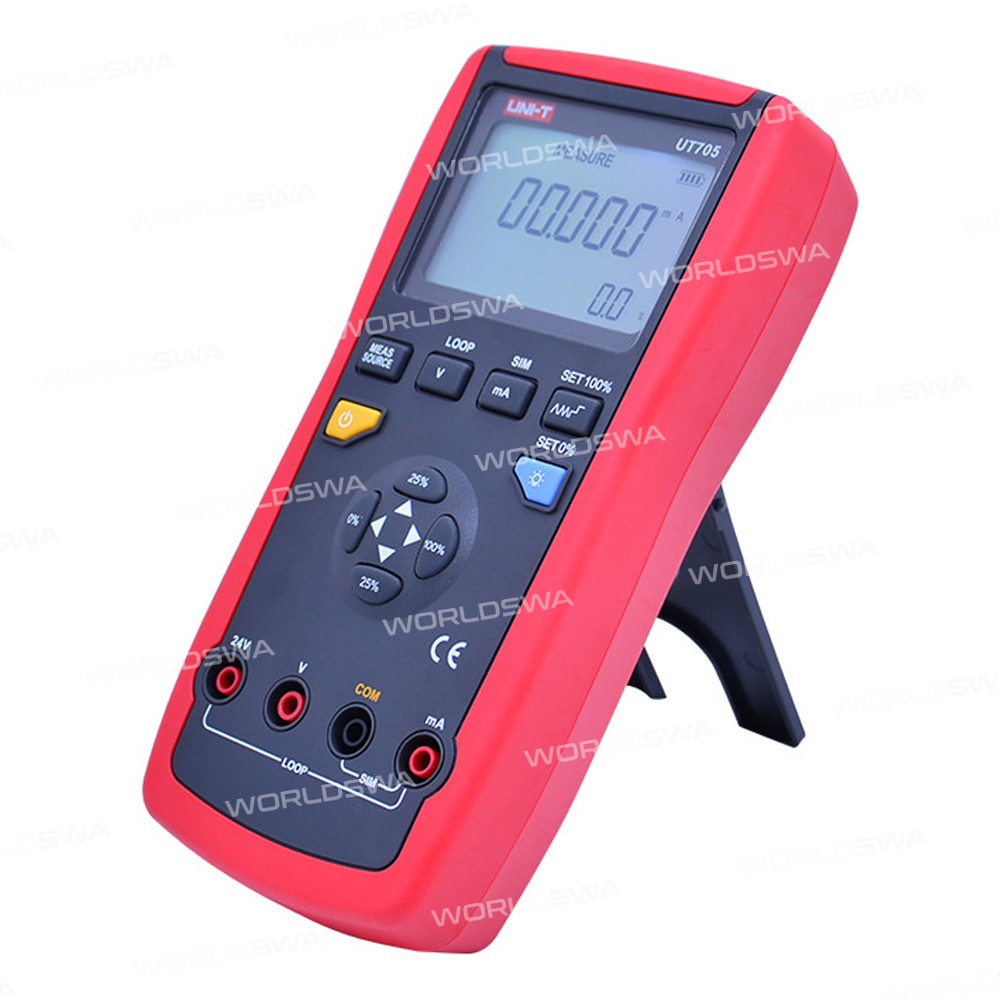

UNI-T UT705 Handheld High Precision Single Function Loop Calibrator for Loop Calibration Repair

UNI-T UT705 Handheld High Precision Single Function Loop Calibrator for Loop Calibration Repair

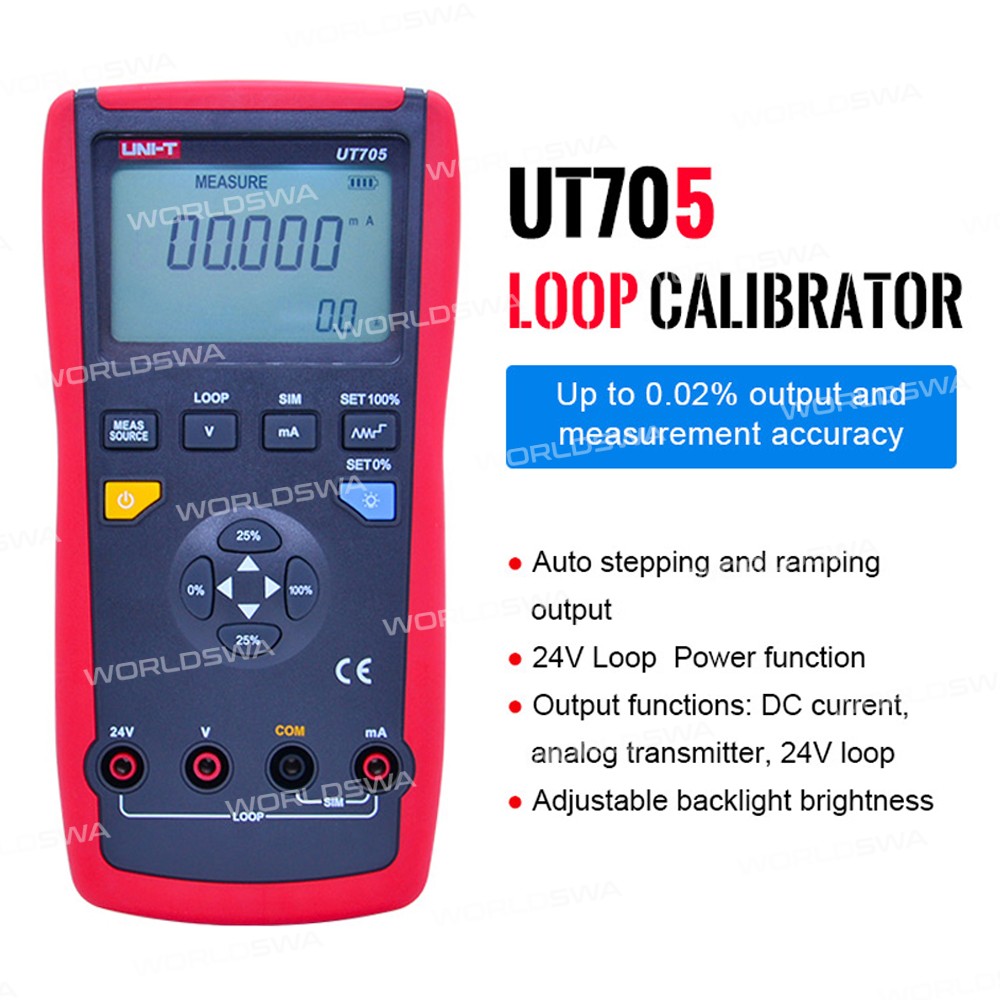

Features:

• Up to 0.02% output and measurement accuracy

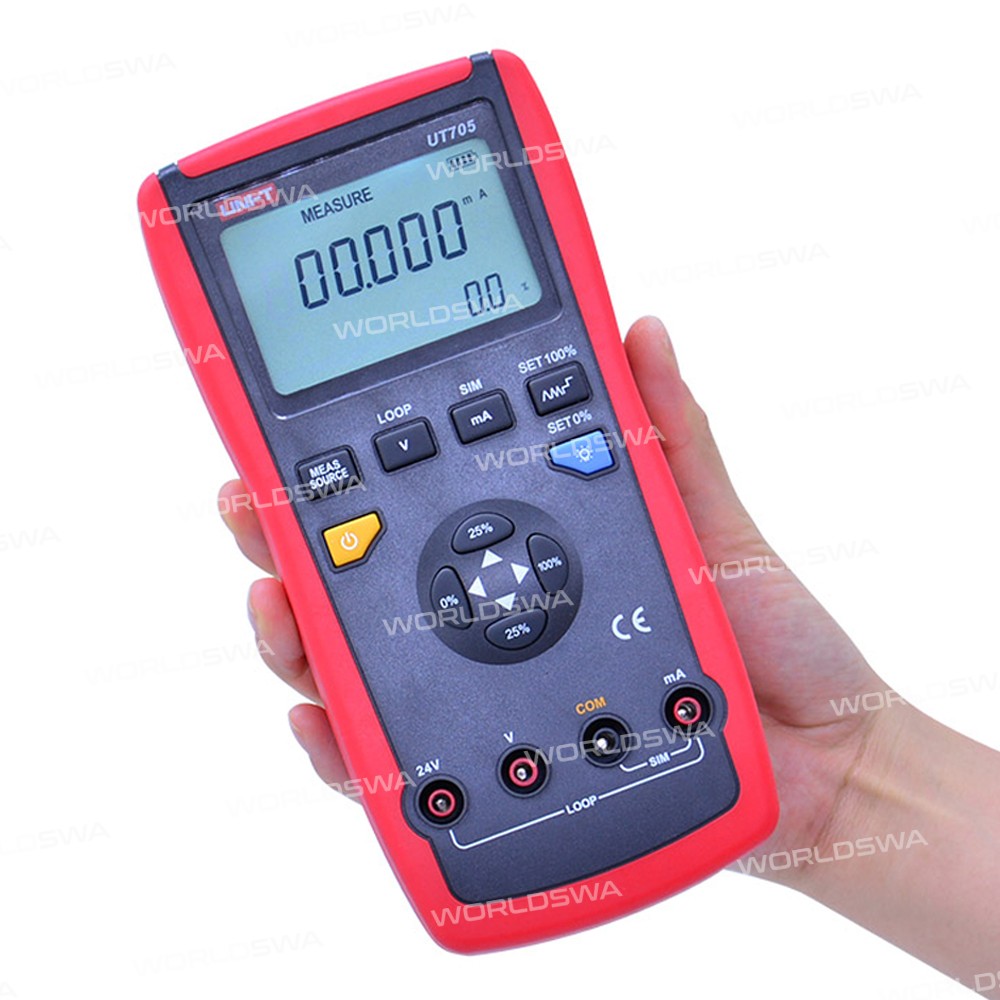

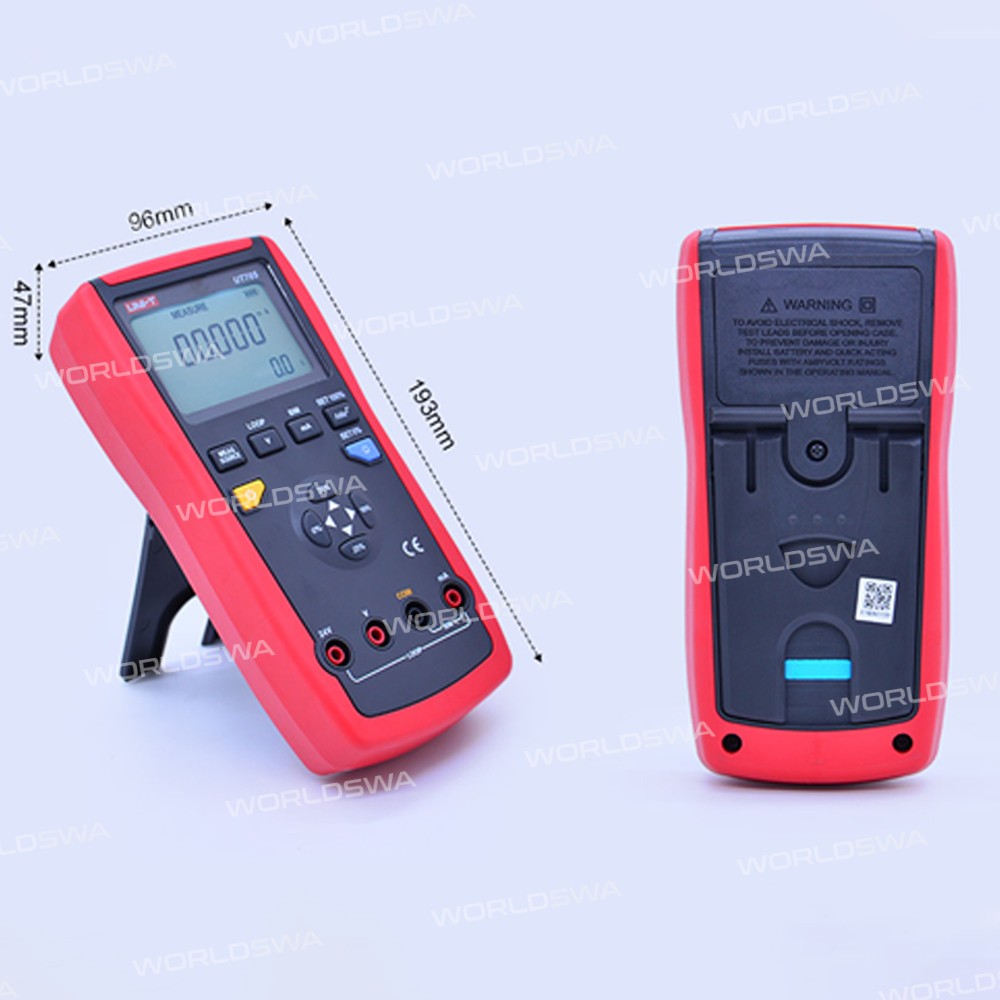

• Compact and ergonomic design, easy to carry

• Solid and reliable, suitable for on-site use

• Auto stepping and ramping output for fast linearity detection

• Measures: DC voltage, DC, 4-20mA loop current

• Output functions: DC, analog transmitter, 24V loop  (Conduct mA measurement while providing loop power to the transmitter)

• Save frequently-used settings for future use

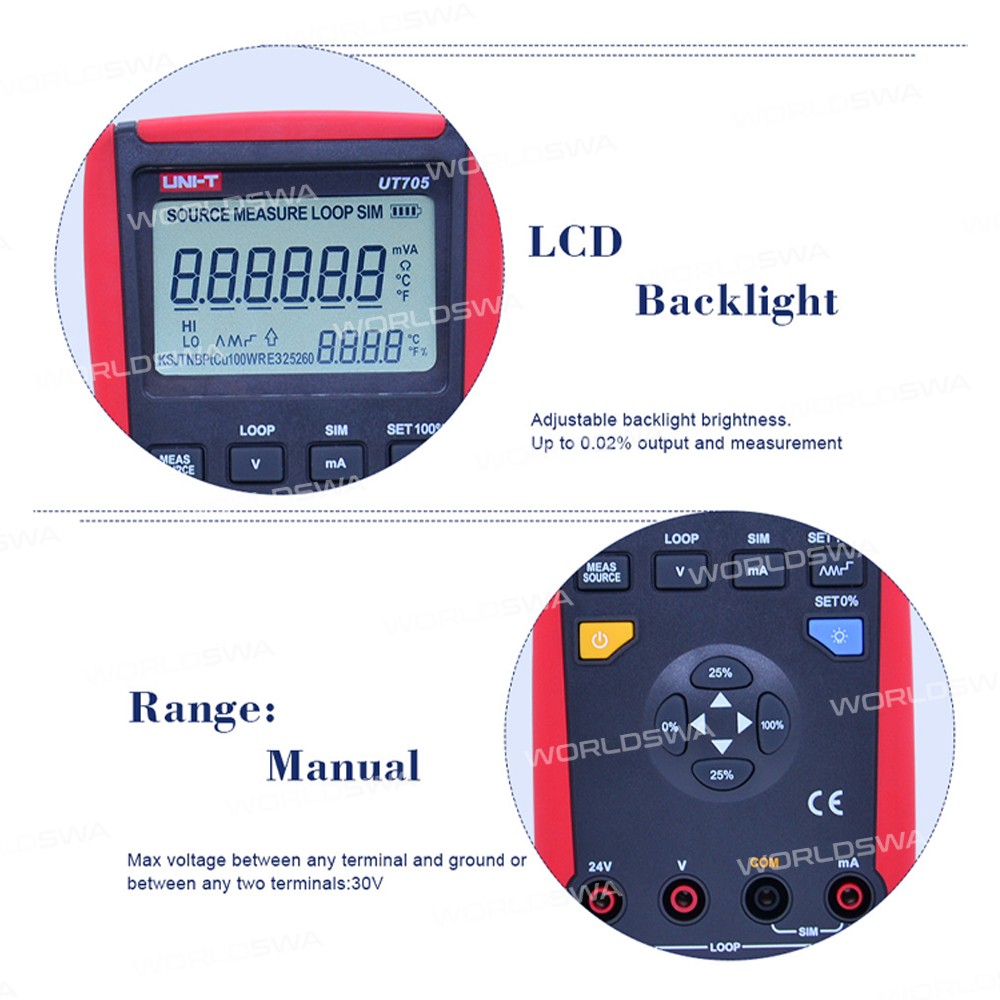

• Adjustable backlight brightness

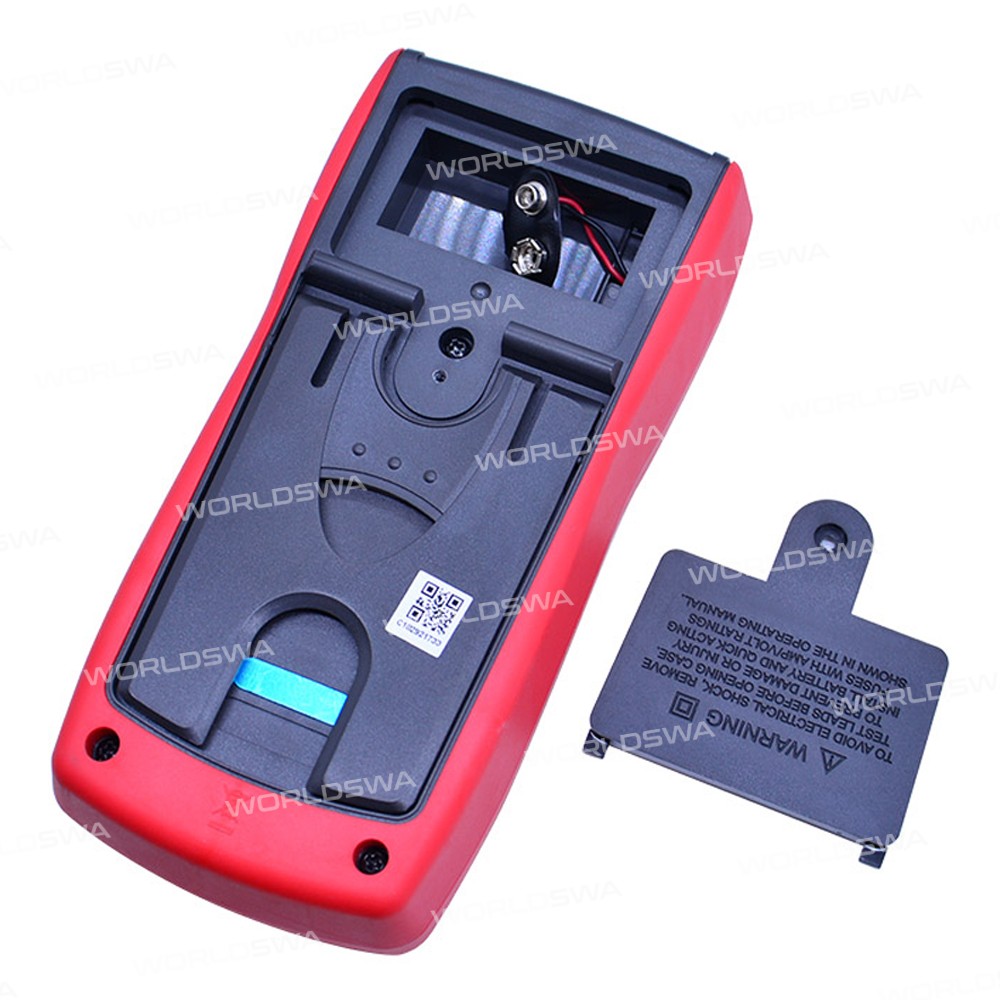

• Convenient battery replacement

Specification:

Range	Maxmeasurement range	Resolution	Accuracy
DC Voltage Measurement
30V	0V~30V	0.001V	±(0.02% +2)
DC Current Measurement
24mA	0~24mA	0.001mA	±(0.02% +2)
24mA(LOOP)	0~24mA	0.001mA	±(0.02% +2)
DC Current Output

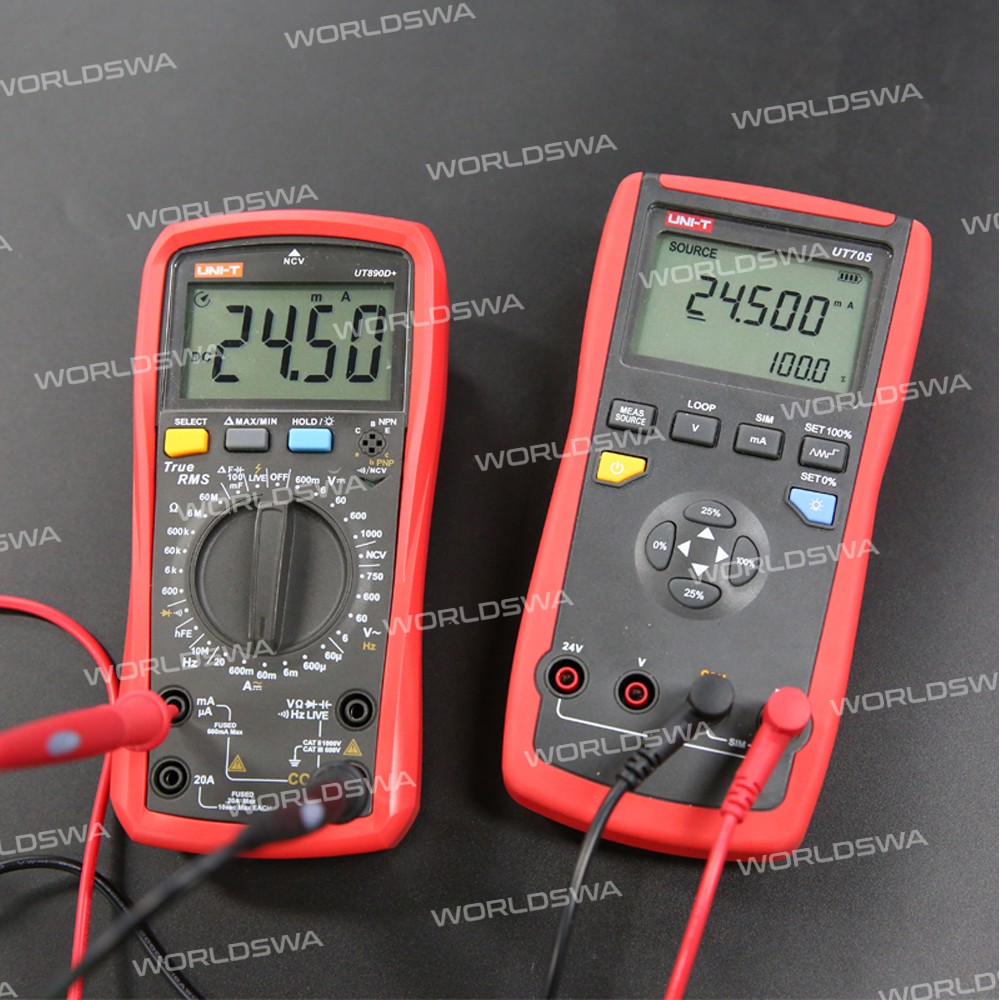

24mA	0~24mA	0.001mA	±(0.02% +2)
24mA Simulating transmitter	0~24mA	0.001mA	±(0.02% +2)
24V Power Supply: Accuracy: 10%
Ramp functions	Source functions: Voltage, resistance, temperature
	Ramps: Slow ramp, fast ramp, 25% step-ramp
Step functions	Source functions: Voltage, resistance, temperature
	Steps: 25% of range, 100% of range

Package includes:

• 1 x Loop Calibrator(without Battery)

• 1 x Test Leads

• 1 x Alligator Clip
