UNI-T UT805A+ Full-Range True RMS Desktop Digital Multimeter with Temperature Testing and Anti-Burning Protection

UNI-T UT805A+ Full-Range Anti-Burning True RMS Desktop Digital Multimeter with Temperature Testing

Overview

The UNI-T UT805A+ is a high-precision desktop digital multimeter designed for professionals and serious DIY enthusiasts. With its advanced features and high-accuracy measurements, it's perfect for production QA, maintenance, research, and education applications.

Features:

• **High-Accuracy Measurements**: 200,000 display count, auto range, and true RMS for accurate readings
• **Fast Sampling Rate**: Up to 5,000 rdgs/s for capturing fast-changing signals
• **Multiple Mathematical Operations**: Perform pass/fail, relative value, minimum/maximum/average, standard deviation, dBm, dB, hold, histogram, trend chart, and bar chart calculations
• **Arbitrary Sensor Measurement**: Supports various sensor measurements, including temperature, pressure, and more
• **Built-in Thermocouple Cold Junction Compensation**: Ensures accurate temperature readings
• **Large Storage Capacity**: 1GB flash memory storage for up to 10,000 data records

Specifications:

• **Model**: UT805A+
• **DC Voltage**: 20mV/2V/20V/200V/1000V ±(0.008%+0.003%)
• **AC Voltage**: 200mV/2V/20V/200V/750V ±(0.19%+0.05%)
• **DC Current**: 200μA/2mA/20mA/200mA/2A/10A ±(0.050%+0.005%)
• **AC Current**: 2mA/20mA/200mA/2A/10A ±(0.30%+0.1%)
• **Resistance**: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10MΩ/100MΩ ±(0.012%+0.003%)
• **Capacitance**: 2nF/20nF/200nF/2μF/20μF/200μF/2mF ±(1%+0.5%)
• **Frequency**: 20Hz~1MHz ±(0.01%+0.003%)
• **Temperature**: -270°C~1760°C (Thermocouple and thermal resistance sensor supported) ±0.5°C
• **Display Count**: 200,000
• **Auto Range**: Yes
• **True RMS**: Yes
• **Sampling Speed**: 5,000 rdgs/s
• **Data Storage**: 10,000 data records; 1GB Nand Flash total storage
• **Frequency Response**: 100kHz
• **Diode/Triode**: Yes
• **Continuity Buzzer**: Yes
• **Data Hold**: Yes
• **Mathematical Operations**: Pass/Fail, relative value, minimum/maximum/average, standard deviation, dBm, dB, Hold, histogram, trend chart, and bar chart
• **Voltage Current**: AC+DC
• **Input Resistance**: ≥10GB or 10MΩ

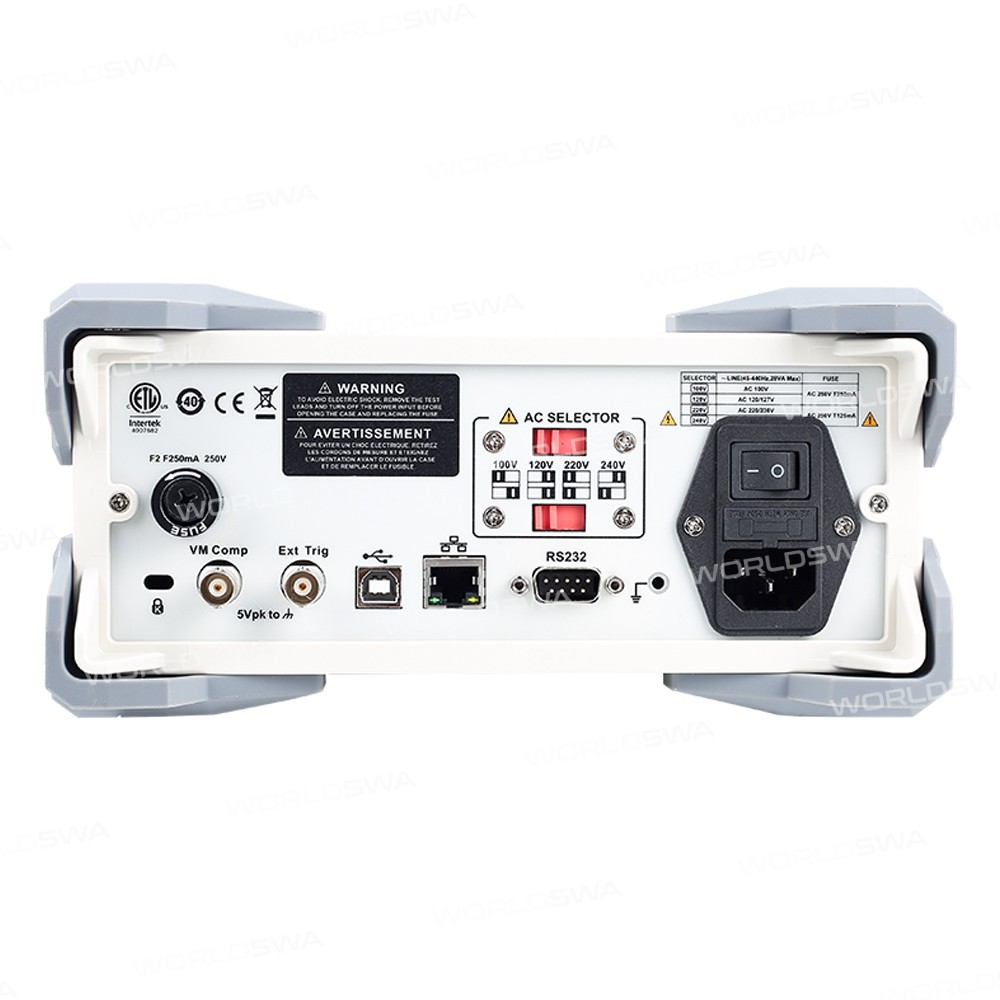

• **Interface**: USB Host, USB Device, LAN, RS-232
• **Power**: AC 100V/200V

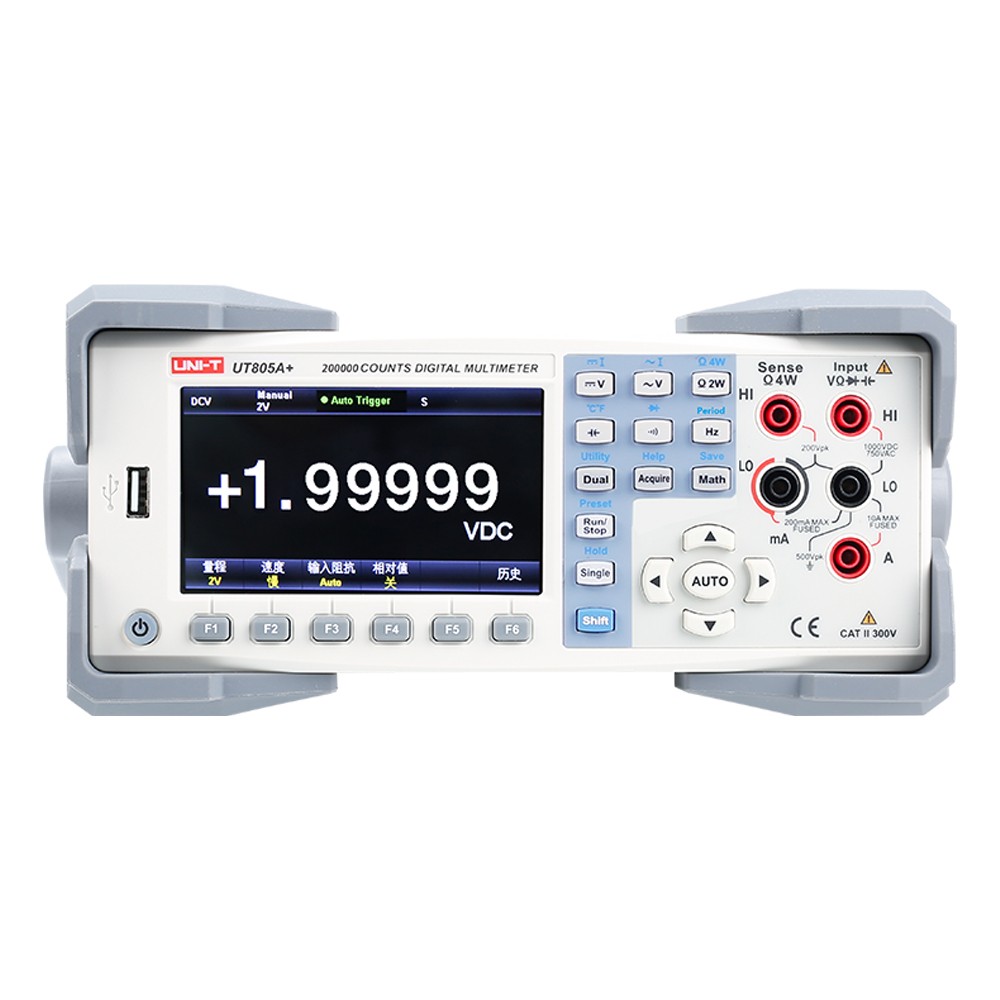

• **Display**: 4.3 inches TFT LCD
• **Product Color**: White and Grey
• **Product Net Weight**: 4.4kg
• **Product Size**: 239*100*344mm

Package Includes:

• 1 x Multimeter
• 1 x Power Cord
• 1 x USB Cable
• 1 x Test Leads
• 1 x Temperature Probe
